**This product is part of the Ubiquiti Enterprise line and cannot be purchased without approval.**
To proceed, Ubiquiti requires project registration before order approval. Please complete the short form using the button below.
**Please note: This is a final sale item and is non-returnable.**
EFG
Ubiquiti | Enterprise Fortress Gateway – High-Availability Multi-WAN Gateway with 12.5 Gbps IPS & 500+ UniFi Device Support
Enterprise-grade 25G cloud gateway with 12.5 Gbps IDS/IPS throughput, advanced Layer 7 firewall, and support for over 500 UniFi devices and 5,000 clients. Ideal for high-density, high-security network environments.

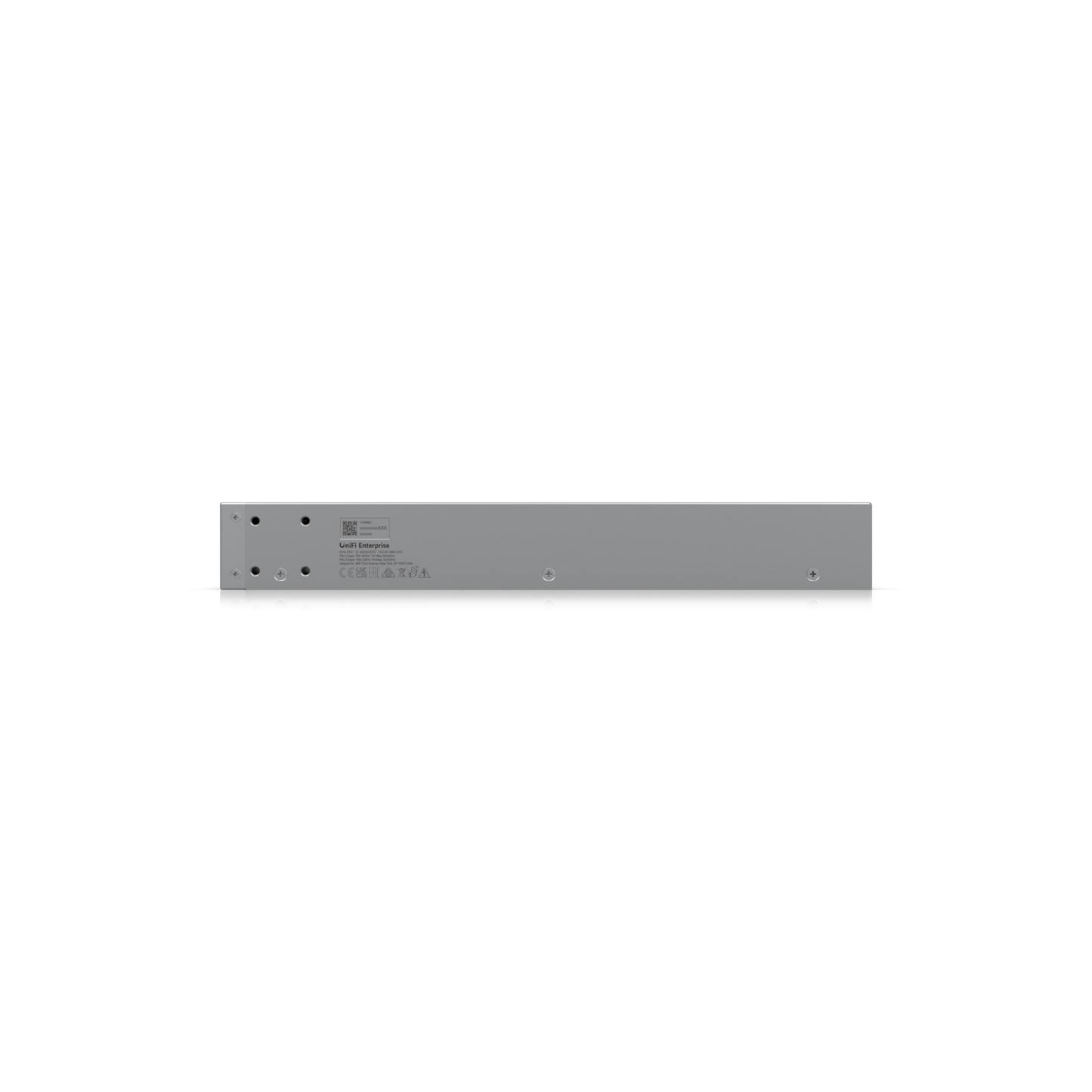

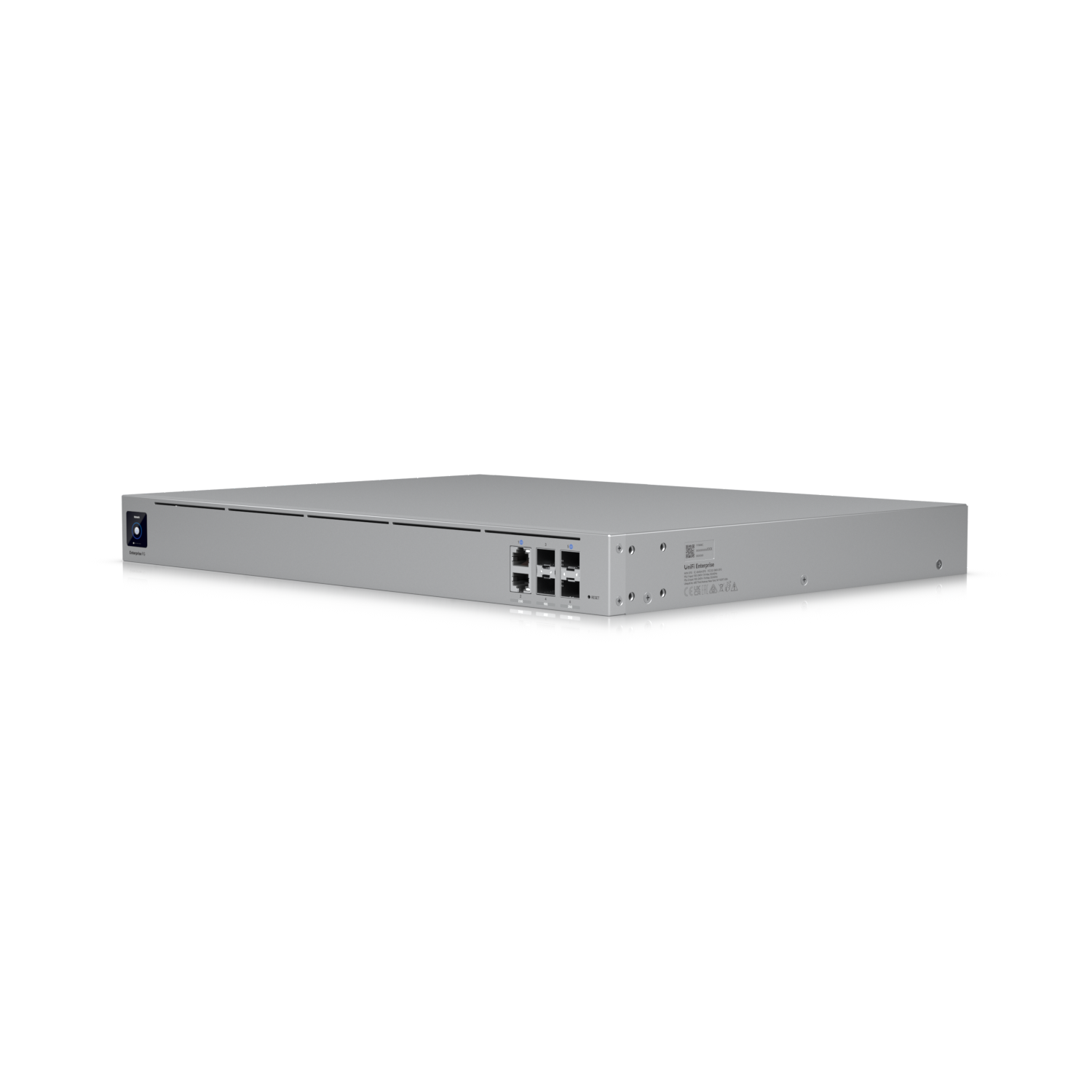

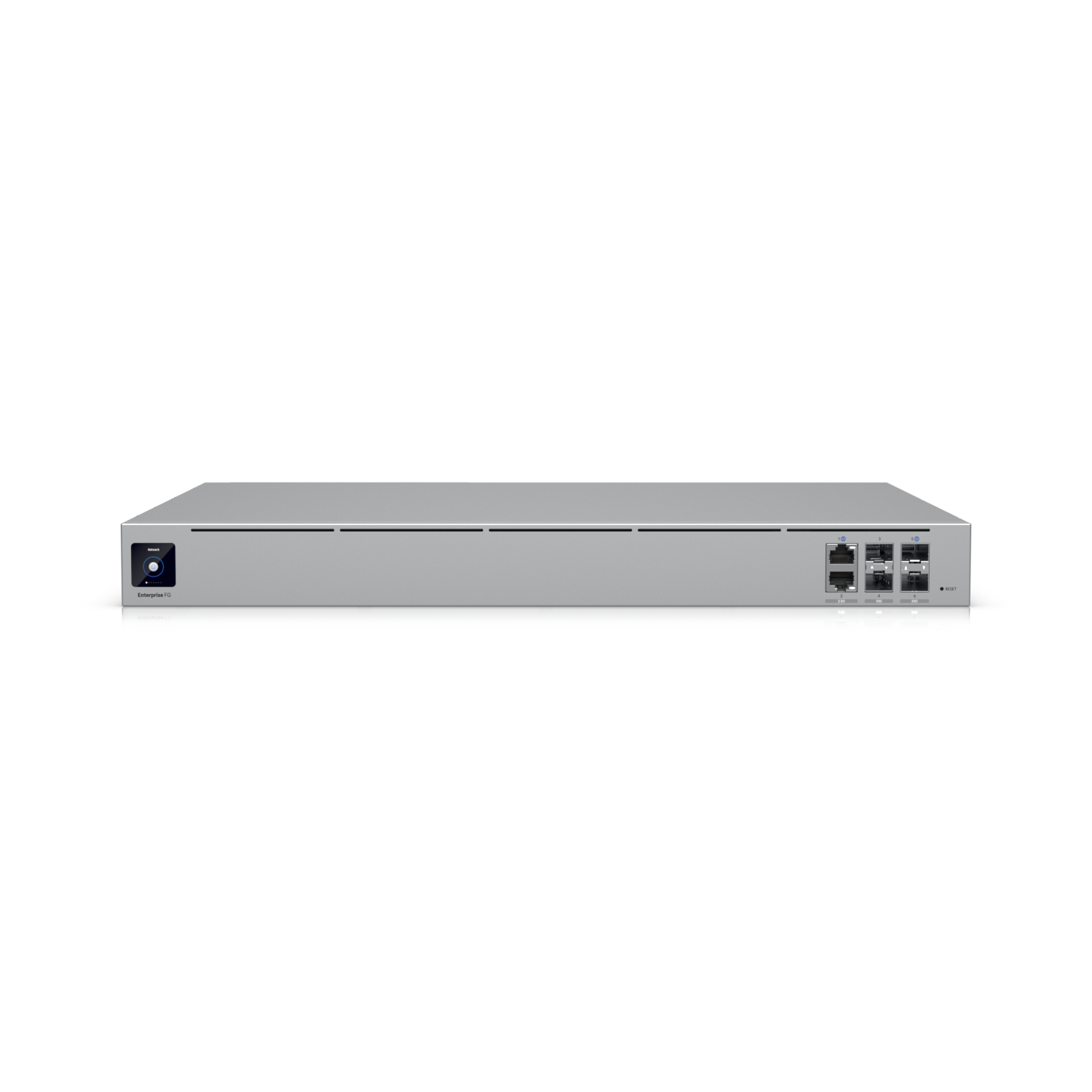

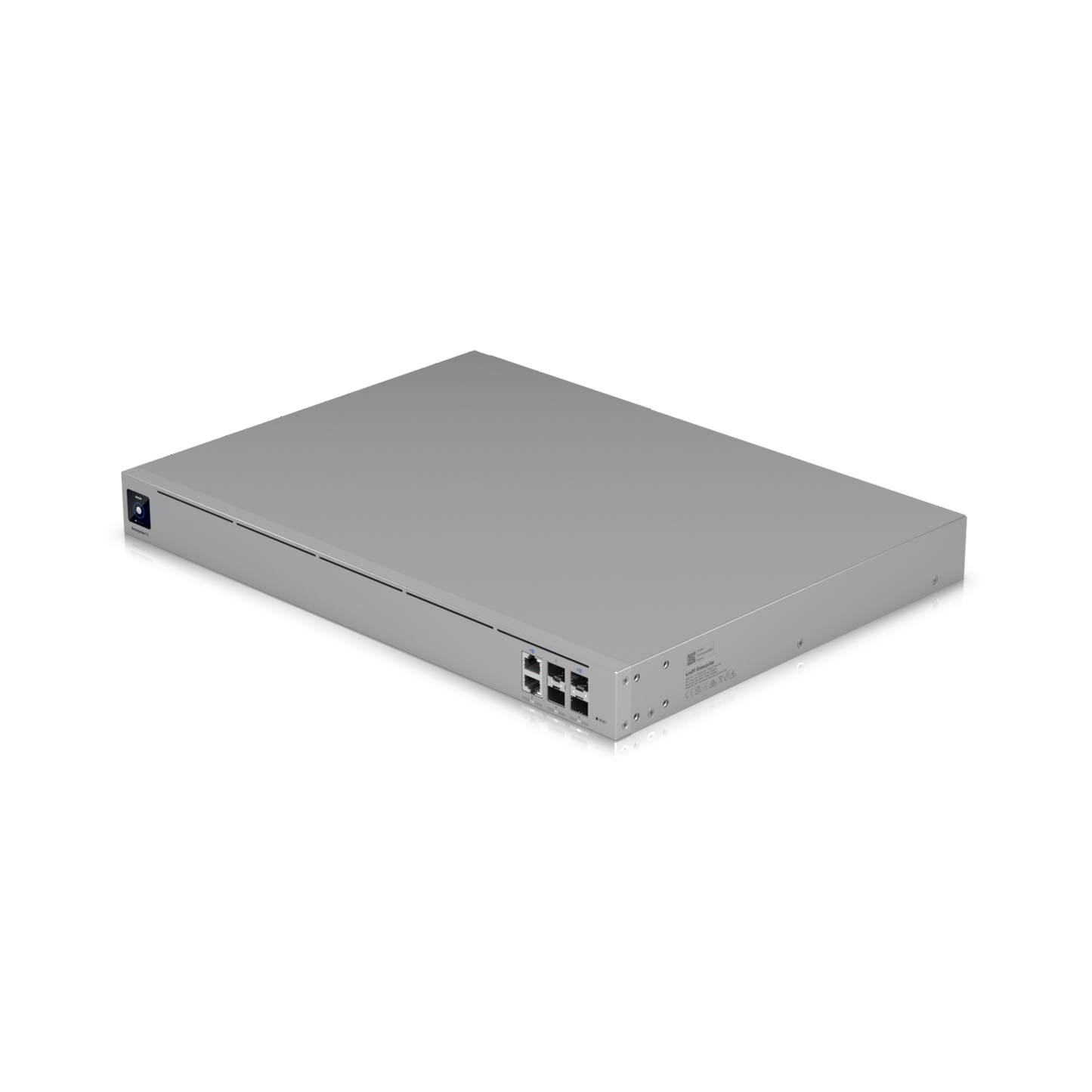

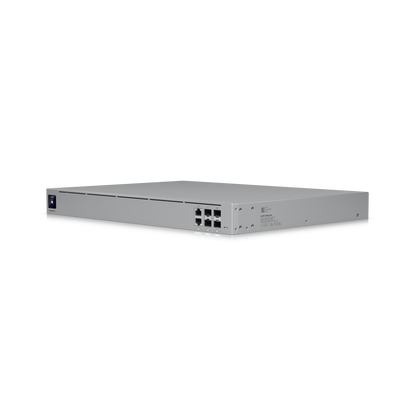

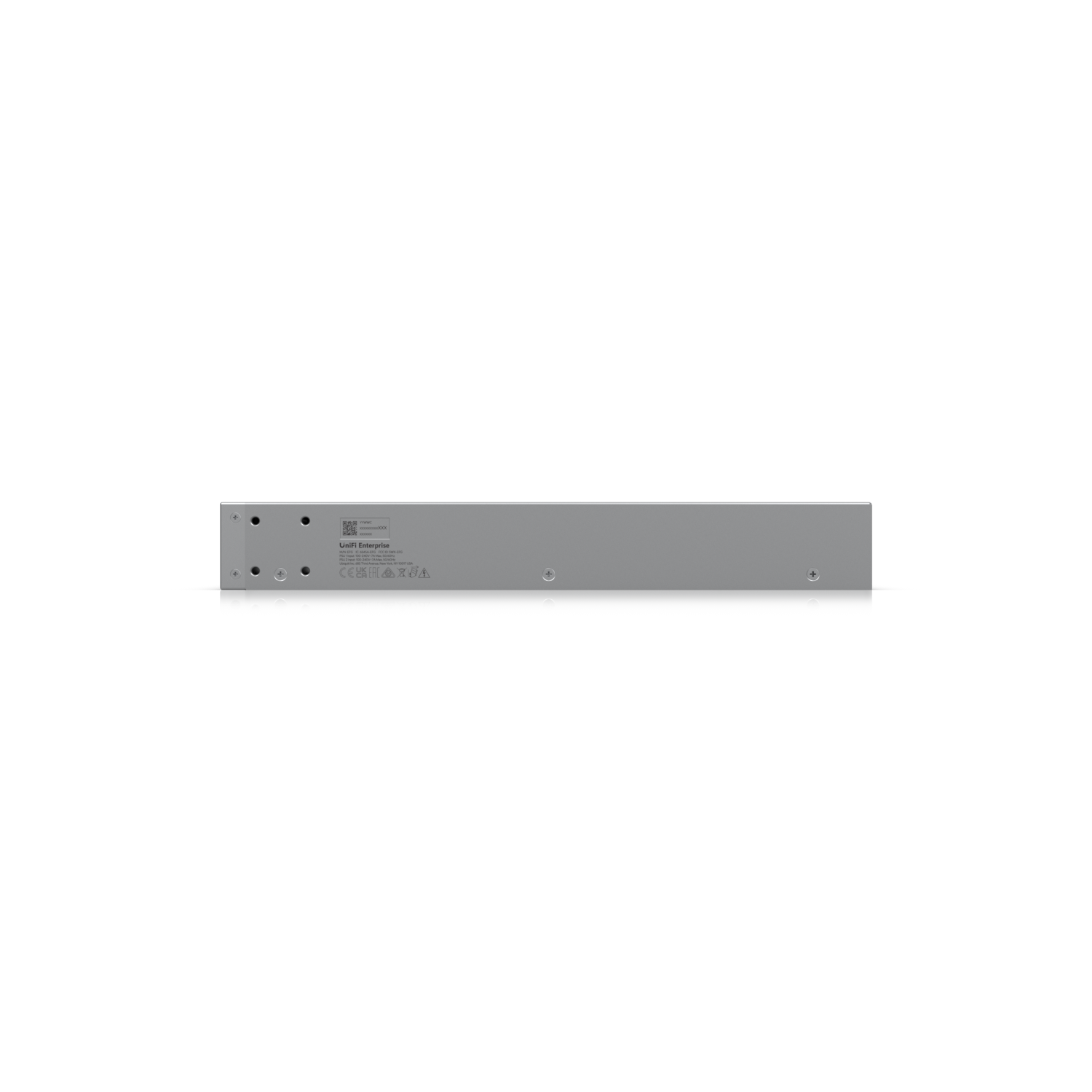

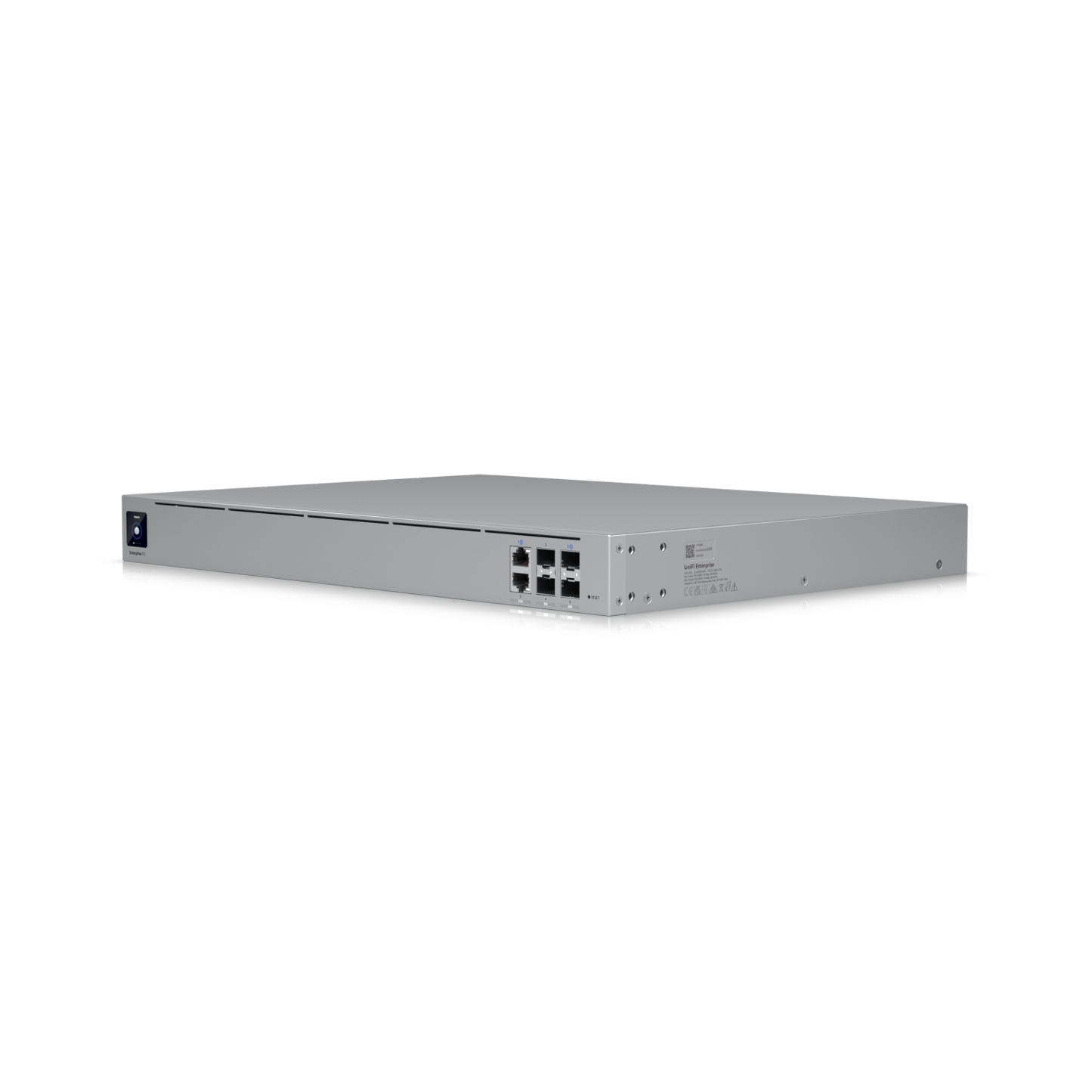

The Ubiquiti Enterprise Fortress Gateway is a 1U rackmount gateway designed for managing large-scale deployments through the UniFi application suite. It supports up to five WAN ports and features dual 25G SFP28, dual 10G SFP+, and dual 2.5 GbE RJ45 ports. With support for 1 million concurrent sessions and 10,000 SSL-inspected sessions, this gateway is built for scalability, speed, and advanced security.
Designed with full redundancy in mind, it includes Shadow Mode (VRRP) high availability and (2) hot-swappable CRPS power supplies. Management is seamless via UniFi iOS or Android mobile apps and is visualized through a 1.3" touchscreen LCM display.
Key Features:
• Supports 500+ UniFi devices and 5,000+ connected clients
• (2) 2.5 GbE RJ45, (2) 10G SFP+, and (2) 25G SFP28 ports
• Up to 12.5 Gbps IDS/IPS routing throughput

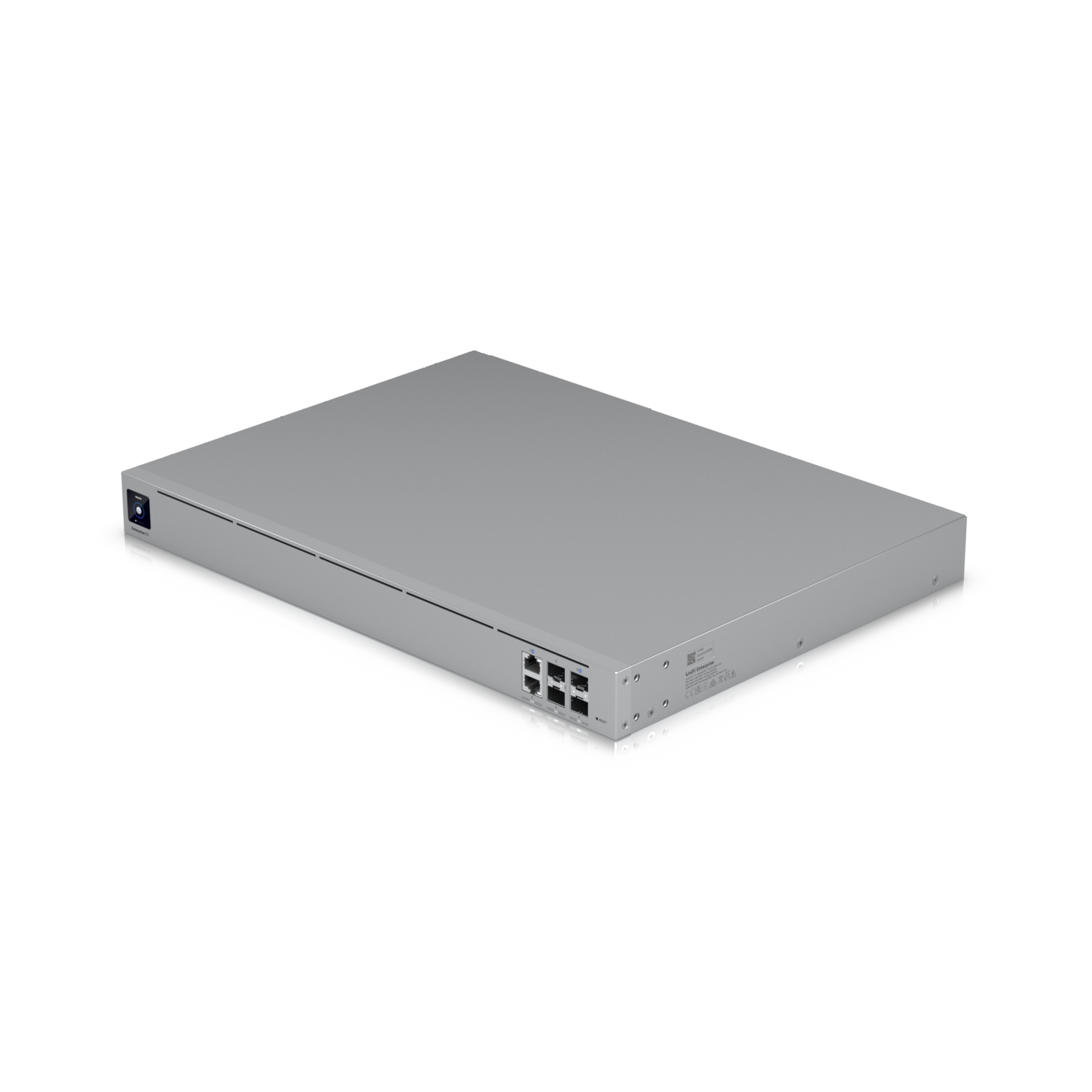

• Shadow Mode (VRRP) high availability with gateway failover
• 1 million concurrent sessions and 71K new sessions per second
• Layer 7 firewall with content filtering, DPI, ad blocking, and SSL inspection

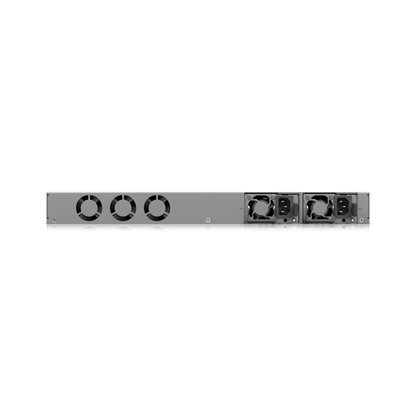

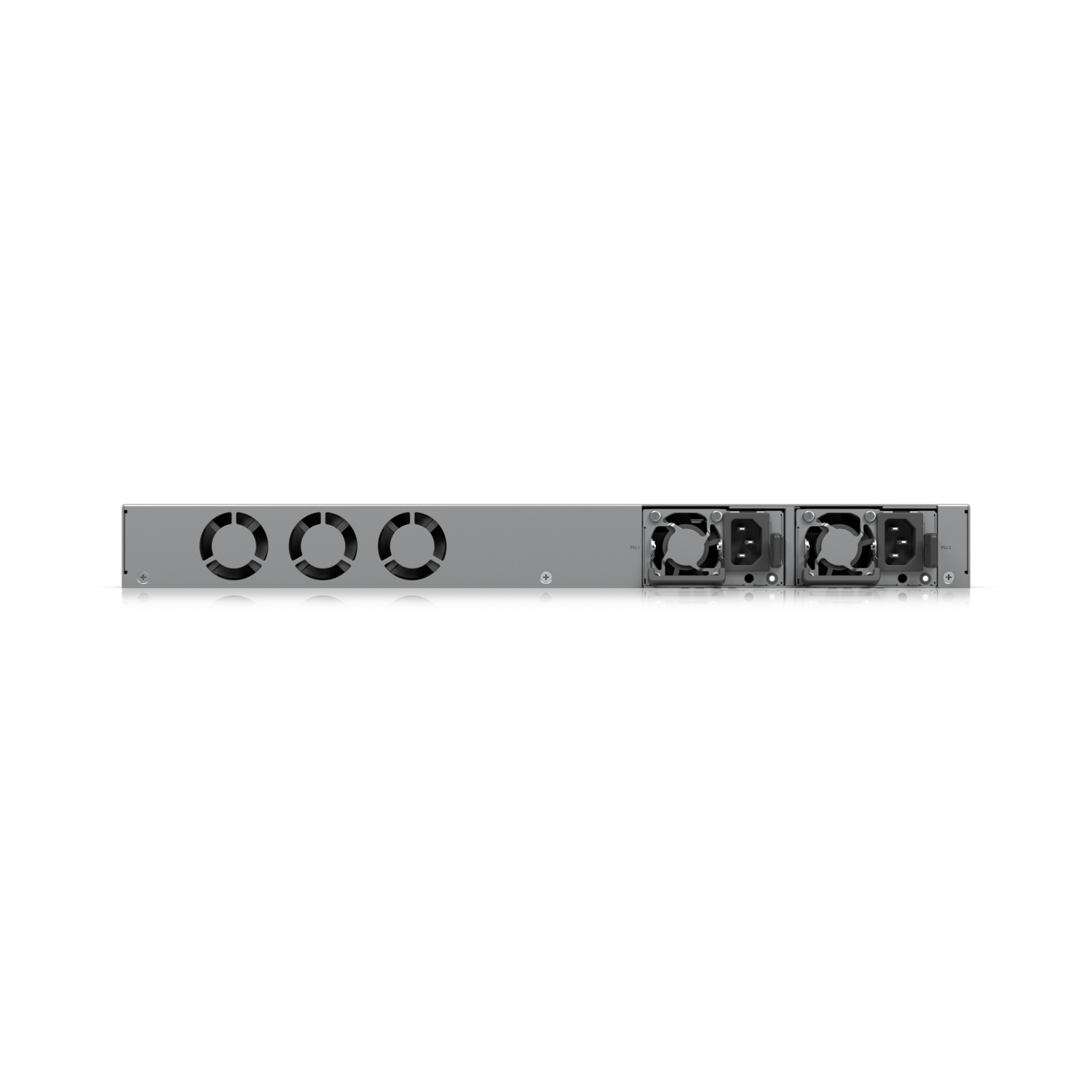

• (2) hot-swappable 150W CRPS power supplies
• 1.3" touchscreen for live system info
• Managed via UniFi iOS or Android mobile app
Ideal For:
• Large-scale UniFi network deployments
• Cloud-managed secure multi-WAN environments
• Enterprise or campus networks with redundancy needs
• Advanced firewall, VPN, and segmentation control
Key Highlights:
✅ Built to support 500+ UniFi devices and 5,000+ clients
✅ 12.5 Gbps real-time IDS/IPS with 95,000+ threat signatures
✅ Supports SSL/TLS packet inspection and advanced content filtering
✅ Full Layer 7 visibility and segmentation across VLANs and subnets
✅ Dual 25G uplinks, hot-swappable PSUs, and high availability via VRRP
Frequently Asked Questions:
Q: How many devices can this support?
A: It supports over 500 UniFi-managed devices and 5,000+ simultaneous users.
Q: What’s the maximum IDS/IPS throughput?
A: 12.5 Gbps with real-time inspection and decryption of encrypted packets.
Q: Does it support Layer 7 firewall features?
A: Yes, including app-aware filtering, ad blocking, DPI, content filtering, and more.
Q: Can it be managed from a mobile device?
A: Yes, through UniFi iOS (v10.16.2+) or Android (v10.17.2+) mobile apps.
Q: Is the power supply redundant?
A: Yes, it includes (2) hot-swappable 150W CRPS power supplies for high availability.
