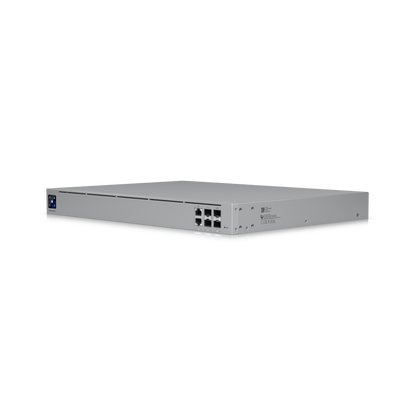

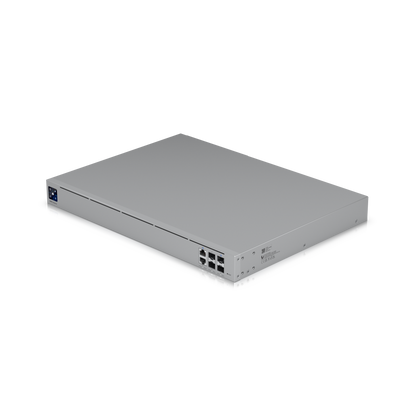

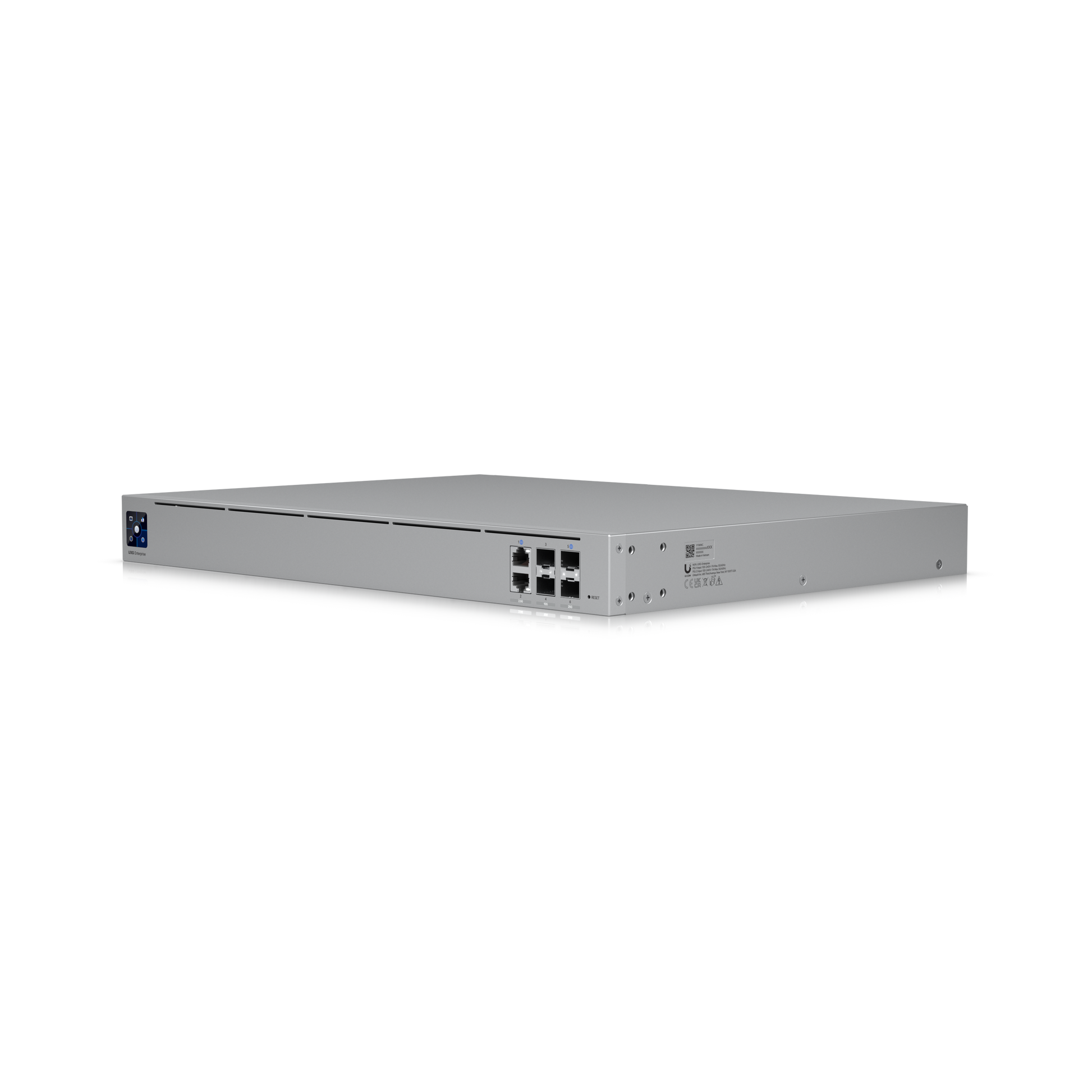

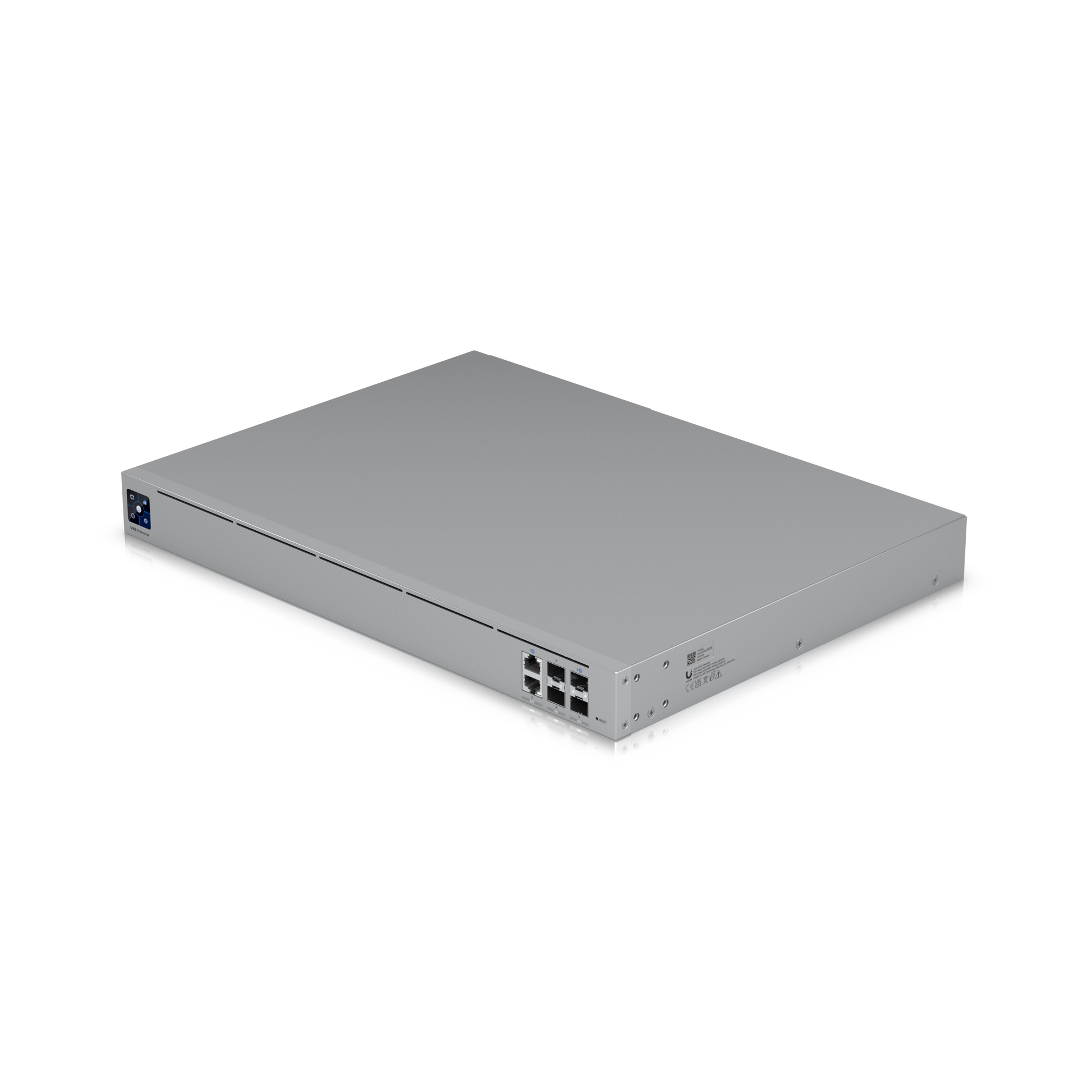

Ubiquiti Gateway Enterprise (UXG-Enterprise) – 25G Multi-WAN Gateway with 12.5 Gbps IPS
The Ubiquiti Gateway Enterprise (UXG-Enterprise) is a high-performance, rack-mount 1U gateway designed for enterprise networks. It delivers 12.5 Gbps IDS/IPS throughput, supports multi-WAN load balancing, and provides redundant hot-swappable PSUs. Equipped with 25G SFP28, 10G SFP+, and 2.5 GbE RJ45 ports, it ensures versatile high-speed connectivity.
Advanced features include Shadow Mode (VRRP) high availability, real-time packet inspection with NeXT AI, stateful and Layer 7 firewalls, license-free SD-WAN, and comprehensive VPN options including WireGuard and Teleport. Managed via UniFi Network 8.3.32 and later, the UXG-Enterprise integrates seamlessly into the UniFi ecosystem.
Key Features:
• 25G, 10G, and 2.5 GbE connectivity
• 12.5 Gbps IDS/IPS throughput
• Multi-WAN load balancing and Shadow Mode failover
• Advanced firewalls, SSL inspection, DPI, and content filtering
• License-free SD-WAN and multiple VPN protocols

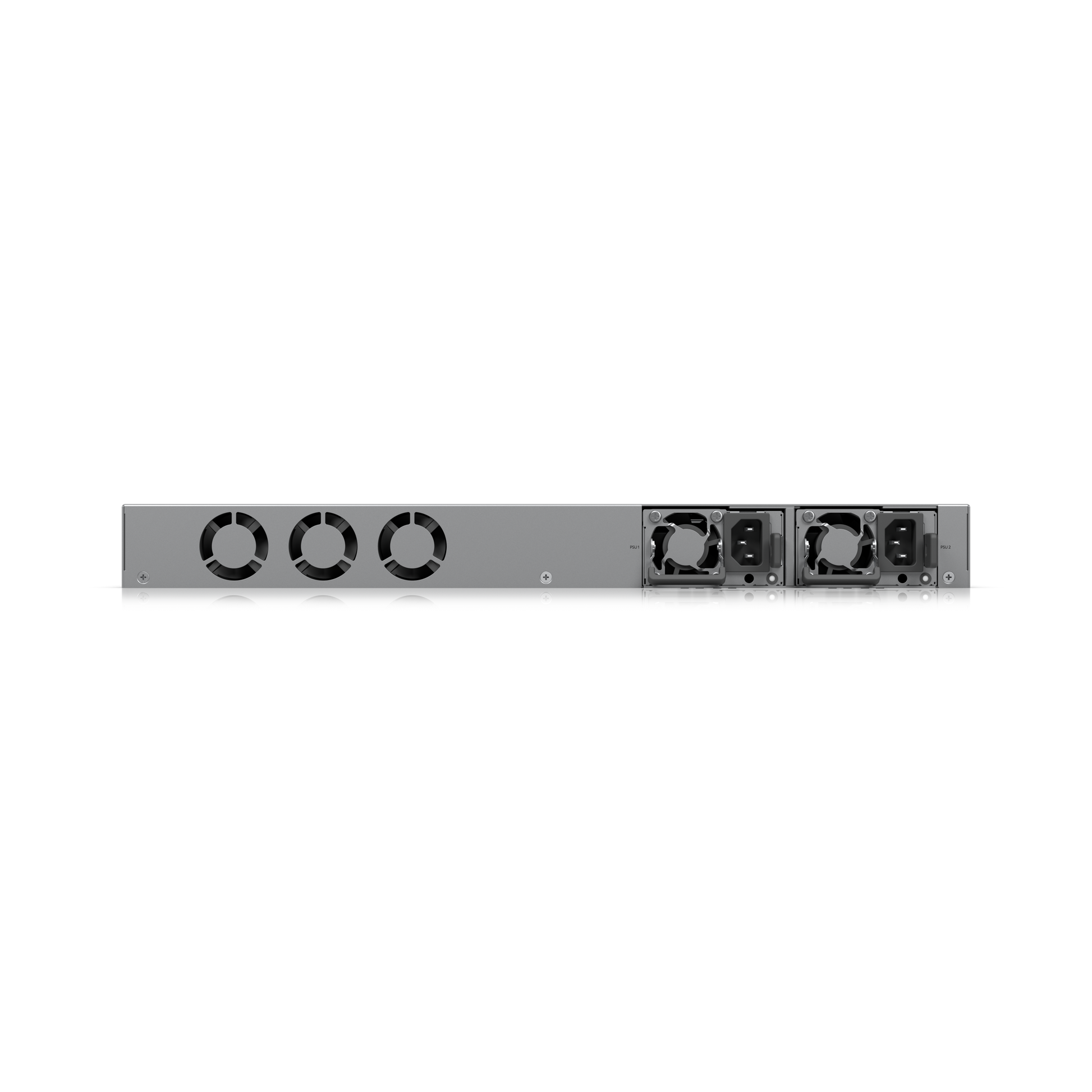

• Redundant hot-swappable PSUs
• 1.3" touchscreen LCM display
Ideal For:
Enterprise networks requiring high-speed routing, advanced security, and maximum uptime through redundant hardware and high availability.
Why You Should Use This:
Combines ultra-fast routing, advanced security inspection, multi-WAN flexibility, and redundancy for mission-critical deployments.
FAQs:
Q: What is the IDS/IPS throughput?
A: 12.5 Gbps.
Q: Does it support high availability?
A: Yes, Shadow Mode (VRRP) with automatic failover.
Q: What power redundancy features are included?
A: Two hot-swappable 150W CRPS power supplies.
Q: Which software version is required?
A: UniFi Network version 8.3.32 and later.
Dimensions:
442.4 x 43.7 x 325 mm
(17.4 x 1.7 x 12.8")
Max. WAN Port Count:
5
Default WAN Ports:
(1) 25G SFP28
(1) 2.5 GbE RJ45

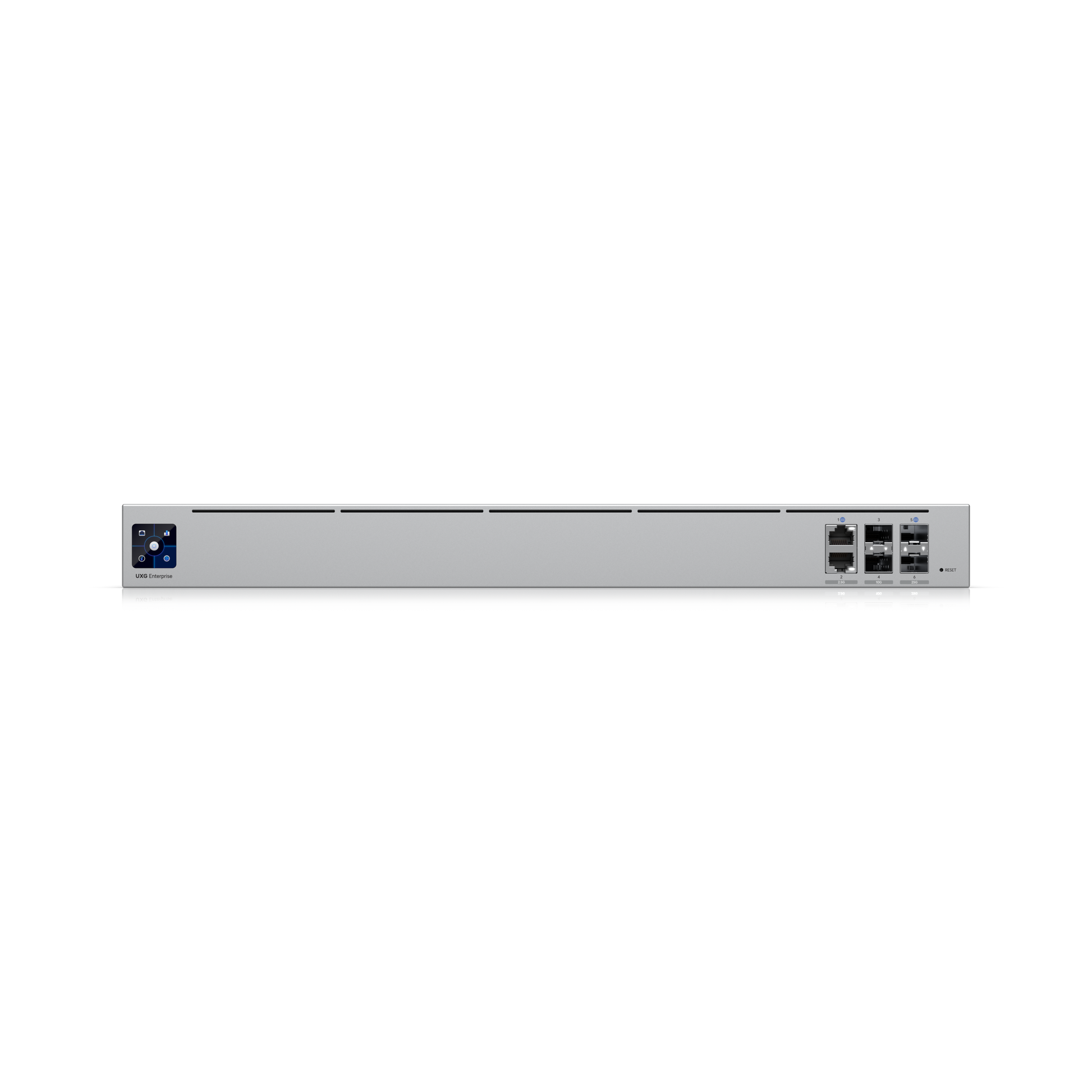

Port Layout:
2.5 GbE RJ45: 2 (2.5G/1G/100M/10M)
10G SFP+: 2 (10G/1G)
25G SFP28: 2 (25G/10G/1G)
IDS/IPS Throughput:
12.5 Gbps
SSL/TLS Inspection Concurrent Sessions:
10,000
Concurrent Sessions:
1 Million
New Sessions / Second:
71,000
Form Factor:
Rack mount (1U)
Redundancy:
Shadow Mode (VRRP) Gateway Failover
(2) Hot-Swappable PSUs
Security:
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
SSL Inspection & URL Filtering: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall: ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
IDS/IPS Signatures: 95,000+ with CyberSecure Enterprise
VPN & SD-WAN:
License-Free SD-WAN: ✓
Site-to-Site VPN: Site Magic ✓, IPsec ✓, OpenVPN ✓
VPN Server: Teleport, WireGuard, OpenVPN, L2TP
VPN Client: OpenVPN, WireGuard
VPN Throughput:
Teleport/WireGuard: 1.2 Gbps
OpenVPN: 210 Mbps (server), 180 Mbps (client)
L2TP: 280 Mbps
Networking:
Multi-WAN Load Balancing: ✓
Shadow Mode High Availability: ✓
Dynamic Routing (OSPF, BGP): ✓
Advanced NAT: ✓
Integrated RADIUS Server & RadSec: ✓
IPv6 ISP Support: ✓
IGMP Proxy: ✓
Hardware:
Max. Power Consumption: 82W
Power Method: Universal AC input, 100—240V AC, 7A Max., 50/60 Hz

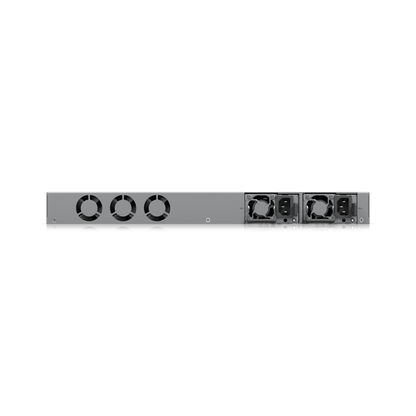

Power Supply: (2) Hot-swappable 150W CRPS
Processor: 18-core ARM® v8.2 at 2 GHz
System Memory: 16 GB
Weight: 6.5 kg (14.3 lb)
Enclosure Material: Aluminium CNC, SGCC steel
LCM Display: 1.3" touchscreen
Management: Ethernet, Bluetooth
LEDs: Ethernet ✓, SFP+ ✓, CRPS ✓
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications:
CE, FCC, IC
Software Application Requirements:
UniFi Network Version 8.3.32 and later
