RF Isolator Shield for NanoBeam 16 Antennas to Reduce Co-Location Interference

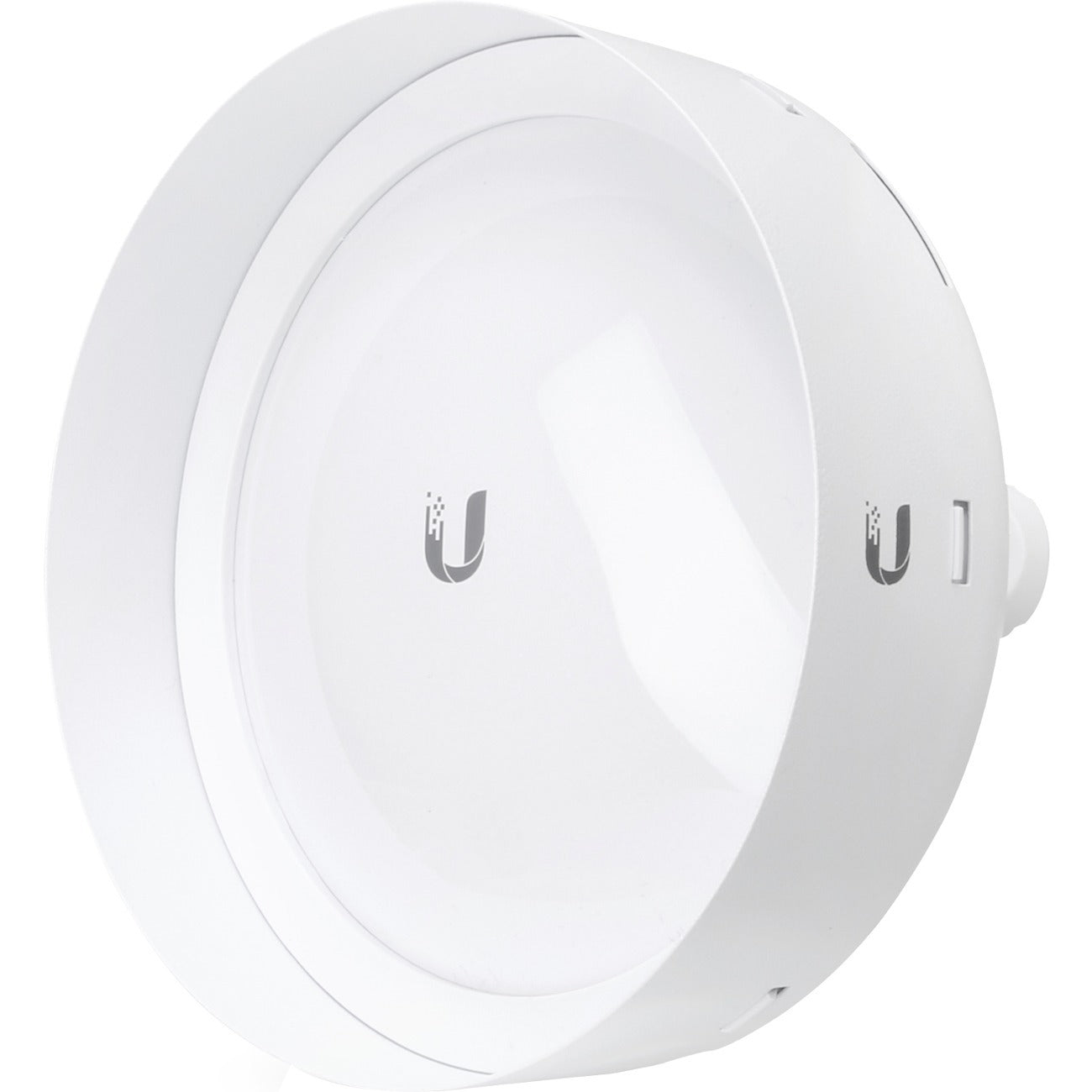

The Ubiquiti IsoBeam ISO-BEAM-16 is an RF isolator shield designed for NanoBeam 16 radios (NBE-M5-16 and NBE-5AC-16). It attaches around the NanoBeam's dish to block stray RF energy from adjacent radios, sectors, and other wireless equipment mounted nearby. In co-located tower and rooftop installations where multiple radios share the same structure, the IsoBeam reduces side-lobe interference and improves signal quality on the NanoBeam link.
The shield works by physically blocking off-axis RF energy that would otherwise enter the NanoBeam's antenna pattern from the sides and rear. This is particularly effective on towers and masts where sector antennas, other point-to-point radios, or cellular equipment operate within close proximity. The IsoBeam mounts directly to the NanoBeam 16 with the included IsoBeam Ring, requiring no tools or modifications to the radio.
Where the ISO-BEAM-16 Fits
- Co-located tower installations where a NanoBeam 16 shares the structure with sector antennas, other PtP radios, or cellular equipment, and side-lobe interference is degrading link quality
- Dense rooftop deployments where multiple wireless radios are mounted in close proximity and RF isolation between devices is needed to maintain clean links
- Noisy RF environments where external interference sources from nearby buildings, towers, or industrial equipment affect the NanoBeam's receive sensitivity and the isolator shield improves the signal-to-noise ratio
What the ISO-BEAM-16 Delivers
- RF side-lobe isolation: Physical shield blocks off-axis RF energy from reaching the NanoBeam antenna, reducing interference from co-located radios and external noise sources.

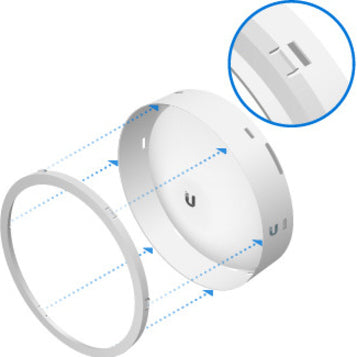

- Direct NanoBeam 16 compatibility: Designed specifically for the NBE-M5-16 and NBE-5AC-16. Attaches with the included IsoBeam Ring for a secure, tool-free installation.
- Improved link quality in co-located environments: By reducing the noise floor at the antenna, the IsoBeam helps maintain higher modulation rates and more stable throughput on links that would otherwise be degraded by nearby RF activity.
- Passive, maintenance-free operation: No power, no configuration, no firmware. The shield is a passive RF accessory that works immediately upon installation and requires no ongoing maintenance.
