500-Foot Plenum-Rated 1-Pair Relay Cable for UniFi Access Electric and Magnetic Door Locks

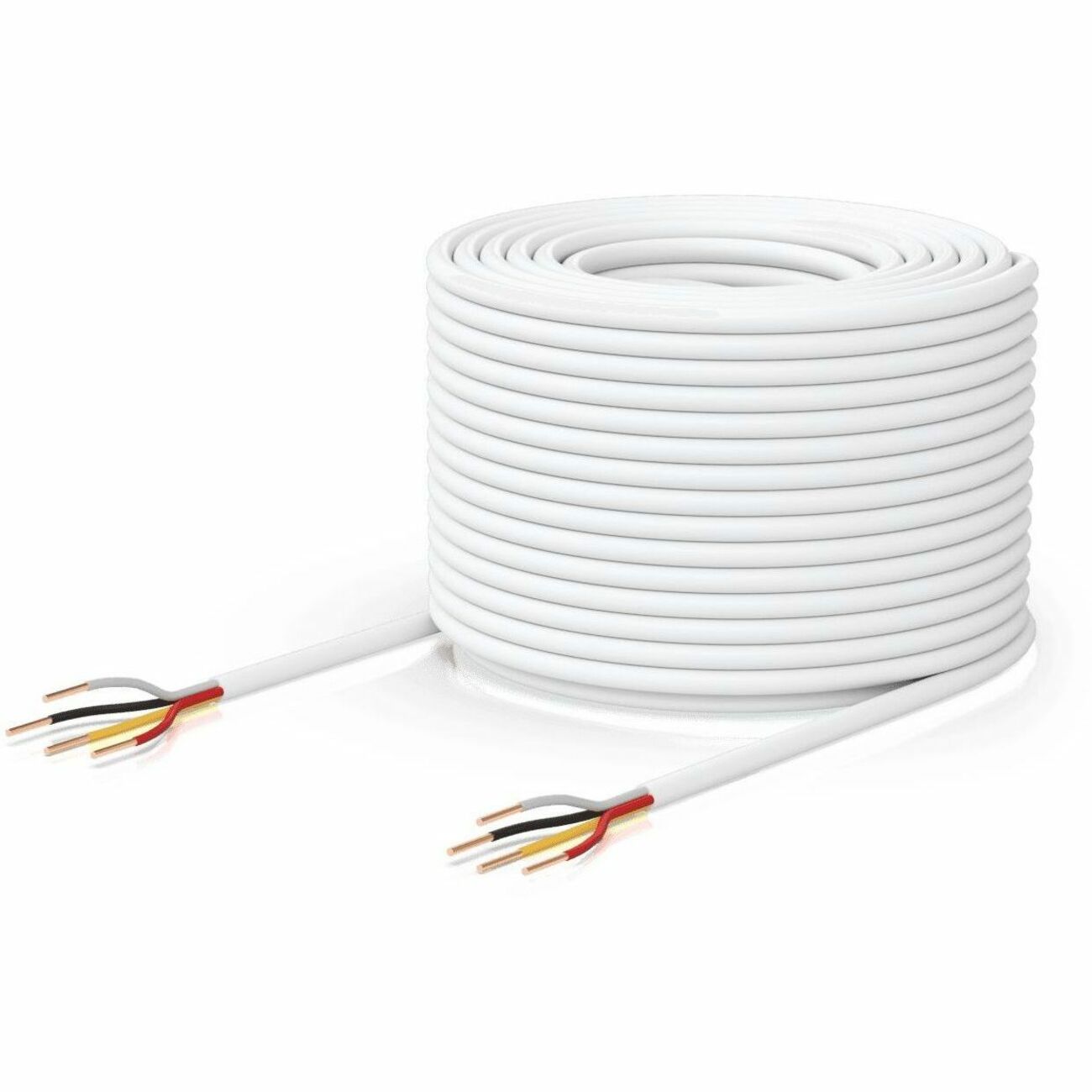

The Ubiquiti UACC-CableDoorLockRelay1P is a 500-foot (152.4 m) spool of 1-pair, 18 AWG relay cable designed to connect electric or magnetic door locks to a UniFi Access Hub. The plenum-rated construction meets building code requirements for installation in air-handling spaces above drop ceilings and in HVAC plenums. Bare copper conductors with red/black insulation provide clean, reliable low-voltage connections for access control cable infrastructure.
This is the 1-pair version with two 18 AWG conductors dedicated to lock power. For installations that also require a door position sensor connection, Ubiquiti offers a 2-pair version that adds two 22 AWG conductors for the sensor alongside the lock pair. The 500-foot spool provides enough cable for multiple door runs from a single purchase, reducing reorder frequency for multi-door access control deployments.
Where the Door Lock Relay Cable Fits
- UniFi Access deployments where electric strikes, magnetic locks, or electronic latches need a dedicated cable run from the Access Hub to each door location throughout the building
- Plenum-space installations where building code requires plenum-rated cabling for runs through air-handling spaces above drop ceilings, return air plenums, and raised floors
- Multi-door rollouts where the 500-foot spool provides enough cable to wire multiple doors from a single spool, simplifying procurement and reducing waste on access control projects
What the Door Lock Relay Cable Delivers
- 1-pair, 18 AWG bare copper: Two solid copper conductors rated for the power demands of electric strikes and magnetic locks. Red and black insulation provides clear polarity identification during termination.
- 500 ft (152.4 m) spool: Bulk spool packaging for multi-door installations. Cut to length on site for each door run from the Access Hub.
- Plenum-rated (VW-1): TPE jacket with SR-PVC insulation meets plenum rating requirements for installation in air-handling spaces without conduit.
- UniFi Access ecosystem: Purpose-built for connecting electric and magnetic locks to the UniFi Access Hub, ensuring compatibility and proper conductor sizing for the system.
