Vertiv Avocent LV5500 High-Performance KVM Extender | Receiver - LV5500R-400
Key Features
- Allows for greater distance with the Fiber Option.
- Delivers seamless KVM control and 4k video transmission.
- Faster throughput with updated USB.
- Plug-and-play with no drivers or software to install, and no on-site configuration required.
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
Product Overview
The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: LV5500R-400
- Brand Name: Vertiv AVOCENT
- Product Line: LongView
- Product Series: 5000
- Product Model: LV5500R
- Product Name: LV5500 High-Performance KVM Extender | Receiver
- Packaged Quantity: 1
- Product Type: KVM Extender Receiver
Technical Information
- Connectivity Technology: Wired
- KVM Technology: Digital
- Number of Computers Supported: 1
- Number of Local Users Supported: 1
- Number of Remote Users Supported: 1
- Maximum Operating Distance: 13123.36 ft
- Device Type: High Performance KVM
Video
- Graphic Mode: 4K
- Maximum Video Resolution: 4096 x 2160

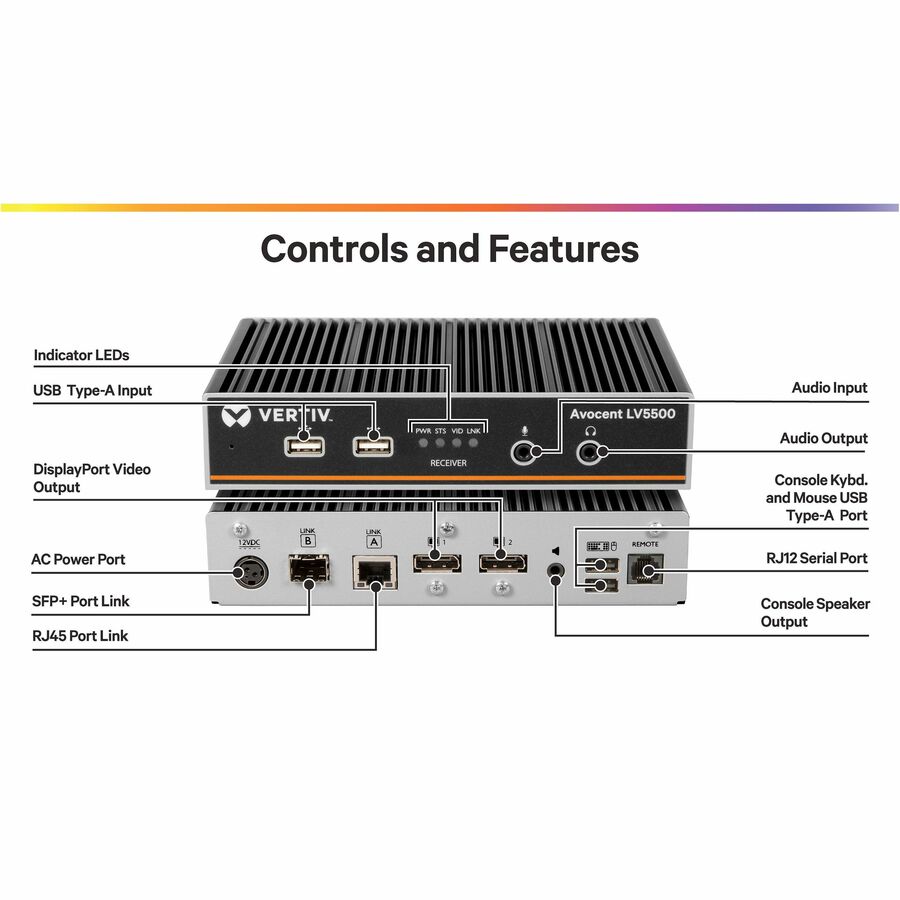

Interfaces/Ports
- Network (RJ-45): Yes
- PS/2 Port: No
- USB: Yes
- DVI: No
- Headphone: Yes
- Microphone: Yes
- HDMI: No
- VGA: No
- DisplayPort: Yes
- Proprietary Interface: No
- Number of HDMI Ports: 0
- Number of VGA Ports: 0
- Number of Network (RJ-45) Ports: 1
- Number of PS/2 Ports: 0
- Number of USB Ports: 2
- Number of DVI Ports: 0
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Input Voltage Range: 100-240 VAC
- Power Consumption: 18 W
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Rack Height: 1U
- Form Factor: Rack-mountable
- Receiver Height: 1.54"
- Receiver Width: 7.32"
- Receiver Depth: 5.83"
- Receiver Weight (Approximate): 2.73 lb
Miscellaneous

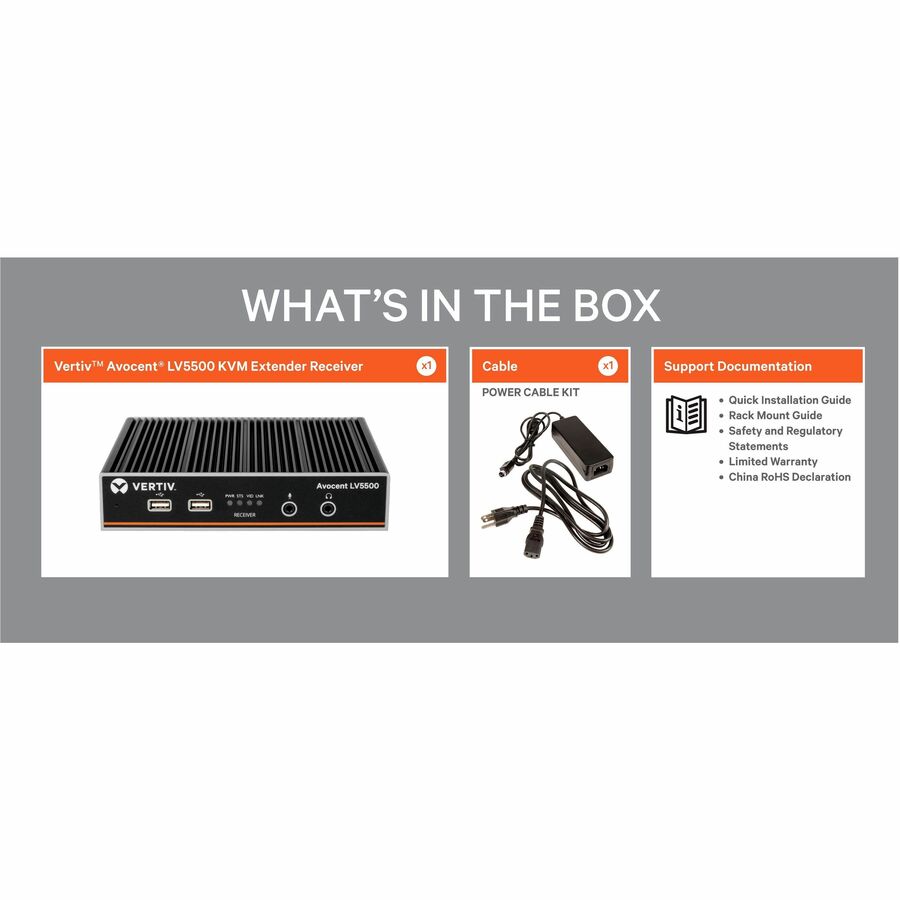

- Package Contents:
- LV5500 High-Performance KVM Extender | Receiver
- 1 x LV5500 Extender Quick Installation Guide
- 1 x Extender RMK Quick Installation Guide
- 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
- 1 x Customer Support/Warranty Card (See PLM BOM)
- 1 x 3.5mm stereo plug to plug audio cable, 3meter
- 1 x USB cable, Type A to Type B, 1.8meter
- 1 x DisplayPort cable, M-M, High Bit-Rate, 2meter
- 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
- 1 x China RoHS Declaration
- 1 x Vertiv document wallet
- Platform Supported:
- PC
- Unix
- Mac
- Sun
- Linux
- Environmentally Friendly: Yes
- Environmental Compliance: China Restriction of Hazardous Substances (China RoHS)
- Country of Origin: United Kingdom
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
