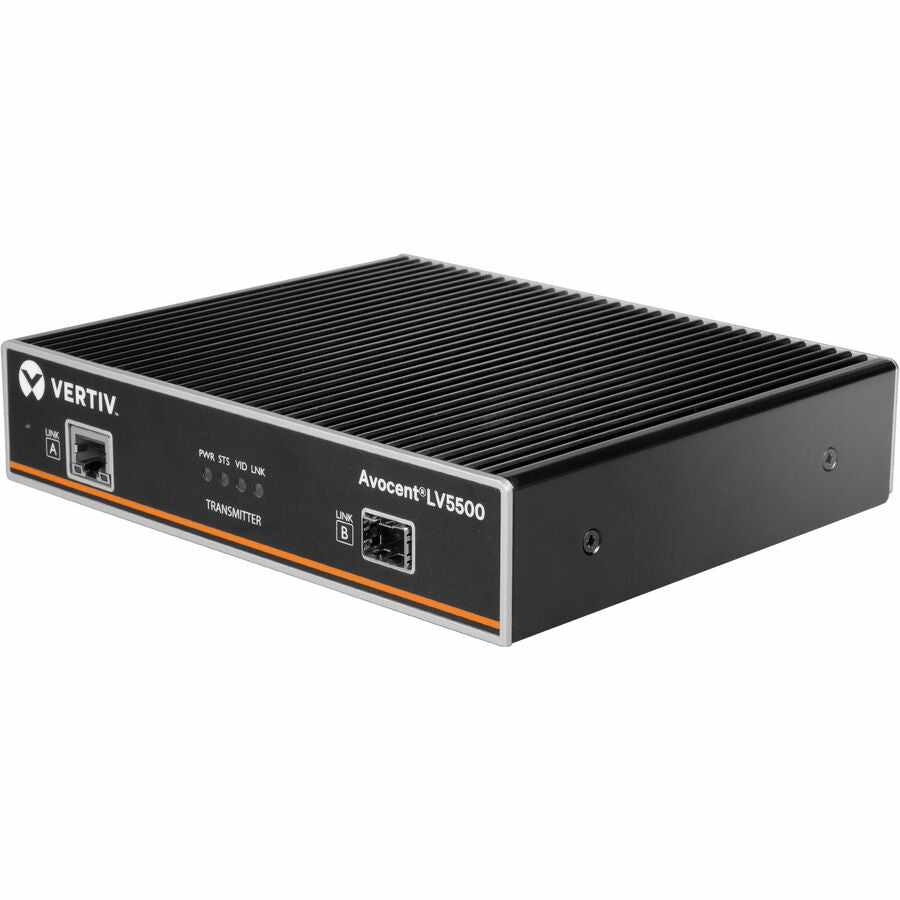

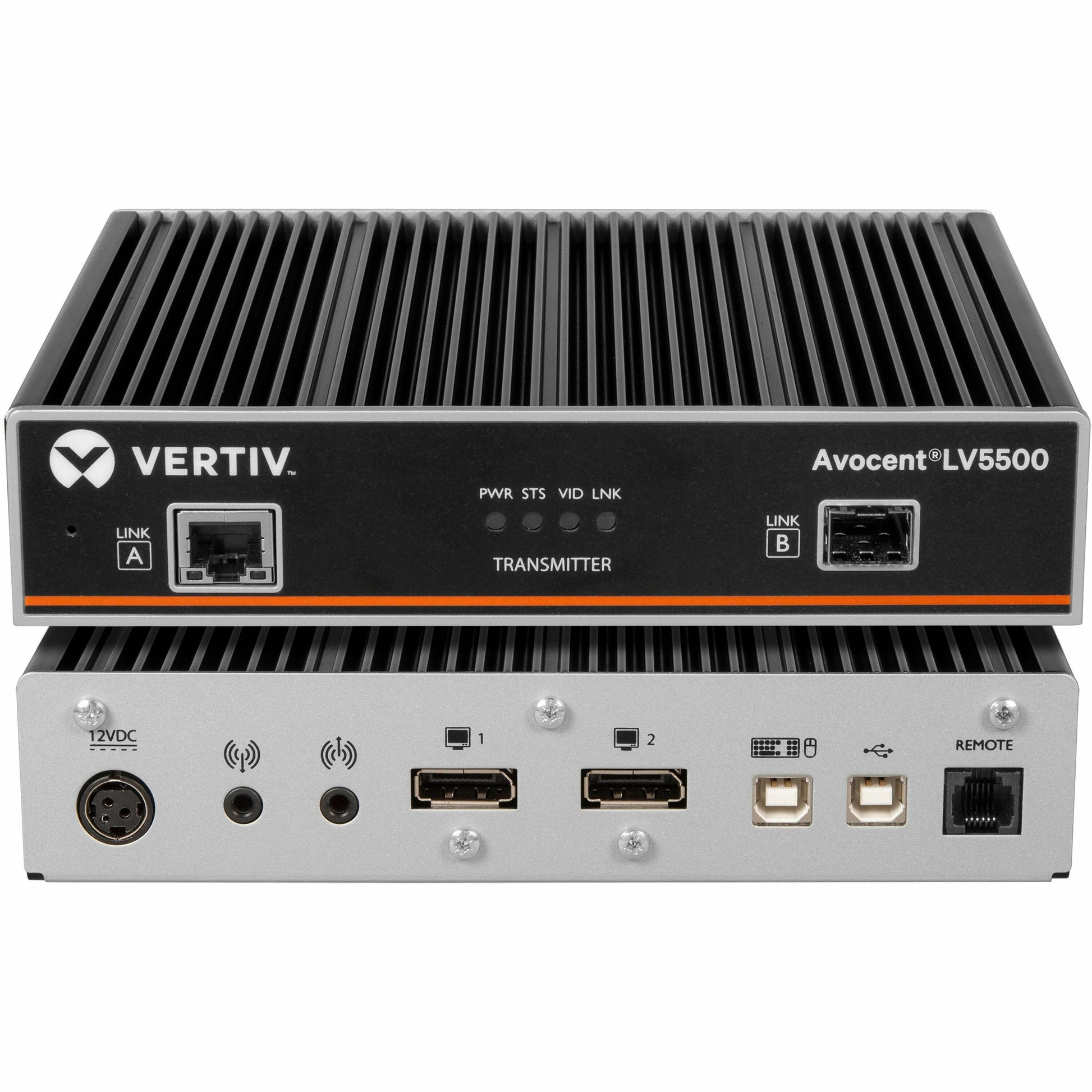

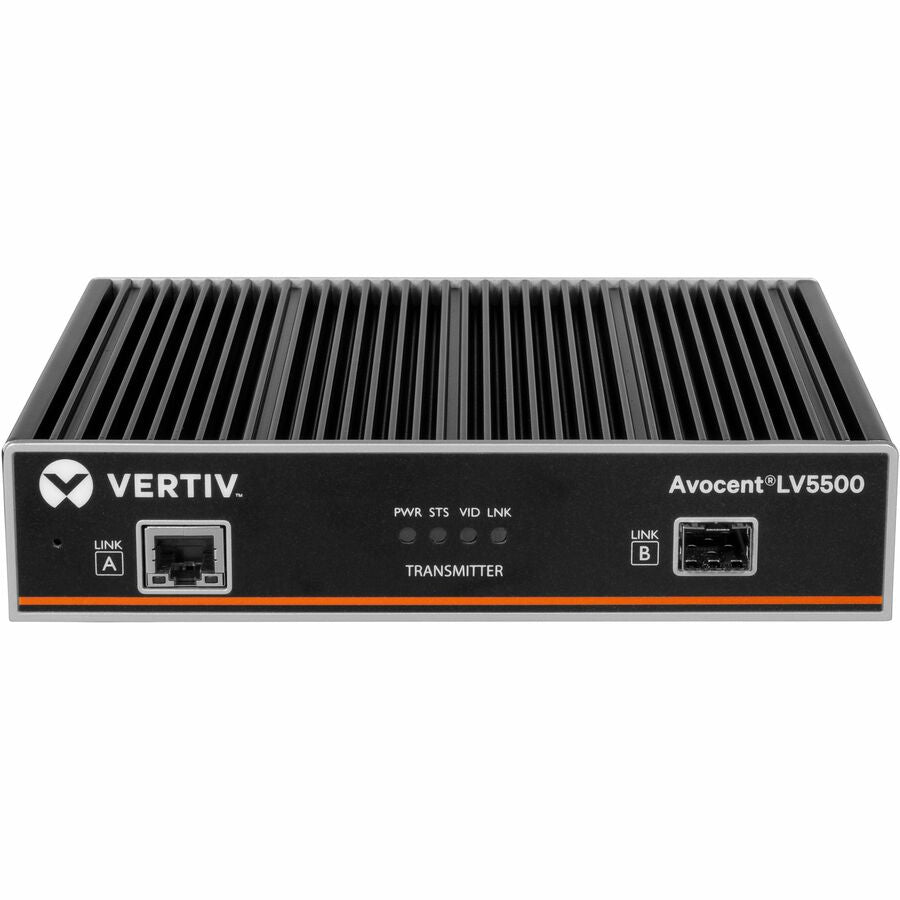

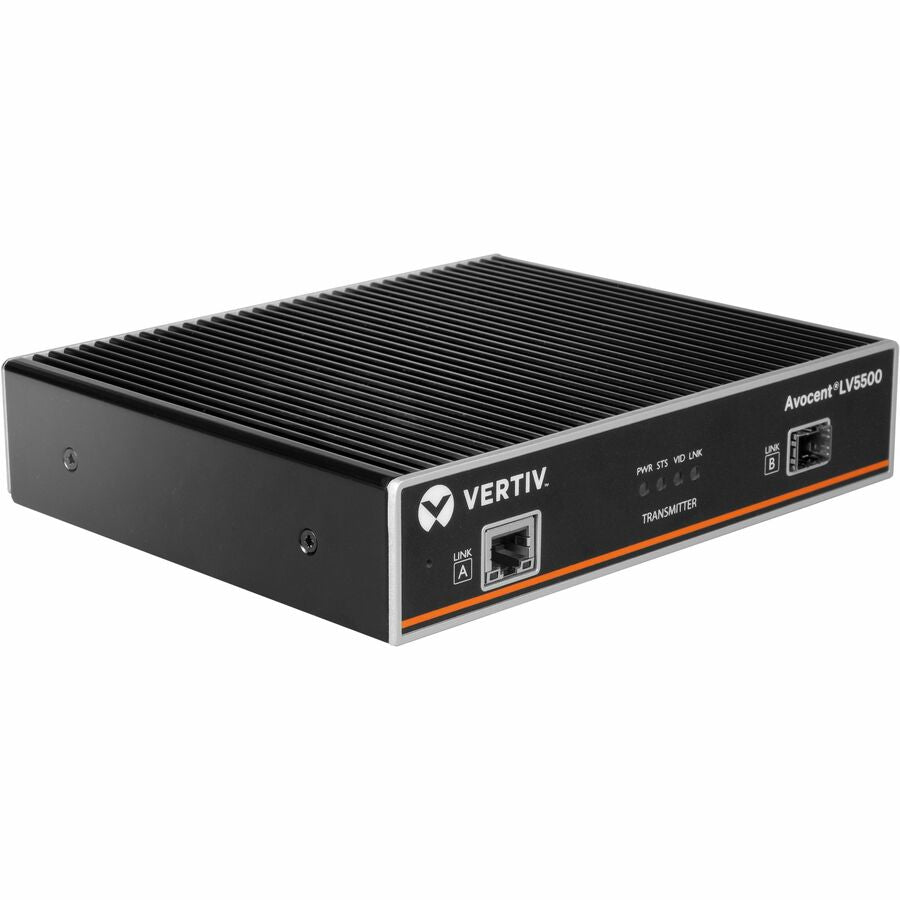

Vertiv Avocent LV5500 High-Performance KVM Extender | Transmitter - LV5500T-400
Key Features
- Allows for greater distance with the Fiber Option.
- Delivers seamless KVM control and 4k video transmission.
- Faster throughput with updated USB.
- Plug-and-play with no drivers or software to install, and no on-site configuration required.
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
Product Overview
The Vertiv Avocent LongView 5500 Transmitter (LV5500T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5500T comes equipped with a dependable performance along with intelligent EDID management. Coupled with the Avocent LV5500R, the LV5500T is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5500T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: LV5500T-400
- Brand Name: Vertiv AVOCENT
- Product Line: LongView
- Product Series: 5000
- Product Model: LV5500T
- Product Name: LV5500 High-Performance KVM Extender | Transmitter
- Packaged Quantity: 1
- Product Type: KVM Extender Transmitter
Technical Information
- Connectivity Technology: Wired
- KVM Technology: Digital
- Number of Computers Supported: 1
- Number of Local Users Supported: 1
- Number of Remote Users Supported: 1
- Maximum Operating Distance: 13123.36 ft
- Device Type: High Performance KVM
Video
- Graphic Mode: 4K
- Maximum Video Resolution: 4096 x 2160

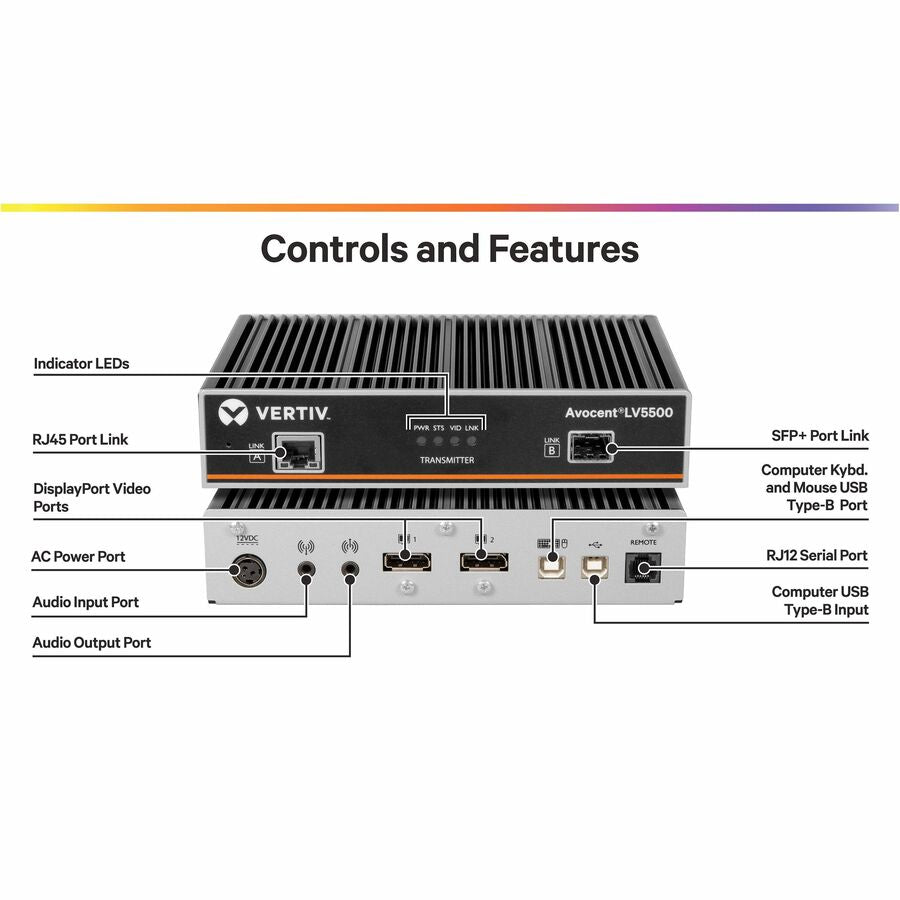

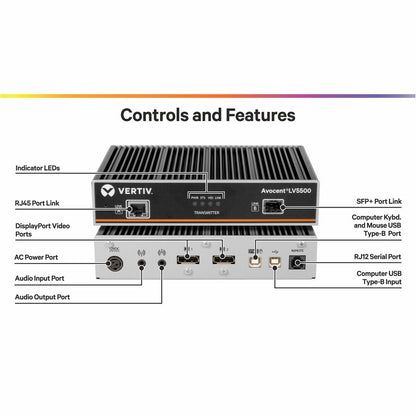

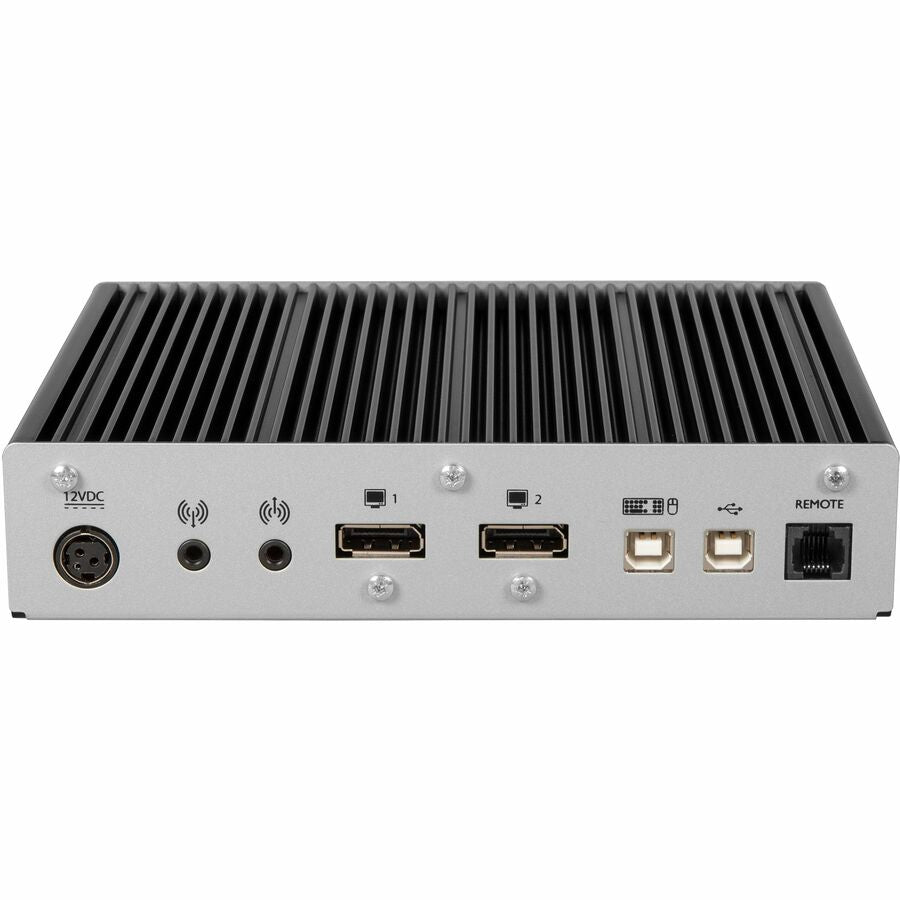

Interfaces/Ports
- Network (RJ-45): Yes
- PS/2 Port: No
- USB: Yes
- DVI: No
- Headphone: Yes
- Microphone: Yes
- HDMI: No
- VGA: No
- DisplayPort: Yes
- Proprietary Interface: No
- Number of HDMI Ports: 0
- Number of VGA Ports: 0
- Number of Network (RJ-45) Ports: 1
- Number of PS/2 Ports: 0
- Number of USB Ports: 2
- Number of DVI Ports: 0
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Input Voltage Range: 100-240 VAC
- Power Consumption: 18 W
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Rack Height: 1U
- Form Factor: Rack-mountable
- Transmitter Height: 1.54"
- Transmitter Width: 7.32"
- Transmitter Depth: 5.83"
- Transmitter Weight (Approximate): 2.84 lb
Miscellaneous
- Package Contents:
- LV5500 High-Performance KVM Extender | Transmitter
- 1 x LV5500 Extender Quick Installation Guide
- 1 x Extender RMK Quick Installation Guide
- 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
- 1 x Customer Support/Warranty Card (See PLM BOM)
- 1 x 3.5mm stereo plug to plug audio cable, 3meter
- 1 x USB cable, Type A to Type B, 1.8meter
- 1 x DisplayPort cable, M-M, High Bit-Rate, 2meter
- 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
- 1 x China RoHS Declaration
- 1 x Vertiv document wallet
- Platform Supported:
- PC
- Mac
- Unix
- Sun
- Linux
- Environmentally Friendly: Yes
- Environmental Compliance: China Restriction of Hazardous Substances (China RoHS)
- Country of Origin: United Kingdom
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
