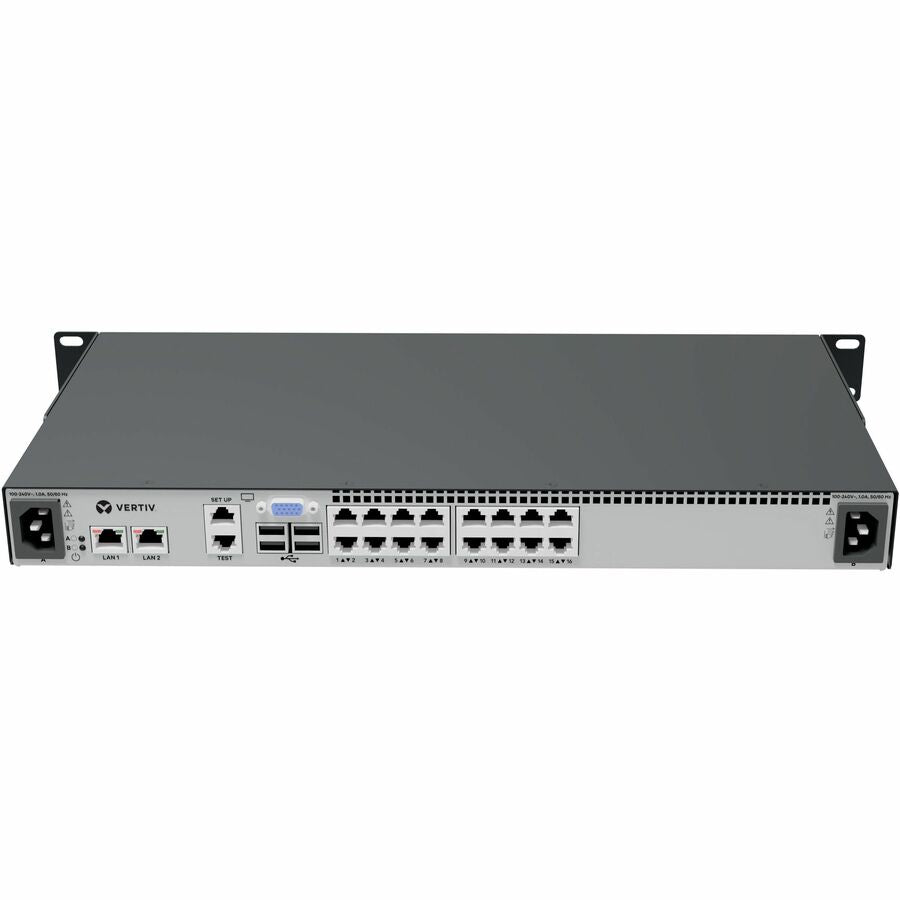

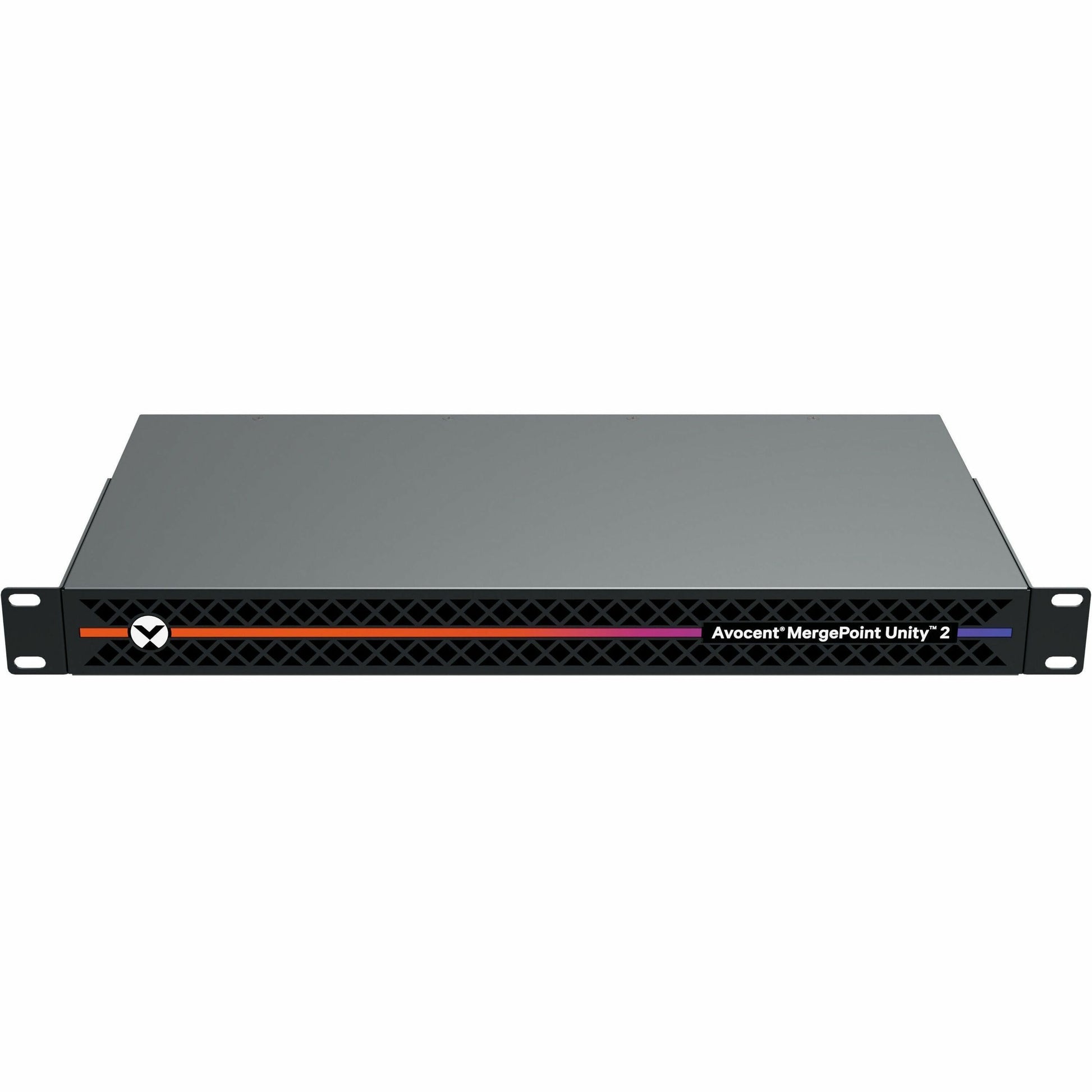

Vertiv Avocent MergePoint Unity 2 MPU2-2016DAC-400, Enterprise KVM-over-IP Switch, 16-Port, 2 Digital Path, Advanced Security, IT Remote Access, 1U - MPU2-2016DAC-400
Key Features
- Aligns with other Vertiv top offerings for a full data center solution from the edge to the core
- Current modules enable seamless integration and hassle-free remote IT monitoring and management
- Includes a two-year warranty and up to five years of uplifted support for advance replacement
- Protects IT systems by allowing only verified firmware and software to operate
- Provides high-quality visuals with video resolution support of up to 1920 x 1200 with 24-bit color
Product Overview
The Vertiv Avocent MergePoint Unity 2 MPU2-2016DAC-400 KVM Switch is a complete remote IT monitoring and management solution for servers, networking equipment, and other devices found in data centers and branch offices. This KVM switch utilizes serial console management technology, allowing fast diagnosis, reconfiguration, or restoration of equipment to meet SLAs and minimize downtime. With Secure Boot, Vertiv-signed keys, and TLSv1.3, it meets strict security requirements by leveraging ADX technology to protect systems from unverified firmware and software. It also works with current MPU access modules to enable seamless integration and hassle-free remote IT management. This TAA-compliant switch includes a two-to-five-year limited warranty, offering users long-term support and peace of mind.
General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: MPU2-2016DAC-400
- Brand Name: Vertiv AVOCENT
- Product Line: MPU2
- Product Model: MPU2-2016DAC-400
- Product Name: MPU2 MPU2-2016DAC-400 KVM Switchbox
- Packaged Quantity: 1
- Product Type: KVM Switchbox
Technical Information
- KVM Technology: Digital & Analog
- Connectivity Technology: Wired
- Number of Computers Supported: 16
- Number of Local Users Supported: 1
- Number of Remote Users Supported: 2
Video
- Graphic Mode: WUXGA
- Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
- Network (RJ-45): Yes
- PS/2 Port: No
- USB: Yes
- HDMI: No
- DVI: No
- VGA: Yes
- DisplayPort: No
- Management Port: Yes
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 4
- Number of VGA Ports: 1
Power Description
- Input Voltage Range: 100 - 240 V
Physical Characteristics
- Form Factor: Rack-mountable
- Rack Height: 1U
- Height: 1.7"
- Width: 17"
- Depth: 9.2"
- Weight (Approximate): 7 lb
Miscellaneous
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 5 Year
