Vertiv Liebert GXT5 1000VA 120V UPS with SNMP/Webcard - GXT5-1000LVRT2UXLN
Key Features
- 1000 VA load capacity - work without any interruption during power outages
- 12V battery size for maximum productivity with added dependability
- 3 batteries for optimal performance with maximum usability
- 3 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Lead Acid battery chemistry delivers energy to the mission critical equipment through an easily controlled reaction
- NEMA 5-15P plug/connector type for convenient usage with added dependability
- NEMA 5-15P receptacle type offers maximum safety, convenience, and increased usability
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Prevent critical data loss by staying powered during a blackout with up to 1000 W load capacity
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
Product Overview
The Vertiv Liebert GXT5, 1000VA/1000W, Online Double Conversion UPS comes with Liebert RDU101 Communications Card is a 2U compact UPS system for ensuring health and availability of IT infrastructure. This intelligent and efficient UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This single-phase UPS can support a wide range of power environment including 110/115/120/125V AC power. The Liebert RDU101 communications card (for installation) with the free Vertiv Trellis™ Power Insight Application provides remote management capabilities for viewing up to 100 distributed units and supporting real-time environmental monitoring and alarm notifications. With Liebert RDU101, users can make more informed decisions and fast event resolution. The Vertiv Liebert GXT5 UPS has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It offers hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. The unit comes with a rack mounting hardware kit and base for tower installation in open environments. This UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. The Vertiv Liebert GXT5 UPS provides premium power protection for critical infrastructure in centralized and edge applications.General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: GXT5-1000LVRT2UXLN
- Brand Name: Vertiv Liebert
- Product Series: GXT
- Product Name: GXT5 1000VA 120V UPS with SNMP/Webcard
- Product Type: Double Conversion Online UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P
- Receptacle Detail: 6 x NEMA 5-15P
- Cord Length: 10 ft
- Transfer Time: 0 ns
- Phase: Single Phase
- Application/Usage:
- Mission Critical Equipment
- Network
- Rack Cabinet
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V AC
- Input Voltage Range: 110 V AC - 125 V AC
- Input Current: 10 A
- Output Voltage: 120 V AC
- Waveform Type: Pure Sine Wave
- Circuit Breaker: Yes
Management
- Network Management: SNMP Manageable
Controls/Indicators

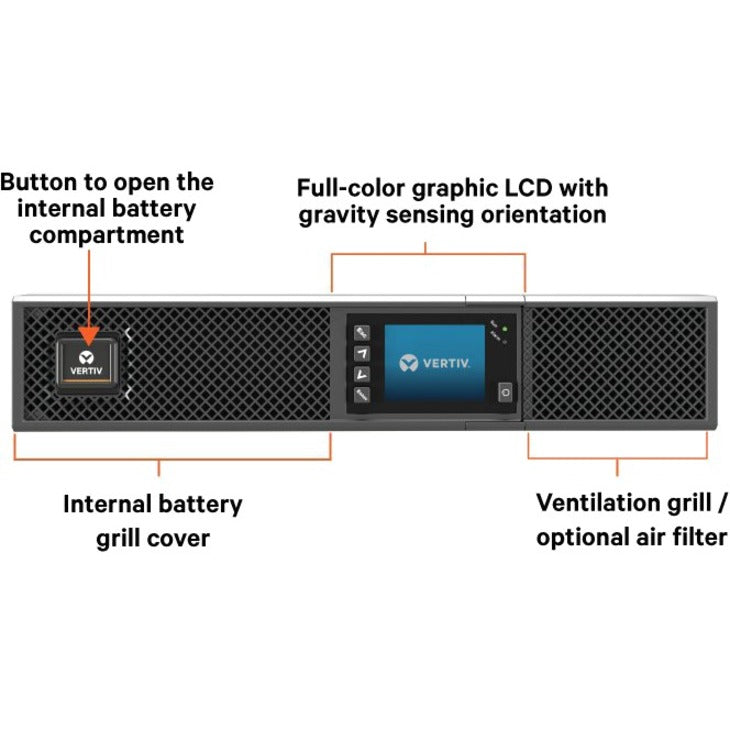

- Status Indicators:
Full Color LCD

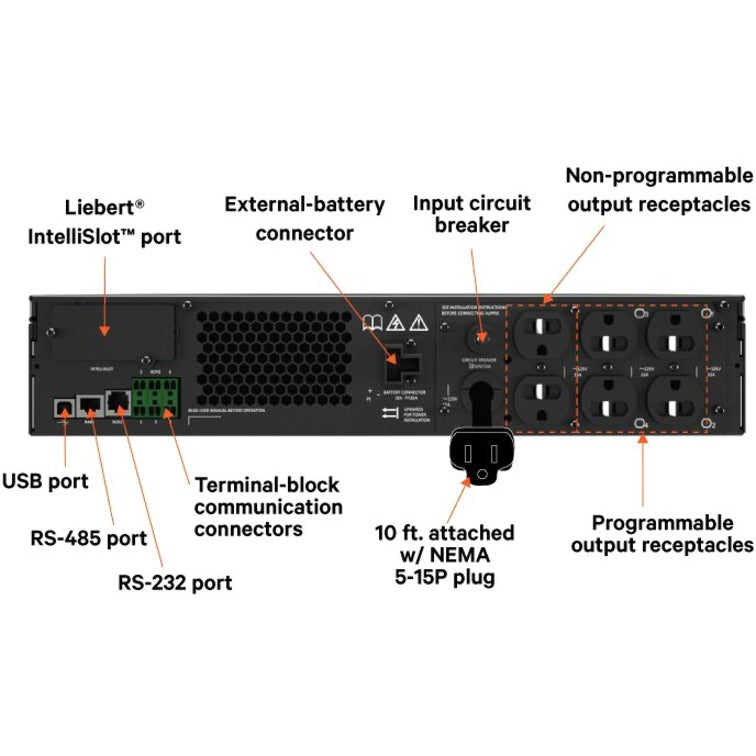

Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Number of Batteries: 3
- Battery Characteristics: Valve-regulated, Non-spillable
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Backup/Run Time (Full Load): 6 Minute
- Backup/Run Time (Half Load): 15 Minute
- Battery Life: 5 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 3.3"
- Width: 16.9"
- Depth: 15.8"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 50 lb
Miscellaneous
- Package Contents:
- GXT5 1000VA 120V UPS with SNMP/Webcard
- 4 Post Rack Mounting
- Tower Stand
- USB Cable
- User Guide
- Safety Instruction Manual
- Energy Star: Yes
- Country of Origin: China
- TAA Compliant: No
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
