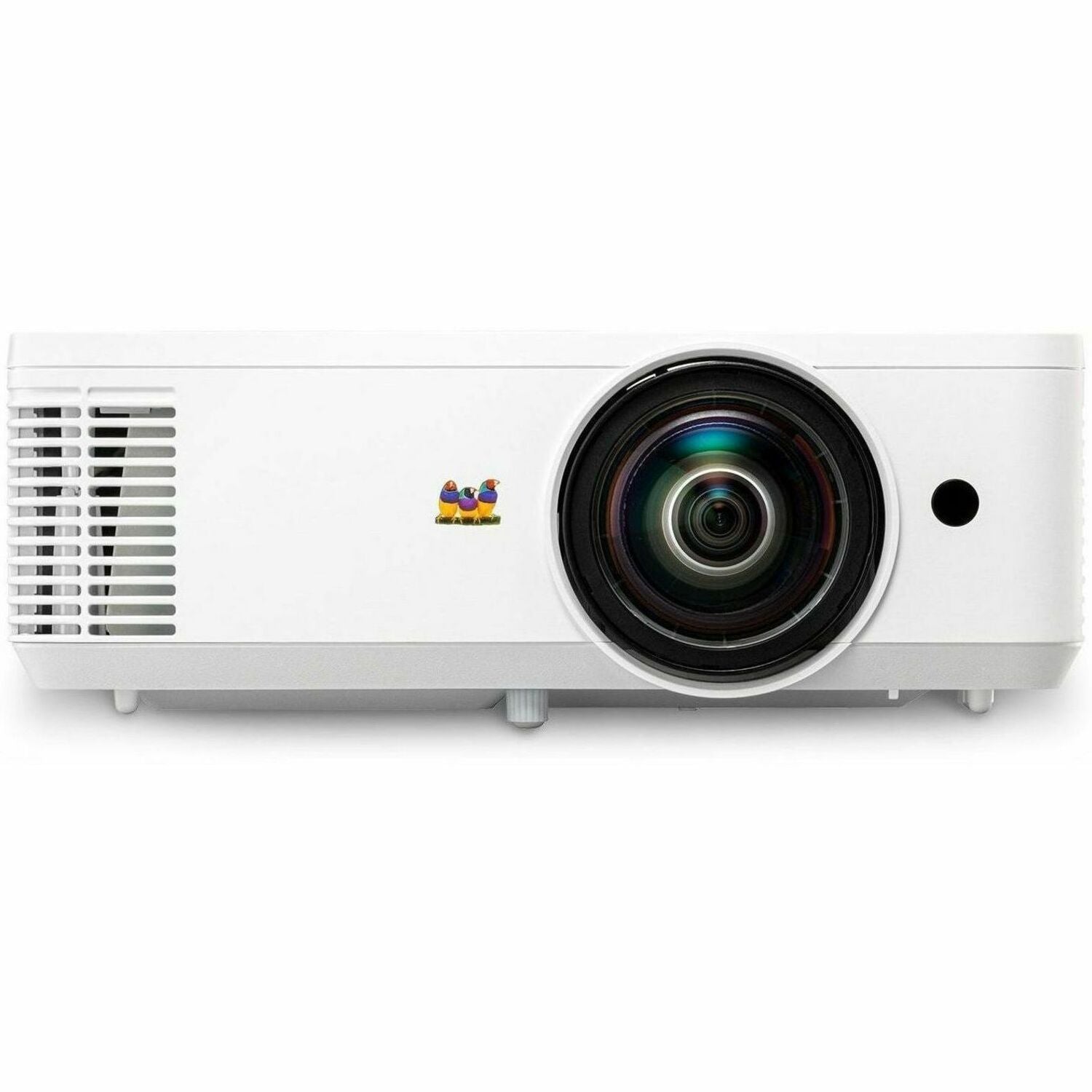

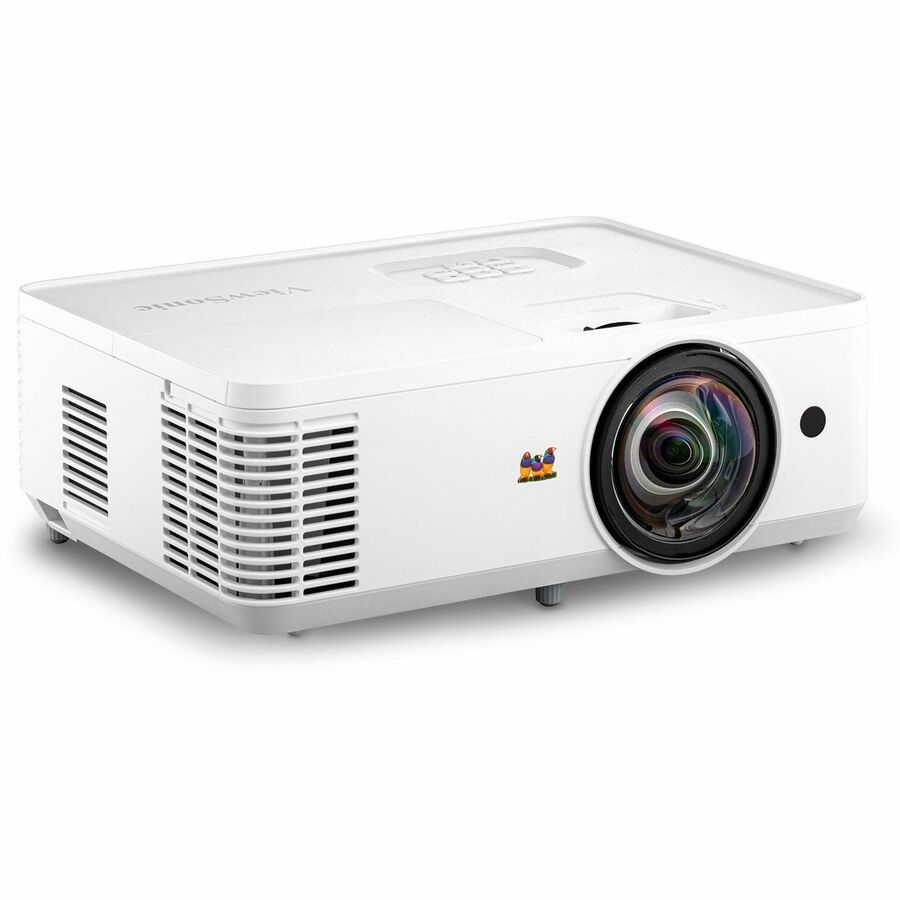

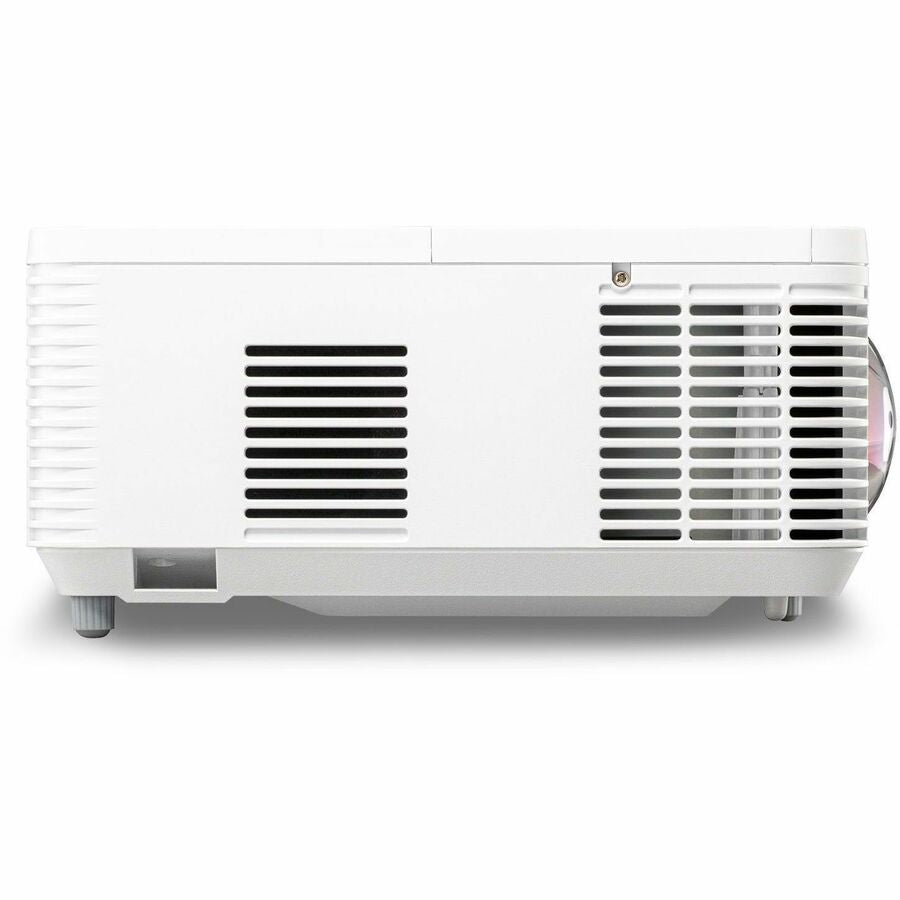

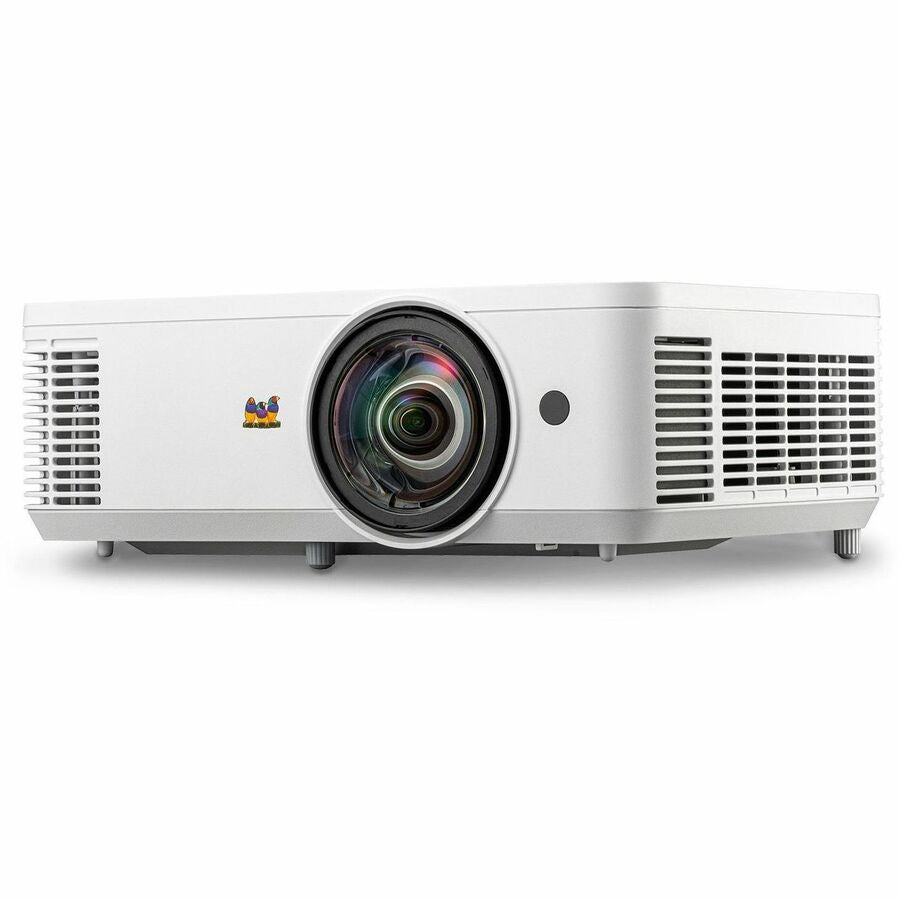

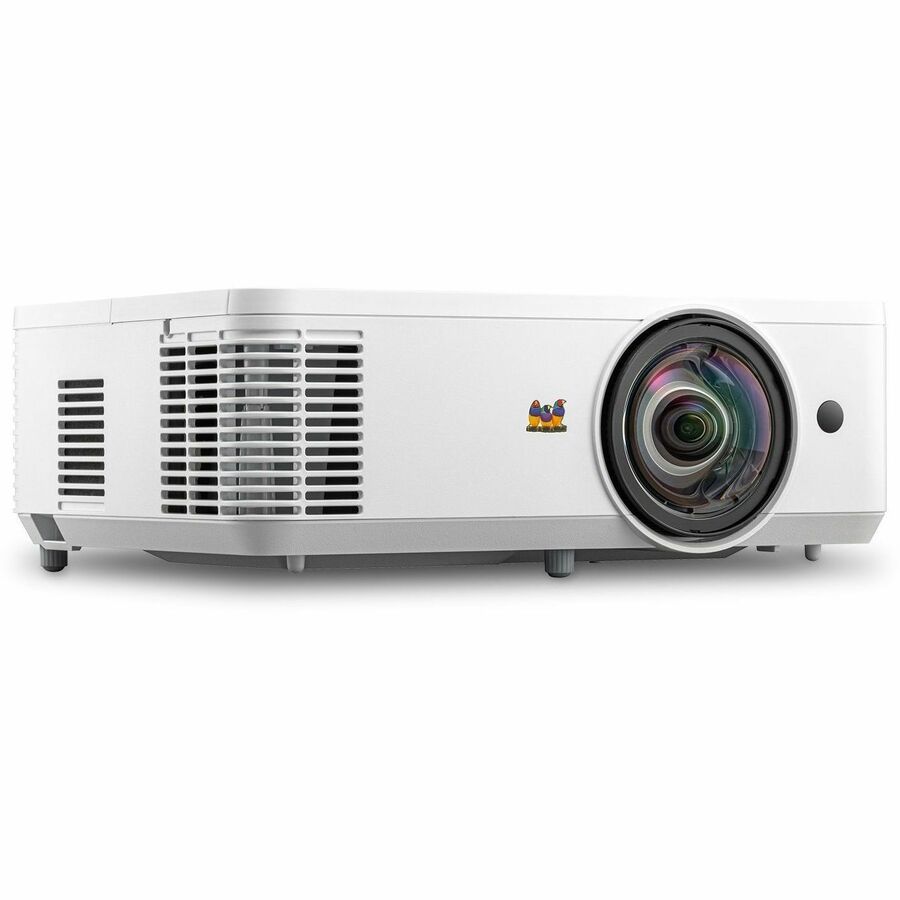

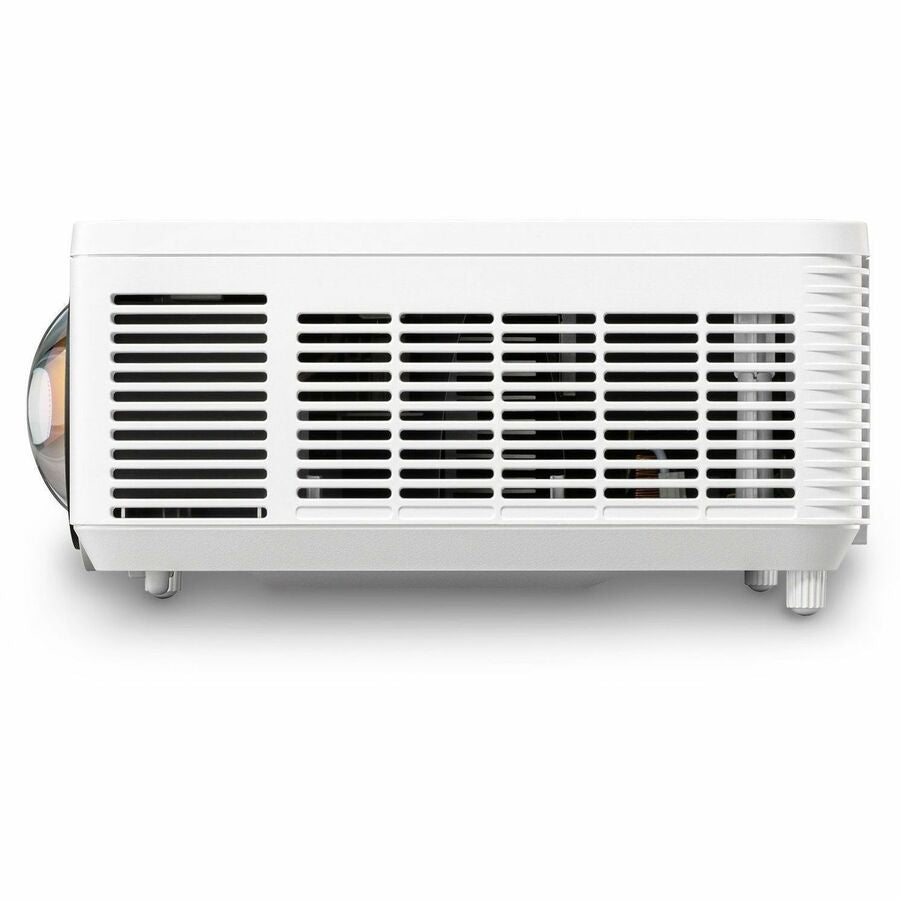

ViewSonic PS502W 4000 Lumens WXGA Short Throw Projector, High Brightness for Business and Education, Easy Widescreen Setup, Dual HDMI, and USB-A Connectivity Inputs - PS502W
Key Features
- Projects screen sizes from 30" to 300" with a throw distance of 3.9 ft - 43 ft; displays a 100" image from 13 ft
- Setup options include 0.8x-2.0x digital zoom, V keystone, and auto keystone
- The projector can be configured for automatic turn on and off
- This projector supports table placement or ceiling installation; compatible with ViewSonic mounts PJ-WMK-305 or PJ-WMK-007
- WXGA (1280x800p) short-throw lamp projector with bright 4,000 ANSI lumens and advanced visual features
Product Overview

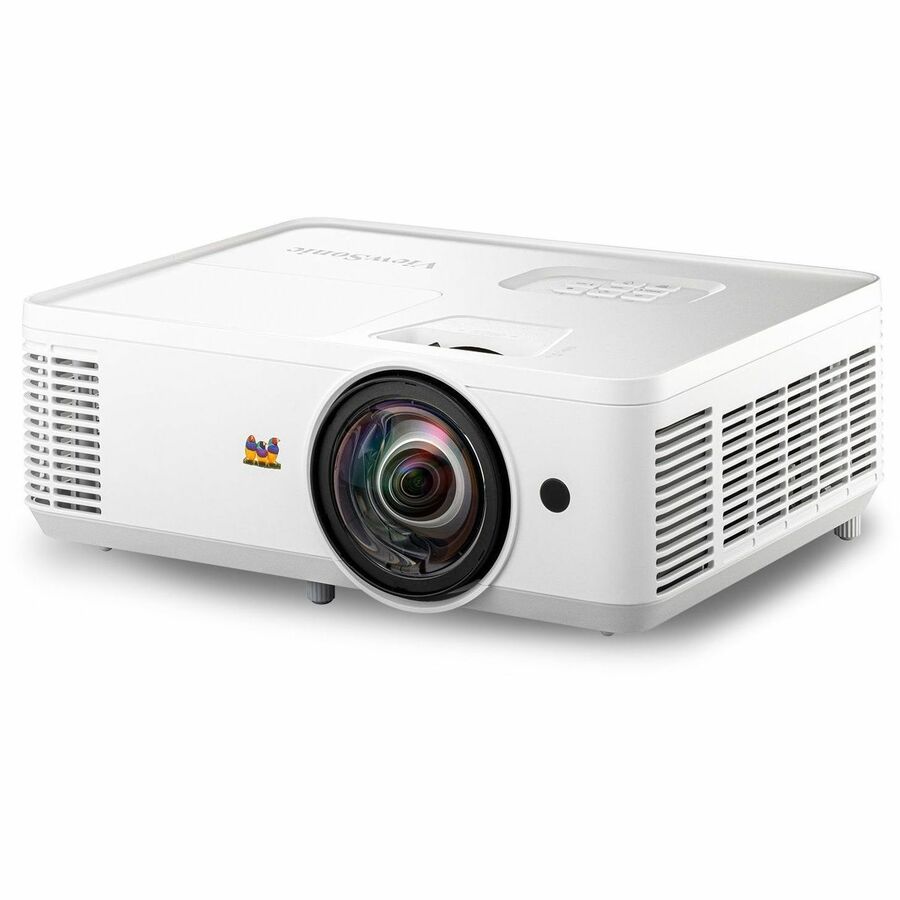

Light up classrooms and conference rooms alike with the ViewSonic® PS502W WXGA short throw projector.
Featuring 4,000 ANSI lumens of stunning brightness, this powerful business and education projector creates crystal clear images up to 300". And with a 0.52 short throw ratio, this projector is capable of displaying shadow-free 100" images from just a few feet away.

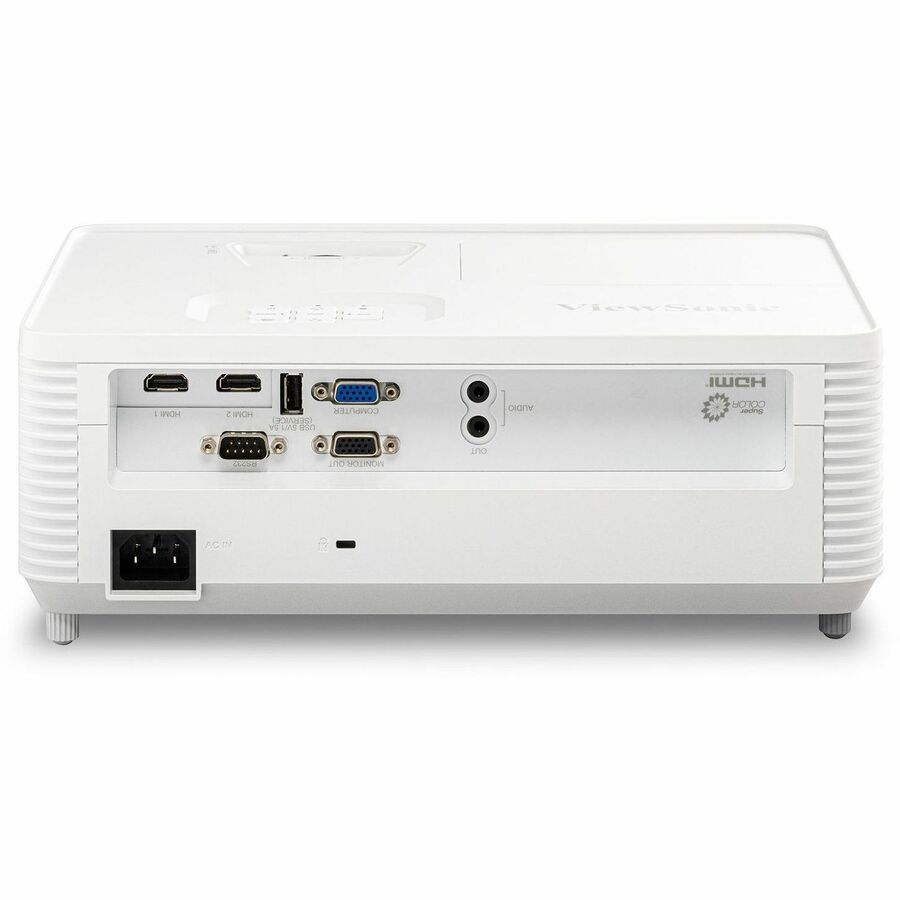

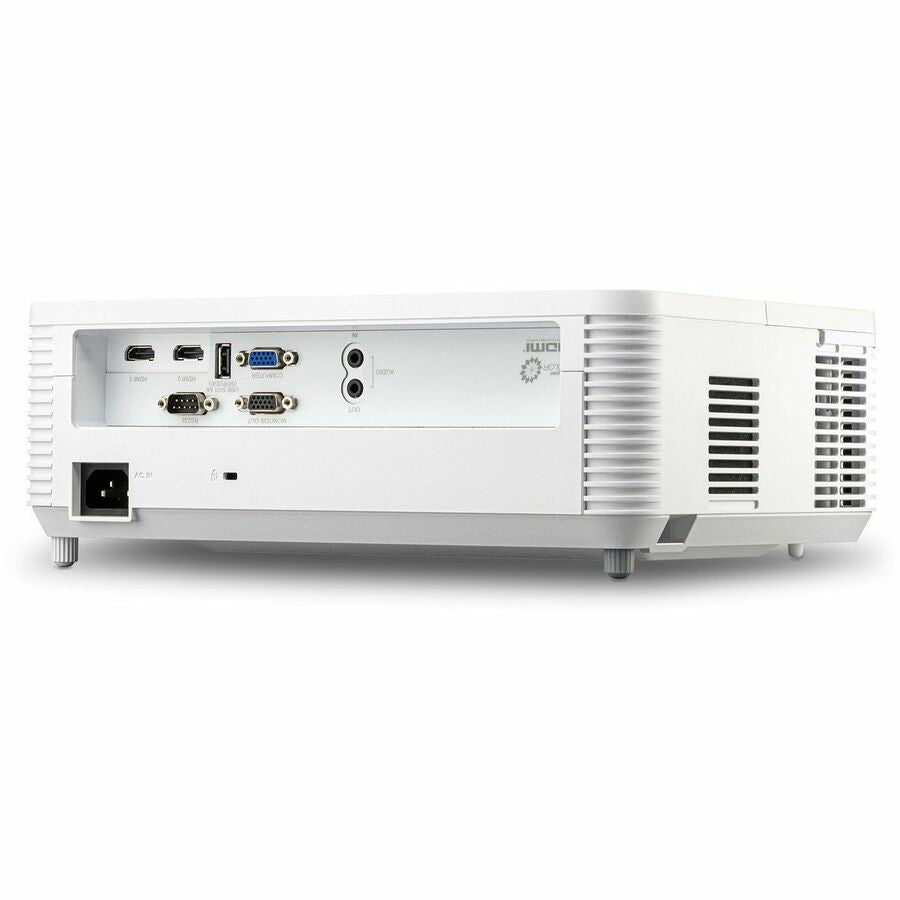

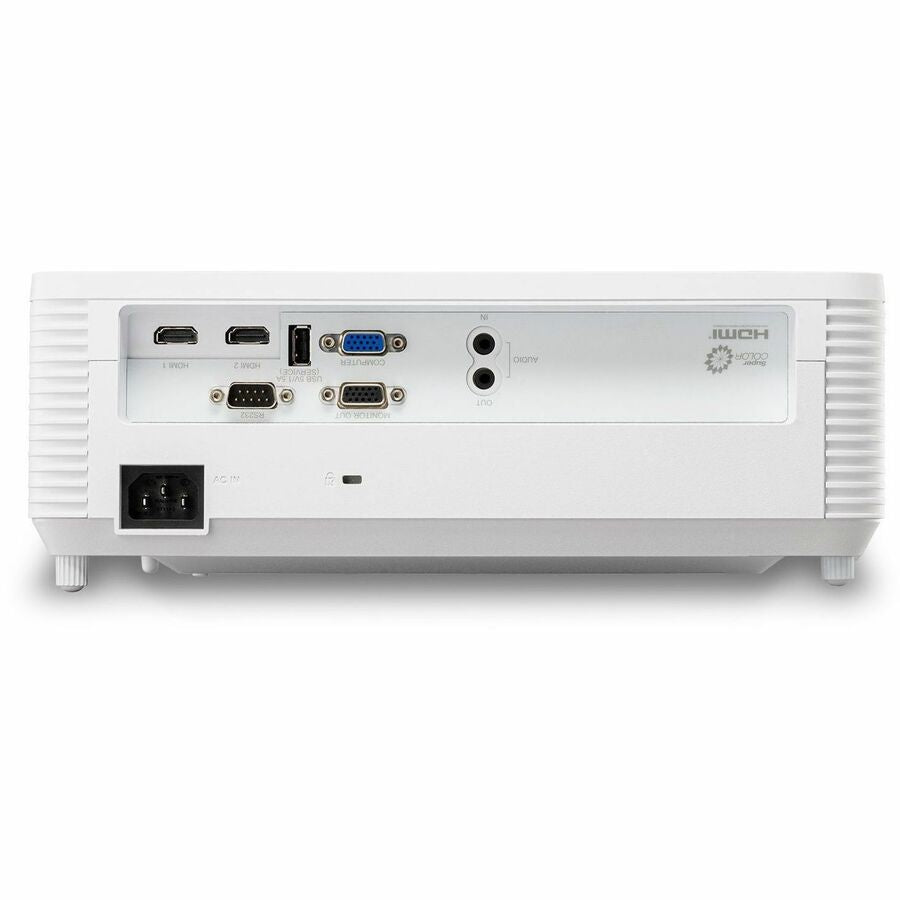

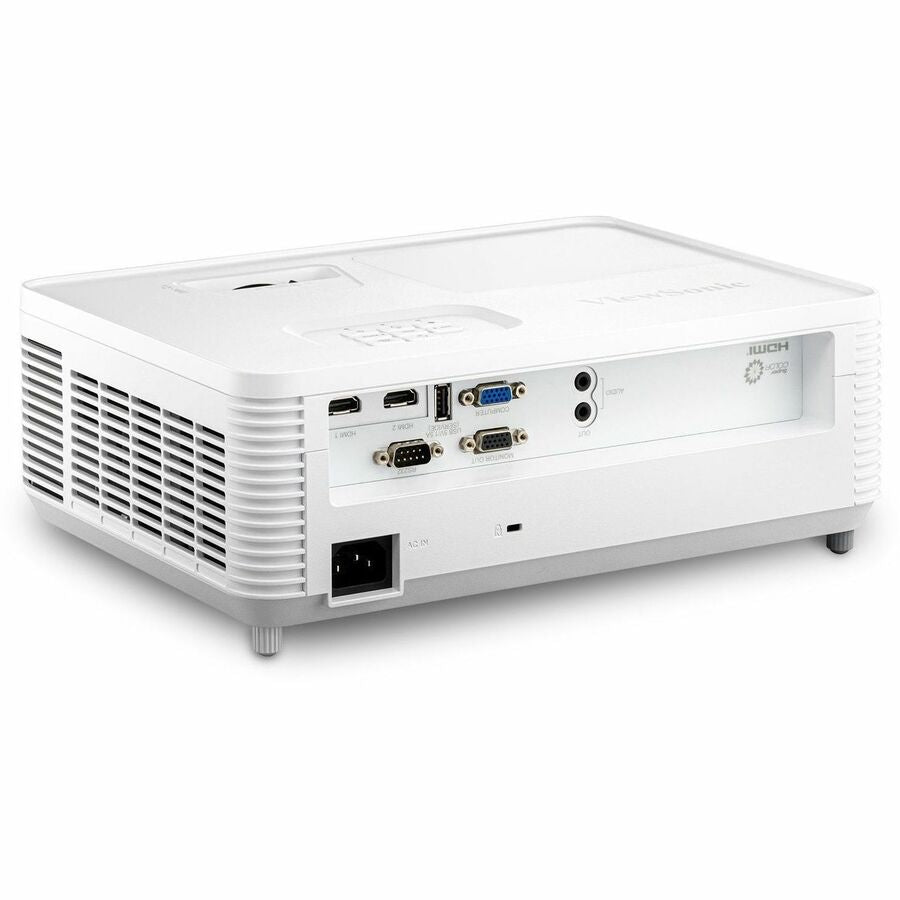

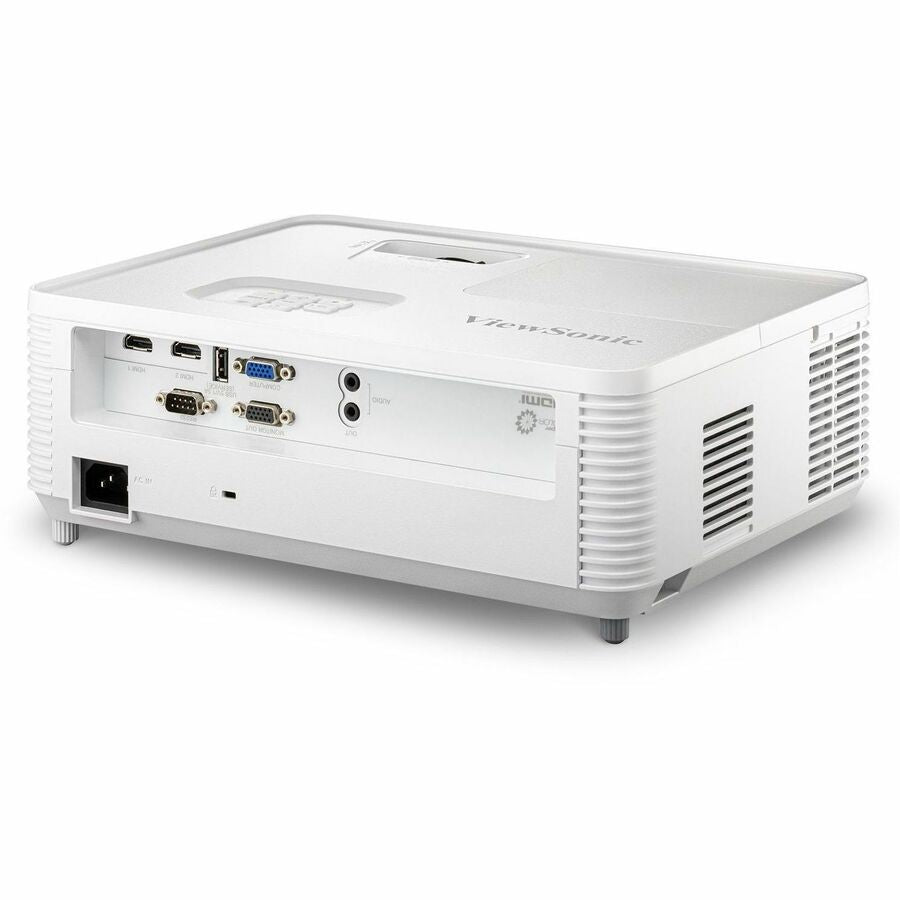

The PS502W projector also comes with multiple connectivity options for greater convenience. Dual HDMI ports empower users to connect multiple devices directly to the projector. Once connected, the projector can conveniently switch between different input sources at the press of a button. A USB-A port provides power to wireless HDMI dongles for a more convenient streaming experience. Rather than taking your projector to the service center, software updates can be performed easily over a simple USB cable.
With the PS502W projector, you can let your presentations shine with stunning clarity.
General Information
- Manufacturer: ViewSonic Corporation
- Manufacturer Part Number: PS502W
- Brand Name: ViewSonic
- Product Model: PS502W
- Product Name: PS502W 4,000 ANSI Lumens WXGA Short Throw Business & Education Projector
- Product Type: DLP Projector
Technical Information
- Projection Method: Front
Display & Graphics
- Native Resolution: 1280 x 800
- Graphic Mode: WXGA
- Maximum Resolution: 1920 x 1080
- Native Aspect Ratio: 16:10
Projection Lens
- Throw Type: Short Throw
- Maximum Focal Length: 7.51 mm
- Maximum Diagonal Image Size: 25 ft
- Optical Zoom: 2x
- Minimum Projection Distance: 26.38"
- Maximum Projection Distance: 11.02 ft
Lamp
- Number of Lamps: 1
- Lamp Type: UHP
- Lamp Power: 240 W
- Normal Mode Lamp Life: 4000 Hour
- Economy Mode Lamp Life: 12000 Hour
- Standard Mode Brightness: 4000 lm
- Contrast Ratio: 15,000:1
Video
- Video Signal Standard: HDTV
- Output Scan Format: 1080p
Interfaces/Ports
- HDMI: Yes
- USB: Yes
Power Description
- Operating Power Consumption: 295 W
Physical Characteristics
- Product Color: White
- Height: 4.5"
- Width: 12.2"
- Depth: 9.2"
- Weight (Approximate): 6.33 lb
Miscellaneous
- Application/Usage:
- Business
- Education
- Meeting
- Class Room
- Presentation
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
1 Year limited lamp warranty. Lamp warranty is subject to ViewSonic standard limited warranty terms and conditions, verification and approval. All accessory lamps purchased separately are warranted for 90 days.
