Yealink MVC S90 Video Conferencing System for Extra-Large and Training Rooms with Dual UVC86 4K PTZ Cameras, 12x Optical Zoom, AVHub Multi-Camera Processor Supporting Up to 9 Cameras, MCore Pro Mini-PC, and 11.6-Inch MTouch Plus Touch Panel
The Yealink MVC S90 (1106999) is a Microsoft Teams Rooms certified video conferencing system designed for extra-large conference rooms, classrooms, and training environments, built around dual UVC86 4K PTZ cameras with 12x optical zoom and an AVHub audio/video processor that supports up to nine cameras connected simultaneously for comprehensive multi-angle coverage of large meeting spaces. The UVC86 cameras deliver Auto-framing, Speaker Tracking, and Presenter Tracking with gesture-based on/off control, and the AVHub processor handles multi-speaker tracking with voice-activated switching and customizable screen layouts that adapt to different room configurations and meeting styles. The MCore Pro mini-PC provides the processing power for the full system, and the MTouch Plus 11.6-inch touch panel delivers intuitive room control with independent camera management through Yealink RoomConnect.
The MVC S90 supports both wired and wireless screen sharing for content presentation, and the system architecture allows multiple MVC S90 units to be combined through network cables to build divisible conference room configurations that merge and separate as room layouts change. The optional MVC-BYOD-Extender converts the Teams Rooms installation into a multi-functional meeting room where participants plug a USB cable into any PC to access the full audio and video infrastructure. The I/O layout includes three HDMI outputs for multi-display configurations, video input, RJ-45 Gigabit Ethernet, USB, and WiFi connectivity, with support for both wall-mount and desktop deployment in Windows 10 and Windows 11 IoT Enterprise environments.
Where the Yealink MVC S90 Fits

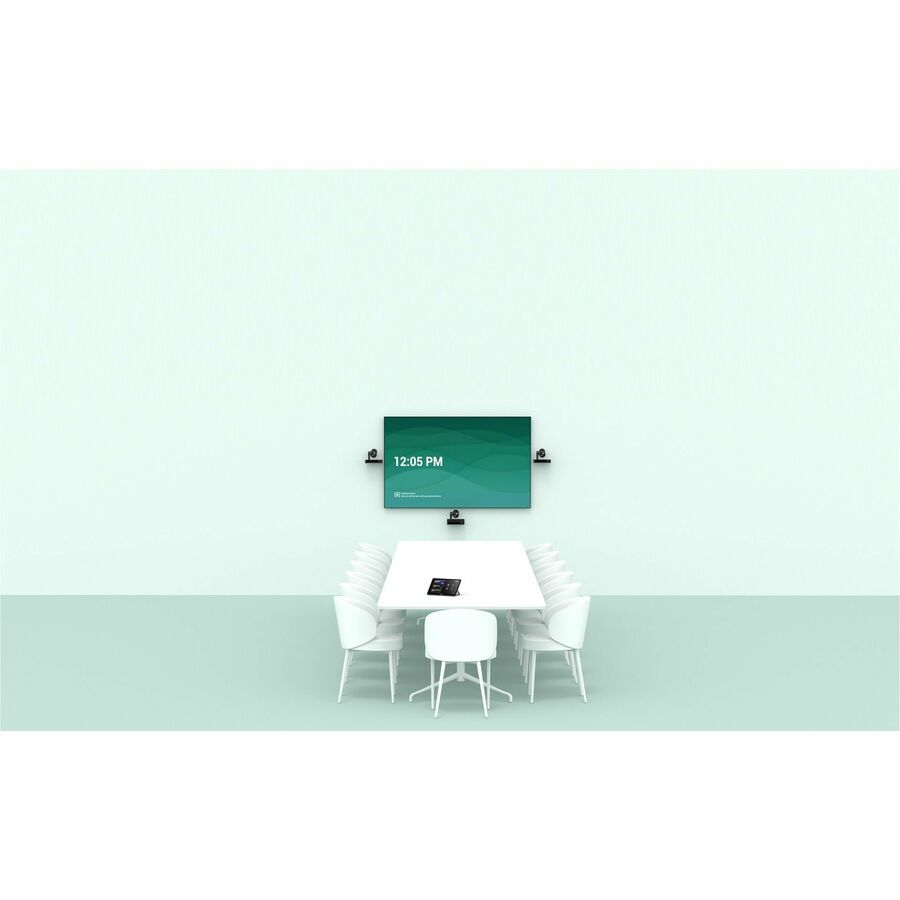

- Extra-large conference rooms and boardrooms that need multi-camera coverage where the dual UVC86 4K PTZ cameras with 12x optical zoom and Auto-framing, Speaker Tracking, and Presenter Tracking provide comprehensive room capture, the AVHub processor supports up to nine cameras with voice-activated multi-speaker tracking and customizable screen layouts, and the system scales through network-connected MVC S90 units for divisible room configurations
- Training rooms and classrooms requiring flexible camera management where each UVC86 camera supports up to nine preset positions with one-step switching through the camera plug-in controller, gesture-based tracking control allows presenters to enable or disable following without interrupting the session, and the MTouch Plus provides independent camera control and layout switching through Yealink RoomConnect
- Organizations deploying multi-purpose meeting spaces on Microsoft Teams where the MVC-BYOD-Extender option converts the Teams Rooms installation into a USB-accessible system for any PC, wired and wireless screen sharing supports content presentation from any device, and the three HDMI outputs with Gigabit Ethernet and WiFi accommodate multi-display room designs with flexible network connectivity
What the Yealink MVC S90 Delivers
- Dual UVC86 4K PTZ Cameras: Two 4K PTZ cameras with 12x optical zoom. Auto-framing, Speaker Tracking, and Presenter Tracking. Gesture-based tracking on/off. Up to 9 preset positions per camera. 1920x1080 Full HD output at 30 fps.
- AVHub Multi-Camera Processor: Supports up to 9 cameras connected simultaneously. Voice-activated multi-speaker tracking. Customizable screen layouts. Multi-camera solution with flexible layout adjustment through MTouch Plus.
- MCore Pro and MTouch Plus: MCore Pro mini-PC for system processing. MTouch Plus 11.6-inch touch panel with Yealink RoomConnect. Independent camera control and layout switching. Support for multiple simultaneous touch panels.
- Scalable Room Architecture: Multiple MVC S90 units combine through network cables for divisible rooms. MVC-BYOD-Extender for USB-based multi-functional room conversion. Wired and wireless screen sharing. Wall-mount and desktop deployment.
- Connectivity and Platform: 3x HDMI Out, Video Input, RJ-45, USB. 10/100/1000Base-T Gigabit Ethernet with WiFi. Microsoft Teams and Skype for Business certified. Windows 10/11 IoT Enterprise. Noise Reduction and Digital PTZ.
