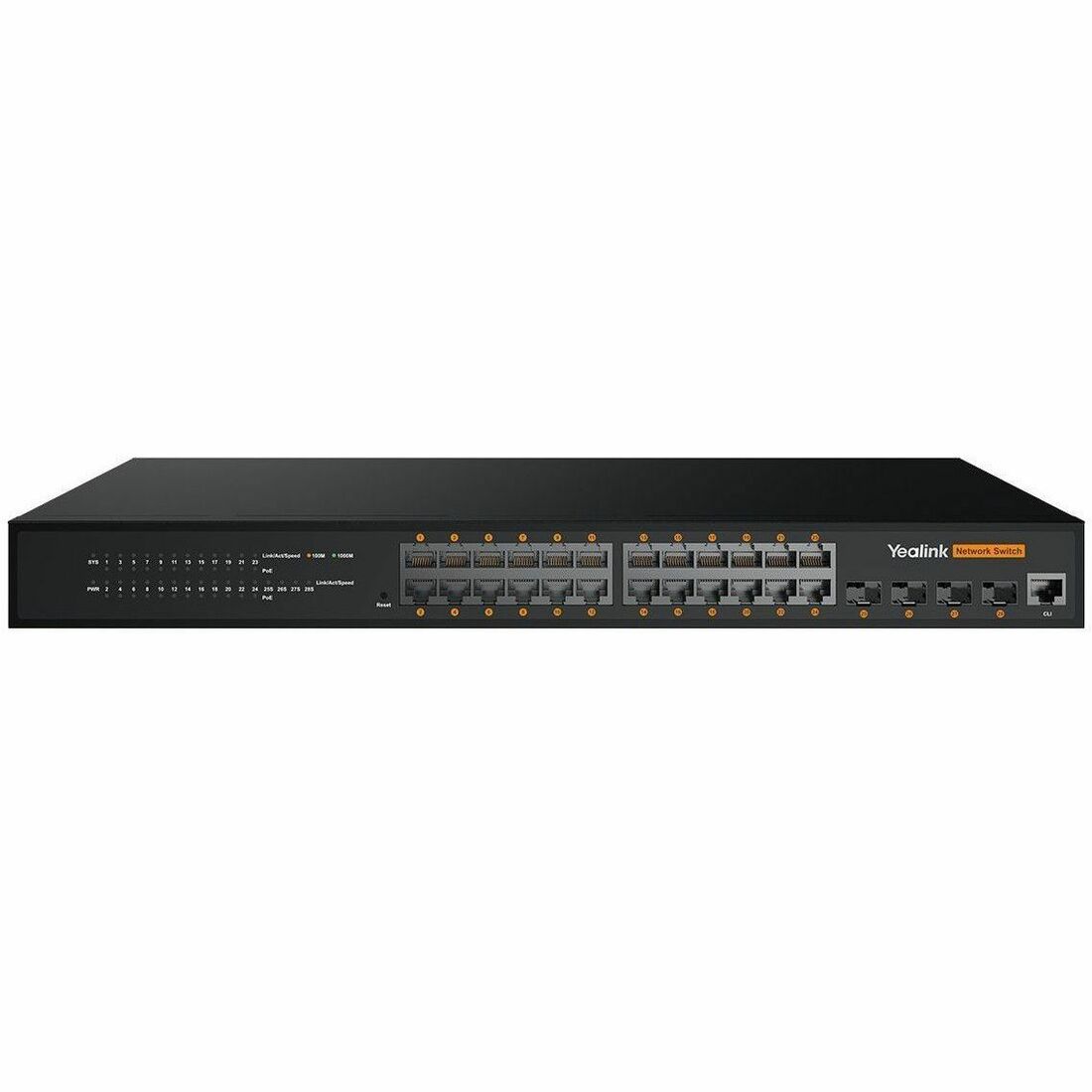

Yealink PoE Network L2+ Switch - 1303228
Key Features
- Effectively increases available bandwidth on your network
- Features 24 networking ports to establish large network
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability allows maximum efficiency and with unrestricted control
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Product Overview
The RCH80 and RCH240 are AV switches specifically designed and developed for Yealink AV over IP. The RCH80 and RCH240 support Yealink's audio and video protocols, as well as the universal Dante and AES67 protocols. They support PoE+ power supply, meeting the power requirements of AV devices. With EEE disabled by default and IGMP Snooping multicast function enabled by default, the switches require no configuration, enabling plug-and-play functionality for Yealink AV over IP devices.
Key Features and Benefits
- Yealink L2+ Managed AV Switch
- 8/24 Gigabit Ethernet Ports + 2/4 Gigabit Fiber Ports
- Supports 802.3af/at PoE, 130W/370W power supply
- EEE function is disabled by default
- Supports multicast/IGMP snooping and querying
- Compatible with Yealink MVC / VCH
- Supports Dante and AES67 protocols
- Plug-and-play for Yealink AV over IP devices, no configuration required
General Information
- Manufacturer: Yealink Network Technology Co., Ltd
- Manufacturer Part Number: 1303228
- Brand Name: Yealink
- Product Model: RCH240
- Product Name: PoE Network L2+ Switch
- Packaged Quantity: 1
- Product Type: Ethernet Switch
Technical Information
- Features:
- IGMP Snooping
- Plug and Play
- Built-in Fan
- Loop Protection
- Quality of Service (QoS)
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 370 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source:
- Power Supply
- AC
Physical Characteristics
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 8.2"
- Weight (Approximate): 7.89 lb
