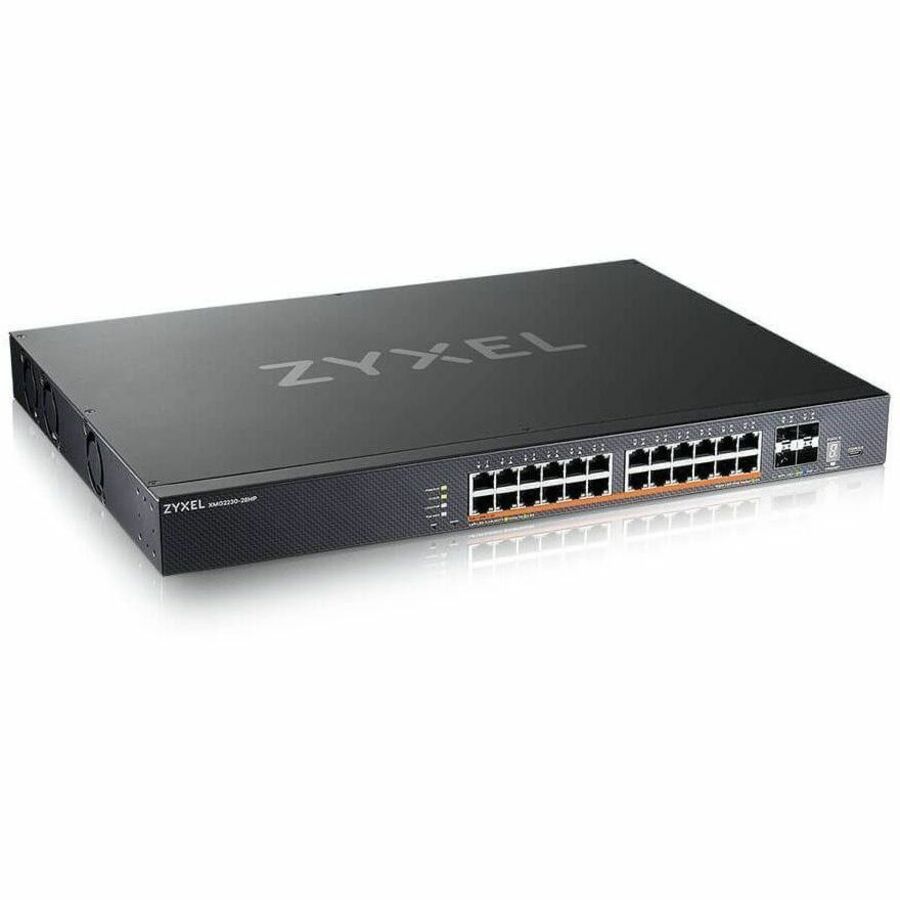

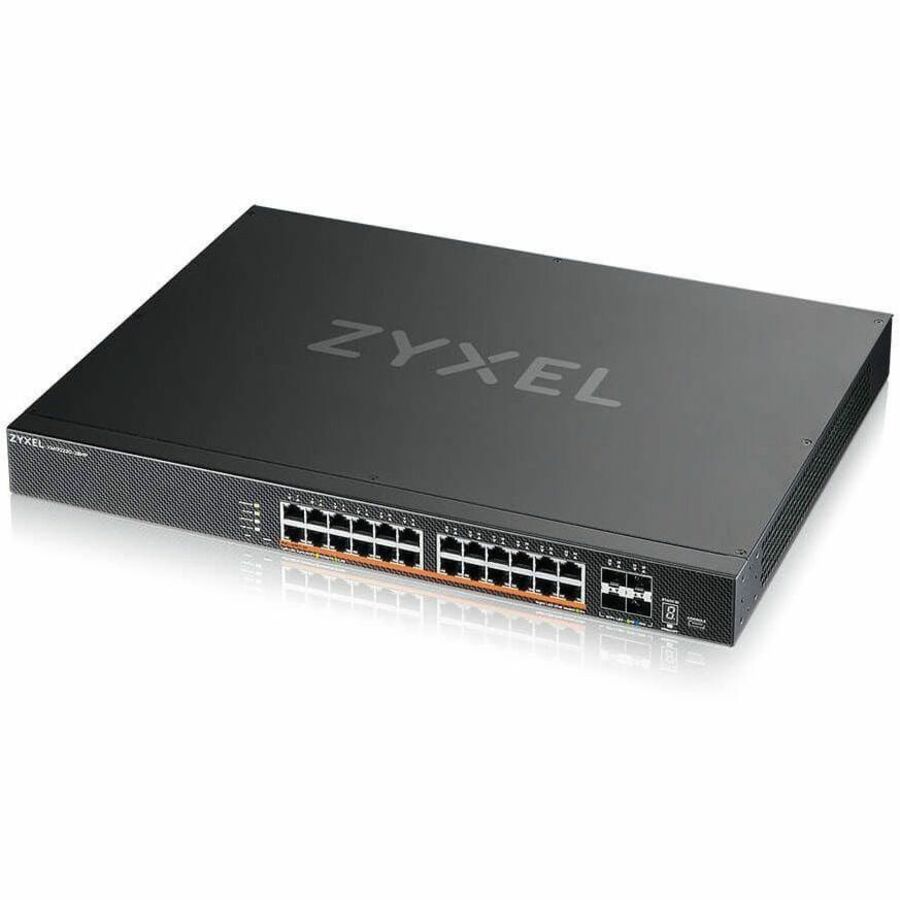

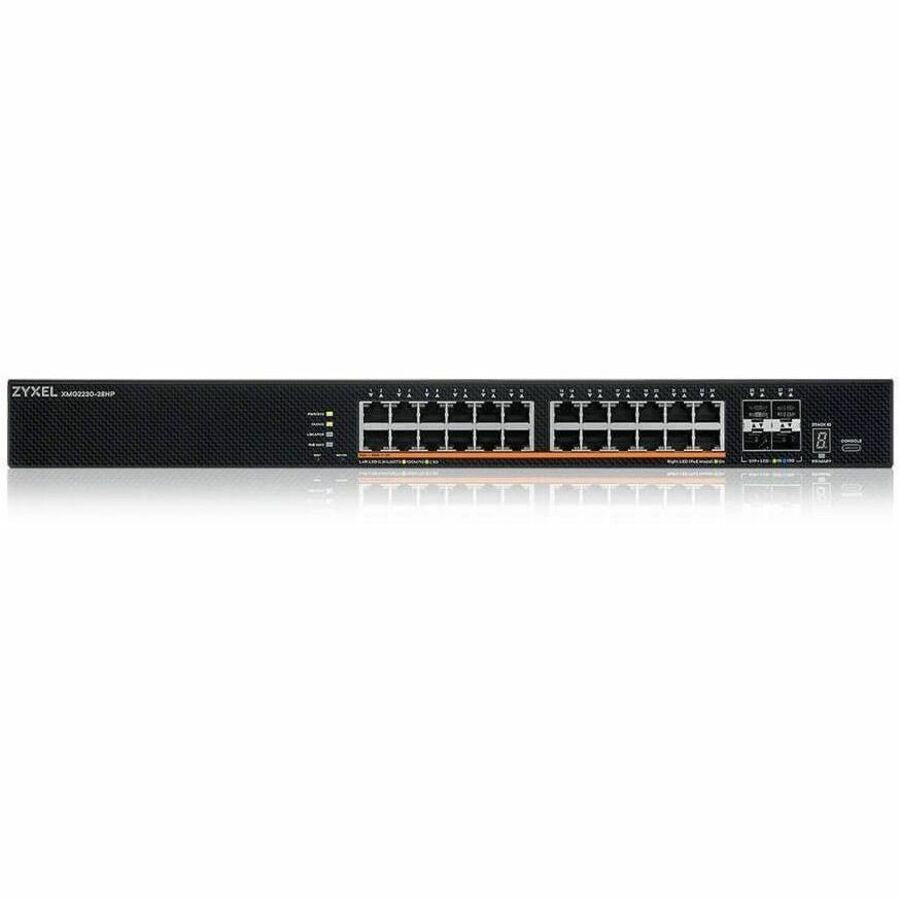

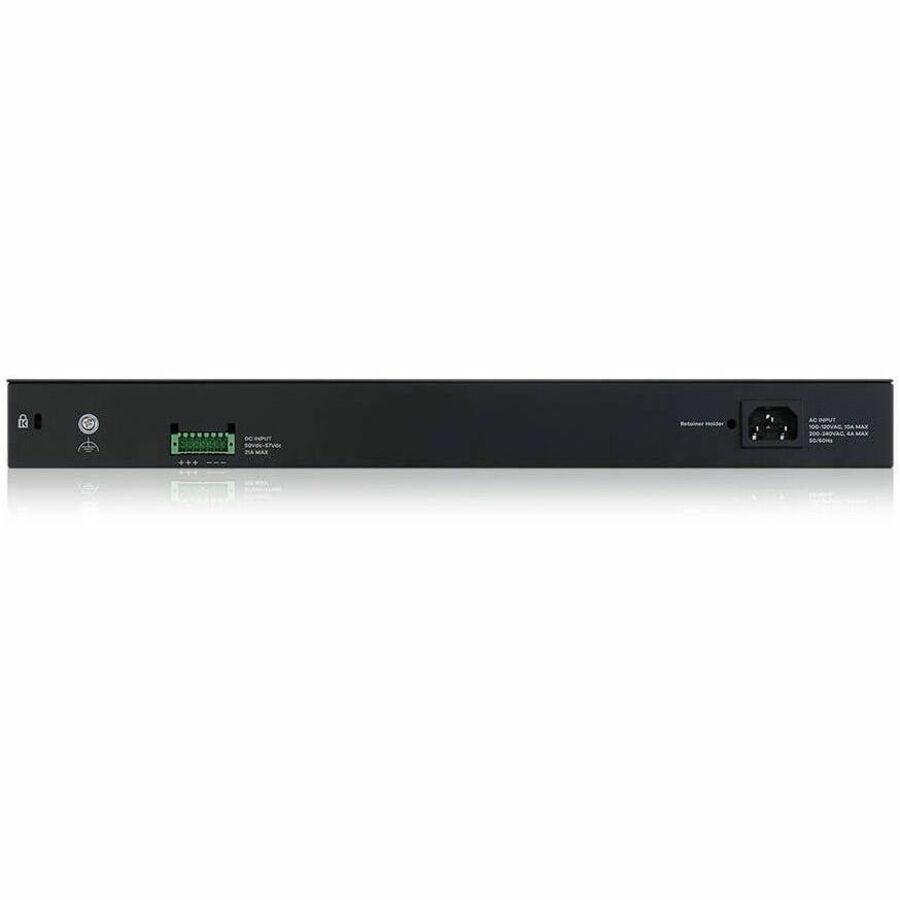

ZYXEL XMG2230-28HP Ethernet Switch - XMG2230-28HP
Key Features
- Can work as layer 3 routing for scalable network design
- Cascade to other network devices through the uplink port to expand your local area network
- Effectively reduces downtime with improved network performance
- Features 24 networking ports to establish large network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Product Overview
Zyxel Networks is excited to introduce the XMG-2230Series, the newest addition to our Layer 3 access switch lineup, engineered to deliver multi-gigabit performance, flexible PoE, and advanced power management capabilities. Built on the new FiOS firmware trunk, the XMG-2230 is ideal for modern enterprise networks that demand higher speeds, cloud connectivity, and power efficiency.
General Information
- Manufacturer: ZYXEL Communications Corp.
- Manufacturer Part Number: XMG2230-28HP
- Brand Name: ZYXEL
- Product Model: XMG2230-28HP
- Product Name: XMG2230-28HP Ethernet Switch
- Packaged Quantity: 1
- Product Type: Ethernet Switch
Technical Information
- Features:
- Energy Efficient
- Remote/Cloud Management
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 24 x Multi-Gigabit Ethernet PoE++ Port
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 2.5GBase-T
- 10GBase-X
- 1000Base-X
- Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 3
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 1440 W
- Power Source:
- AC/DC
- Power Supply
Physical Characteristics
- Height: 1.7"
- Width: 17.4"
- Depth: 13"
- Weight (Approximate): 9.99 lb
