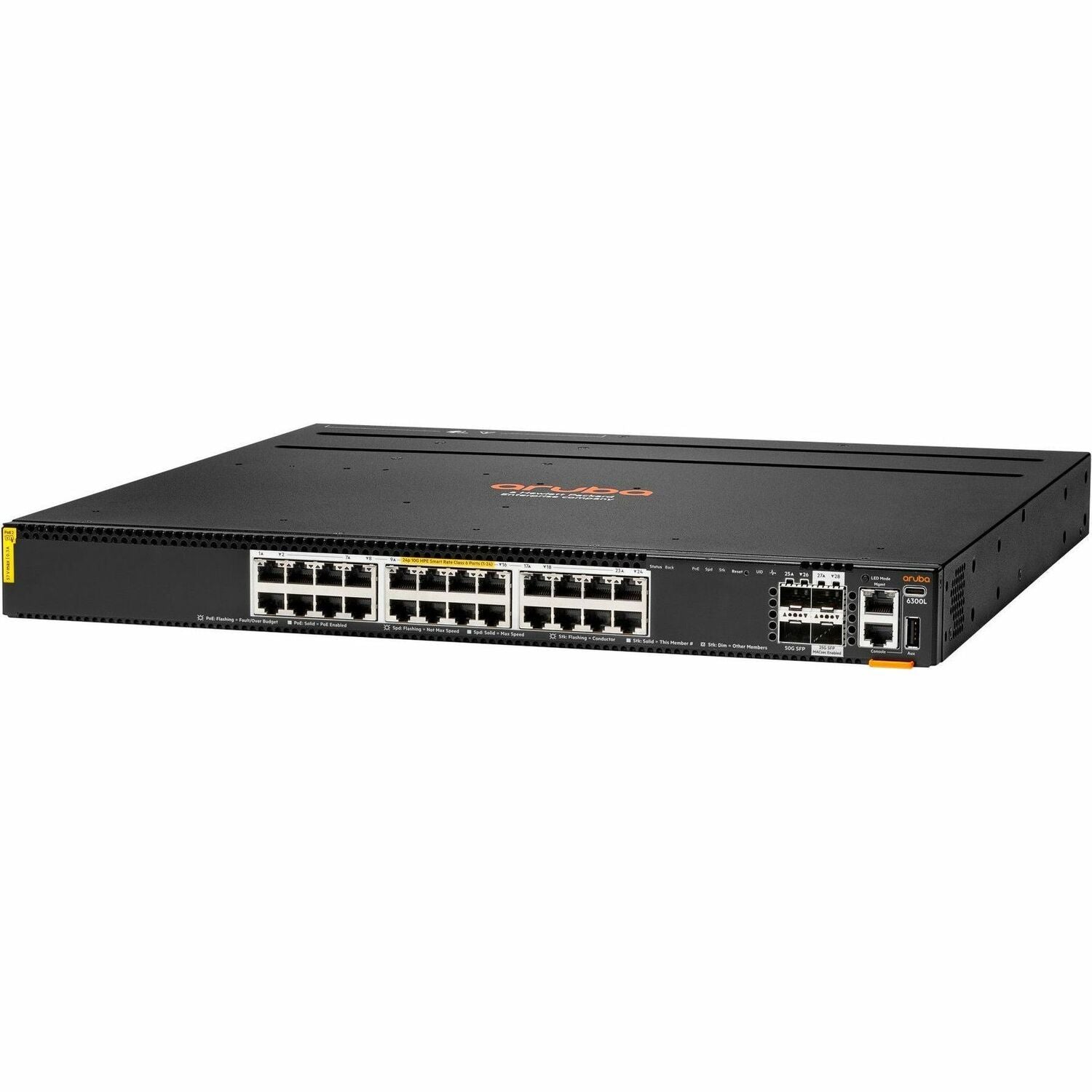

Aruba 6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 2p SFP56 50G 2p SFP28 25G L2 Switch - S3L75A
Key Features
- Comes in black color for better adaption to the space
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Management capability allows maximum efficiency and with unrestricted control
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Supports layer 3 switching for enhanced performance and usability
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: S3L75A
- Brand Name: Aruba
- Product Series: CX 6300
- Product Model: 6300L 24P
- Product Name: 6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 2p SFP56 50G 2p SFP28 25G L2 Switch
- Product Type: Layer 3 Switch
Technical Information
- Features: Hot-swappable
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 24 x 1/2.5/5/10BASE-T Gigabit Ethernet RJ-45 PoE Network Port
- 2 x 10/25/50 Gigabit Ethernet SFP56 Expansion Slot
- 2 x 10/25 Gigabit Ethernet SFP28 Expansion Slot
- 1 x USB-C Console Port
- 1 x RJ Console Port
- 1 x OOBM Port
- 1 x USB Type A Host Port
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- 50 Gigabit Ethernet
- Network Technology:
- 100/1000Base-T
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- 10GBase-X
- 25GBase-X
- 50GBase-X
- Maximum Data Transfer Rate: 6.25 GB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type:
- SFP28
- SFP56
Network & Communication
- Layer Supported: 3
- Networking Standards:
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.3at
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 2880 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source:
- Power Supply
- PoE
- PoE++
- Redundant Power Supply Supported: Yes
- Number of Power Supplies Supported: 2
- Number of Power Supplies Installed: 1
Physical Characteristics
- Product Color: Black
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.4"
- Depth: 15.2"
- Weight (Approximate): 13.27 lb
Miscellaneous
- Energy Star: No
- TCO Certified: No
