Ubiquiti Switch Enterprise XG 24 - USW-EnterpriseXG-24
Key Features
- Cascade to other network devices through the uplink port to expand your local area network
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Management capability allows maximum efficiency and with unrestricted control
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Supports layer 3 switching for enhanced performance and usability
Product Overview

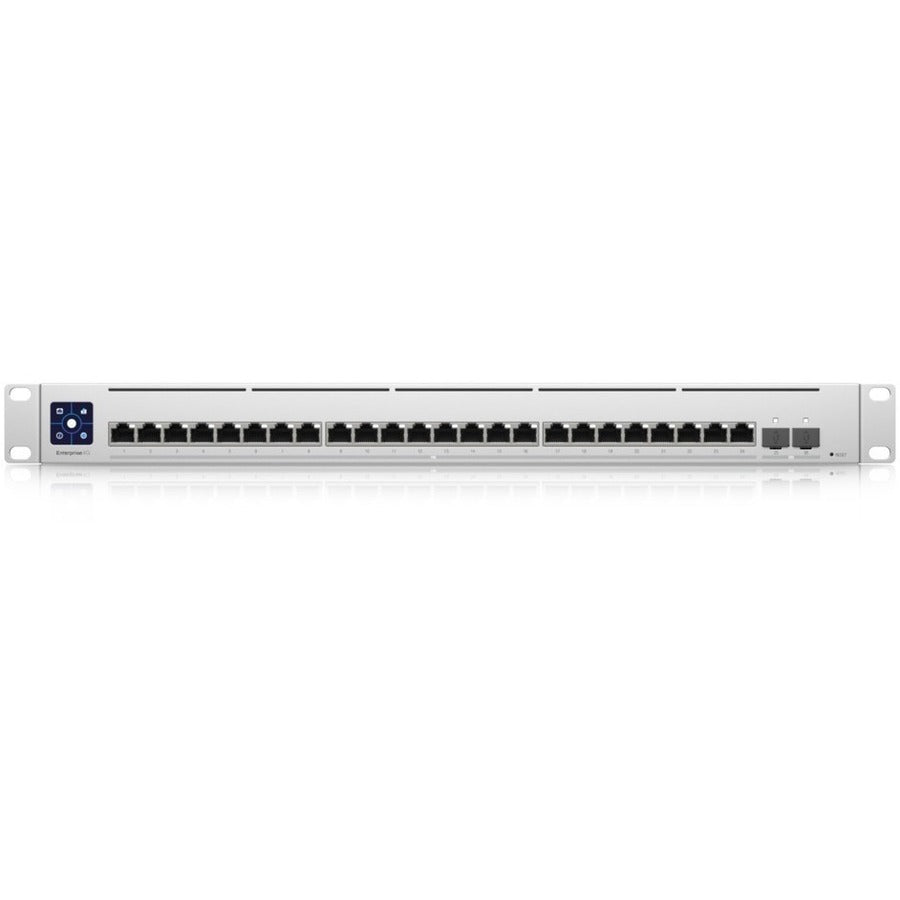

Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.
The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or congured from anywhere with the powerful, intuitive UniFi Network web application and mobile app
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: USW-EnterpriseXG-24
- Brand Name: Ubiquiti
- Product Line: Switch Enterprise XG 24
- Product Name: Switch Enterprise XG 24
- Product Type: Layer 3 Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 24 x 10 Gigabit Ethernet Network
- 2 x 25 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- Network Technology:
- 10GBase-T
- 25GBase-X
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP28
Network & Communication
- Layer Supported: 3
Management & Protocols
- Manageable: Yes
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- 11.5 V DC
- Power Source:
- Power Supply
- AC/DC
- Power Consumption: 100 W
Physical Characteristics
- Product Material:
- Galvanized Cold Rolled Steel (SGCC)
- Steel
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.4"
- Depth: 11.2"
- Weight (Approximate): 9.85 lb
