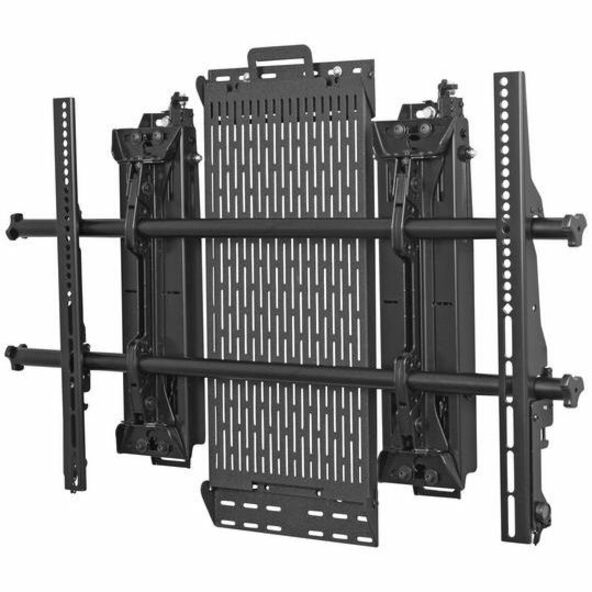

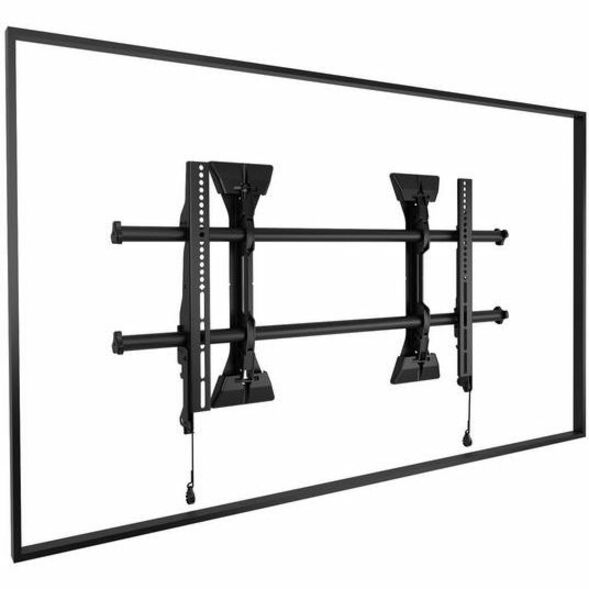

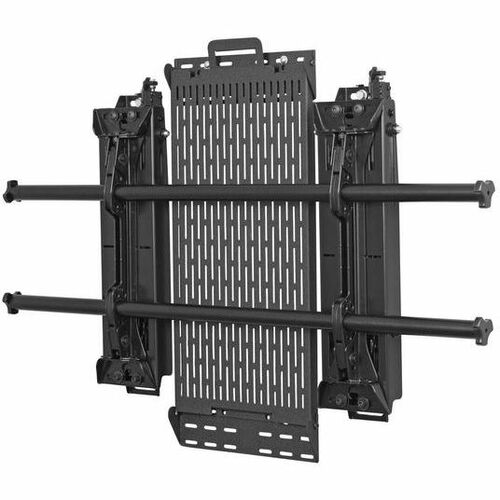

Chief Fusion Adjustable Wall Display Mount - For Displays 42-86" - Black - LSM1U
Key Features
- Cable Management feature for better reliance and usability
- Makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system
- Supports the screen size of 86"
- Sustains a maximum load capacity of 200 lb
Product Overview
The Chief Fusion micro-adjustable fixed display wall mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution and includes new benefits of added stability, faster install, improved lateral shift, easier cable management and enhanced security.The integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall and Control Zone Leveling for post-installation fine tuning of height and leveling.
Feel confident in your installation with Chief's ClickConnect technology that offers an audible click when the screen safely engages with the mount and set screws to keep the mount rigid, stable and secure throughout the life of installation.

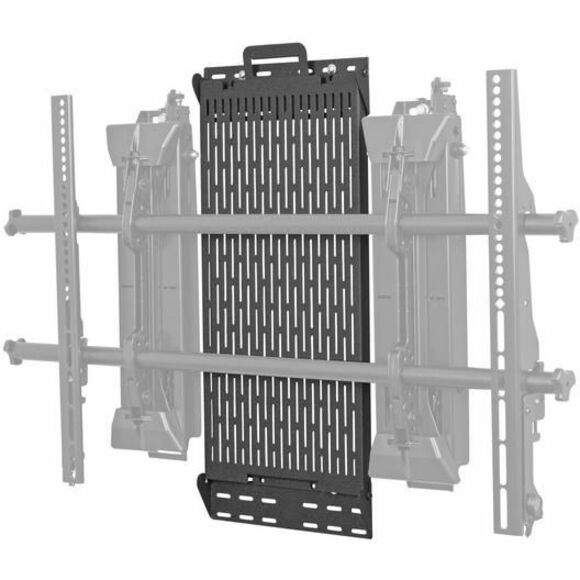

Built in cable stand provides easy access under the screen.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: LSM1U
- Brand Name: Chief
- Product Line: Fusion Wall Fixed
- Product Model: LSM1U
- Product Name: Large Fusion Micro-Adjustable Fixed Wall Display Mount
- Product Type: Wall Mount
Product Information
- Device Supported: Flat Panel Display
- Number of Displays Supported: 1
- Maximum Load Capacity: 200 lb
- Minimum Screen Size Supported: 42"
- Maximum Screen Size Supported: 86"
- Height Adjustable: Yes
- Features:
- Cable Management
- Lateral Adjustment
- Leveling System
- Flexible
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Pattern:
- 100 x 100
- 871 x 500
- Height: 18.25"
- Width: 34.75"
- Depth: 2"
Miscellaneous
- Package Contents:
- Large Fusion Micro-Adjustable Fixed Wall Display Mount
- Hardware Kit
- Country of Origin: China
Warranty
- Limited Warranty: 10 Year
