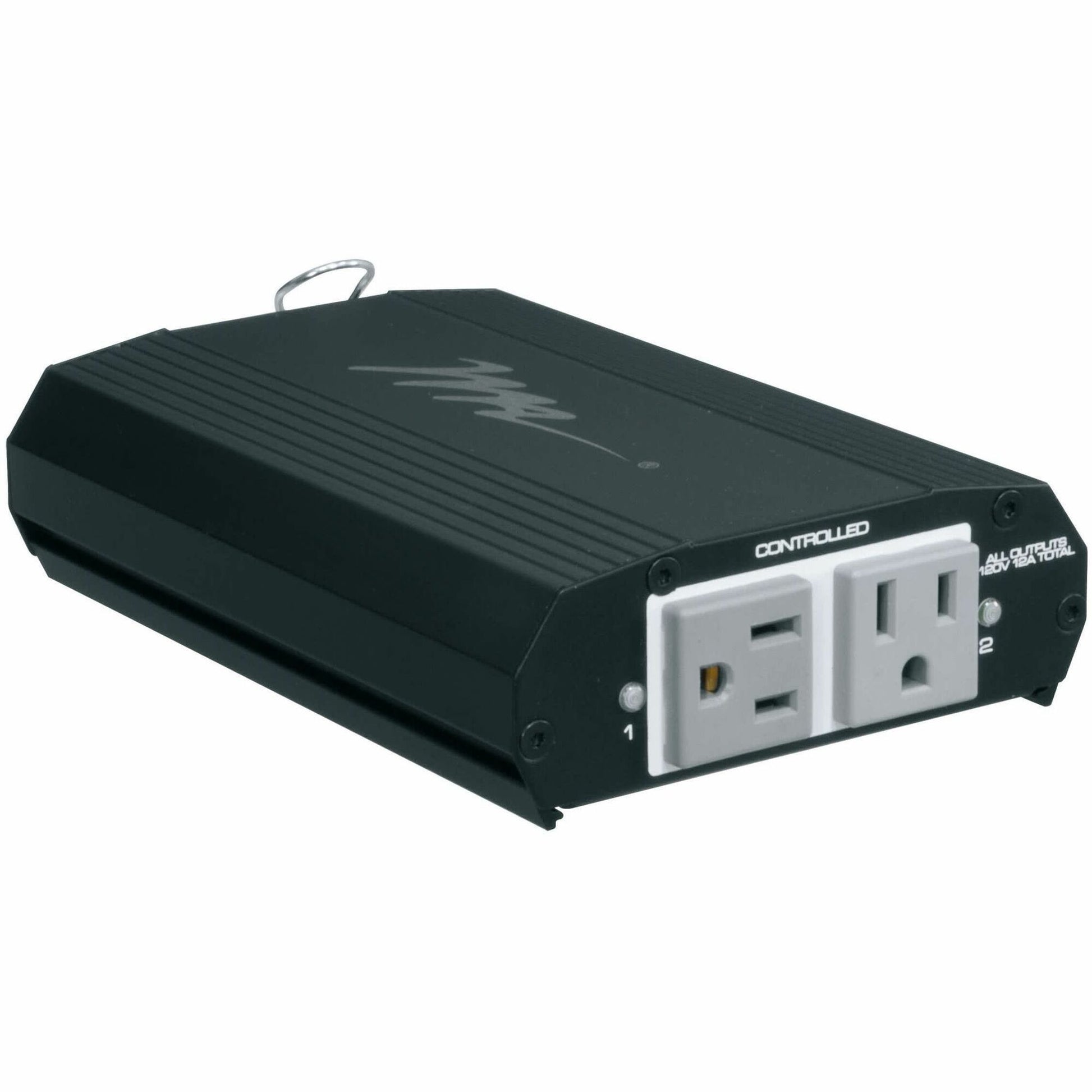

Middle Atlantic Select 2-Outlet PDU with RackLink - 15 Amp Power Distribution Unit - Basic Surge Protection - RLNK-215

Middle Atlantic Select 2-Outlet PDU with RackLink - 15 Amp Power Distribution Unit - Basic Surge Protection - RLNK-215

SKU: RLNK-215

Regular price $429.30 USD
Regular price Sale price $429.30 USD
Sale Sold out

 2 in stock

View full details

Middle Atlantic Select 2-Outlet PDU with RackLink - 15 Amp Power Distribution Unit - Basic Surge Protection - RLNK-215

Key Features

  • Automatic actions improve system reliability
  • Automatic notification of connection status
  • Control start­up or shut­down with remote sequencing
  • Easy set­up and control through RackLink user interface
  • Fast and easy commissioning
  • Individual IP outlet control of up to 2 outlets (2 outlets total)
  • MOV surge and spike protection
  • Multiple IP autoping and recovery ensuring optimal system functionality
  • Seamlessly interfaces with 3rd party AV control systems and cloud platforms for scheduling, control, reporting and even customization

Product Overview

The Middle Atlantic RLNK-215 is a Power Distribution Unit (PDU) that boasts a compact design perfect for use in "behind-the-display" applications, particularly digital signage. It offers individual IP outlet control for two outlets, which can be easily set up through the RackLink user interface. With RackLink, remote sequencing can be achieved using user-selected delays for an optimal start-up or shut-down progression. The PDU also comes with basic surge protection to safeguard connected devices from power anomalies. The RackLink Discovery app for iPhone and Android allows for easy connection of RackLink-enabled PDUs and system monitoring from anywhere and anytime. Automating actions such as multiple IP AutoPing and recovery through this app can improve system reliability. The PDU can seamlessly interface with 3rd party AV control systems and cloud platforms for scheduling, control, reporting, and customization.

General Information

  • Manufacturer: Legrand Group
  • Manufacturer Part Number: RLNK-215
  • Brand Name: Middle Atlantic
  • Product Series: Select
  • Product Model: RLNK-215
  • Product Name: Select 2-Outlet PDU with RackLink - 15 Amp Power Distribution Unit
  • Product Type: PDU

Technical Information

  • PDU Type: Basic
  • Plug/Connector Type: NEMA 5-15P
  • Receptacle Type: AC Power
  • Receptacle Detail: 2 x AC Power
  • Protection Type:
    • Surge Protection
    • Spike Protection

Power Description

  • Input Voltage: 120 V AC
  • Input Current: 15 A

Management

  • Remote Outlet Switching: Yes

Physical Characteristics

  • Form Factor: Compact
  • Height: 1.8"
  • Width: 4.7"
  • Depth: 7.1"

Miscellaneous

  • Package Contents:
    • Select RLNK-215 2-Outlet PDU
    • 2' Power Cord

  • Environmentally Friendly: Yes
  • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

  • Limited Warranty: 3 Year
