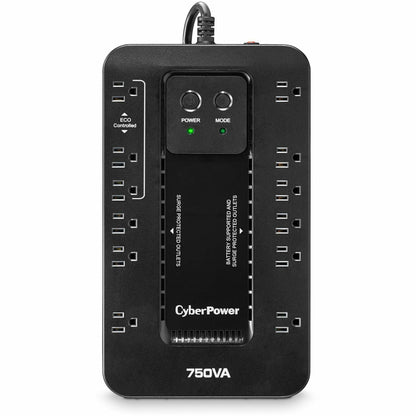

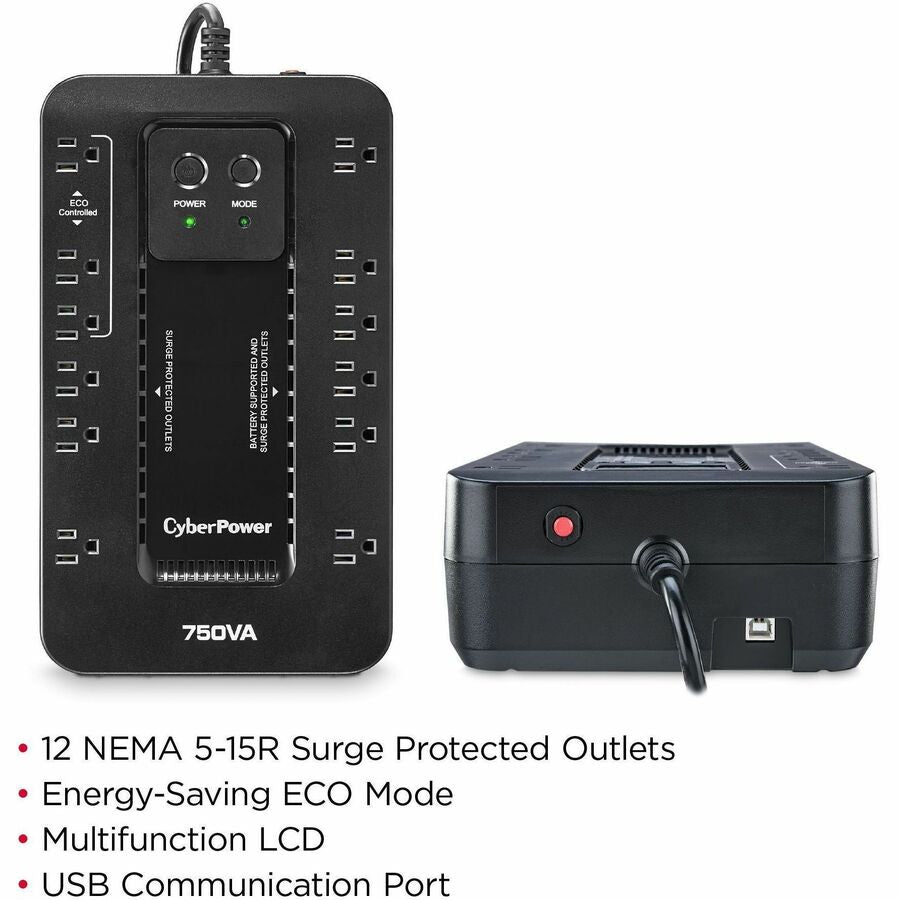

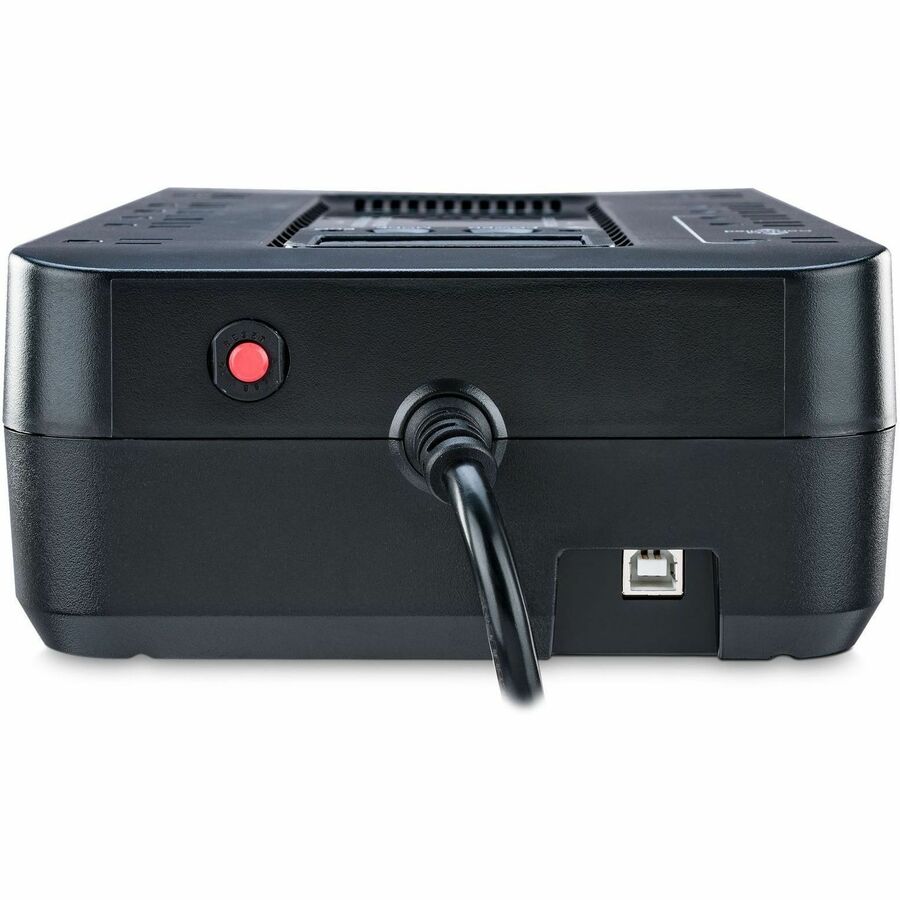

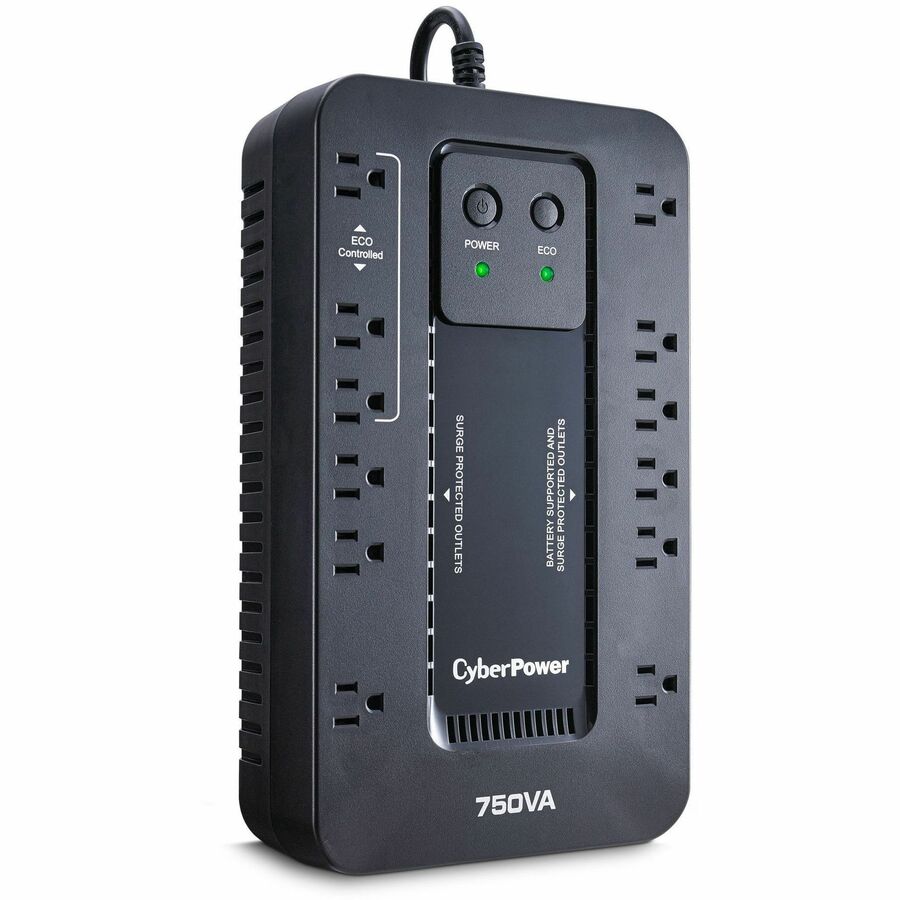

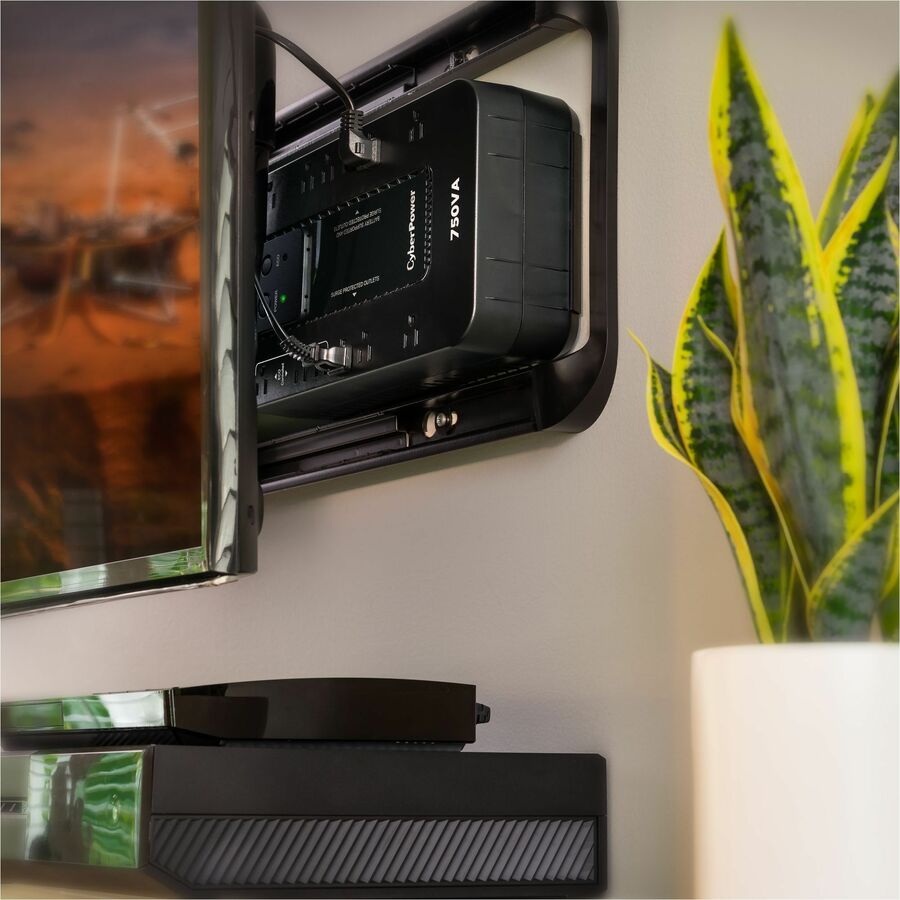

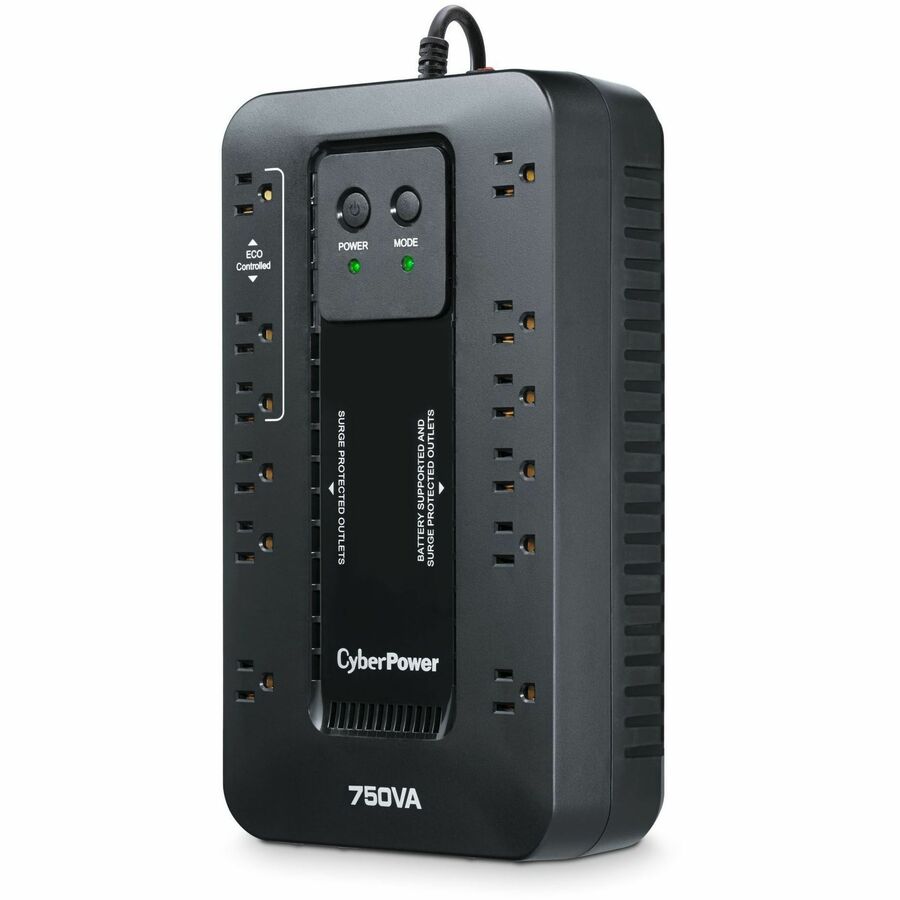

CyberPower EC750G Ecologic UPS Systems - EC750G
Key Features
- $100,000
- 12 × NEMA 5-15R
- 120 VAC ± 5%
- 3 year
- 750 VA / 450 W
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Management software:
- NEMA 5-15P, 5 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel ® Personal
- Simulated Sine Wave
- Standby
- Topology:
- USB
- Warranty:
- Waveform:
Product Overview
A compact UPS with standby topology, the CyberPower Ecologic EC750G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC750G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC750G comes with a three-year warranty (including coverage of batteries) and a ,100,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: EC750G
- Brand Name: CyberPower
- Product Series: Ecologic UPS
- Product Model: EC750G
- Product Name: EC750G Ecologic UPS Systems
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ High-Efficiency
- Application/Usage:
- Desktop Computer
- Workstation
- Network Device
- Home Entertainment System
- Computer Peripheral
- Home Theater
- Equipment
- Personal Electronic
- Home Network
- Router
- Modem
- VoIP Phone
- Surge Suppression: Yes
- Features: Audible Alarm
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 450 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 47 Hz
- 63 Hz
- Output Frequency:
- 60 Hz
- 50 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 526 J
- Circuit Breaker: Yes
- Output Power Factor: 0.6
Management
- Alarm:
- Battery Mode
- Low Battery
- Overload
Controls/Indicators
- Status Indicators:
LED Indicators:
- Power On
- ECO On/Of
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2.80 Minute
- Backup/Run Time (Half Load): 10 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 90%
- Storage Relative Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)

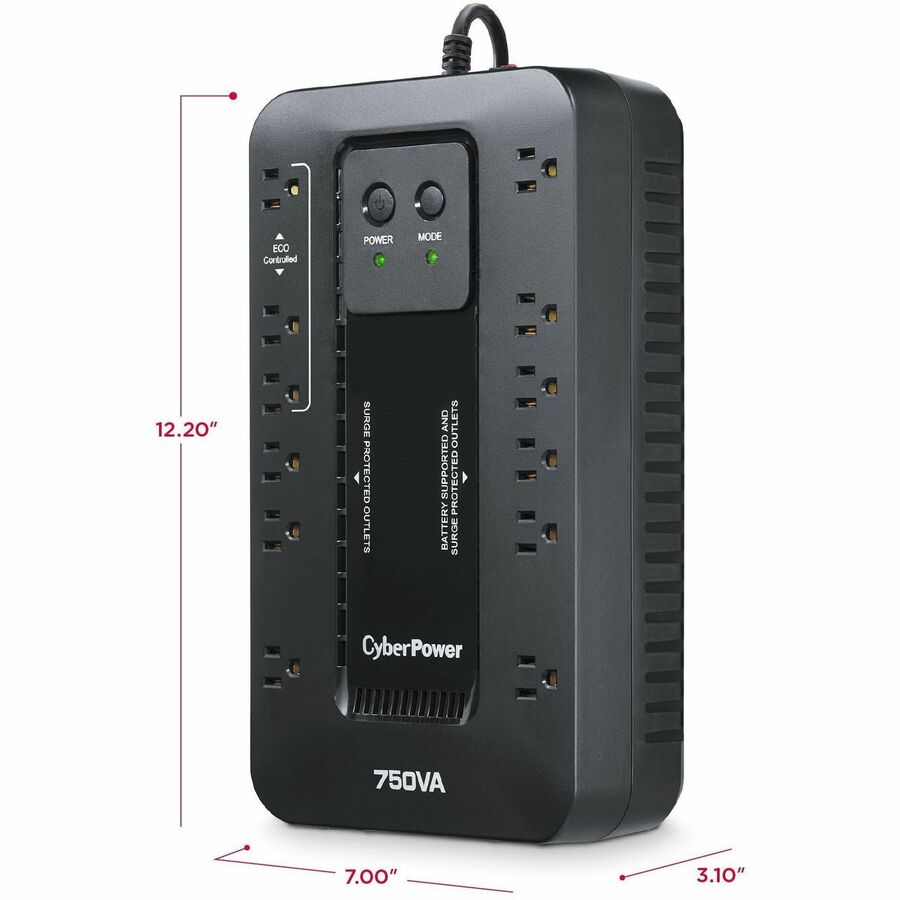

Physical Characteristics
- Product Color: Black
- Height: 3.1"
- Width: 12.2"
- Depth: 7"
- Form Factor: Compact
- Weight (Approximate): 7.69 lb
Miscellaneous
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Three-year warranty (including coverage of batteries)
