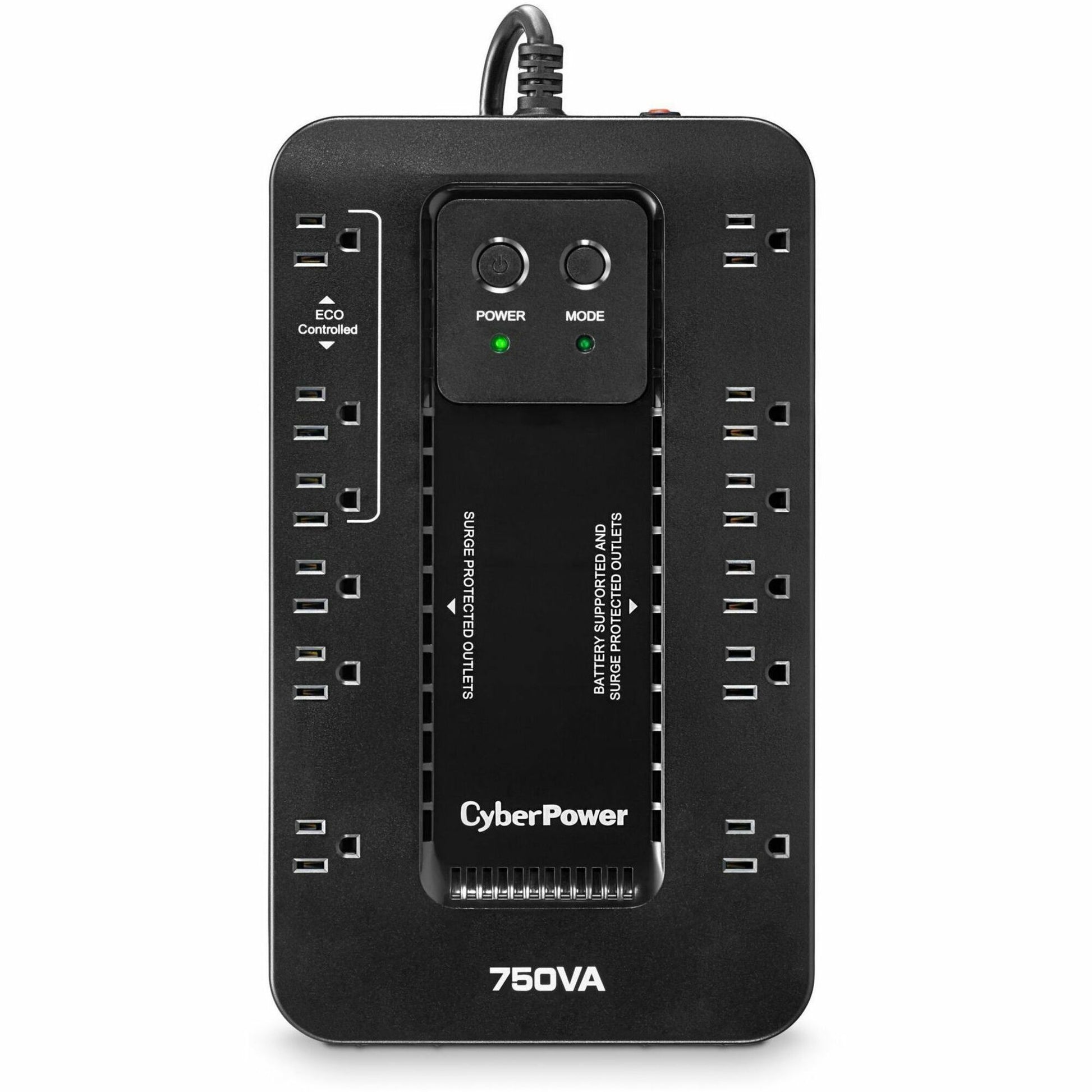

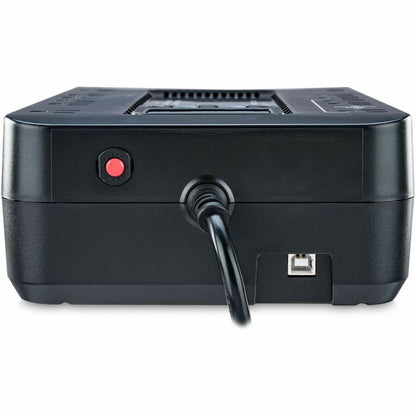

CyberPower EC750GTAA TAA Compliant UPS System - EC750GTAA

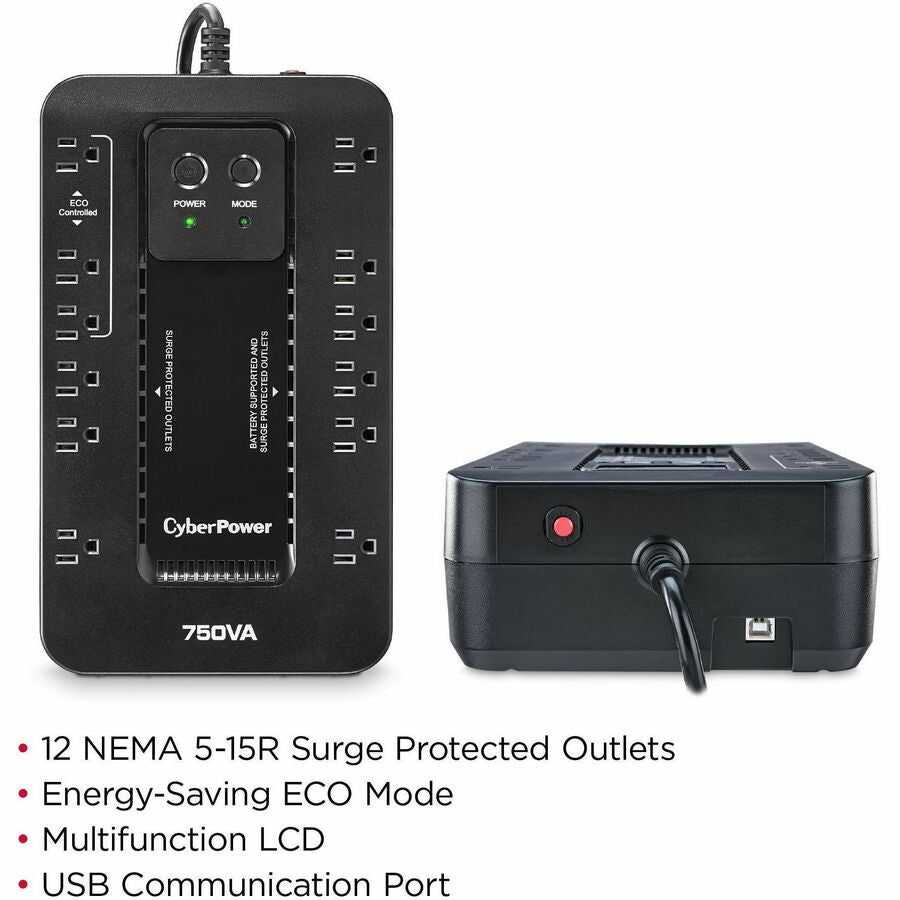

Key Features
- $100,000
- 12 × NEMA 5-15R
- 120 VAC ± 5%
- 3 year
- 750 VA / 450 W
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Management software:
- NEMA 5-15P, 5 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel ® Personal
- Simulated Sine Wave
- Standby
- Topology:
- USB
- Warranty:
- Waveform:

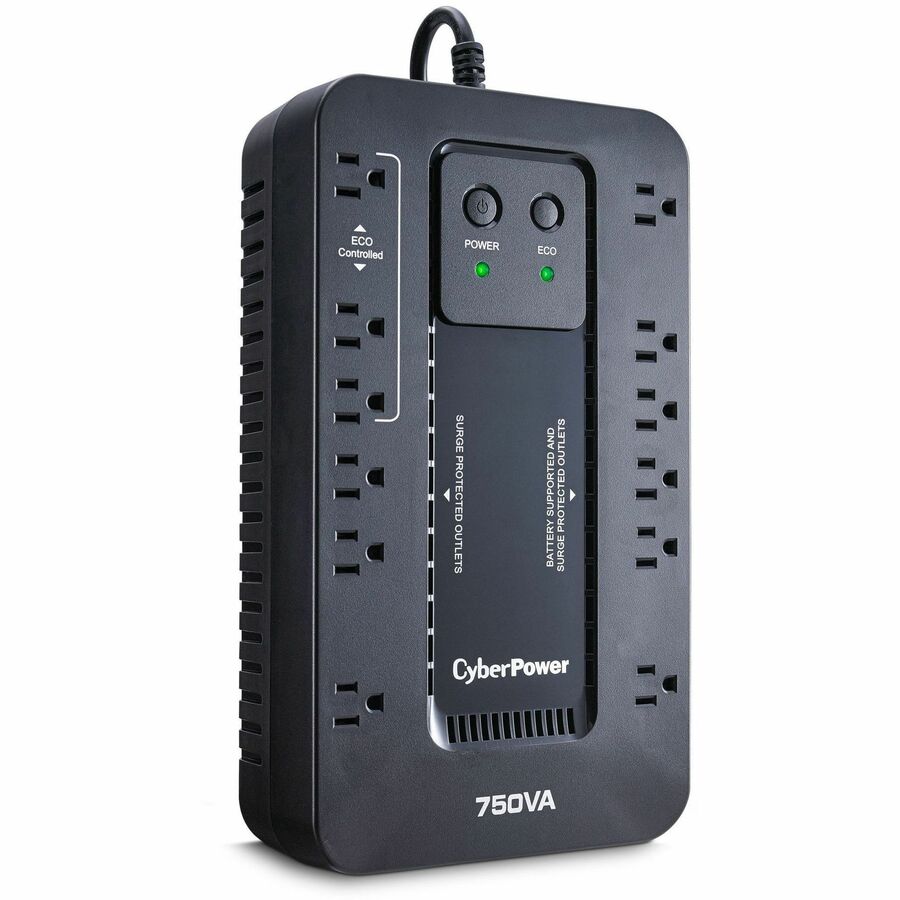

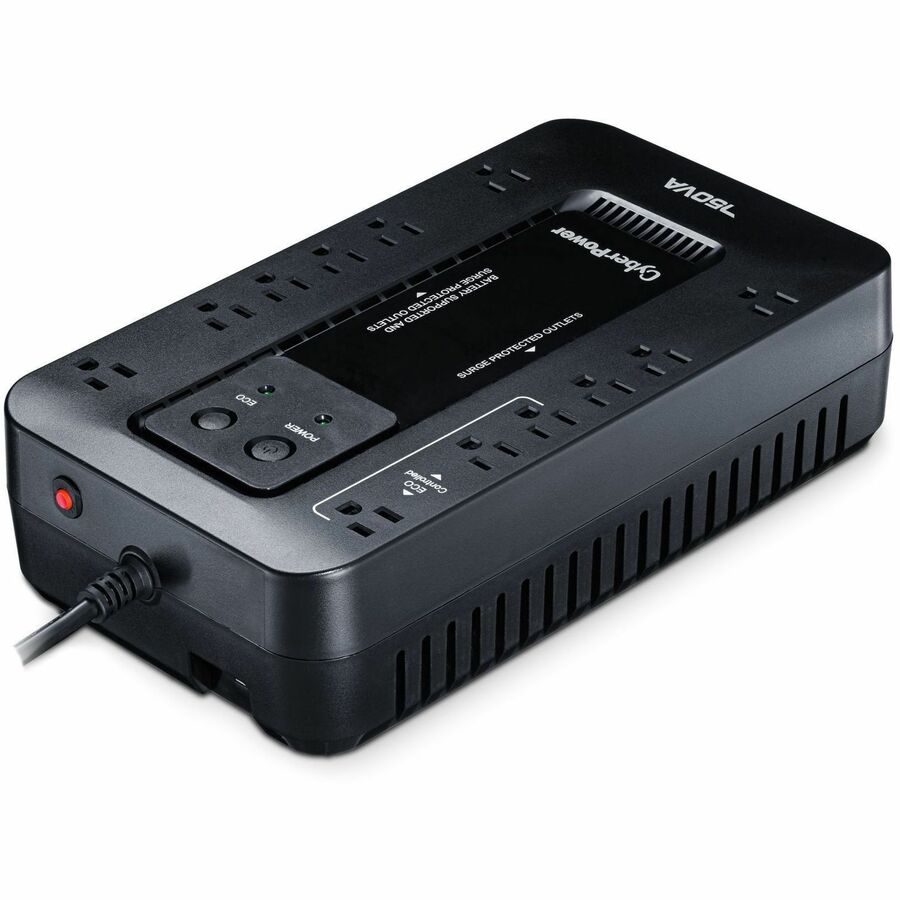

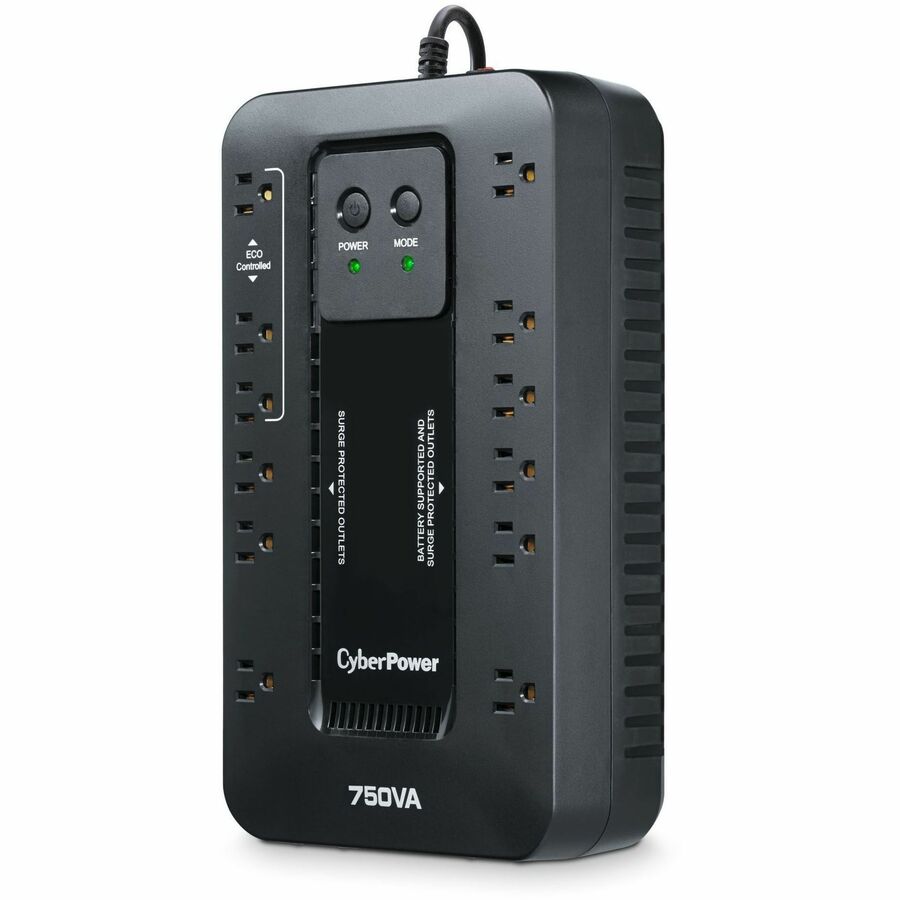

Product Overview

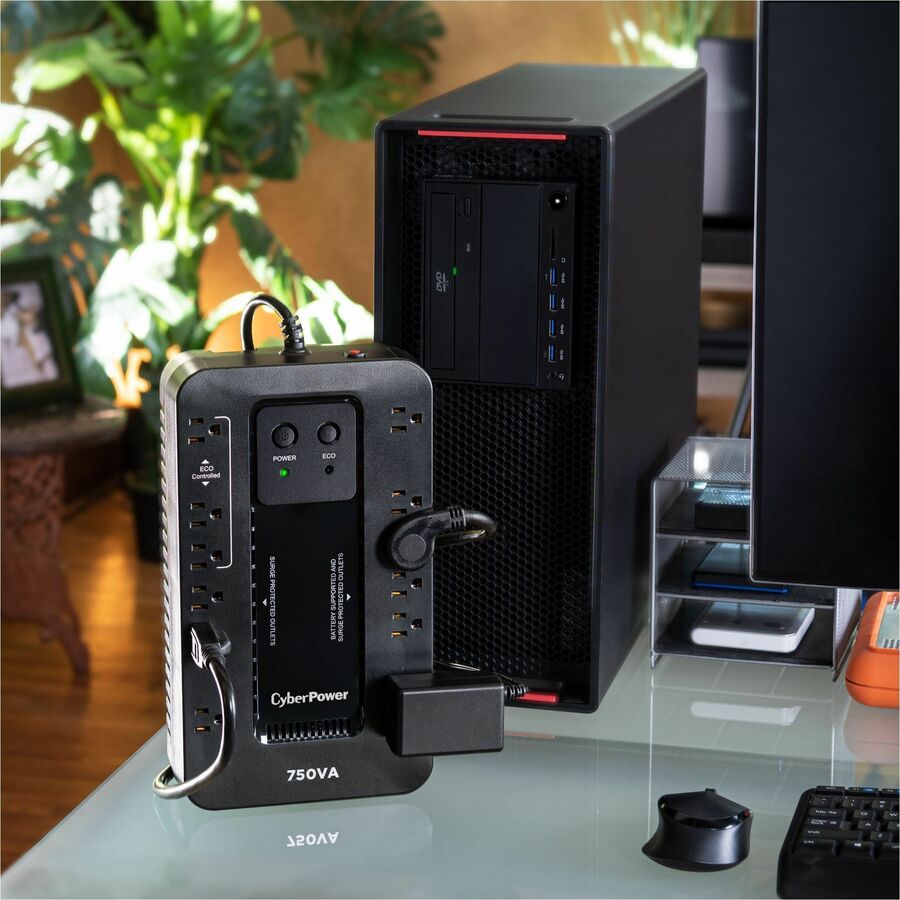

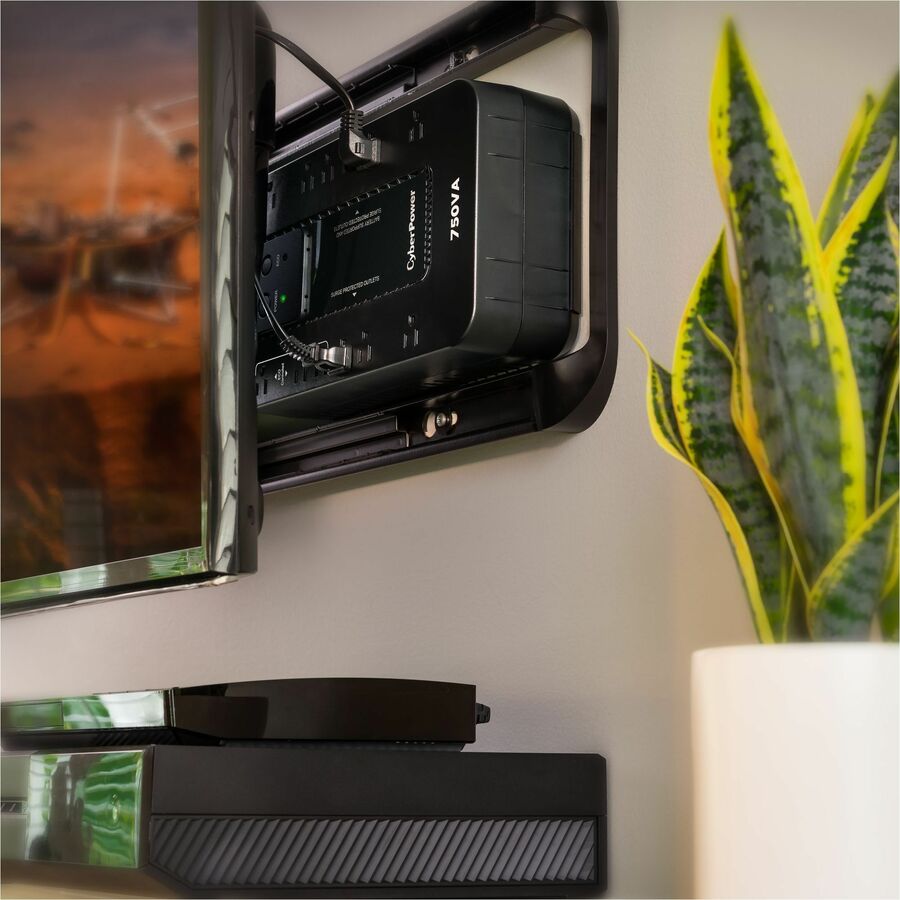

A compact UPS with standby topology, the CyberPower Ecologic EC750GTAA provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC750GTAA offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC750GTAA comes with a three-year warranty (including coverage of batteries), a ,100,000 Connected Equipment Guarantee, and complies with the U.S. Trade Agreement Act (TAA).
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: EC750GTAA
- Brand Name: CyberPower
- Product Series: TAA Compliant UPS & Hardware
- Product Model: EC750GTAA
- Product Name: EC750GTAA TAA Compliant UPS System
- Product Condition: New
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Detail: 12
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ High-Efficiency
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 450 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 526 J
Management
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: Power On
Interfaces/Ports
- USB (HID Compliant) Port: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2.80 Minute
- Backup/Run Time (Half Load): 10 Minute
- Typical Battery Recharge Time: 8 Hour
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)

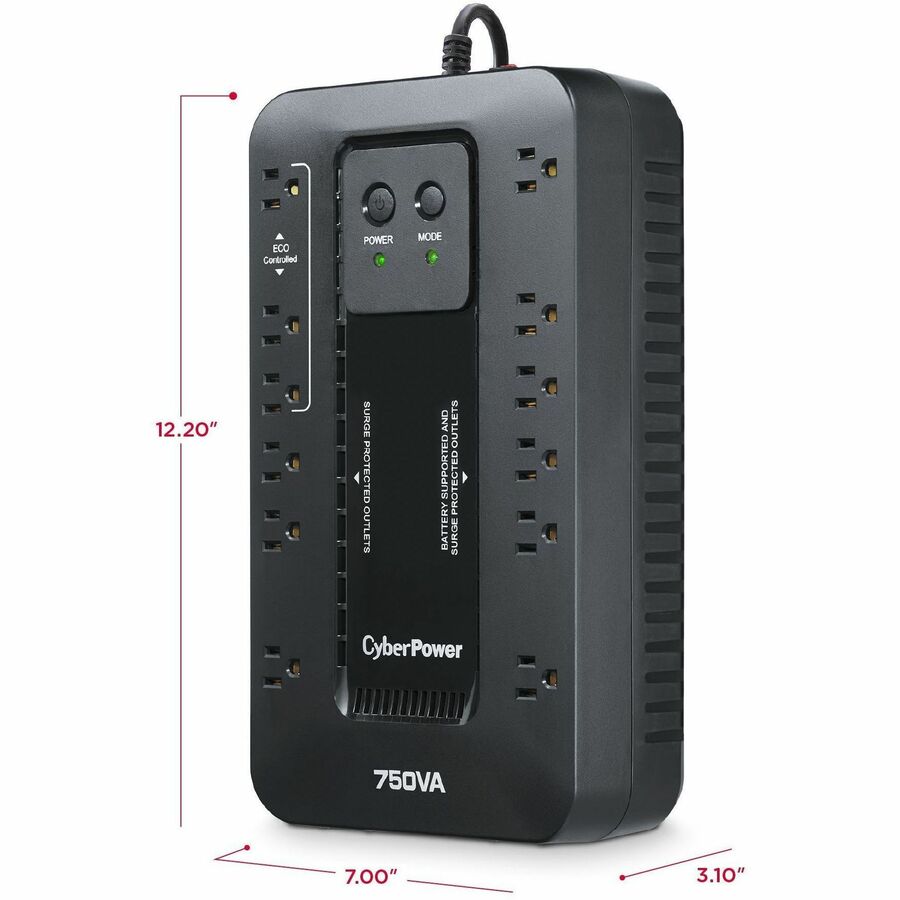

Physical Characteristics
- Product Color: Black
- Height: 3.1"
- Width: 12.2"
- Depth: 7"
- Form Factor: Compact
- Weight (Approximate): 7.70 lb
Miscellaneous
- Package Contents:
- EC750GTAA 750VA Desktop UPS
- User Manual
- USB A+B Type Cable
- Energy Star: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
