CyberPower PDU41023 Single Phase 100 - 120 VAC 30A Switched PDU - PDU41023
Key Features
- Amps: 30A (Derated to 24A)
- Automated notifications: E-mail, SMS, Text and SNMP Trap
- Cord Length (ft): 12
- Frequency: 50Hz/60Hz

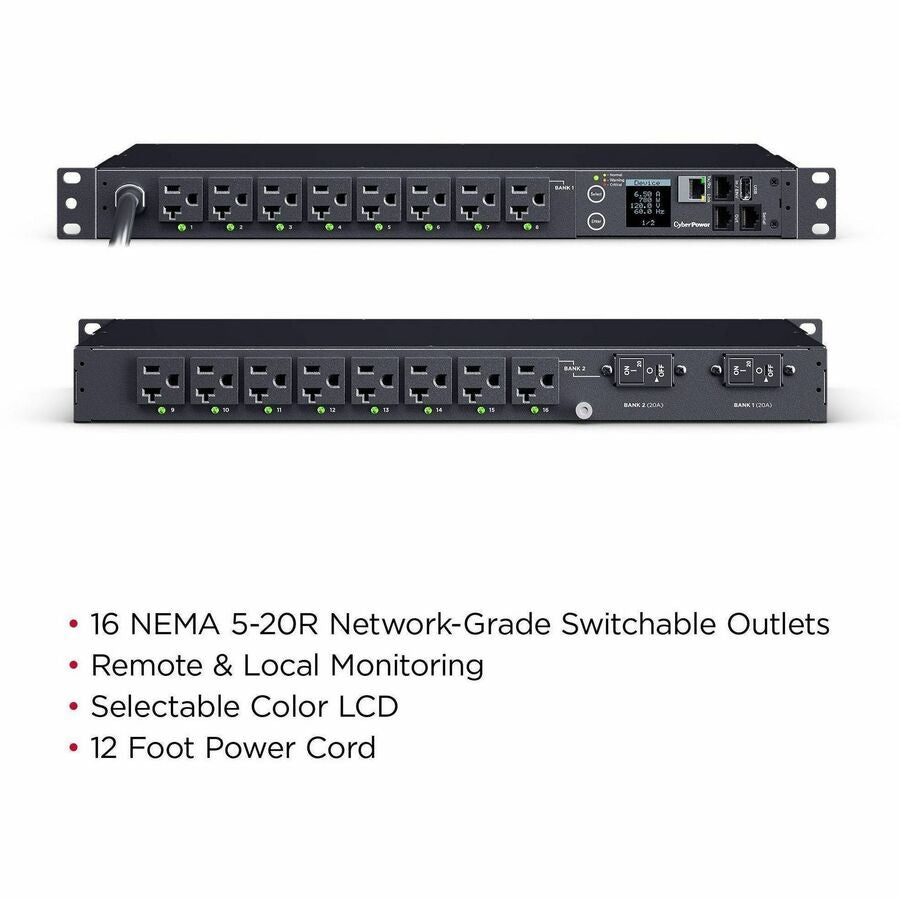

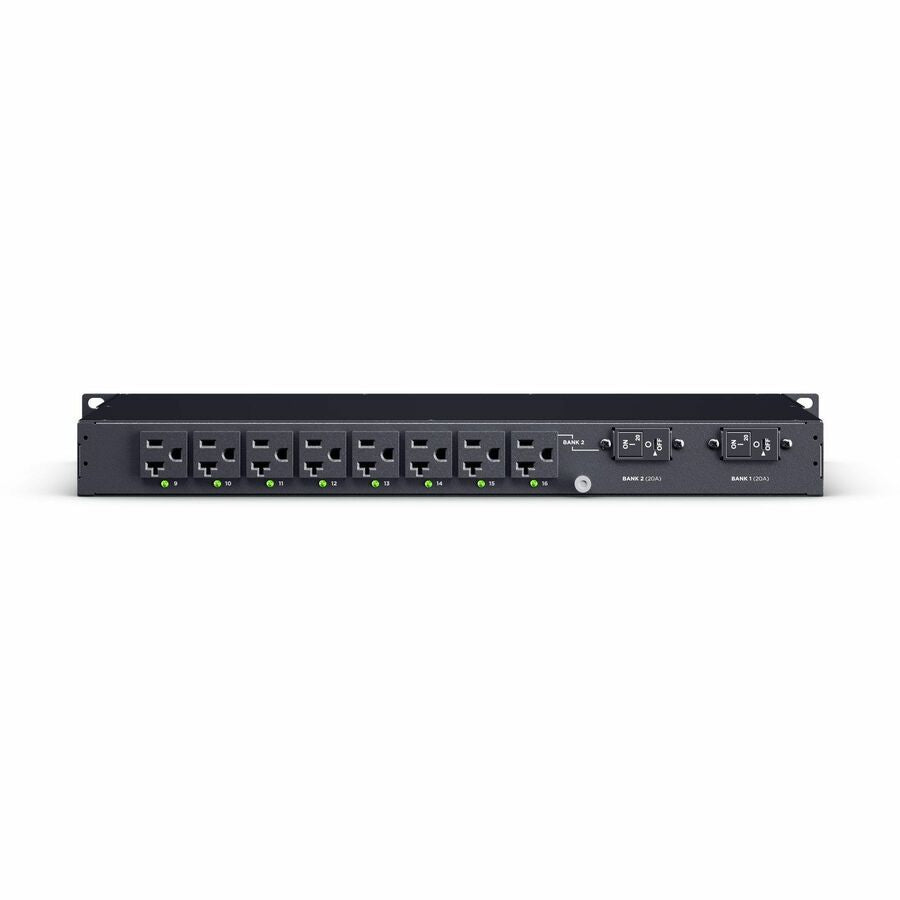

- Outlet location: 8 Front, 8 Rear
- Outlets: 16 NEMA 5-20R
- Phase: Single
- Plug Type: NEMA L5-30P
- Size: 1U Rackmount
- Switched PDU: SNMP Network Interface and Switchable Outlets
- Volts: 100-120Vac
- Warranty: 3 Year
Product Overview

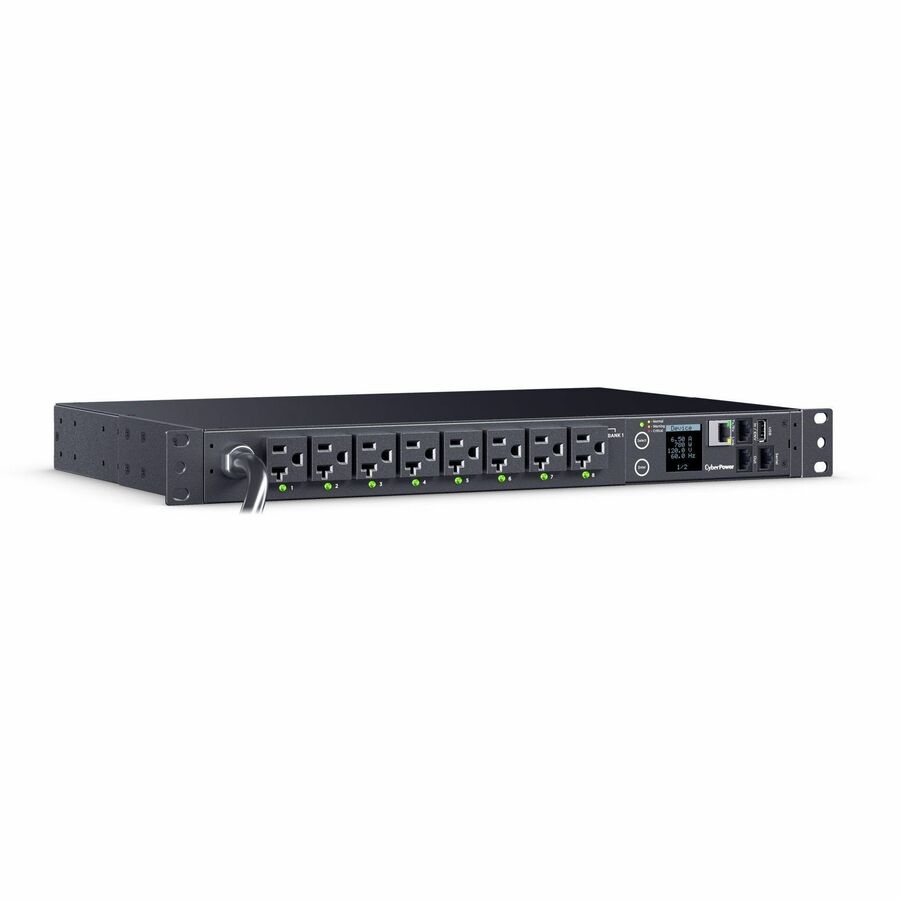

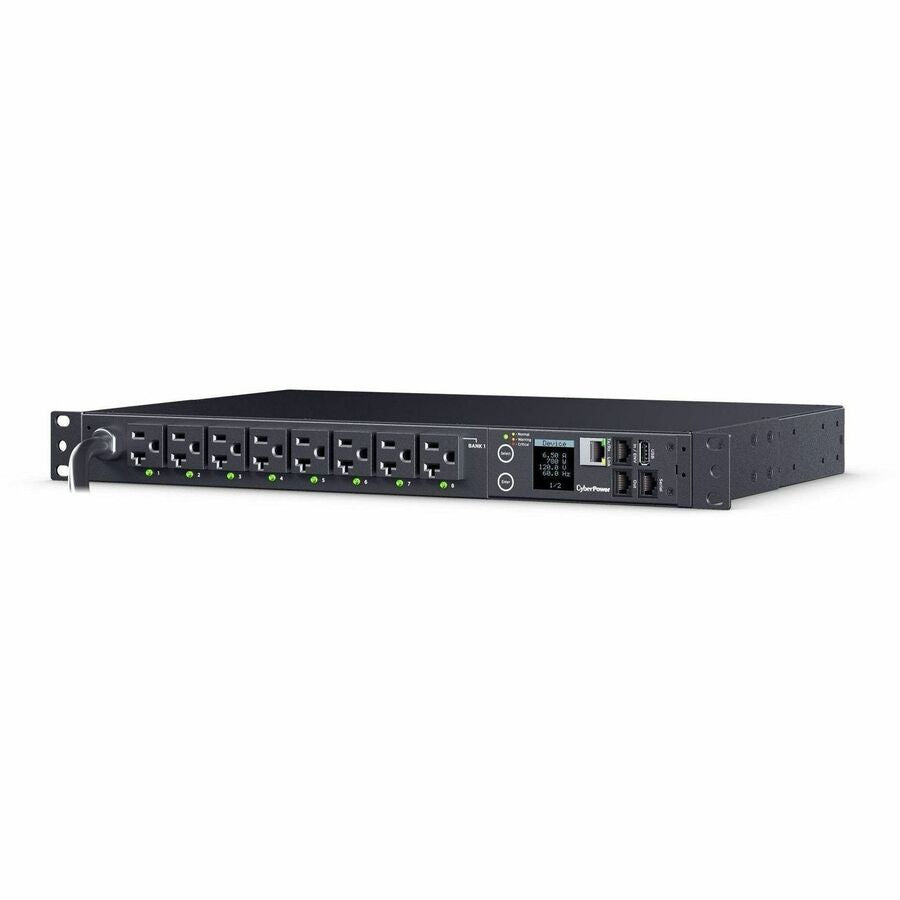

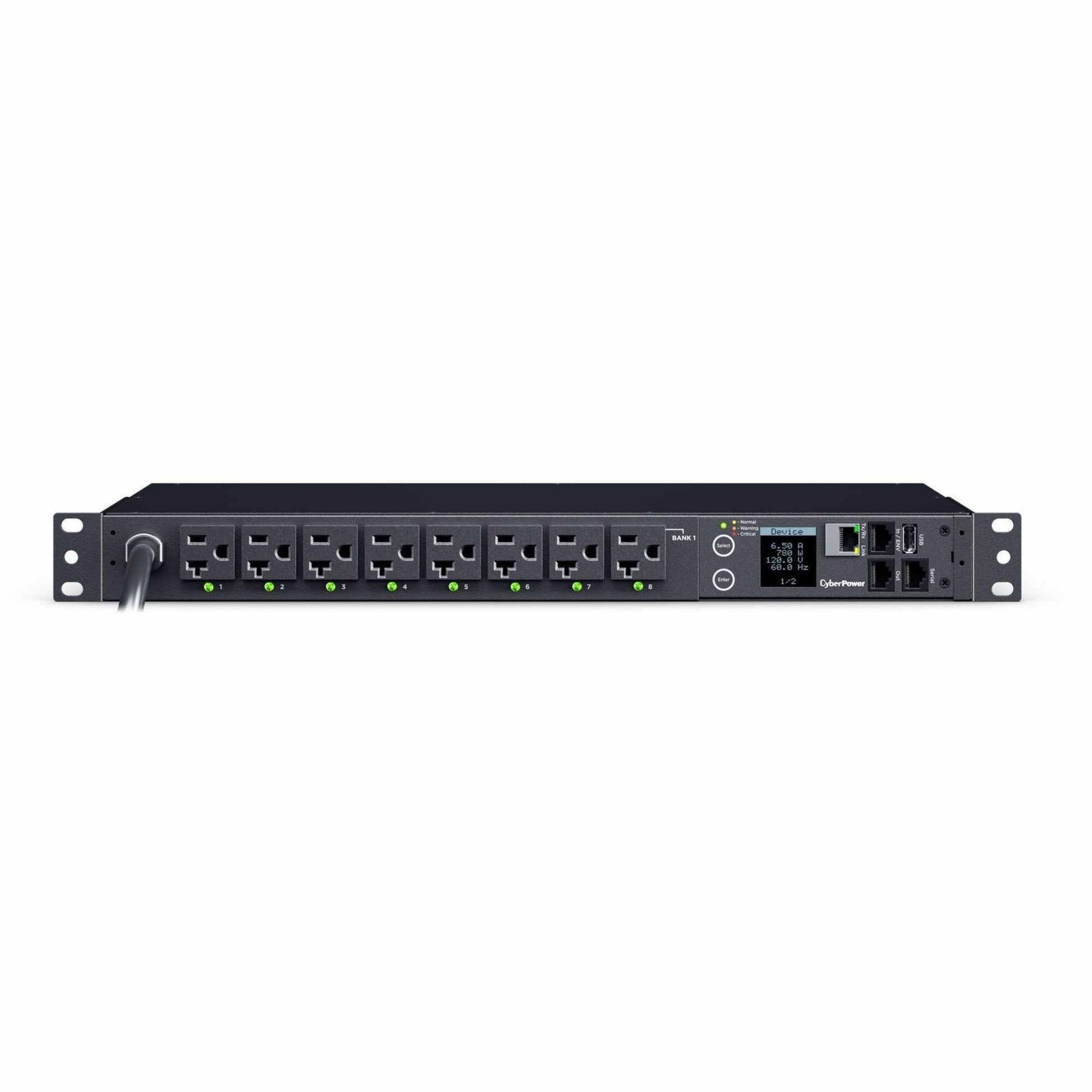

The CyberPower PDU41023, a 1U rackmount, switched power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU41023
- Brand Name: CyberPower
- Product Series: Switched PDU
- Product Model: PDU41023
- Product Name: PDU41023
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Phase: Single Phase
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 16 x NEMA 5-20R
- Protection Type: Overload Protection
- Locking Receptacles: Cord Retention Tray
- Features:
- Onboard Display
- LED Status Indicator
Power Description
- Output Voltage: 120 V AC
- Output Voltage Range: 100 V AC - 120 V AC
- Input Current: 30 A
- Input Frequency: 60 Hz
Management
- Management:
- IPv4/v6
- SNMPv1/v3
- HTTP/HTTPs
- TCP/IP
- UDP
- DHCP
- NTP
- DNS
- SMTP
- SSH
- SSL
- TLS
- Telnet
- FTP
- Syslog
- RADIUS
- LDAP
- LDAPS
- Windows AD
- Remote Outlet Switching: Yes
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Form Factor: Rack
- Rack Height: 1U
- Cord Length: 12 ft

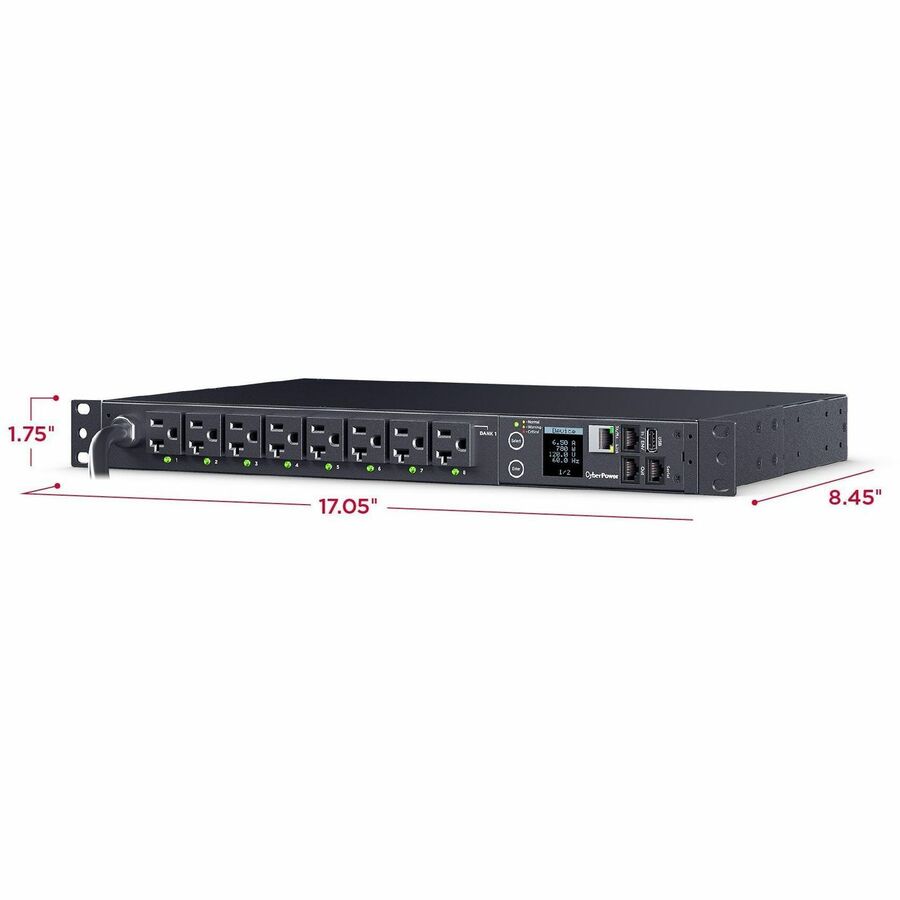

- Height: 1.8"
- Width: 17.1"
- Depth: 8.5"
- Weight (Approximate): 9.90 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 140°F (60°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 149°F (65°C)
Miscellaneous
- Application/Usage:
- Data Center
- Network Closet
- VoIP Phone System
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
