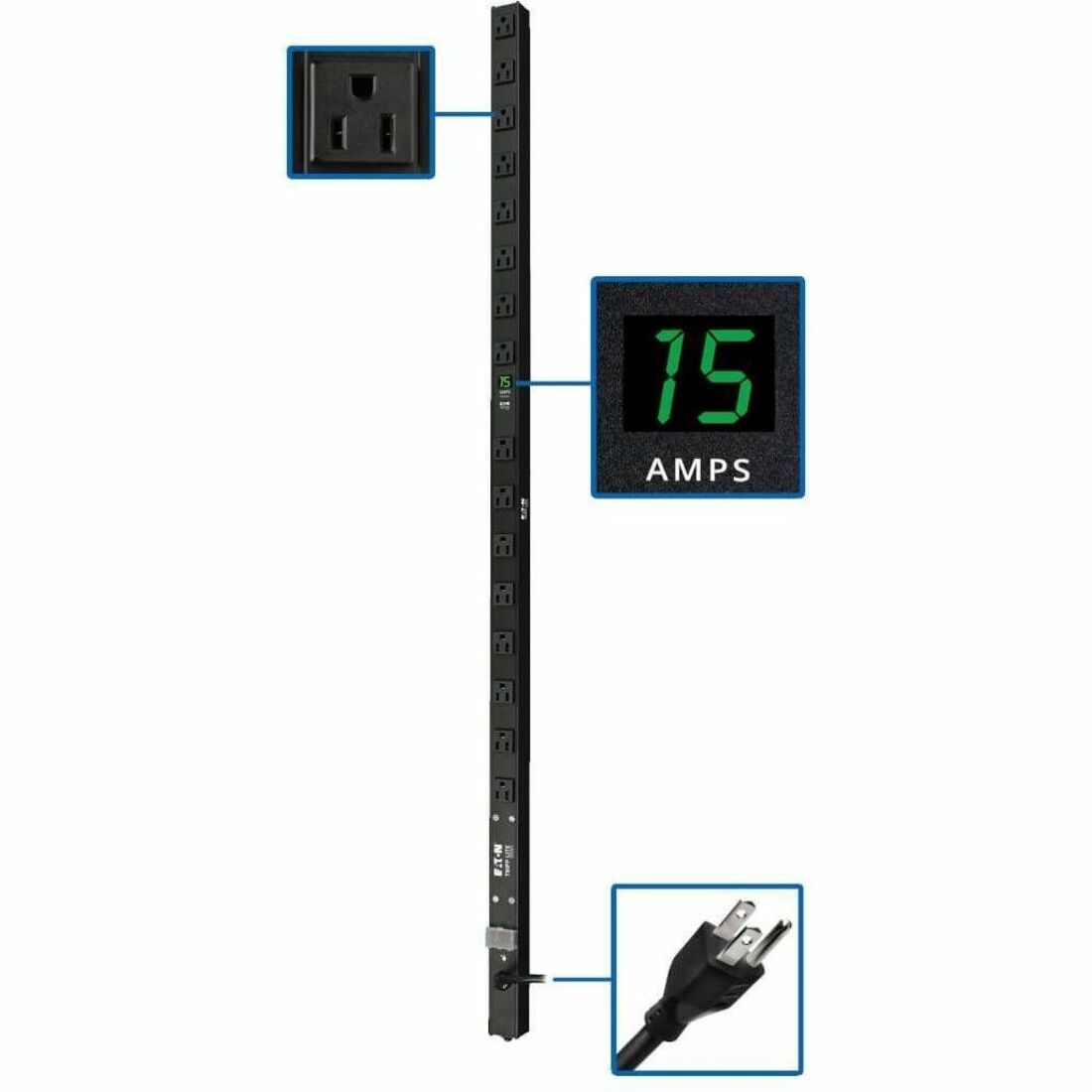

Eaton Tripp Lite Series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 48 in. - PDUMV15
Key Features

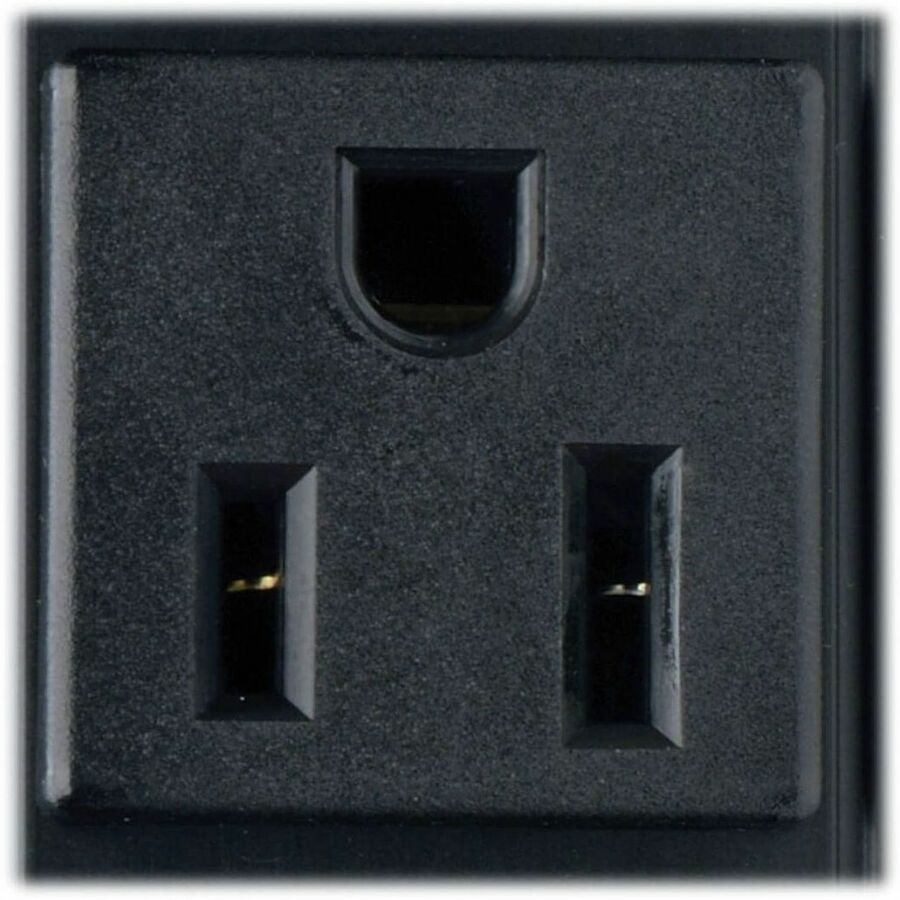

- 16 NEMA 5-15R outlets

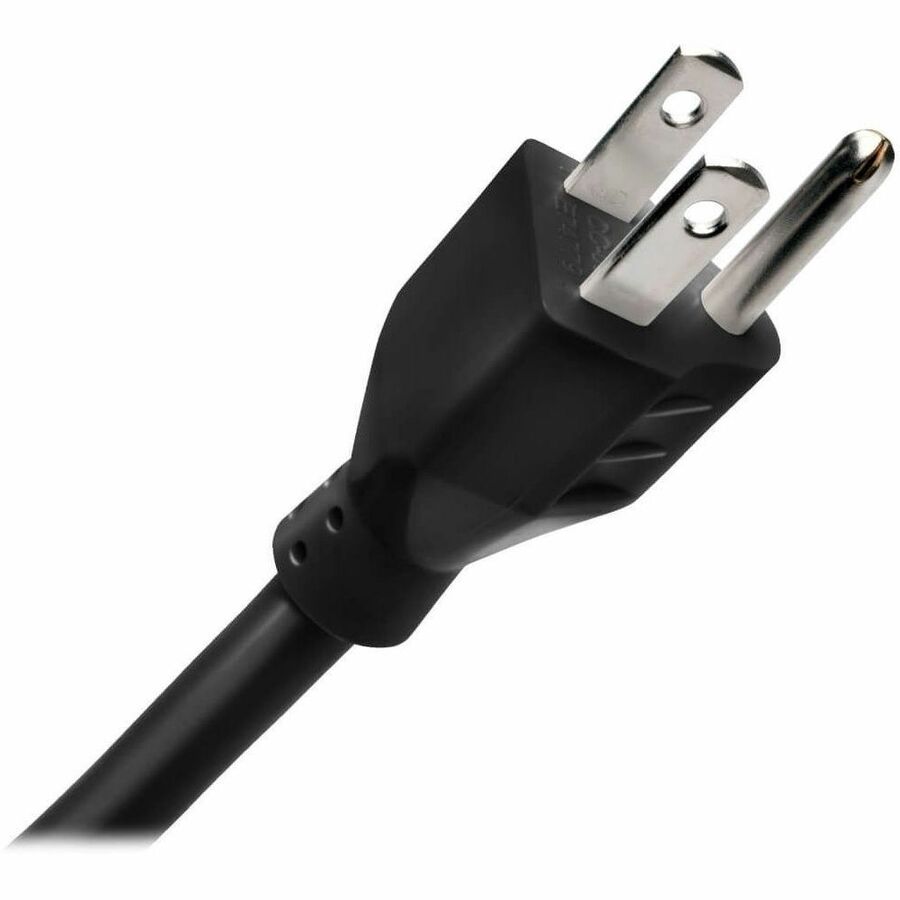

- Attached 15ft / 4.5m cord with NEMA 5-15P input plug
- Metered single phase 15A 120V 0U 48in / 122cm vertical rackmount PDU
- Toolless button mount and bolt-down bracket installation hardware included

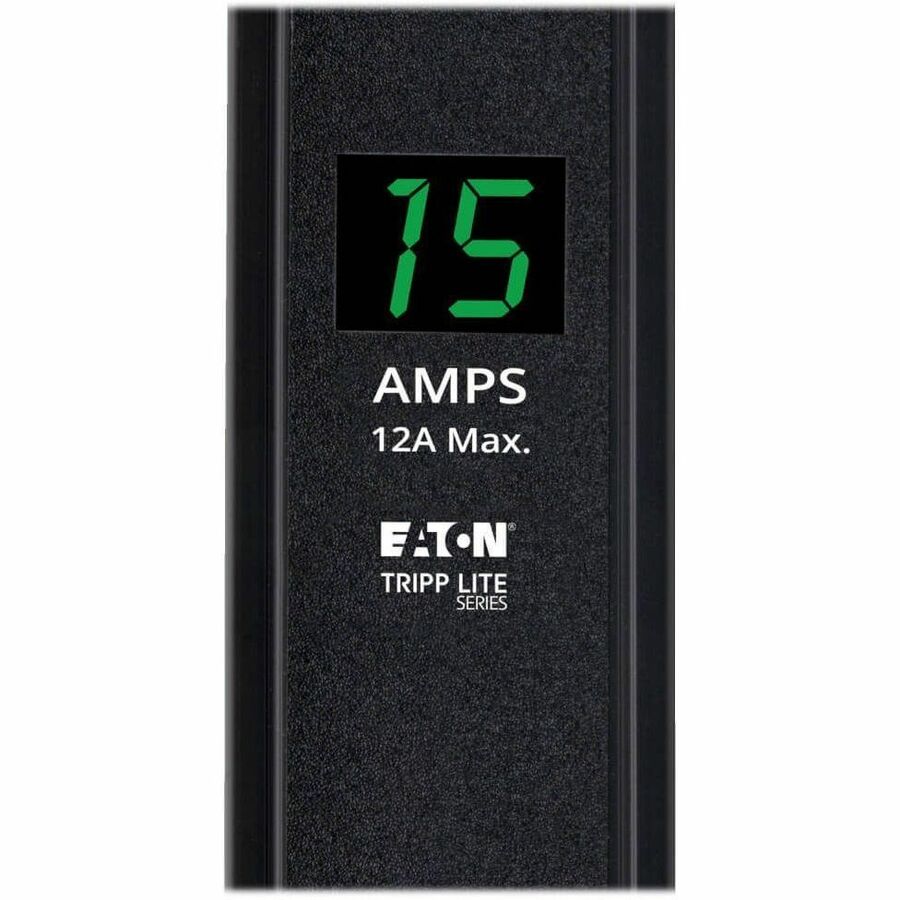

- Two-digit current meter reports output current in amps
Product Overview
Tripp Lite's PDUMV15 metered power distribution unit offers 15 amp, 120V multi-outlet AC power distribution in a convenient 48-inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Includes 16 NEMA 5-15R output receptacles, 15 ft. AC line cord, and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 16 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15 amp circuit breaker in rugged metal case design.PLUG/OUTLETS-Input: NEMA 5-15P/Output: 16 NEMA 5-15RELECTRICAL - 120V AC, 50/60Hz, 15AFORMAT - 48 inch mountable strip format
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDUMV15
- Brand Name: Tripp Lite series
- Product Model: PDUMV15
- Product Name: PDUMV15 PDU Metered 120V 15A 16 Outlet
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 16 x NEMA 5-15R
- Protection Type: Overload Protection
Power Description
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Power Rating (VA): 1800 VA
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Height: 3"
- Width: 48"
- Depth: 1.5"
- Weight (Approximate): 3.80 lb
Miscellaneous
- Package Contents:
- PDUMV15 PDU Metered 120V 15A 16 Outlet
- PDUMV15 Metered Vertical PDU

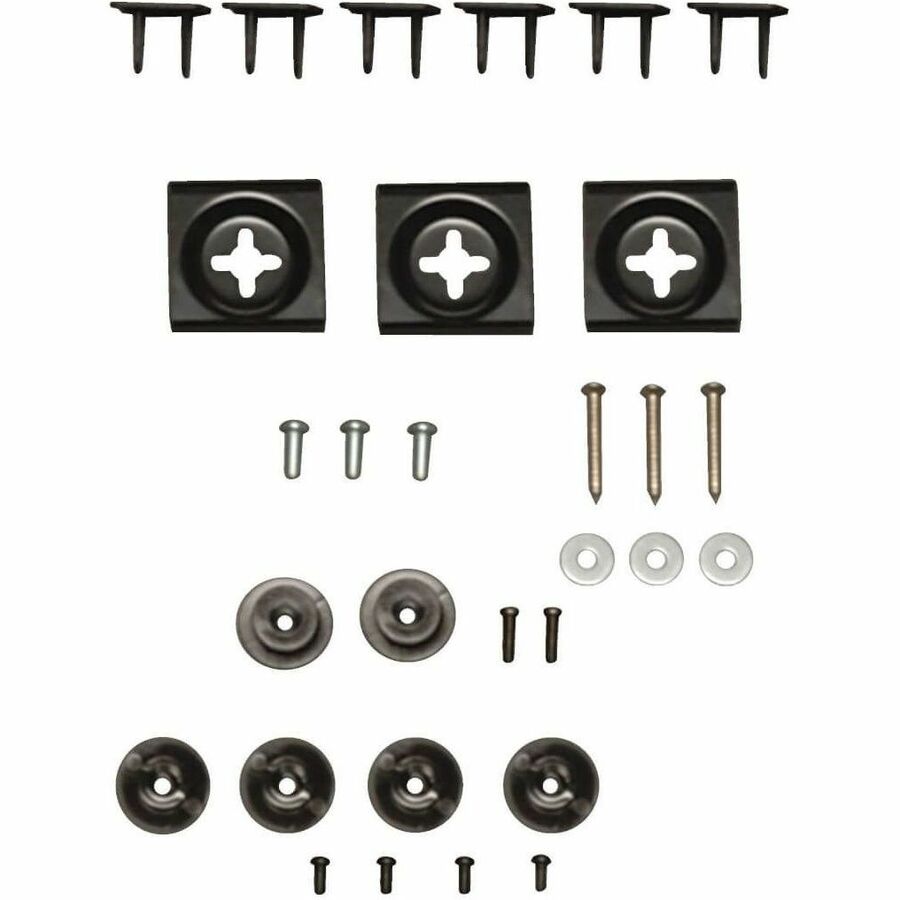

- Mounting hardware
- 6 outlet safety covers
- Owner's manual with warranty information
- Country of Origin: China
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: 2 Year
