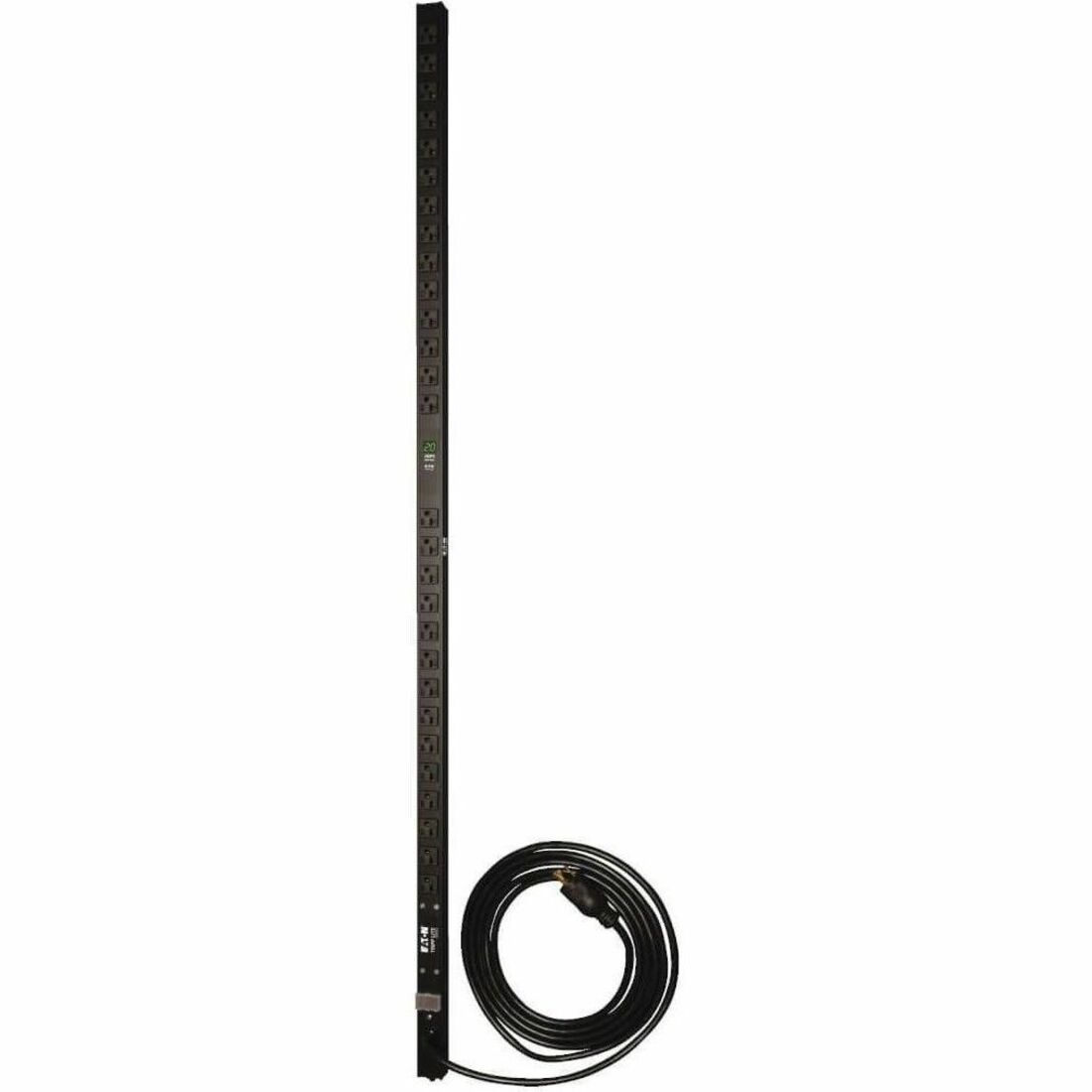

Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15 ft. (4.57 m) Cord, 0U Vertical - PDUMV20
Key Features
- 28 NEMA 5-15/20R outlets
- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
- Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU
- Toolless button mount and bolt-down bracket installation hardware included

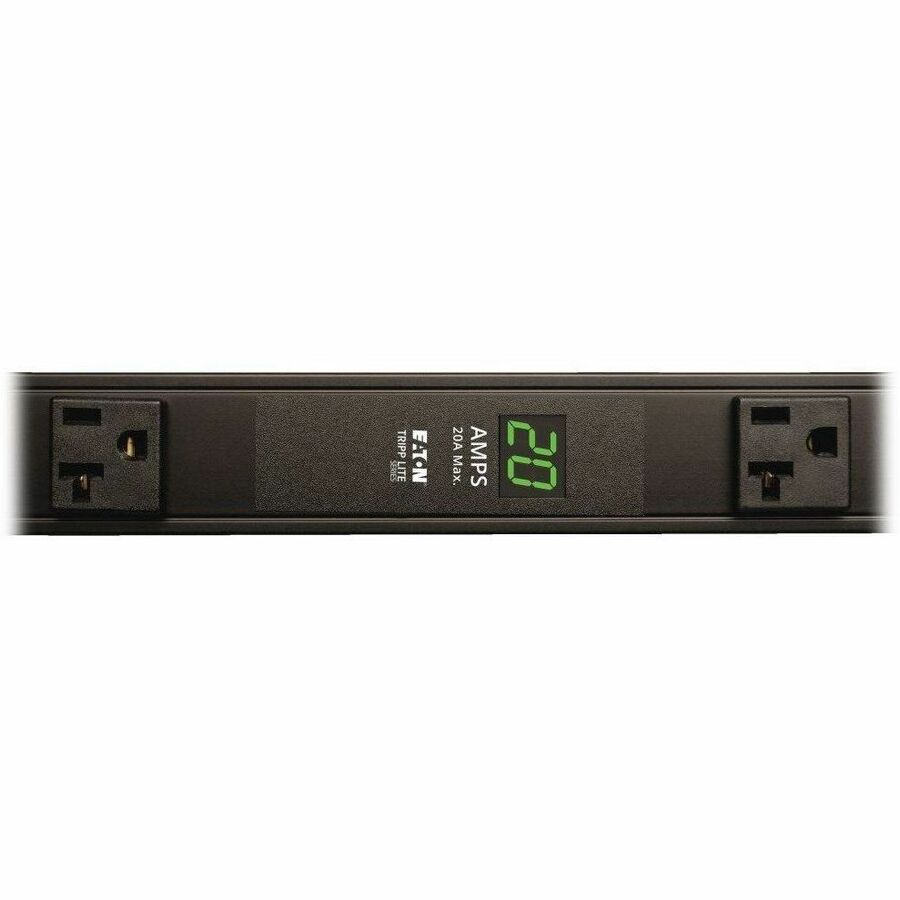

- Two-digit current meter reports output current in amps
Product Overview
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDUMV20
- Brand Name: Tripp Lite series
- Product Model: PDUMV20
- Product Name: PDUMV20 PDU Metered 120V 20A 28 Outlet
- Product Type: PDU
Technical Information

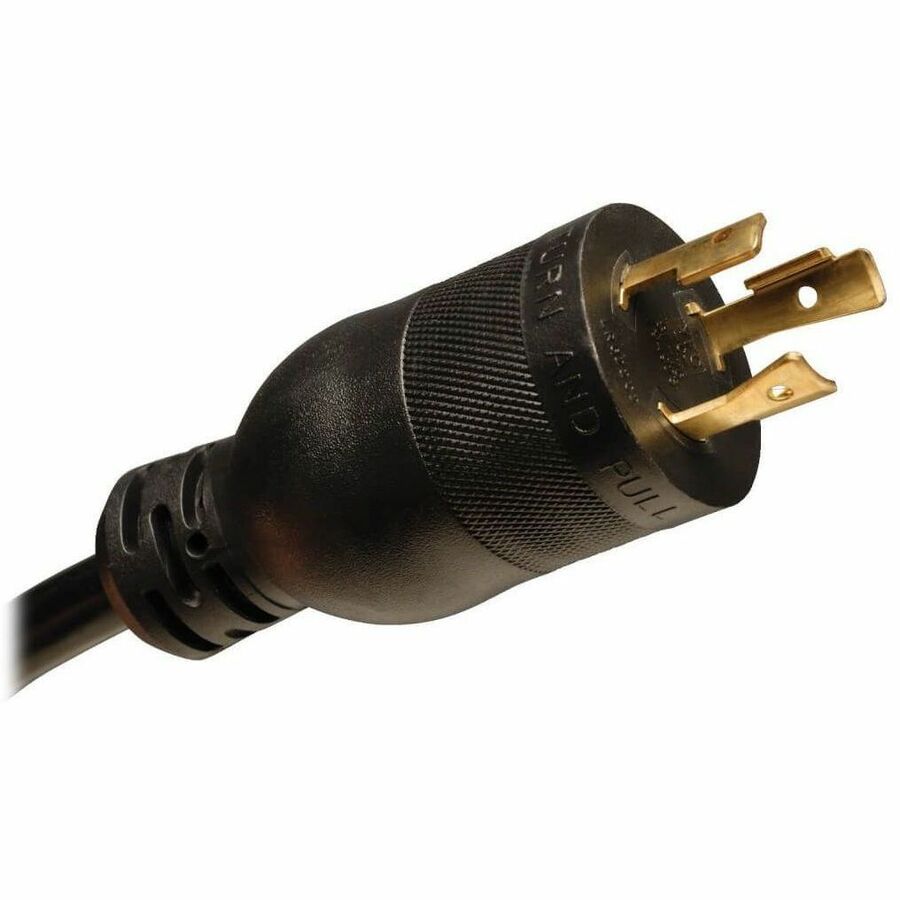

- Plug/Connector Type: NEMA L5-20P
- Receptacle Type: NEMA 5-15/20R
- Receptacle Detail: 28 x NEMA 5-15/20R
- Protection Type: Overload Protection
Power Description
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Power Rating (Watt): 2400 W
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Height: 3"
- Width: 60"
- Depth: 1.5"
- Weight (Approximate): 5.20 lb
Miscellaneous

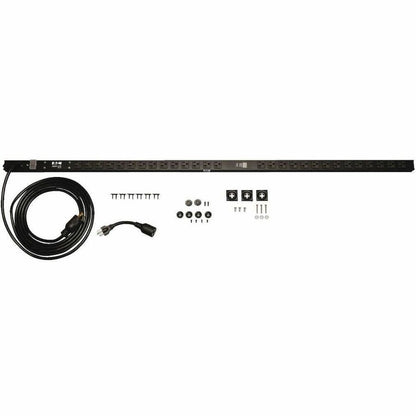

- Package Contents:
- PDUMV20 PDU Metered 120V 20A 28 Outlet
- (1) L5-20P to 5-20P plug adapter
- Mounting hardware
- Six protective outlet covers
- Instruction manual with warranty information
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
