Eaton Tripp Lite Series OmniSmart LCD 120V 900VA 475W Line-Interactive UPS, Tower, LCD display, USB port - OMNI900LCD
Key Features
- 900VA tower 120V line interactive UPS with LCD display
- Corrects brownouts as low as 89V without using battery power
- LCD screen reports input voltage, battery charge and UPS status

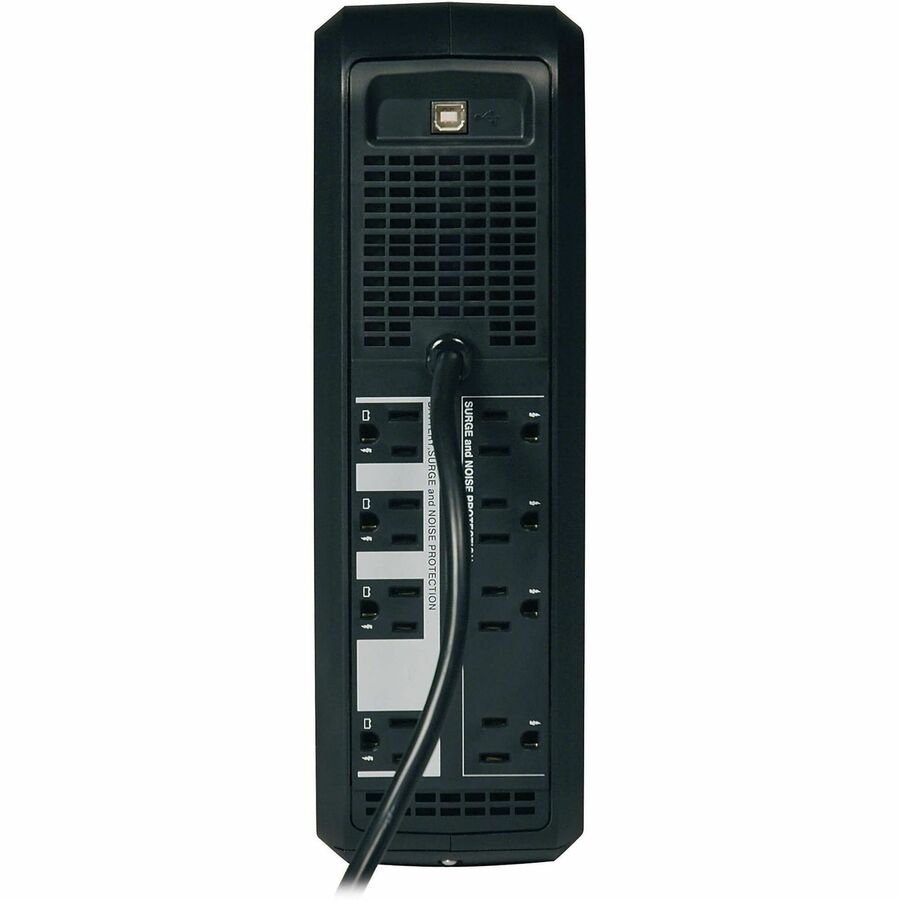

- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
- USB port, Surge-only outlets, 97% efficiency
Product Overview
Tripp Lite's OMNI900LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long lasting battery support for personal computers, home entertainment systems and media centers. Internal UPS circuits support entry level PCs for up to 50 minutes or individual VCR/DVR components for as long as 2.5 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. 97% line-mode efficiency saves energy and reduces BTU heat output. Offers complete power protection in an attractive black tower configuration. Includes 4 battery-supported and surge-protected outlets, plus 4 additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure. PowerAlert software available via free download from www.tripplite.com. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in audible alarm and large LCD front panel voltage display indicates line power status, battery power status, battery low/replace status and voltage boost operation. The LCD display includes a dimmer switch and can be rotated for easy viewing in any application. 900VA/475 watt power handling ability supports entry-level PCs, home entertainment systems, network workstations, audio/video components. Offers 3 minutes battery runtime with a full load of 900VA/475 watts and 10 minutes with a half load of 450VA/237 watts. Supports battery replacement via built-in access panel. ,200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: OMNI900LCD
- Brand Name: Tripp Lite series
- Product Line: OmniSmart
- Product Model: OMNI900LCD
- Product Name: OmniSmart OMNI900LCD 900 VA Tower UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Transfer Time: 3 ms
Power Description
- Load Capacity (VA): 900 VA
- Load Capacity (Watt): 475 W
- Input Voltage: 110 V AC
- Input Current: 12 A
- Output Voltage: 120 V AC
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 870 J
Management
- Alarm: AC Input Failure

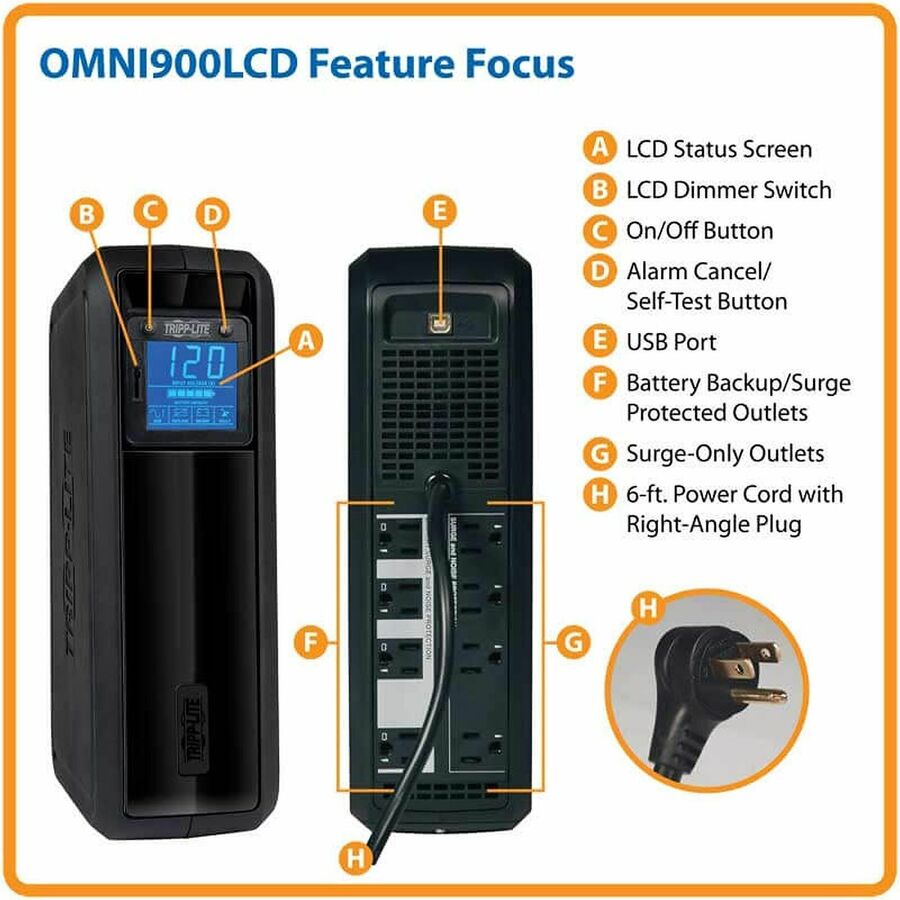

Controls/Indicators
- Status Indicators:

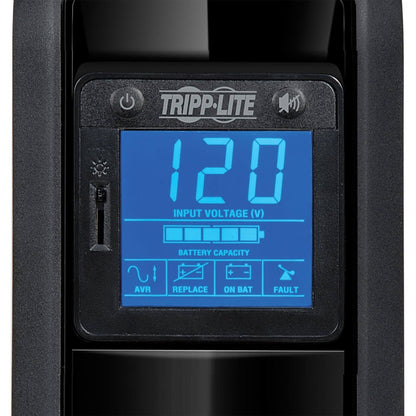

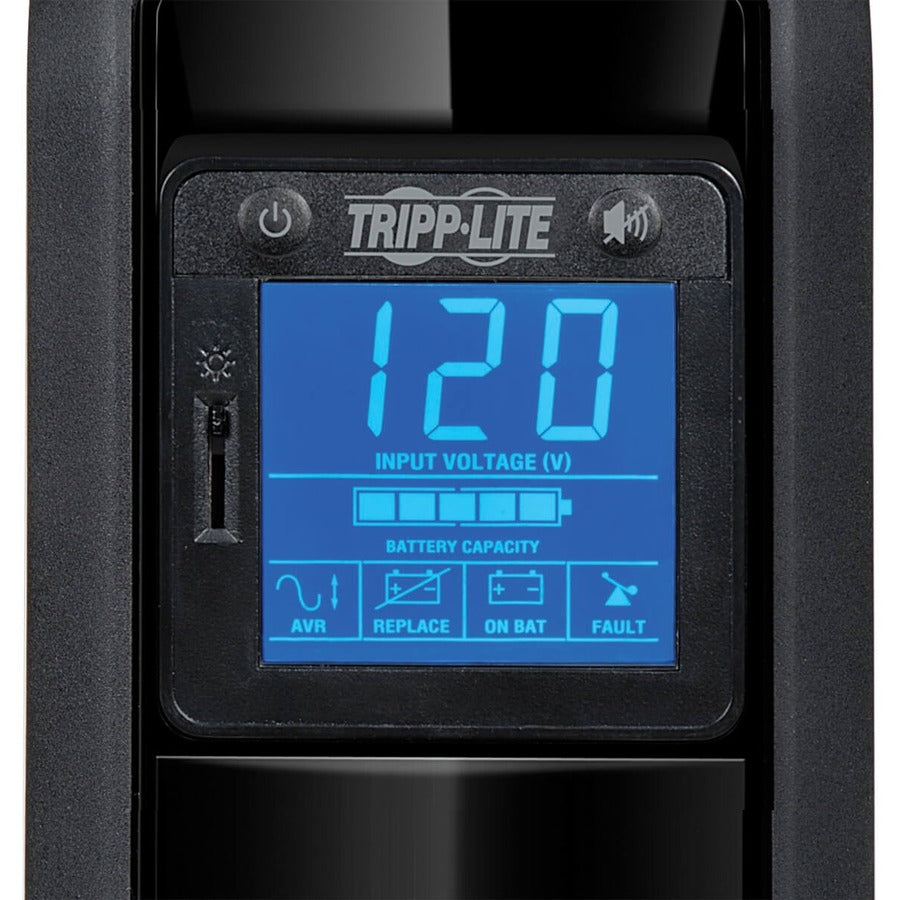

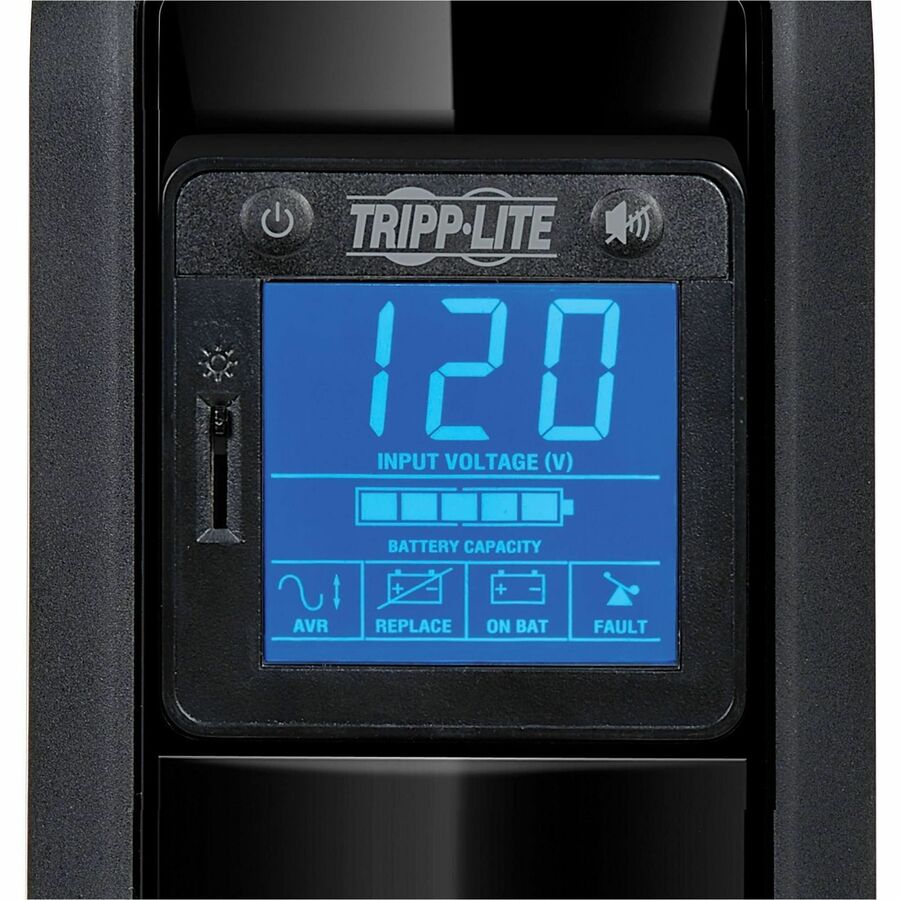

Front panel LCD screen with blue backlight offers:
- Continuous input line voltage data
- UPS status information on line power status
- Battery power status
- Battery charge level
- Voltage regulation operation
Interfaces/Ports
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 10 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 20 Hour
Environmental Conditions
- Maximum Operating Temperature: 122°F (50°C)
Physical Characteristics
- Product Color: Black
- Height: 11.8"
- Width: 3.7"
- Depth: 7.2"
- Form Factor: Tower
- Weight (Approximate): 14.90 lb
Miscellaneous

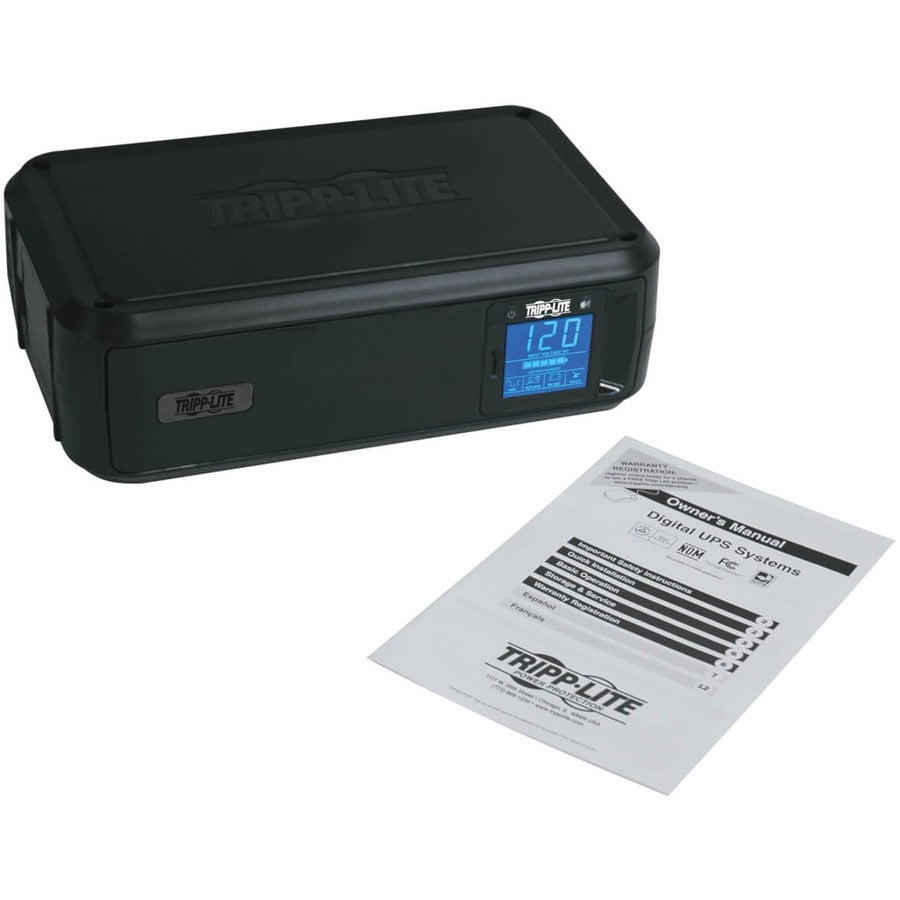

- Package Contents:
- OmniSmart OMNI900LCD 900 VA Tower UPS
- Manual with Warranty Information
- Software Included: PowerAlert software
- Country of Origin: Taiwan
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
