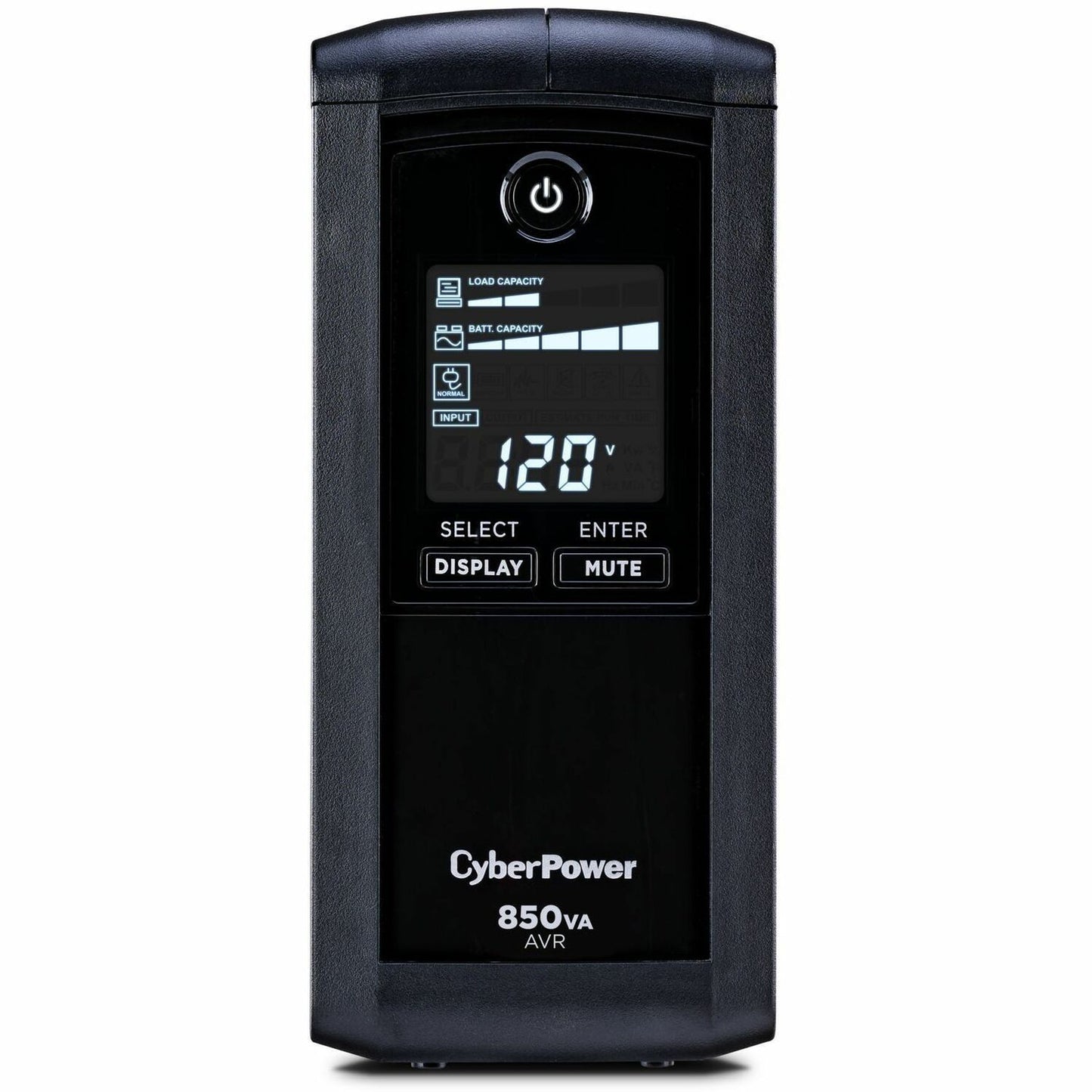

CyberPower CP850AVRLCD Intelligent LCD UPS Systems - CP850AVRLCD
Key Features
- $250,000
- 120 VAC ± 5%
- 3 year
- 850 VA / 510 W
- 9 × NEMA 5-15R
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® certified:
- Ethernet, Coaxial
- Line Interactive
- Management software:
- NEMA 5-15P, 6 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Topology:
- USB, Serial
- Warranty:
- Waveform:
- Yes

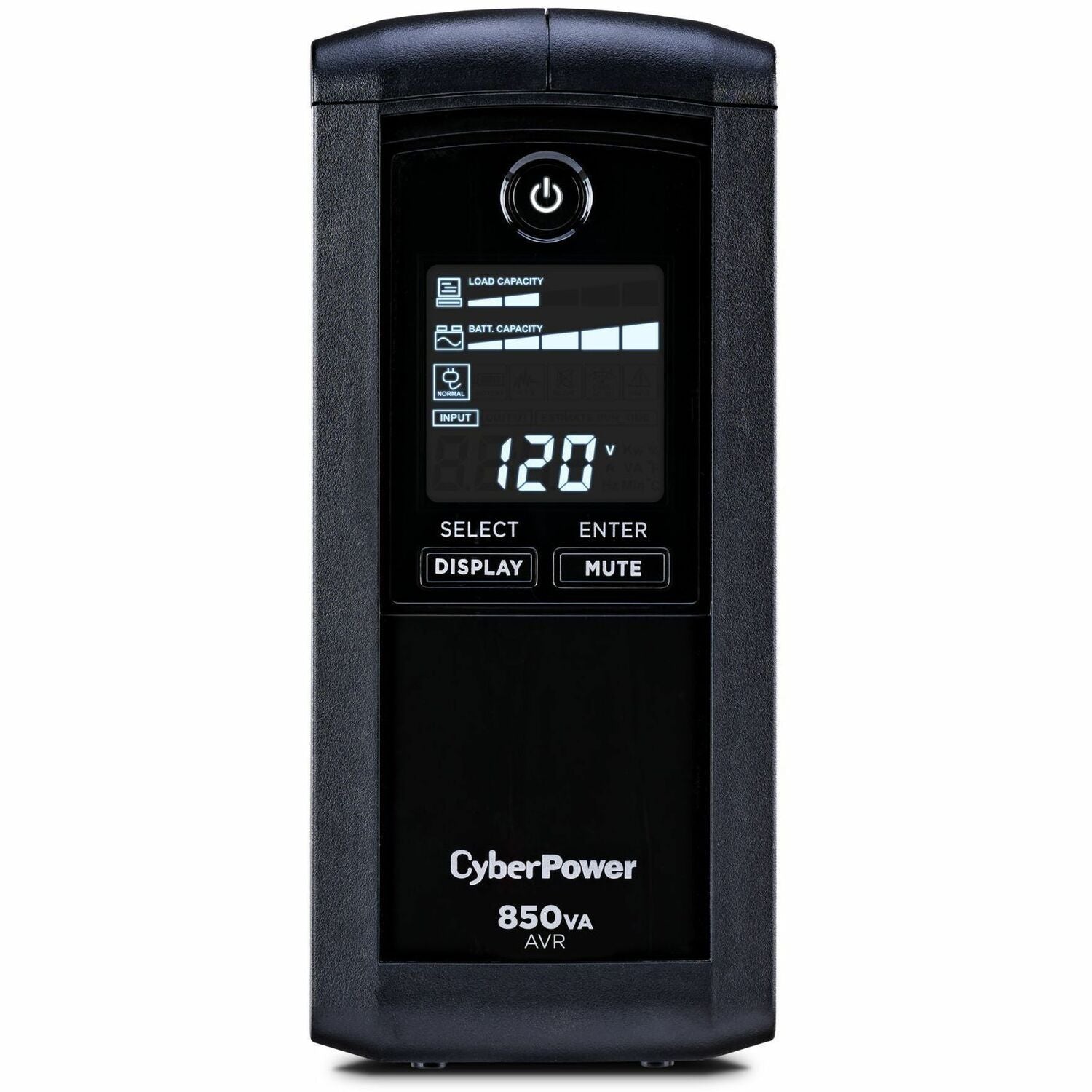

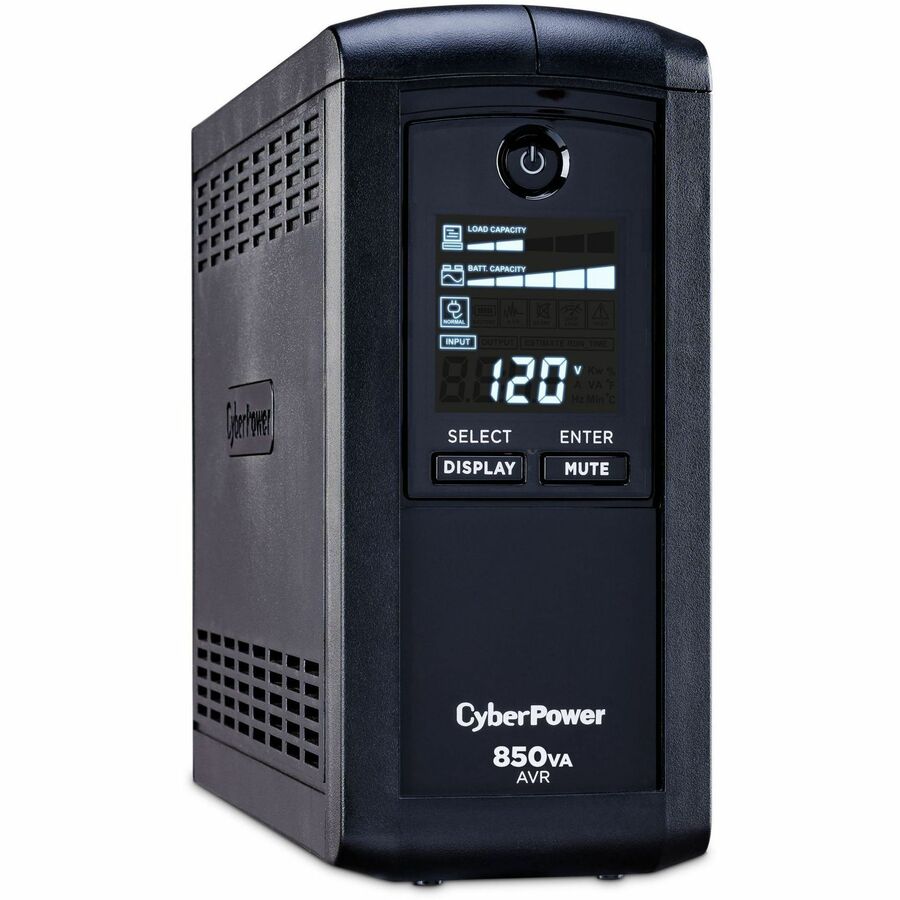

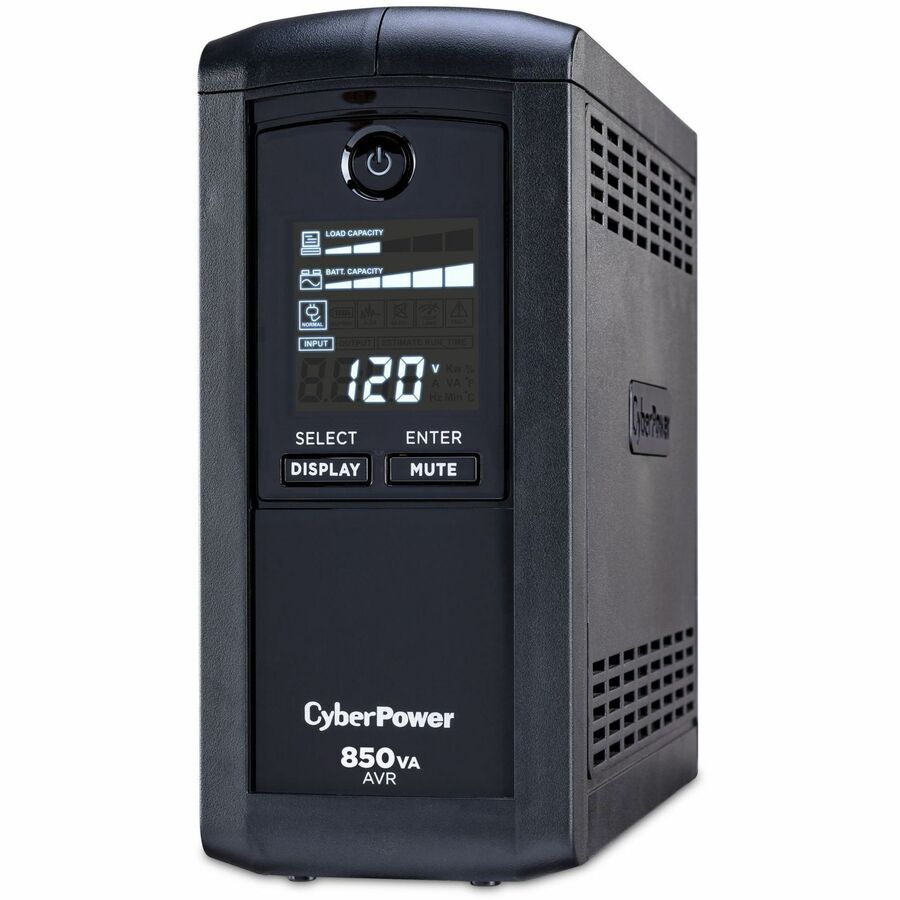

Product Overview

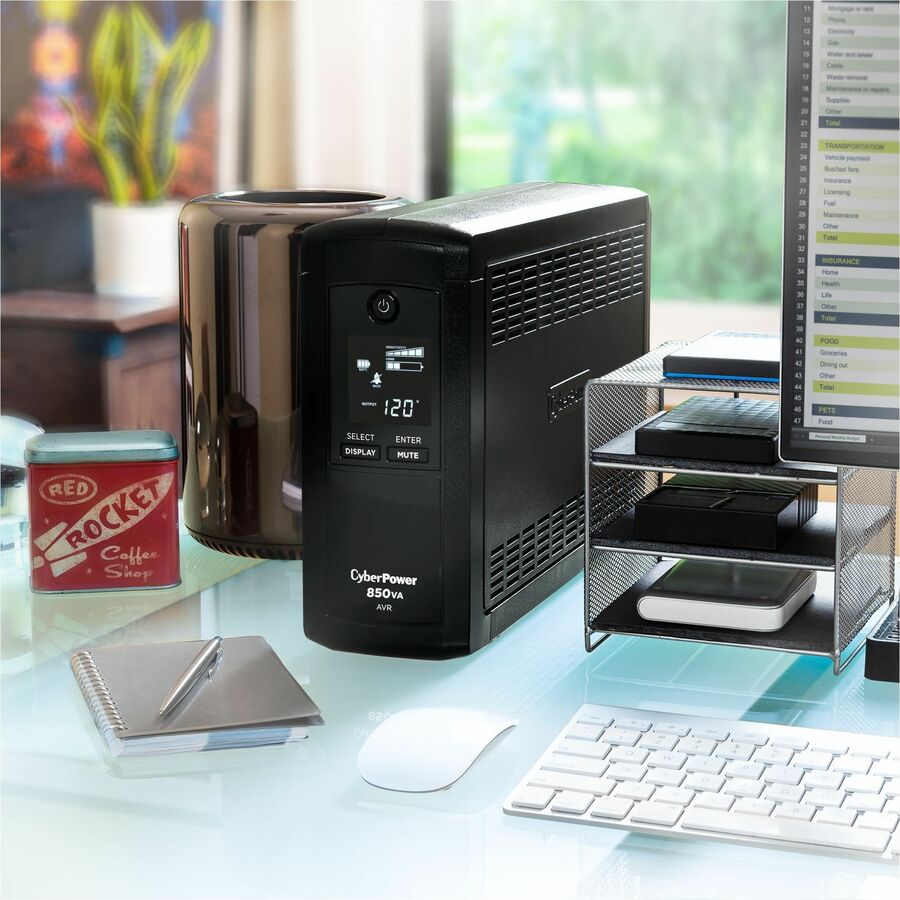

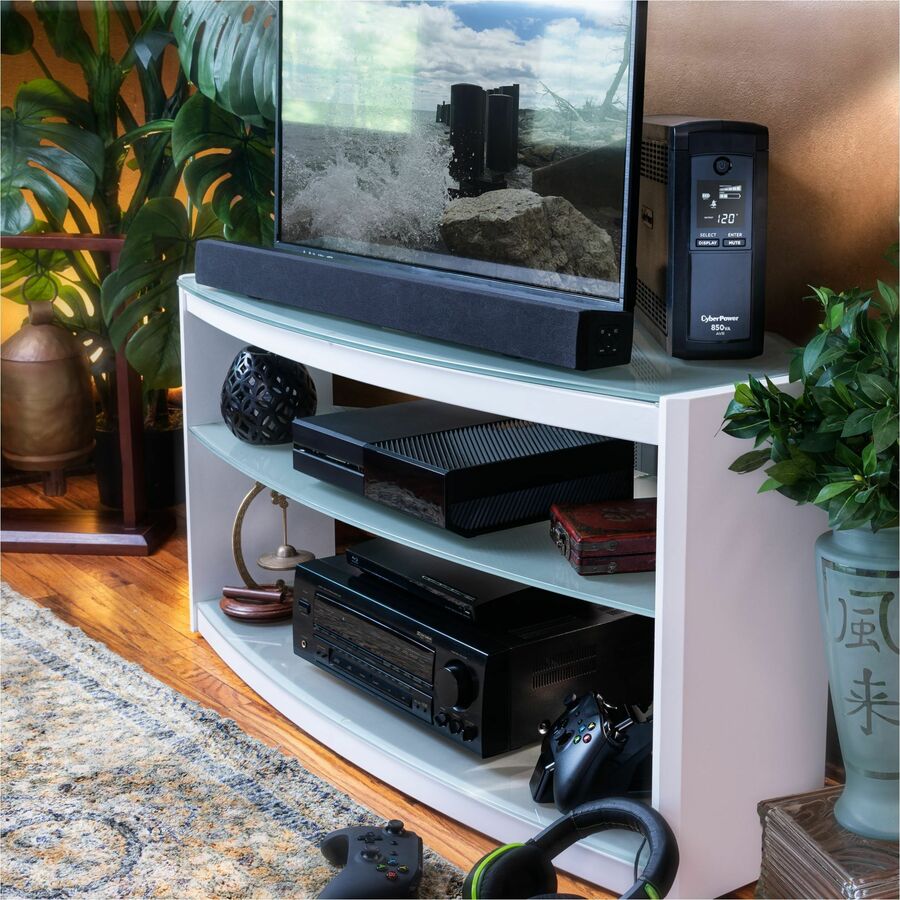

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP850AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP850AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850AVRLCD comes with a three-year warranty (including coverage of batteries) and a ,250,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP850AVRLCD
- Brand Name: CyberPower
- Product Series: Intelligent LCD UPS
- Product Model: CP850AVRLCD
- Product Name: CP850AVRLCD Intelligent LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

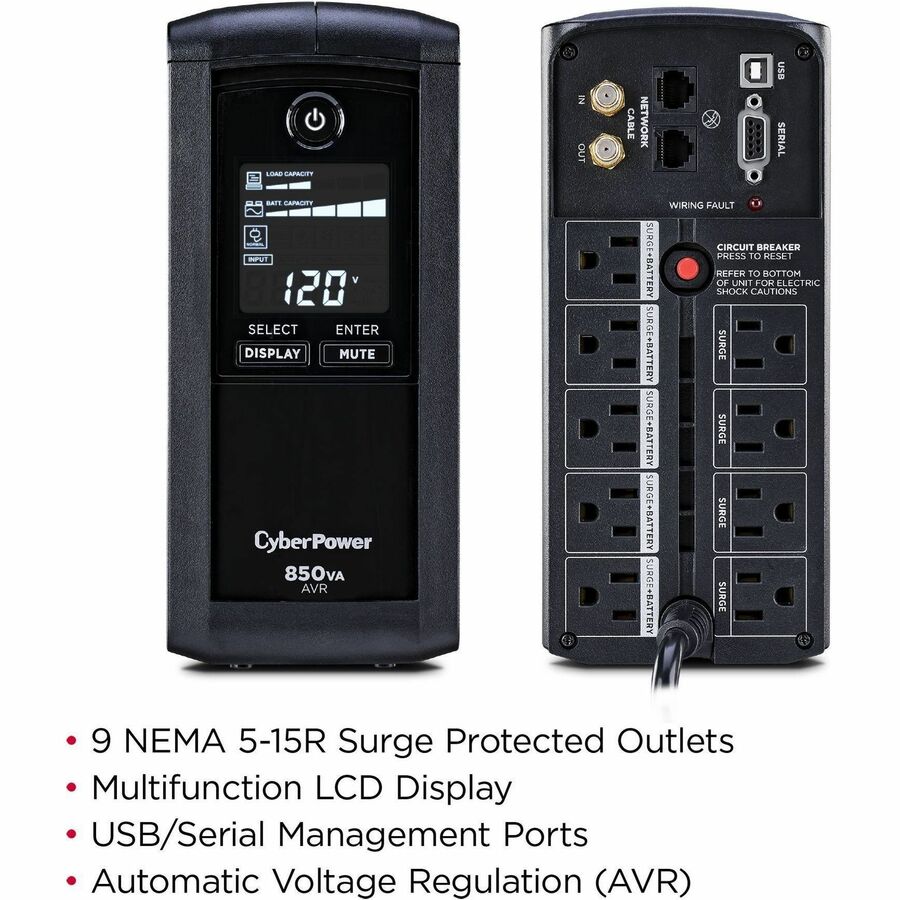

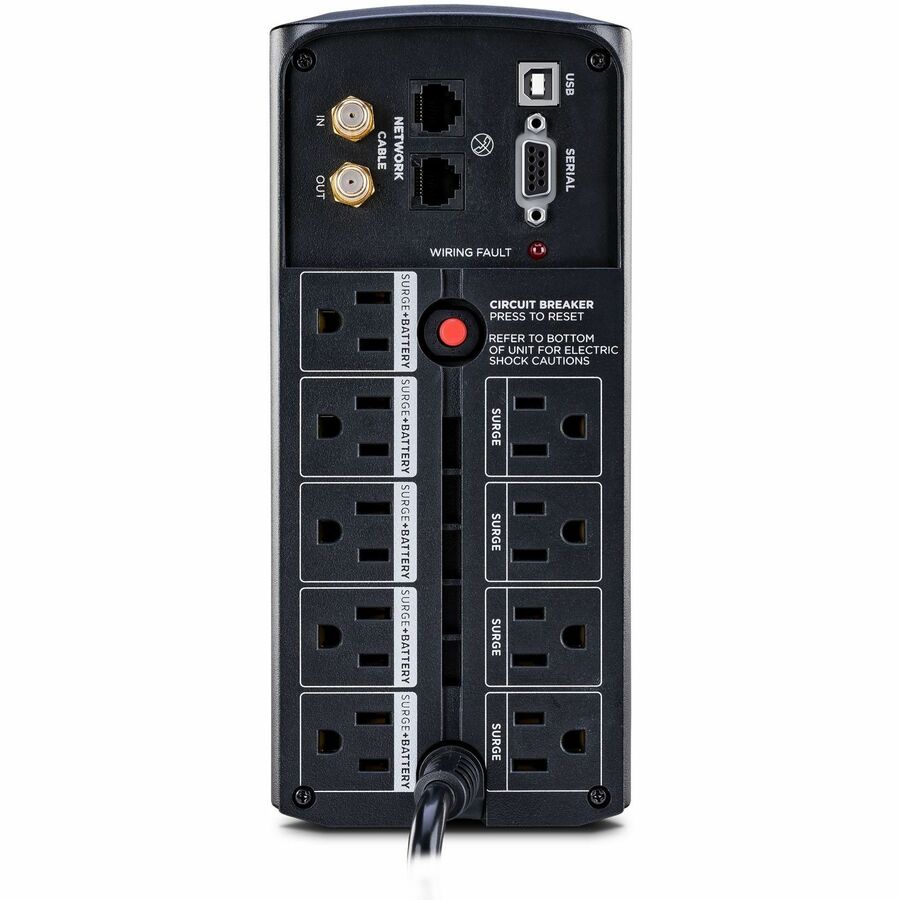

- Receptacle Detail: 9 x NEMA 5-15R
- Number of Battery & Surge Outlets: 5
- Number of Surge-only Outlets: 4
- Dataline Protection:
- RG-6
- RJ-45
- Overload Protection: Yes
- Cord Length: 6 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
Power Description
- Load Capacity (VA): 850 VA
- Load Capacity (Watt): 510 W
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 142 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1080 J
Management
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: Power On
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 11 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 60"
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)

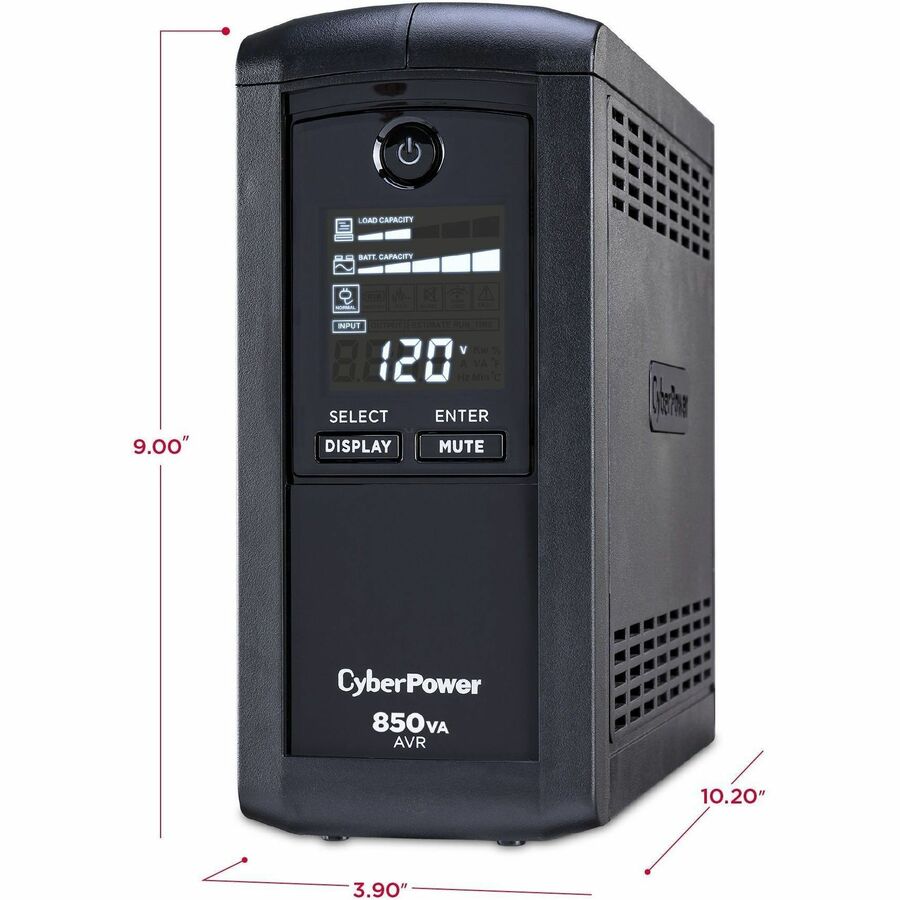

Physical Characteristics
- Product Color: Black
- Height: 9"
- Width: 3.9"
- Depth: 10.2"
- Form Factor: Tower
- Weight (Approximate): 15 lb
Miscellaneous
- Package Contents:
- Intelligent LCD CP850AVRLCD 850 VA Tower UPS
- PowerPanel Personal Edition Software CD-ROM
- Software Included: PowerPanel Personal Edition Software
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
