Eaton Tripp Lite Series OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB port - OMNIVS1000
Key Features
- 1000VA / 1kVA tower 120V line interactive UPS
- 6 UPS battery supported outlets, 2 surge-only outlets
- Corrects brownouts as low as 89V without using battery power
- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
- USB port, TEL/DSL/ethernet protection
Product Overview
Line interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line RJ phone suppression jacks protect modem, fax machine or cordless phone with a standard dial-up/DSL phone connection. Offers 7-minute battery runtime with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: OMNIVS1000
- Brand Name: Tripp Lite series
- Product Line: Omni
- Product Series: VS
- Product Name: 8-Outlet Line Interactive UPS System
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail:
- 2 x NEMA 5-15R
- 6 x NEMA 5-15R
- Dataline Protection: RJ-45
- Cord Length: 6 ft
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 500 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 480 J
Management
- Alarm: On Battery
Controls/Indicators

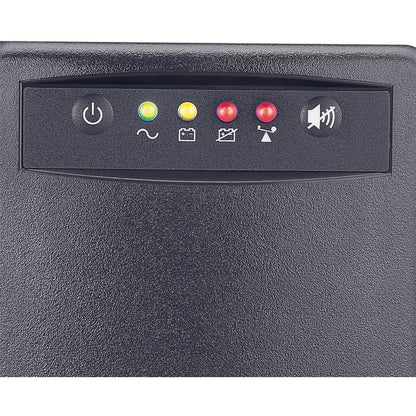

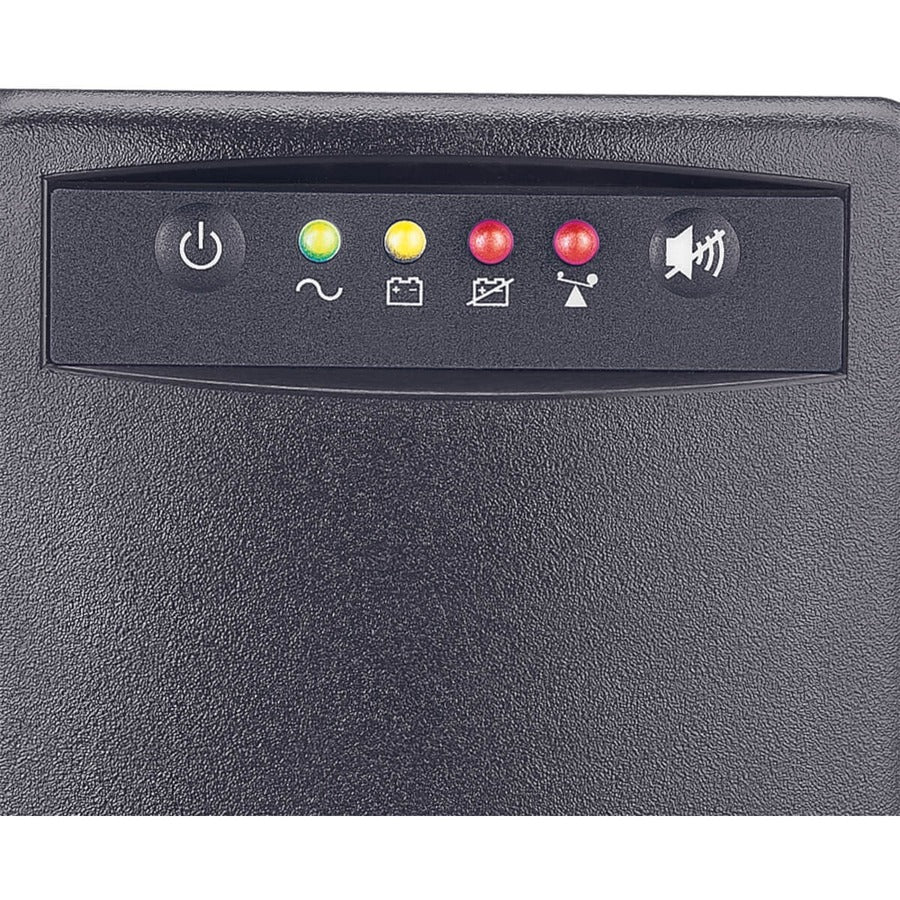

- Status Indicators: 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Interfaces/Ports
- USB: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 3.50 Minute
- Backup/Run Time (Half Load): 14 Minute
- Battery Life: 6 Year
- Typical Battery Recharge Time: 4 Hour
Environmental Conditions
- Maximum Operating Temperature: 122°F (50°C)
Physical Characteristics
- Product Color: Black
- Height: 10.8"
- Width: 5.3"
- Depth: 7.3"
- Form Factor: Tower
- Weight (Approximate): 21 lb
Miscellaneous

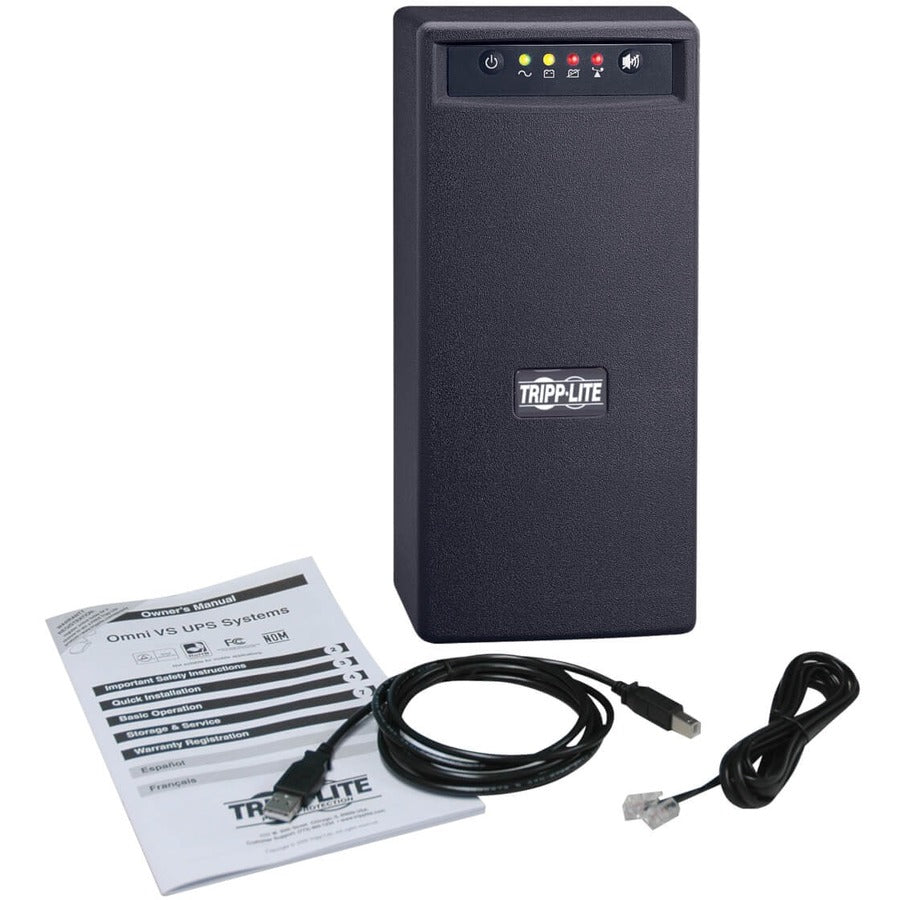

- Package Contents:
- OMNIVS1000 Line Interactive UPS
- USB and telephone cable
- User manual with warranty information
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
2 year warranty.
- 200,000 connected equipment insurance (USA & Canada Only).
