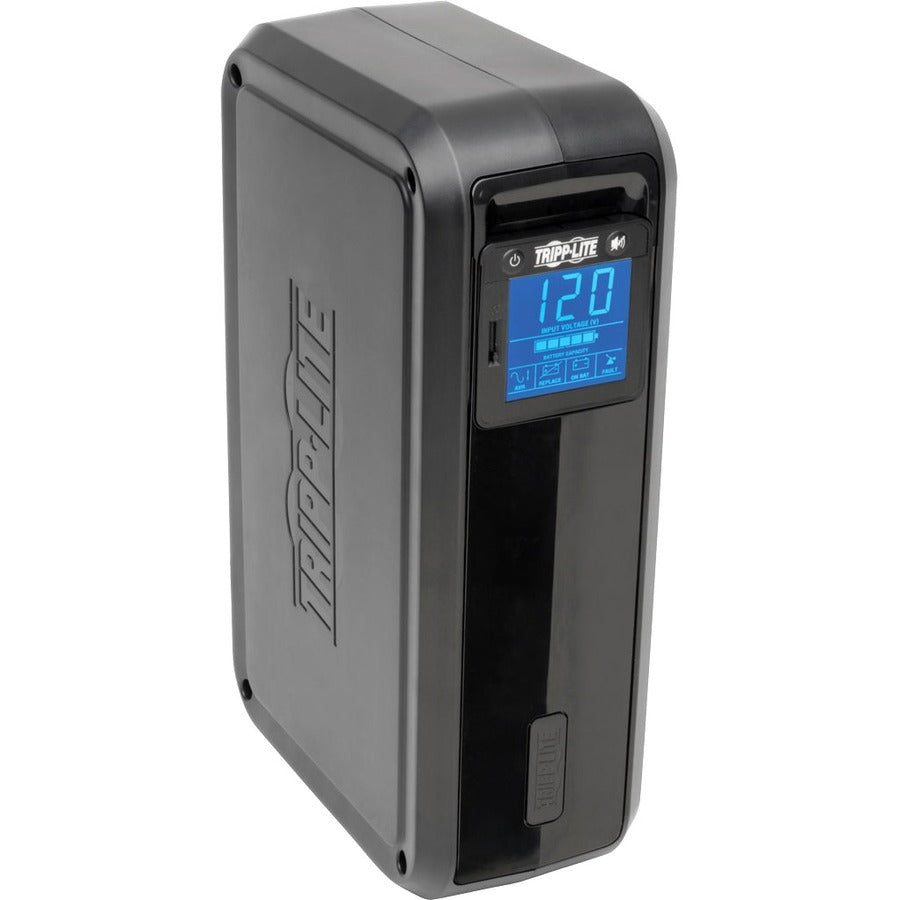

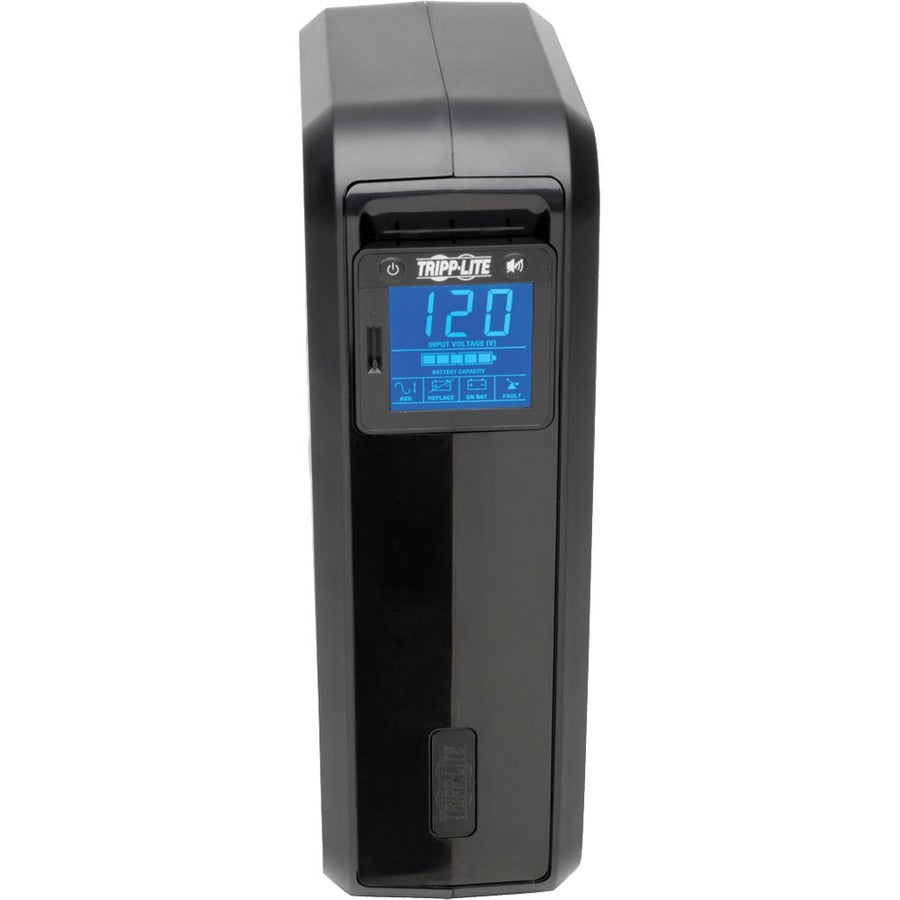

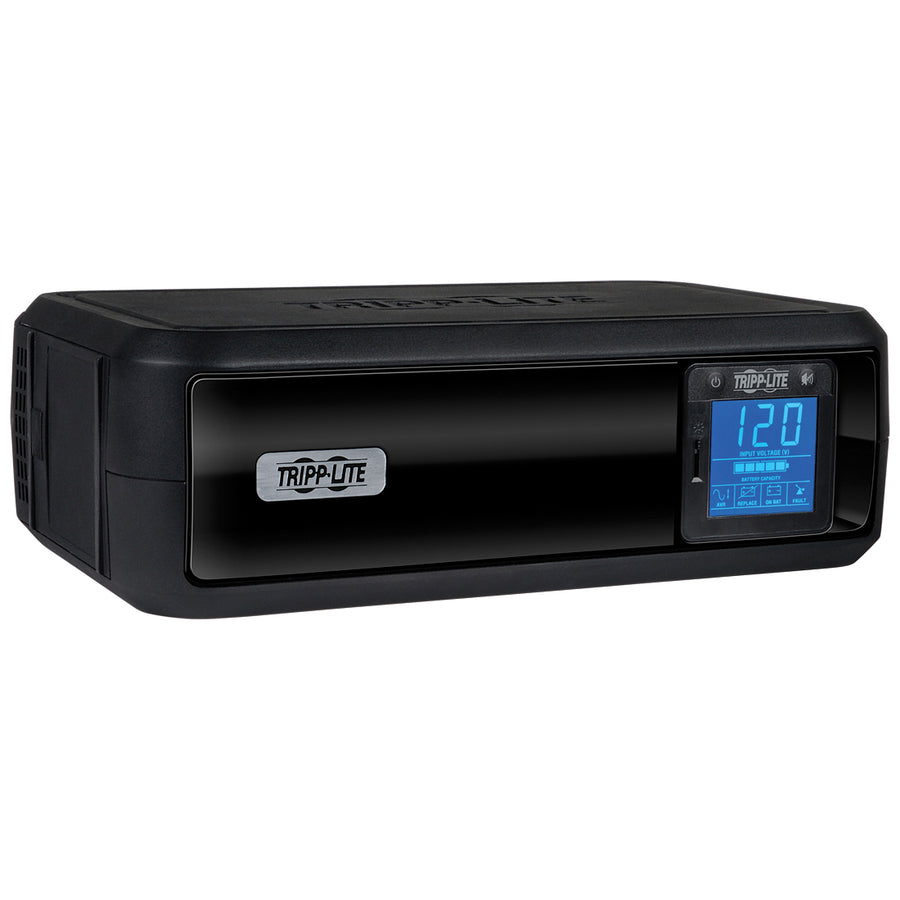

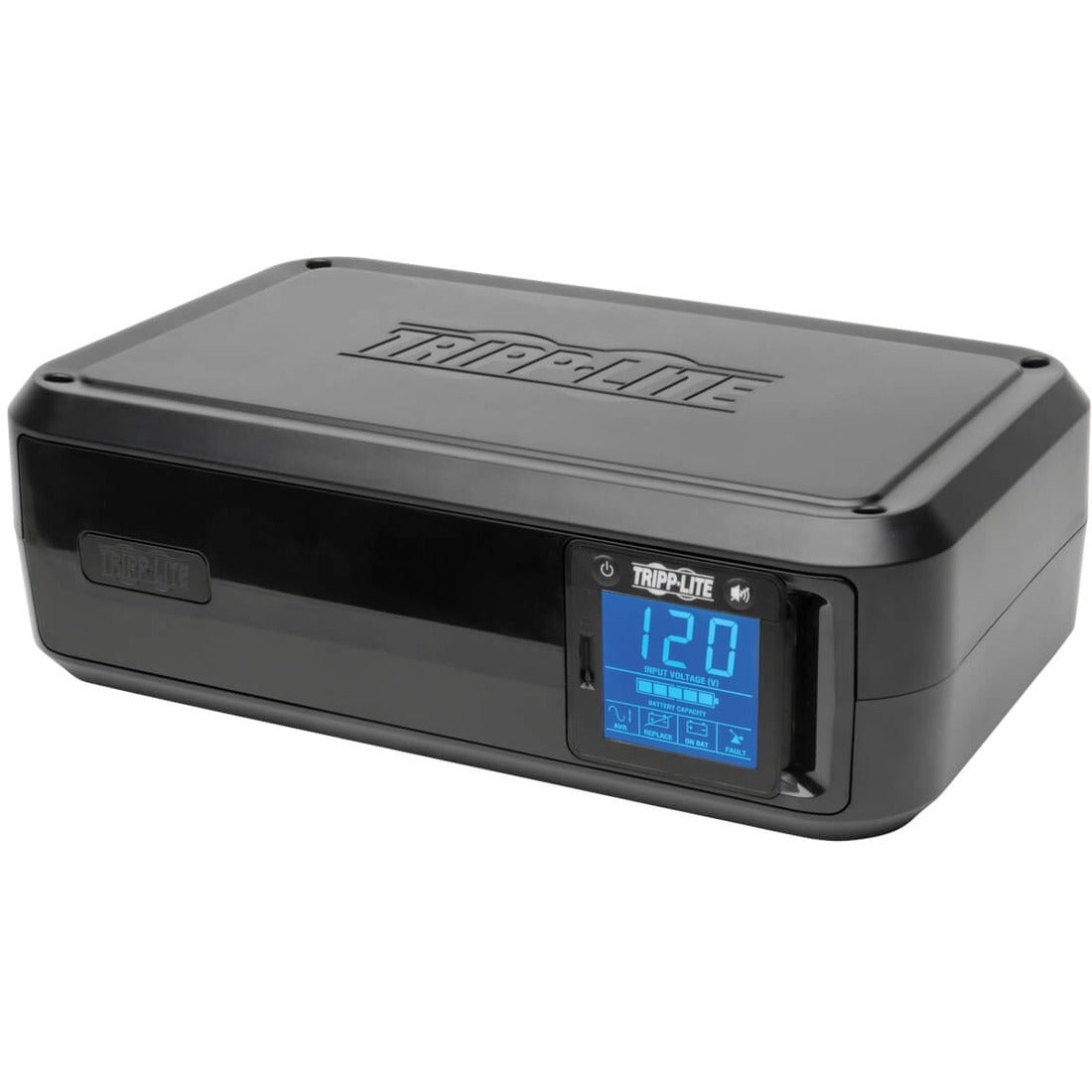

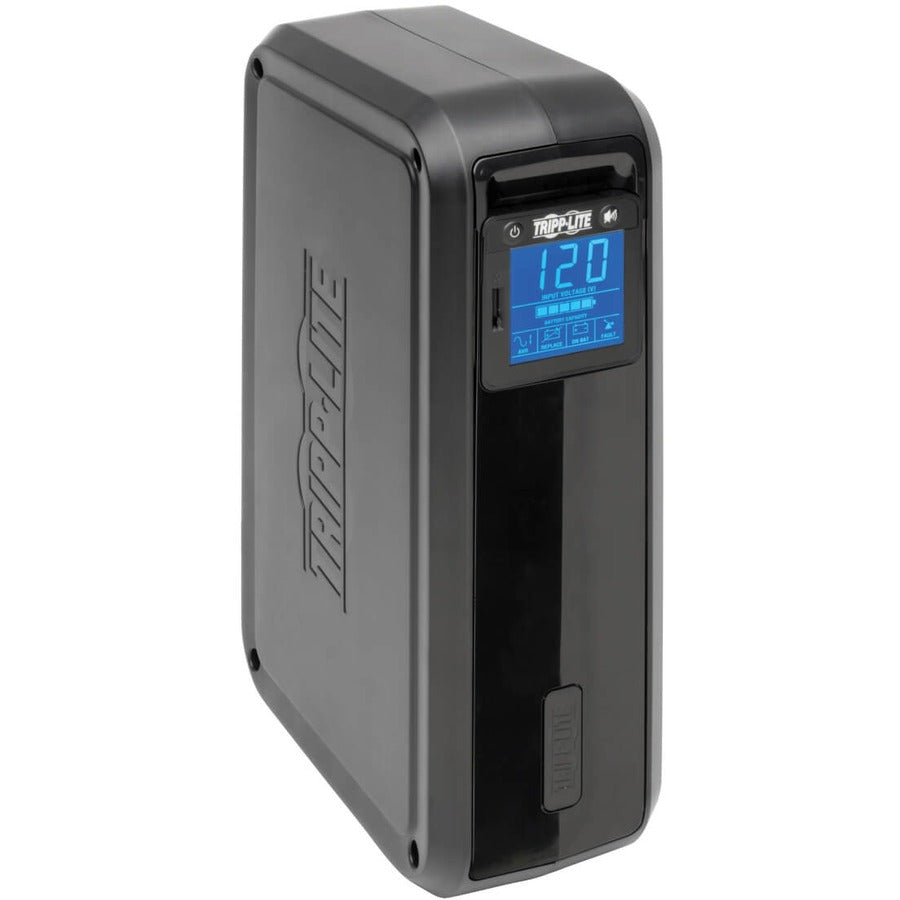

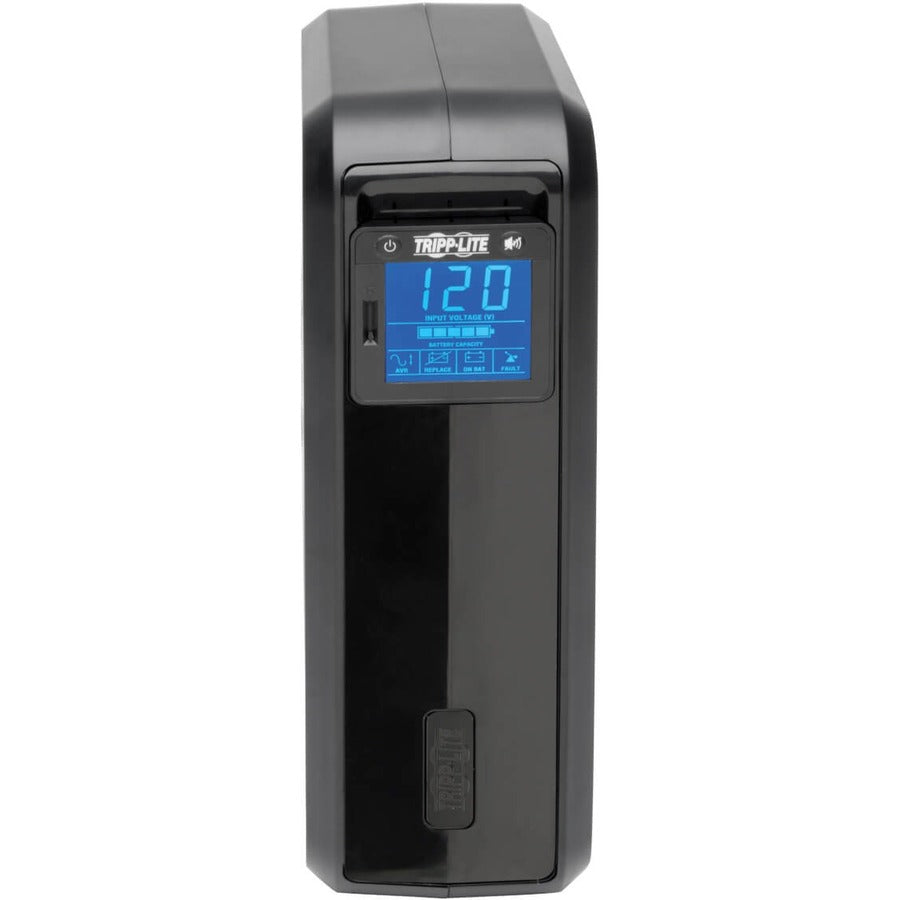

Eaton Tripp Lite Series SmartPro LCD 120V 1000VA 500W Line-Interactive UPS, AVR, Tower, USB, TEL/DSL/Coax Protection, 8 Outlets - SMART1000LCD
Key Features

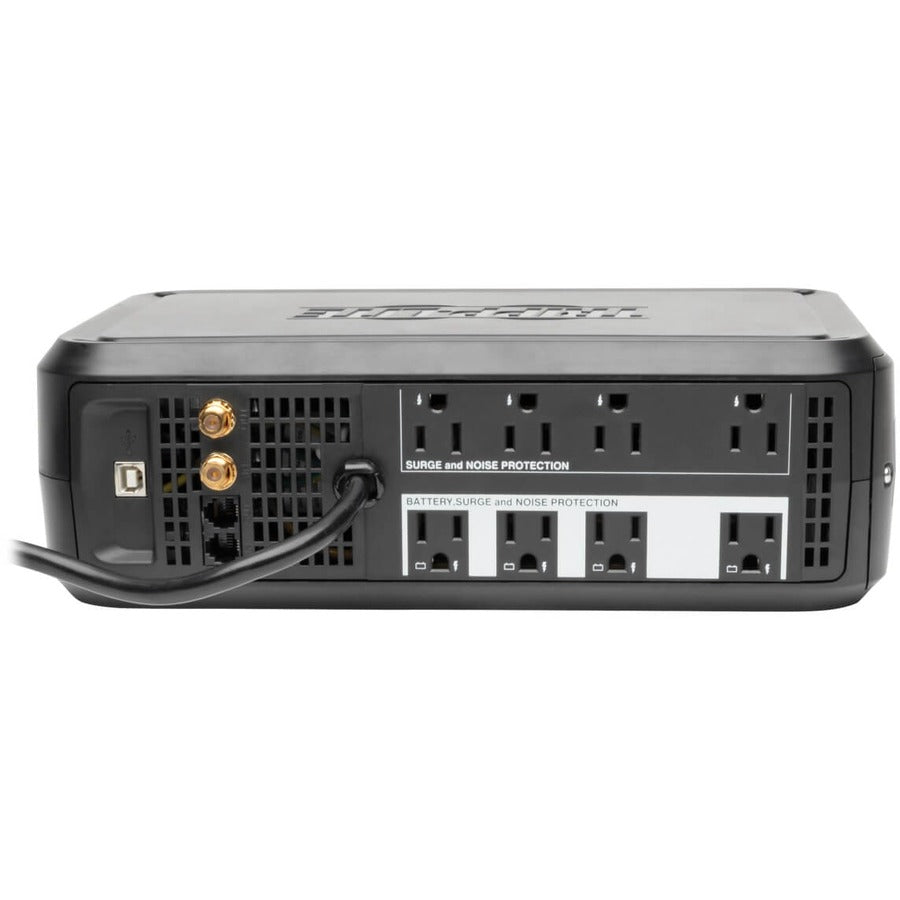

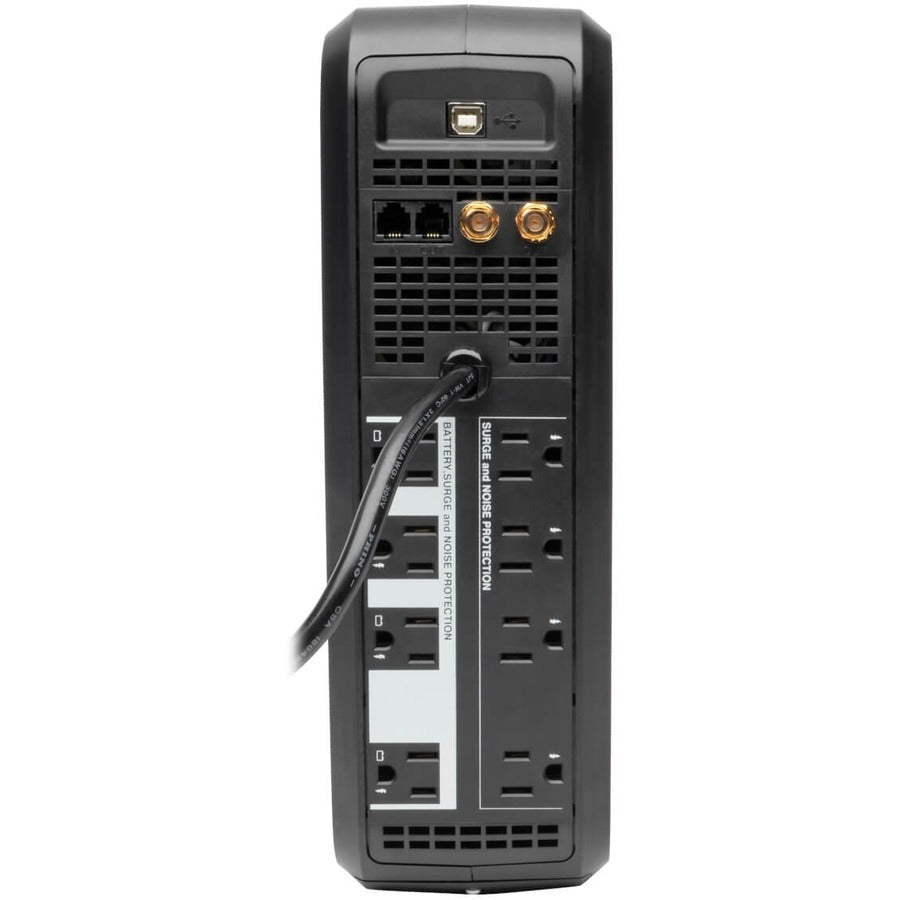

- Features 8 protected outlets-4 battery-protected, 4 surge-only

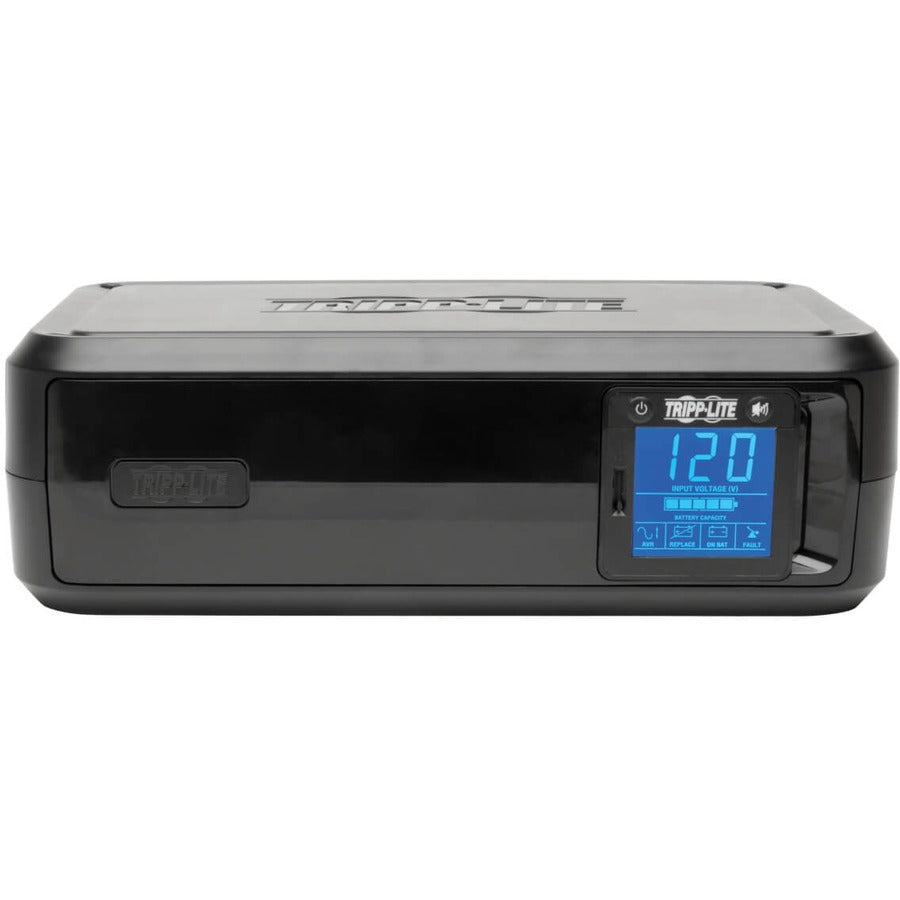

- LCD screen reports real-time UPS and power status
- Offers automatic voltage regulation (AVR)
- Plugs into any NEMA 5-15R socket
- Supports a basic desktop PC up to 60 min. during power outage
Product Overview
Line-Interactive Digital UPS System offers voltage regulation, surge suppression and battery support for personal computers, network workstations and more. Internal UPS circuits support entry-level PCs for 60 minutes or individual VCR/DVR for 3 hours during power failure. AVR circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets. USB port enables optional unattended system shutdown without data loss; cable included. HID-compliant USB interface enables integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Built-in single-line RJ-11 phone suppression jacks protect modem and satellite receiver with standard dialup/DSL phone connection. 2.2 GHz coaxial jacks protect against surges on CATV, satellite or broadcast antenna connections. 3 minute battery runtime with full load of 1000VA/500W and 10 minutes with half load of 500VA/250W.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART1000LCD
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Name: SmartPro 1000 VA Tower Digital UPS
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 4 x NEMA 5-15R
- Dataline Protection: RJ-11
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 500 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Surge Energy Rating: 1038 J
Interfaces/Ports
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 10 Minute
- Battery Life: 6 Year
- Typical Battery Recharge Time: 8 Hour
Environmental Conditions
- Maximum Operating Temperature: 122°F (50°C)
Physical Characteristics
- Product Color: Black
- Height: 10.4"
- Width: 15.6"
- Depth: 4.8"
- Rack Height: 2U
- Form Factor: Tower
- Weight (Approximate): 14.60 lb
Miscellaneous

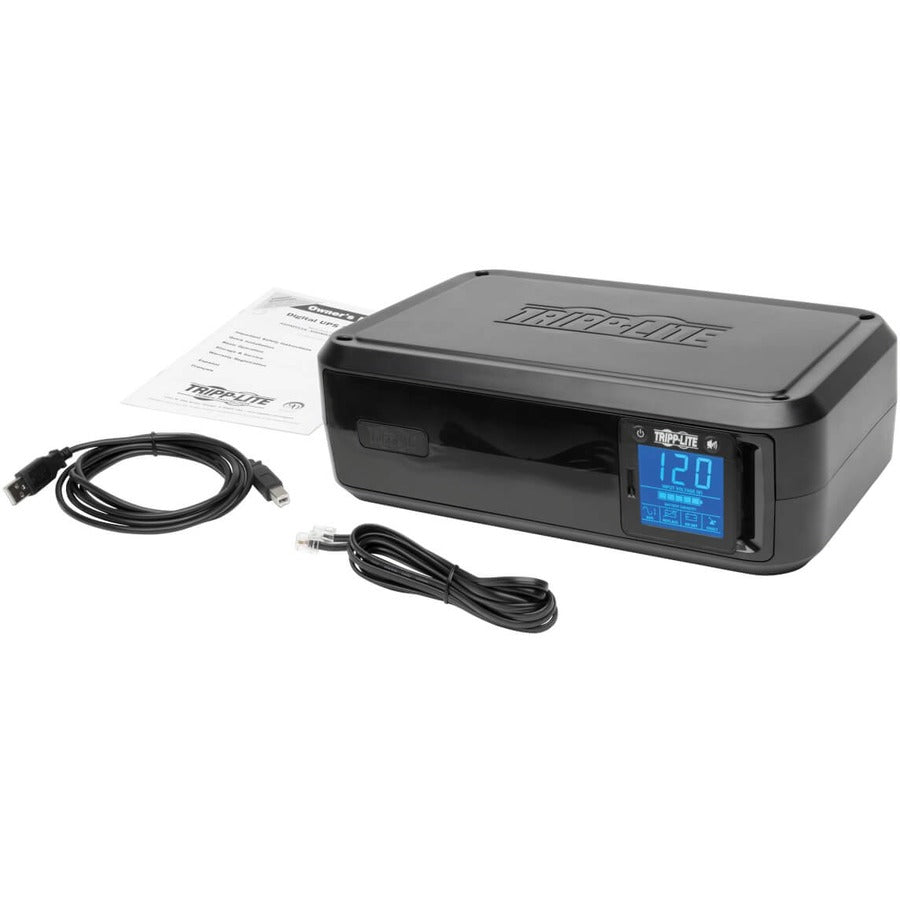

- Package Contents:
- SmartPro 1000 VA Tower Digital UPS
- SMART1000LCD Digital UPS
- USB and phone cabling
- Manual with warranty information
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
2 year product warranty /
- 250,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
