Emerald® KM Switch with Glide & Switch Mouse Switching - KV0004A-R2
Key Features
- Automatic channel switching with Glide and Switch Technology
- Multiple Switching Options: Mouse, hotkeys or front panel
- Optional LED Channel indicators
- True USB emulation
- Works with Windows & Mac OS (Linux may be supported in certain applications but not all)
Product Overview

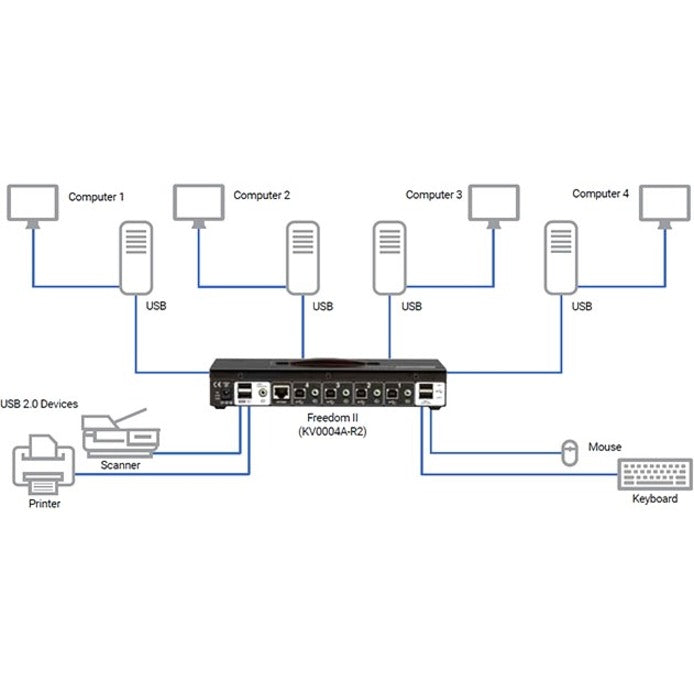

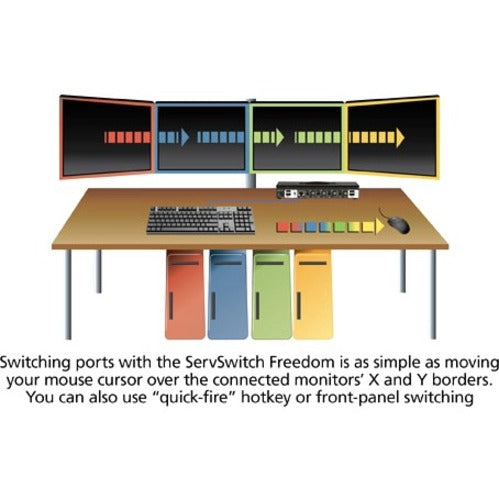

The Freedom II KM Switch with Glide; Switch enables a single user to easily access information and control operations across the computer systems and monitors, saving time, money, and space. The Freedom II works like an extended desktop switch on a single computer. Once you configure your screen layout for the attached PCs with up to four external displays, switching ports is as simple as moving your mouse cursor over the screens' X and Y borders.
Freedom is ideal in command and control applications, such as those in finance on a trading room floor. Not only can users switch between several computers just by moving the mouse, but they can also simultaneously access a mix of USB peripherals, including high-speed USB 2.0 devices.
Additionally, the Freedom II KVM Switch integrates with the Black Box Agility IP-based KVM system. This Freedom II KM Switch can interface with Agility receivers, and then switch the Agility targets using just one keyboard and mouse.
The Freedom II KM Switch is ideal for command and control applications such as in:
- Broadcasting
- Public safety
- Industrial
- Defense
- Transportation
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: KV0004A-R2
- Brand Name: Emerald®
- Product Line: Freedom II
- Product Model: KV0004A-R2
- Product Name: KM Switch with Glide & Switch Mouse Switching
- Product Type: KM Switchbox
Technical Information
- Number of Computers Supported: 4
- Number of Local Users Supported: 1
Interfaces/Ports
- Network (RJ-45): Yes
- PS/2 Port: Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 2
- Number of PS/2 Ports: 2
- Number of USB Ports: 9
Physical Characteristics
- Height: 1.2"
- Width: 11.4"
- Depth: 5"
- Weight (Approximate): 2 lb
Miscellaneous
- Package Contents:
- KM Switch with Glide & Switch Mouse Switching
- Power Adapter and Power Cord
- Flash Upgrade Adapter
- 4 x Self-adhesive Feet
- Compatibility:
Operating Systems Compatible:
- Windows 10
- Windows 11
- Mac OS
- Environmentally Friendly: Yes
- Country of Origin: United Kingdom
Warranty
- Limited Warranty: 2 Year
