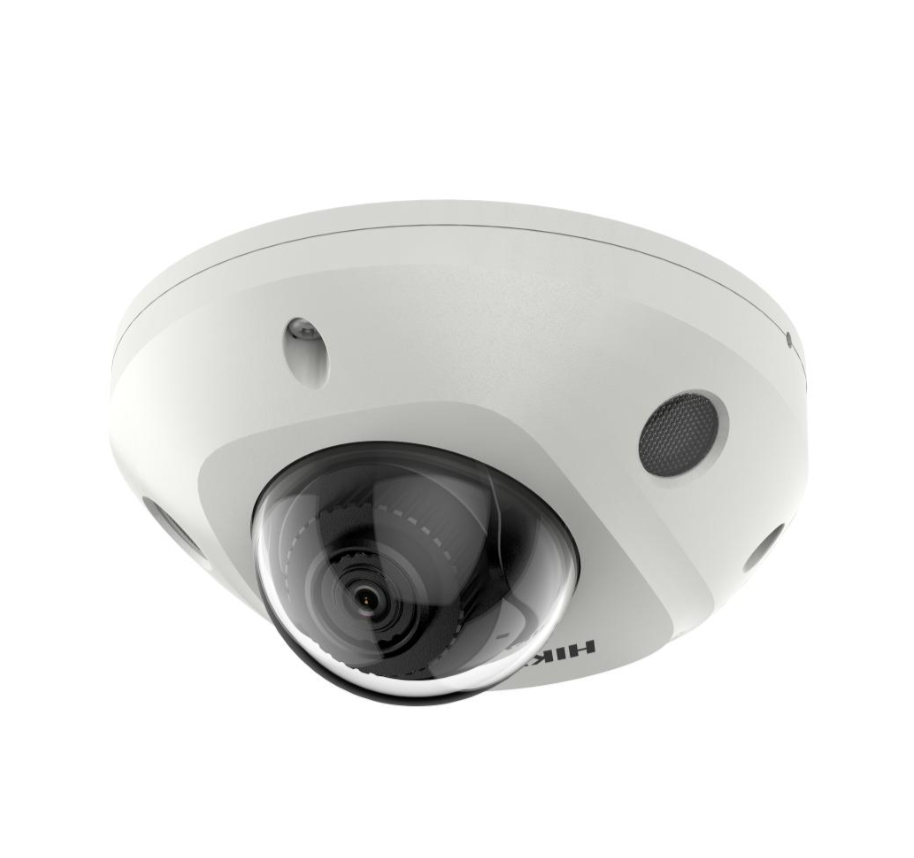

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: -30° to 30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Type: Fixed focal lens, 2 mm / 2.8 mm / 4 mm optional
FOV:
2 mm: H: 128°, V: 75°, D: 147°
2.8 mm: H: 104.3°, V: 55.9°, D: 123.8°
4 mm: H: 83.7°, V: 43.0°, D: 100.3°
Lens Mount: M12
Aperture: F1.6
Depth of Field:
2 mm: 0.6 m to ∞
2.8 mm: 1.4 m to ∞
4 mm: 1.6 m to ∞
DORI
2 mm: D: 45 m, O: 18 m, R: 9 m, I: 4 m
2.8 mm: D: 64 m, O: 25 m, R: 13 m, I: 6 m
4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m
Illuminator
Type: IR
Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream: 25/30 fps @ 2688 × 1520, 1920 × 1080, 1280 × 720
Sub-Stream: 25/30 fps @ 1280 × 720, 640 × 480, 640 × 360
Third Stream: 10 fps @ 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360 (*settings dependent)
Compression: H.265/H.264/H.265+/H.264+/MJPEG
Bit Rate: 32 Kbps to 8 Mbps
ROI: 1 fixed region (main & sub-stream)
Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Sampling Rate: 8–48 kHz
Environment Noise Filtering: Yes
Network
Protocols: TCP/IP, HTTPS, FTP, RTP/RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, IPv6, SNMP, WebSocket, SSL/TLS, etc.
API: ONVIF (S, G), ISAPI, SDK
Users: Up to 32 (Admin, Operator, User)
Security: HTTPS, TLS 1.1/1.2, WSSE, MAC Filtering, Digest Auth
Network Storage: NAS, ANR
Settings: Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
WDR: 120 dB
SNR: ≥ 52 dB
Enhancements: BLC, HLC, 3D DNR
Privacy Masks: 4 programmable
Wi-Fi (Model -W only)
Protocols: 802.11b/g/n
Range: Up to 80 m
Security: WPA/WPA2/WEP
Interfaces
Ethernet: 1 × RJ45 10/100 Mbps
Audio I/O: 1 in / 1 out (non-balanced, terminal block)
Alarm I/O: 1 in / 1 out (12 VDC, 20 mA max)
Reset Button: Yes
Storage: microSD, up to 512 GB
Built-in Mic: Yes
Smart Features
Events: Motion Detection, Tampering, Exception
Smart Detection: Line Crossing, Intrusion, Face Detection
Classification: Human & Vehicle Detection
General
Power: 12 VDC ± 25% or PoE (802.3af)
Consumption: Max. 6.5 W
Dimensions: Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")
Weight: 380 g (0.8 lb.)
Operating Temp: –30 °C to 60 °C (–22 °F to 140 °F)
Protection: IP67, IK08
Certifications: FCC, CE, RCM, IC, UL, CB, RoHS, WEEE
Languages: 33 including English, Spanish, French, German, Portuguese (Brazil), Russian, Chinese, Japanese, Korean, etc.
