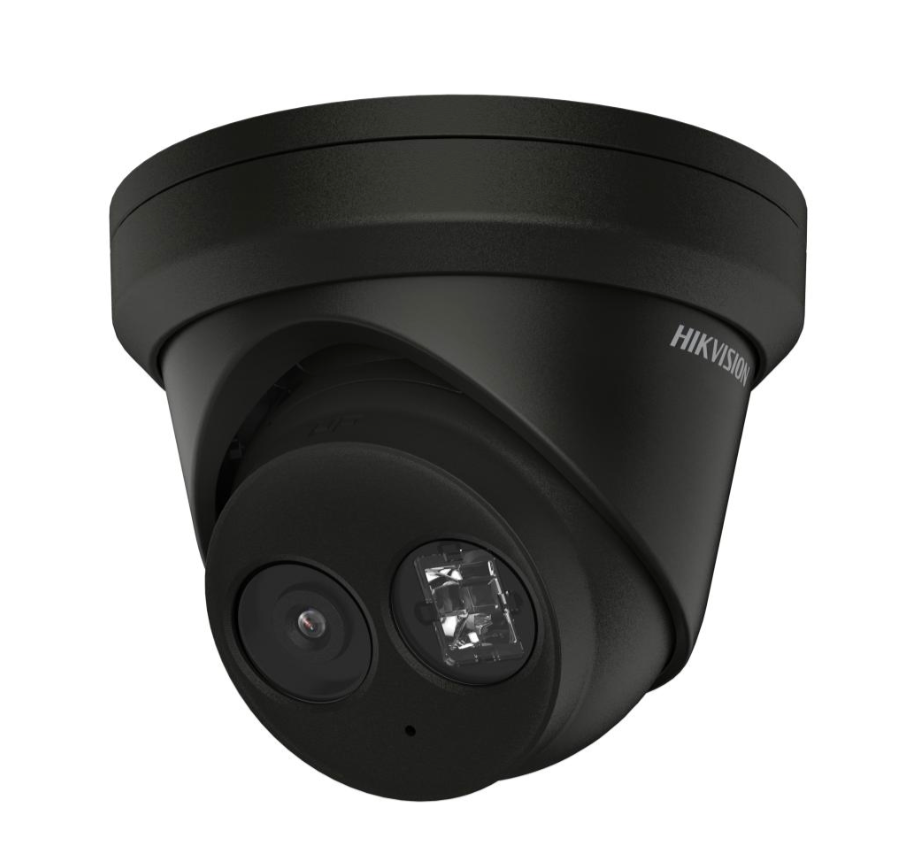

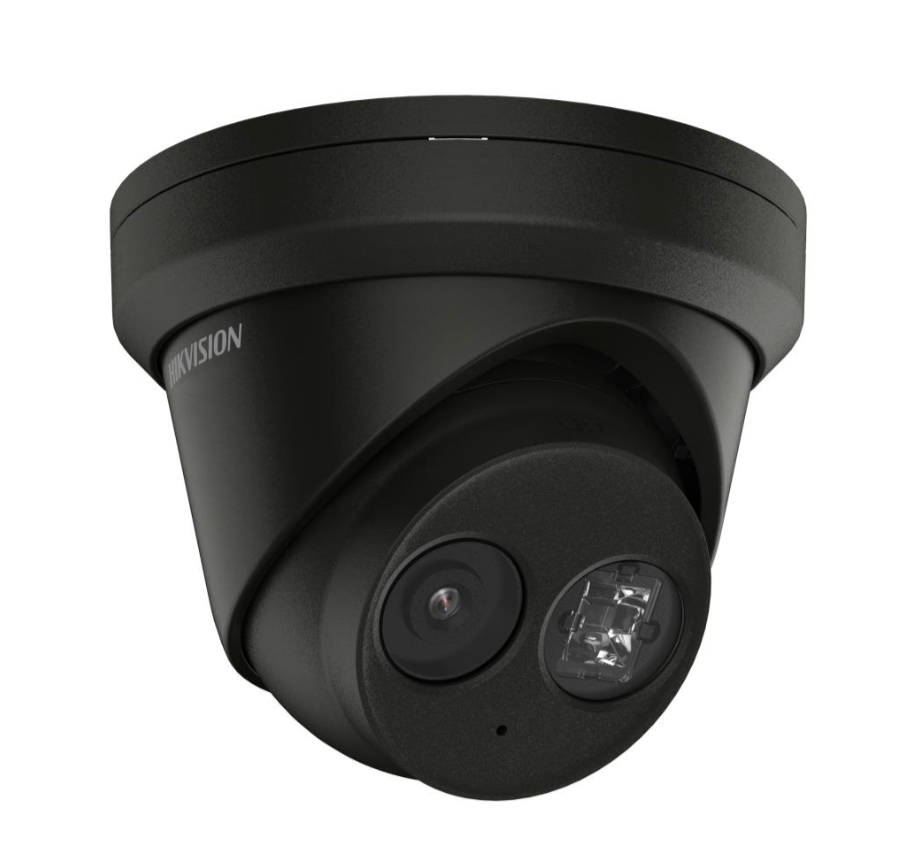

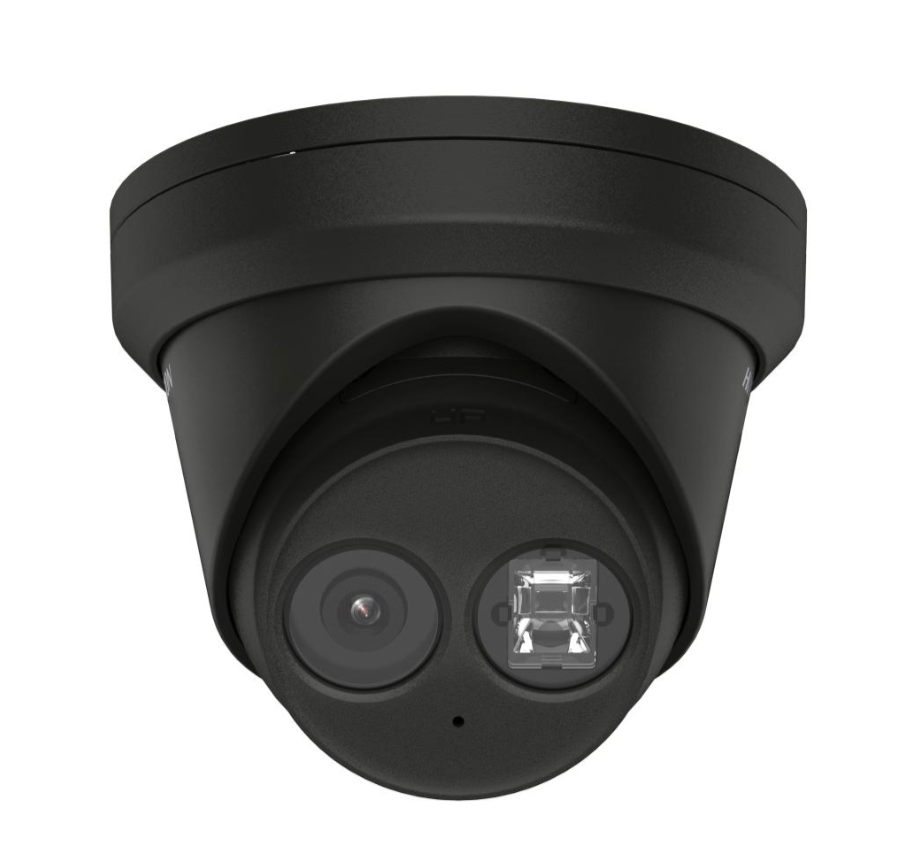

Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Type: Fixed focal lens, 2.8 mm and 4 mm optional
Field of View:
2.8 mm – Horizontal: 107°, Vertical: 57°, Diagonal: 128°
4 mm – Horizontal: 87°, Vertical: 46°, Diagonal: 105°
Mount: M12
Iris Type: Fixed
Aperture: F1.6
DORI (Detect, Observe, Recognize, Identify)
2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m
Illuminator
Type: IR
Range: Up to 30 m
Wavelength: 850 nm
Smart Supplement Light: Yes
Video
Main Stream:
50 Hz – 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz – 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz – 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz – 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 10 fps up to 1920 × 1080 (selectable settings only)
Video Compression:
Main: H.265+/H.265/H.264+/H.264
Sub: H.265/H.264/MJPEG
Third: H.265/H.264 (*under certain settings)
Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
SVC: H.264 and H.265
ROI: 1 fixed region (main and sub)
Audio
Type: Mono sound
Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Bit Rate: 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
Sampling Rate: 8/16/32/44.1/48 kHz
Noise Filtering: Yes
Network
Protocols: TCP/IP, HTTPS, FTP, DHCP, RTP, RTSP, NTP, SNMP, IGMP, 802.1X, IPv4/IPv6, SSL/TLS, WebSocket, and more
Live View: Up to 6 channels
API: ONVIF (S, G), ISAPI, SDK
Users: Up to 32 users (Admin, Operator, User)
Security: HTTPS encryption, IP filtering, TLS 1.1/1.2, password, WSSE, audit logs, digest auth
Network Storage: NAS (NFS, SMB), ANR, encrypted memory card support
Client: iVMS-4200, Hik-Connect, Hik-Central
Browser Compatibility: IE10/11 (plug-in), Chrome/Firefox 52+, local support
Adjustments: Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
Day/Night Switch: Day, Night, Auto, Schedule
WDR: 120 dB
SNR: ≥ 52 dB
Enhancements: BLC, HLC, 3D DNR
Privacy Mask: 4 programmable zones
Interface
Ethernet: 1 × RJ45 10/100 Mbps
Storage: microSD/SDHC/SDXC, up to 512 GB
Microphone: Yes (model dependent)
Reset Key: Yes
Event Functions
Basic Events: Motion detection (human/vehicle), tamper, exception
Smart Events: Line crossing, intrusion, face detection (human/vehicle filtering)
Linkage Actions: Upload to FTP/NAS/SD card, notify center, send email, trigger record/capture
General
Power:
– 12 VDC ±25%, 0.5 A, Max. 6 W, Ø5.5 mm plug, reverse polarity protection
– PoE IEEE 802.3af Class 3, 36–57 V, Max. 7.5 W
Dimensions: Ø127.3 mm × 95.9 mm (Ø5.0" × 3.8")
Package Dimensions: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight: 600 g (1.3 lb); With Package: 891 g (2.0 lb)
Environmental
Operating Temp: –30°C to 60°C (–22°F to 140°F)
Storage Temp: –30°C to 60°C, 95% RH or less (non-condensing)
Protection: IP67
Languages Supported: 33 languages including English, French, Spanish, Russian, Chinese, Japanese, Turkish, Portuguese (Brazil), and more
General Functions: Heartbeat, Anti-flicker, Password reset via email, Pixel counter
Certifications
EMC: FCC, CE-EMC, RCM, IC, KC
Safety: UL, CB, CE-LVD
Environment: RoHS, WEEE, REACH
