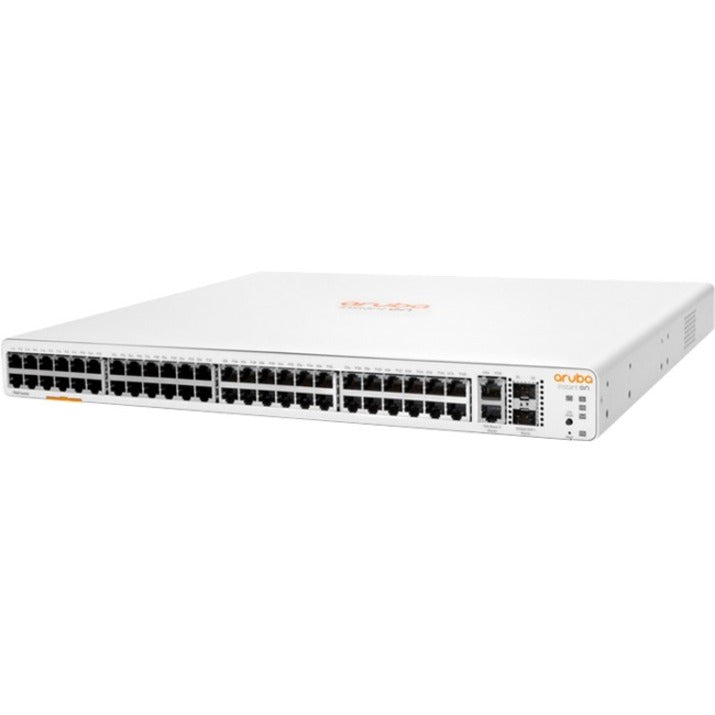

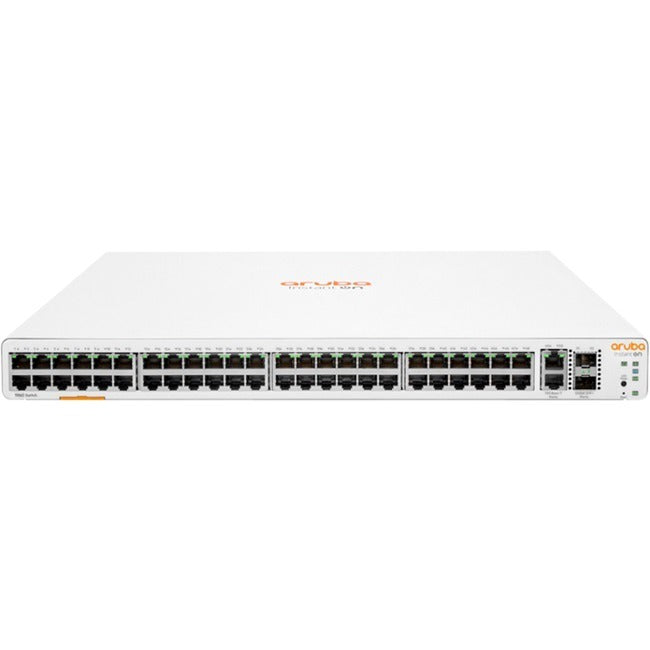

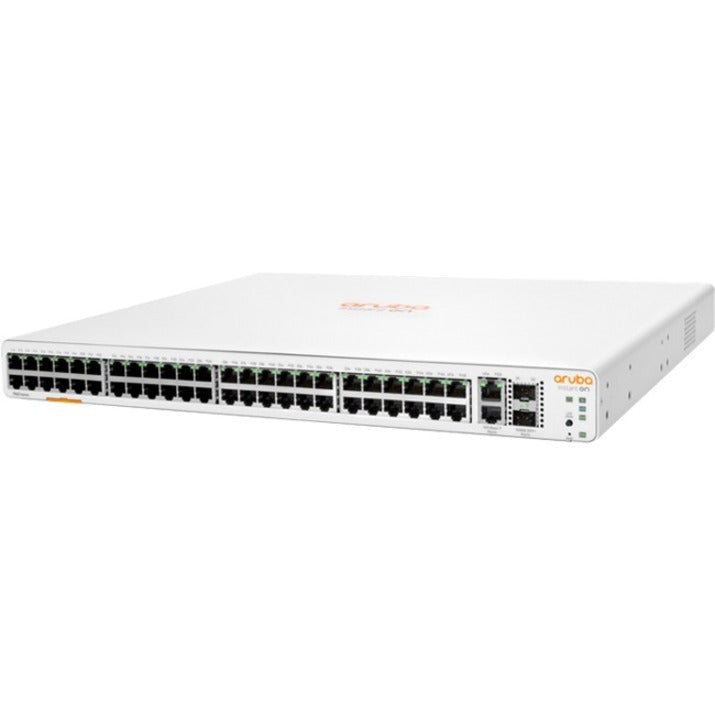

HPE Instant On 1960 48G 2XGT 2SFP+ Switch - JL808A#ABA
Key Features
- For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
- HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
- Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
- The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
Product Overview
The HPE Networking Instant On Switch Series 1960 is a scalable solution for growing businesses with heavy bandwidth requirements and empowers your network to meet your business growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: JL808A#ABA
- Brand Name: HPE
- Product Line: Instant On
- Product Series: 1960
- Product Model: 1960 48G 2XGT 2SFP+
- Product Name: Instant On 1960 48G 2XGT 2SFP+ Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 48
- Network (RJ-45): Yes
- Uplink Port: Yes
- Modular: Yes
- Stack Port: Yes
- Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 2 x 10 Gigabit Ethernet Expansion Slot
- 2 x 10 Gigabit Ethernet Network
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Ethernet Technology:
- 10 Gigabit Ethernet
- Gigabit Ethernet
- Network Technology:
- 10GBase-T
- 10GBase-X
- 10/100/1000Base-T
I/O Expansions
- Total Number of Expansion Slots: 2.0
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 2
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3i
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.3ac
- IEEE 802.1t
Management & Protocols
- Manageable: Yes
Power Description
- Power Source: Power Supply
- Number of Power Supplies Installed: 1
- Power Consumption: 80 W
Physical Characteristics
- Form Factor:
- Rack-mountable
- Table Top
- Wall Mountable
- Under Table
- Cabinet Mount
- Height: 1.7"
- Width: 17.4"
- Depth: 13.8"
- Weight (Approximate): 9.80 lb
Miscellaneous
- Package Contents:
- Instant On 1960 48G 2XGT 2SFP+ Switch
- 2-post Rack Kit
- Brackets
Warranty
- Limited Warranty: Lifetime
