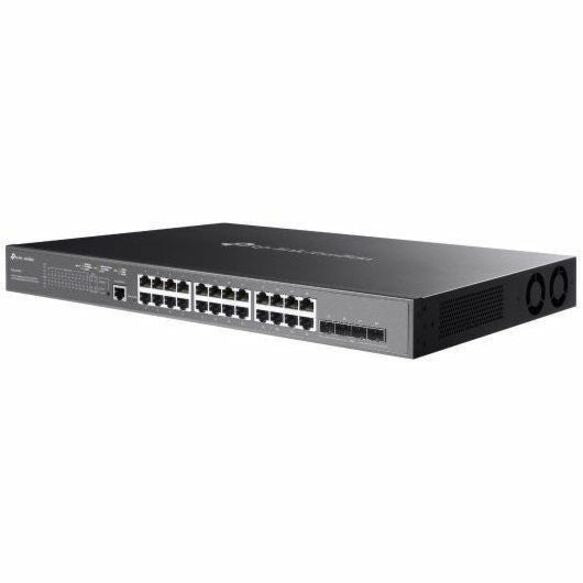

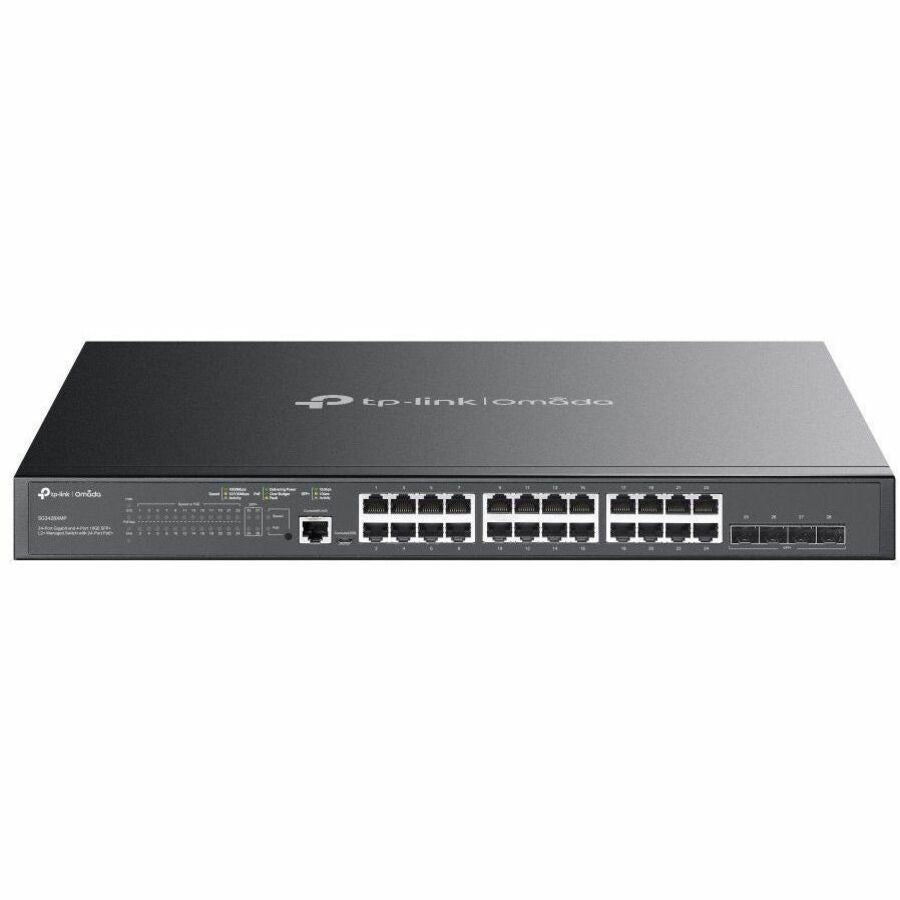

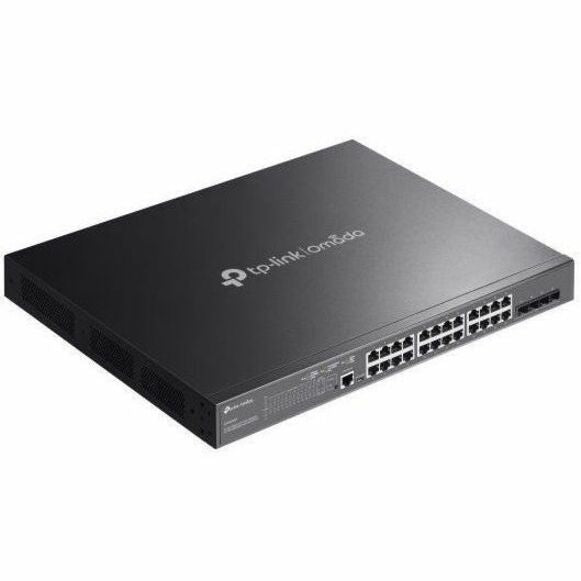

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ - SG3428XMP
Key Features
- 24× Gigabit 802.3af/at PoE+ ports
- 384 W total PoE budget with up to 30 W PoE output per port
- 4× 10 Gbps SFP+ slots
- Centralized cloud management via the web or the Omada app
- Durable metal casing and rack-mountable design
- ERPS supports rapid protection and recovery in a ring topology
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
Product Overview
- 4× 10 Gbps SFP+ Slots
- 24× Gigabit PoE+ Ports
- 384 W Total PoE Budget
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring
- Protection Switching
- Static Routing
Easily Build a Whole 10G Multi-gigabit Network | 10G Router
Ensures the fast way
Full 10G Fiber Switch
Lightning-fast aggregation switching
Switch with 10G Uplink
PoE Switch with 10G Uplink
Wi-Fi 7/6 APs with 10G/2.5G Ports
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios | Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG3428XMP
- Brand Name: Omada
- Product Model: SG3428XMP
- Product Name: 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
- Product Type: Ethernet Switch
Technical Information
- Data Link Protocols:
- HTTP
- HTTPS
- Features:
- Zero-Touch Provisioning (ZTP)
- Built-in Fan
- Remote Monitoring (RMON)
- DHCP Snooping
- DHCP Relay
- VLAN Segmentation
- Access Control List
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE+
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ah
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1ab
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 384 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Power Consumption: 486.20 W
Physical Characteristics
- Product Material:
- Metal
- Steel
- Compatible Rack Unit: 1U
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1.7"
- Width: 17.3"
- Depth: 13"
Miscellaneous

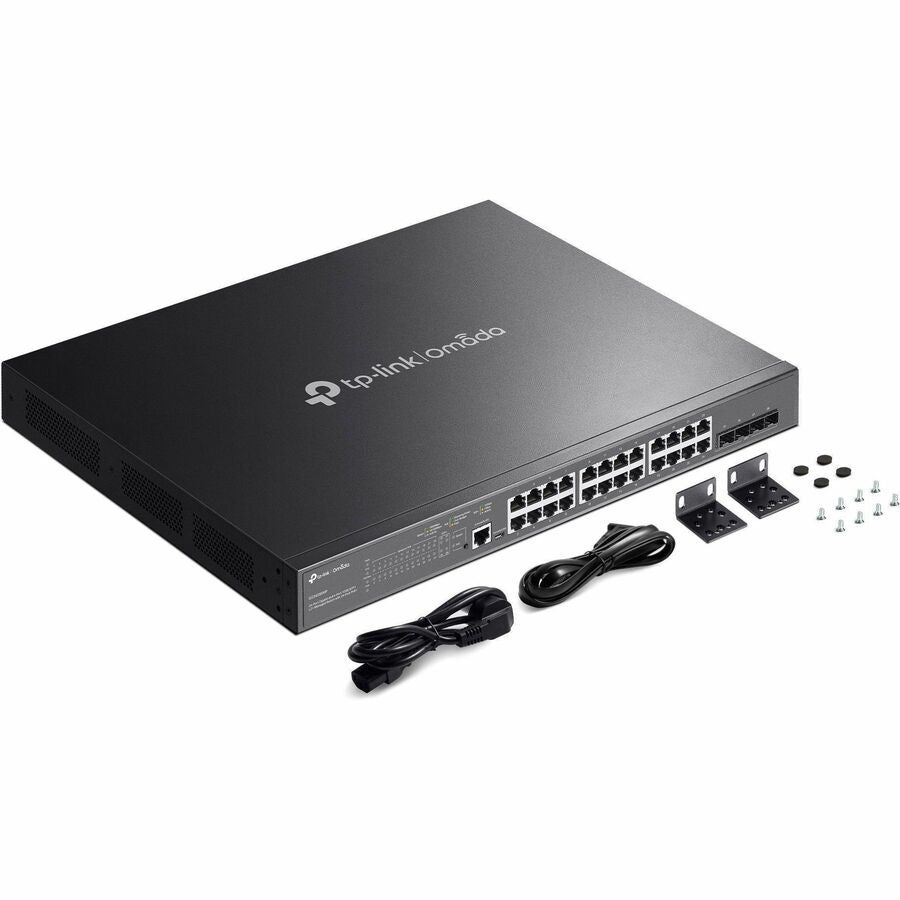

- Package Contents:
- 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
