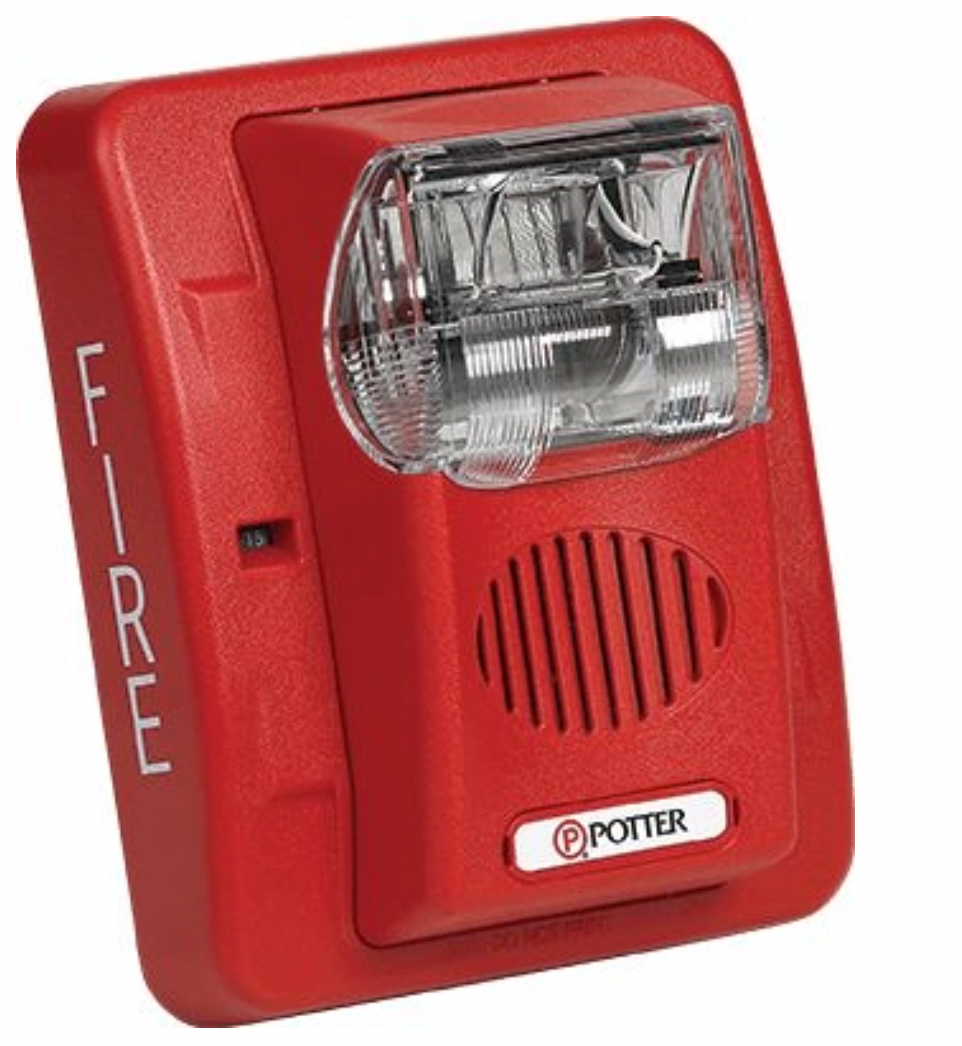

POTTER | Horn/Strobe Wall Mount Red Selectable Candela

POTTER | Horn/Strobe Wall Mount Red Selectable Candela

SKU: HS-24WR

Regular price $69.99 USD
Regular price $89.99 USD Sale price $69.99 USD
Sale Sold out

 37 in stock

View full details

Potter S-24/HS-24 Series Horn/Strobe

The Potter S-24/HS-24 Series delivers reliable audio-visual fire alarm signaling in a low-profile design with minimal current draw. This 24VDC series offers field-selectable candela settings and multiple tone options, giving installers the flexibility to meet a wide range of system requirements.

Key Features:
• 24VDC operation with selectable candela: 15, 30, 60, 75, and 110
• Multiple field-selectable tones: continuous, temporal three (sync), 2400Hz, mechanical, chime, and whoop
• Minimal operating current with a consistent 1Hz flash rate
• Ships with standard 4” metal mounting plate featuring Super-Slide® for easy supervision testing
• Tamperproof locking mechanism hides screws
• Checkmate® Instant Voltage Verification for quick voltage drop checking
• ANSI/UL 464 and ANSI/UL 1971 listed
• 3-year warranty from date of purchase

Ideal For:
Commercial fire alarm systems that require dependable horn/strobe signaling with flexible tone and candela configuration in a clean, low-profile design.

Why You Should Use This:
The S-24/HS-24 Series combines installer-friendly features, flexible configuration, and dependable performance — making it a top choice for modern fire protection systems.

Key Highlights:
• Field-switchable tones and candela outputs
• Super-Slide® mounting for fast inspection
• Checkmate® tool-free voltage testing

Frequently Asked Questions:
Q: What tones are supported?
A: Temporal three, continuous, 2400Hz, mechanical, chime, and whoop tones.

Q: Are candela settings adjustable?
A: Yes, field-selectable between 15, 30, 60, 75, and 110.

Q: Is the unit UL listed?
A: Yes, it meets ANSI/UL 464 and 1971 standards for fire protective systems.

Technical Specifications:

Mounting Options: Single or double gang, 4” square box, and AVBB surface mount back box

Terminals: Screw-clamp type

Wire Gauge: 18 – 12 AWG

Operating Temperature: 32°F – 120°F (0° – 49°C)

Dimensions:

    Height – 5.6”

    Width – 4.5”

    Depth – 2.7”
