Potter | PAM-1 Multi-Voltage Relay

Potter | PAM-1 Multi-Voltage Relay

SKU: PAM-1

Regular price $29.99 USD
Regular price $34.99 USD Sale price $29.99 USD
Sale Sold out

 91 in stock

View full details

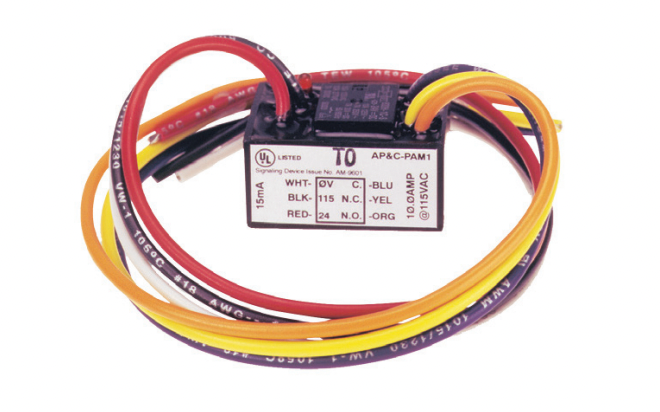

PAM-1 Multi-Voltage Relay with LED Indicator

The PAM-1 is a compact, encapsulated relay module designed for use in a wide range of control and status feedback applications. With 10.0 Amp Form C contacts and multi-voltage input capability, it’s a versatile solution for integrating with HVAC, fire alarm, security, lighting, and energy management systems.

Key Features:
• Supports 24 VAC, 24 VDC, or 115 VAC input
• 10.0 Amp Form C contact rating
• Integrated red LED indicates energized relay coil
• Versatile mounting: adhesive tape, self-drilling screw, or loose placement in backbox
• Encapsulated design for protection and durability

Ideal For:
Installations requiring remote relay activation for control or status indication, especially in fire alarm, HVAC, lighting, or access control systems.

Why You Should Use This:
The PAM-1 offers reliable performance, flexible mounting, and multi-voltage compatibility — making it an ideal relay solution across commercial and industrial control systems.

Key Highlights:
• Red LED status indicator for coil energization
• Compact size and easy installation
• Durable design for long-term reliability

Frequently Asked Questions:
Q: What voltages can energize the relay?
A: 24 VAC, 24 VDC, or 115 VAC.


Q: What is the contact rating?
A: The relay provides 10.0 Amp Form C contacts.

Technical Specifications:

Ambient Temperature: 32°F to 120°F (0°C to 49°C)

Dimensions: 1.50” (38mm) H × 1.20” (31mm) W × 0.77” (20mm) D

Wire Leads: 12” (304.8mm) 18 ga.

Contact Rating:

    10A at 120 VAC

    7A at 24 VDC

    250 Microamps at 5 VDC

Power Requirements: 20mA @ 24VDC, 50mA @ 24VAC and 120VAC

Relay: UL recognized SPDT
