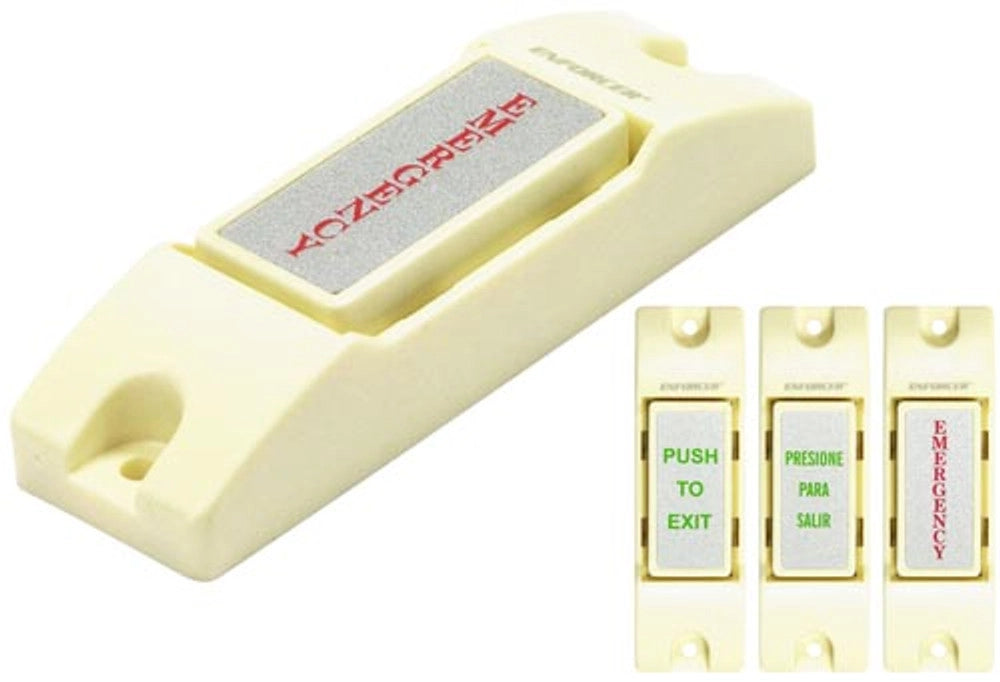

SECO-LARM SS-075C-PEQ – Emergency & Push-to-Exit Button with Concealed Connections
Low-profile push-to-exit button with selectable contact configuration and included interchangeable labels.
The SS-075C-PEQ is a compact push-to-exit or emergency button designed for indoor access control installations. It features concealed screw terminals, selectable N.O. or N.C. momentary contact, and includes interchangeable labels in English and Spanish. Ideal for clean, discreet installations in residential, commercial, or security access systems.
Key Features:
• Labels Included: “Emergency,” “Push to Exit,” and “Presione Para Salir”
• Contact Type: Selectable N.O. or N.C. momentary contact
• Switch Rating: 1.0A @ 12VDC
• Operating Voltage: 12–24VDC
• Terminals: Concealed screw terminals
• Dimensions: 3″ x 15/16″ x 5/8″ (76 x 23 x 15 mm)
• Color: Off-white
Ideal For:
• Emergency exits and request-to-exit access points
• Security systems and controlled access doors
• Compact installations where a low-profile button is required
Why You Should Use This:
• Offers flexible N.O. or N.C. configuration for various system types
• Comes with multiple label options for quick customization
• Compact design fits tight spaces and blends in with standard decor
Key Highlights:
- ✅ Selectable N.O. or N.C. momentary contact
- ✅ Three adhesive labels included for quick identification
- ✅ 12–24VDC operation with screw terminal connections
- ✅ Compact size with a clean off-white finish
Frequently Asked Questions:
Q: Are labels included with the button?
A: Yes, “Emergency,” “Push to Exit,” and “Presione Para Salir” labels are included.
Q: Can I use this with a 24V access control system?
A: Yes, it supports both 12VDC and 24VDC systems.
Q: Is it suitable for outdoor use?
A: No, it is intended for indoor applications only.
