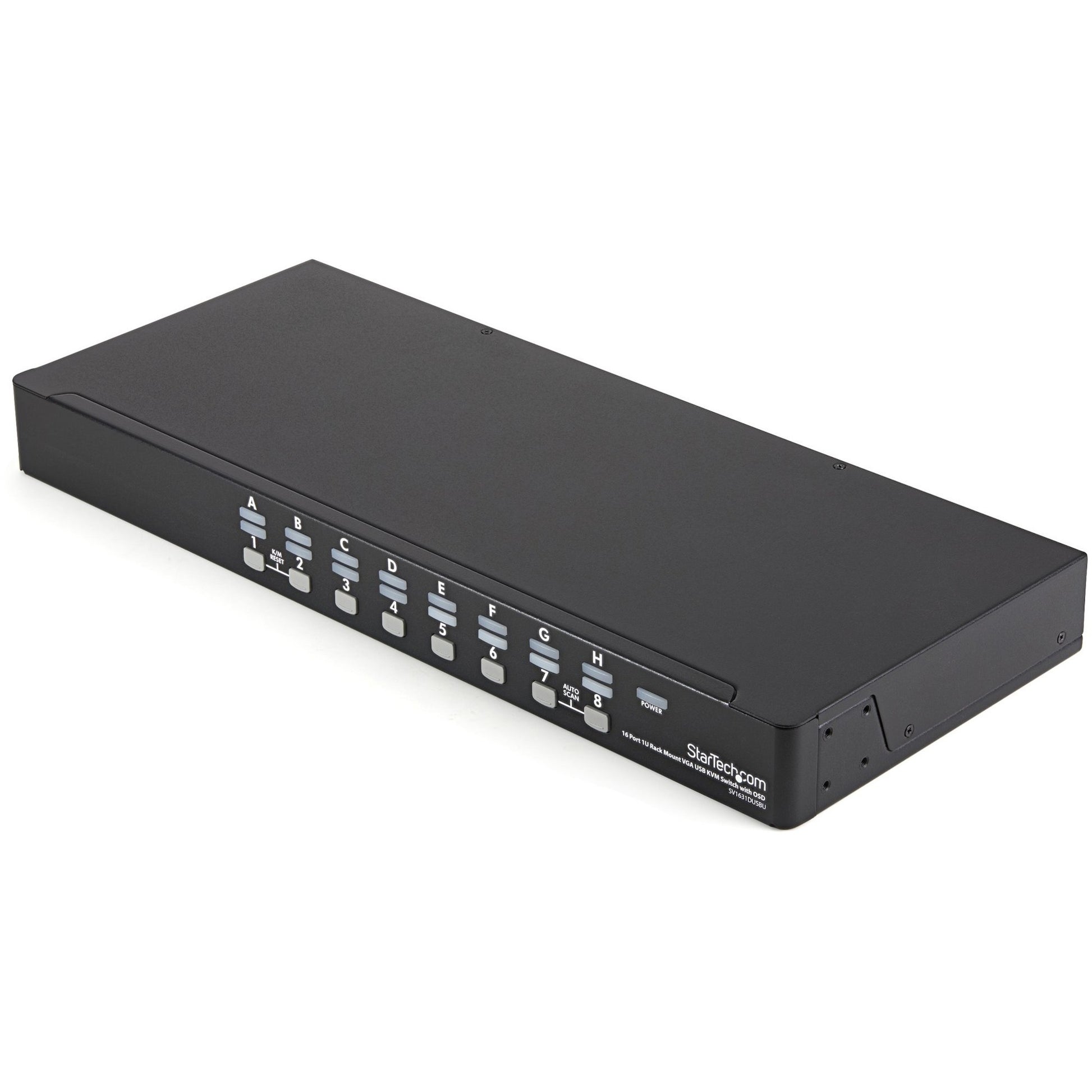

StarTech.com 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - SV1631DUSBUK
Key Features
- Auto-scan function automatically switches between connected PCs sequentially
- Cascade configuration expands system capability
- Hotkey functions allow easy computer access
- Identifies and selects computers by the names assigned
- OSD security option allows selected KVM ports to be password-protected from unauthorized use
- Package includes 16x 6ft USB KVM cables
- Plug-and-play system configuration
- USB Keyboard and Mouse combo supported on 1 USB connection
Product Overview
The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: SV1631DUSBUK
- Brand Name: StarTech.com
- Product Model: SV1631DUSBUK
- Product Name: 16 Port 1U Rack Mount USB KVM Switch Kit w/ OSD & Cables
- Packaged Quantity: 1 Each
- Product Type: KVM Switchbox
Technical Information
- Number of Computers Supported: 16
Video
- Maximum Video Resolution: 1920 x 1440
Interfaces/Ports
- USB: Yes
- VGA: Yes
- Number of USB Ports: 2
- Number of VGA Ports: 1
Power Description
- Input Voltage Range: 110V AC to 240V AC
Physical Characteristics
- Form Factor:
- Rack-mountable
- Desktop
- Rack Height: 1U
- Height: 1.8"
- Width: 17.3"
- Depth: 7.5"
- Weight (Approximate): 5.29 lb
Miscellaneous
- Package Contents:
- 16 Port 1U Rack Mount USB KVM Switch Kit w/ OSD & Cables
- 1 x Instruction Manual
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 4 x Foot Pads
- 1 x Screw Kit

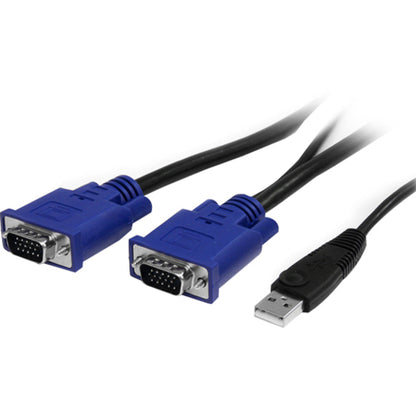

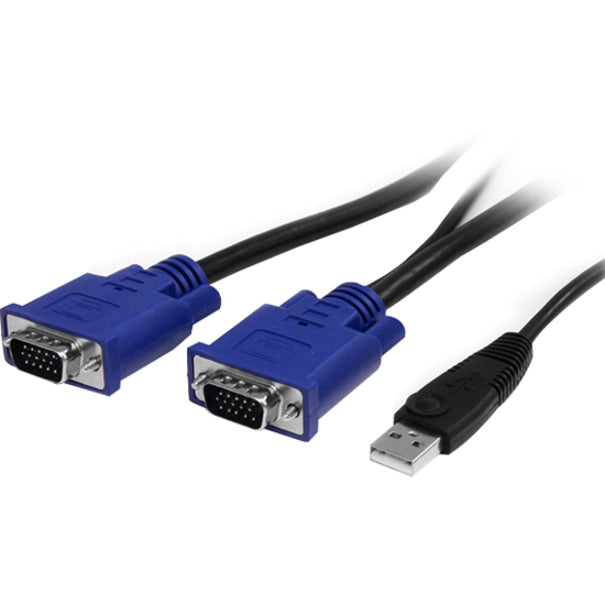

- 16 x 6ft 2-in-1 USB VGA KVM cables
- 2 x Mounting Brackets
- Environmentally Friendly: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
