StarTech.com DisplayPort to DVI Adapter, DisplayPort to DVI-D Adapter/Video Converter 1080p, DP 1.2 to DVI Monitor, Latching DP Connector - DP2DVI2
Key Features
- COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter
- Tested w/ DVI cables up to 25ft
- EDID & DDC pass-through ensure compatibility between source & display
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector
- 1920x1200/1080p 60Hz; HDCP 1.4
- 6" (15cm) attached cable
- DisplayPort Certified
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS

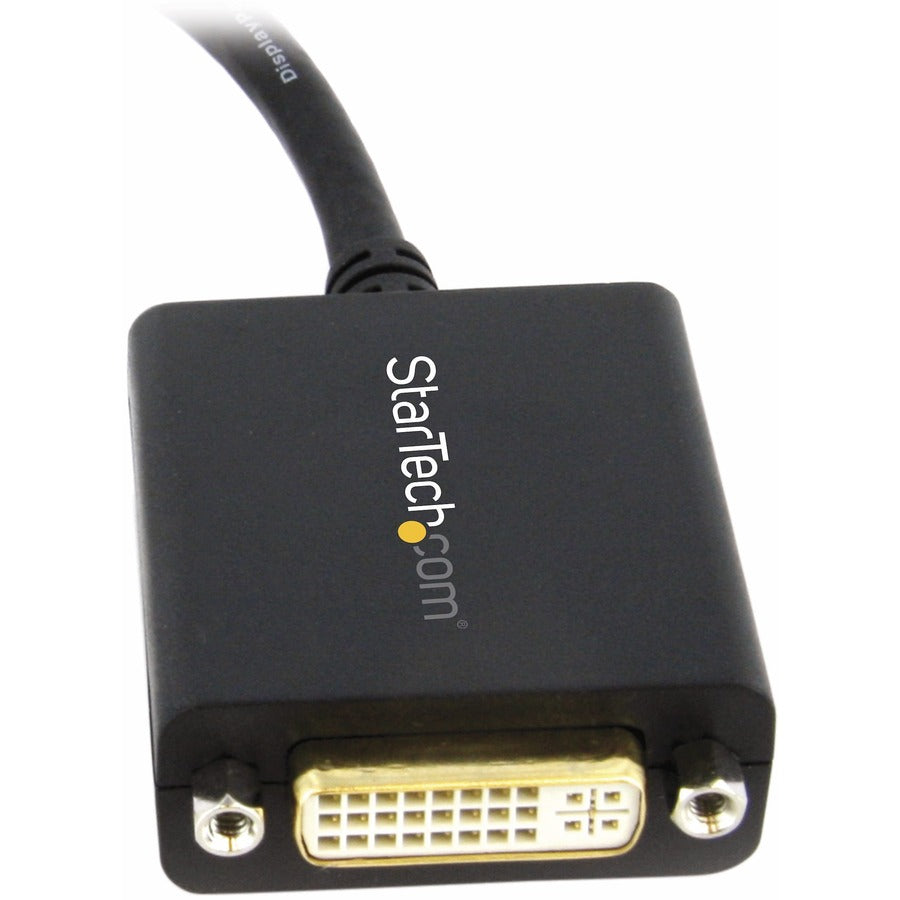

- DisplayPort male to DVI female adapter dongle
- Connector is DVI-I, however only a digital signal (DVI-D) passes through

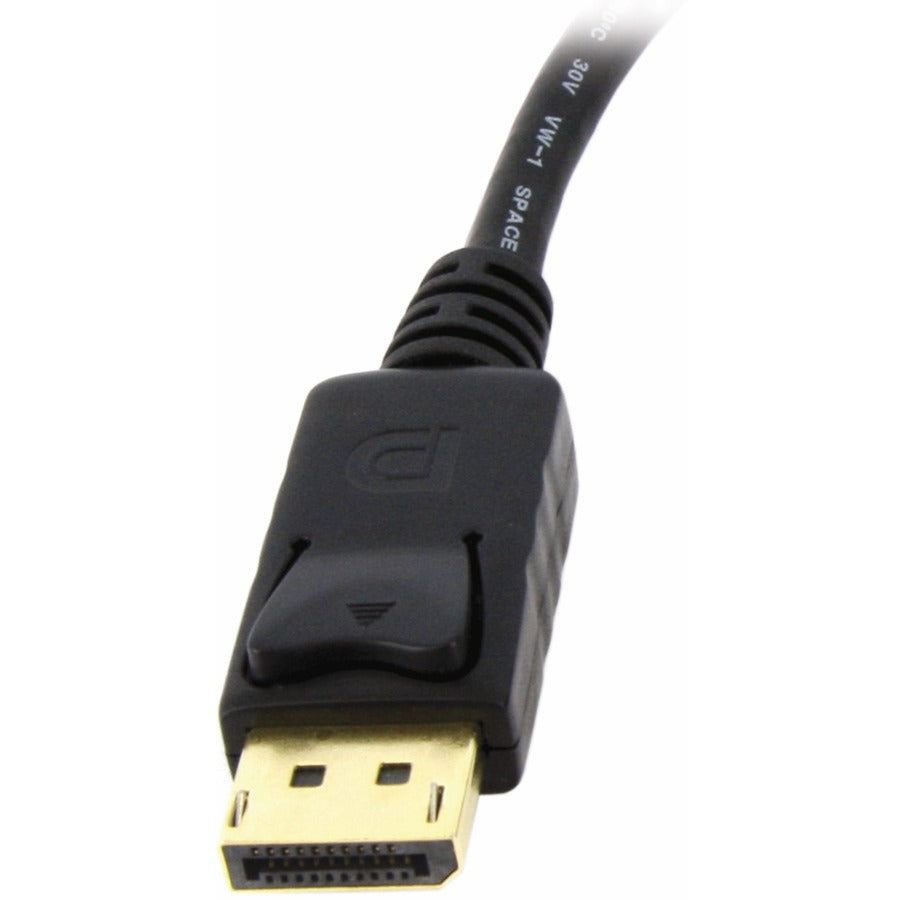

- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection
- Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection
- Compact design

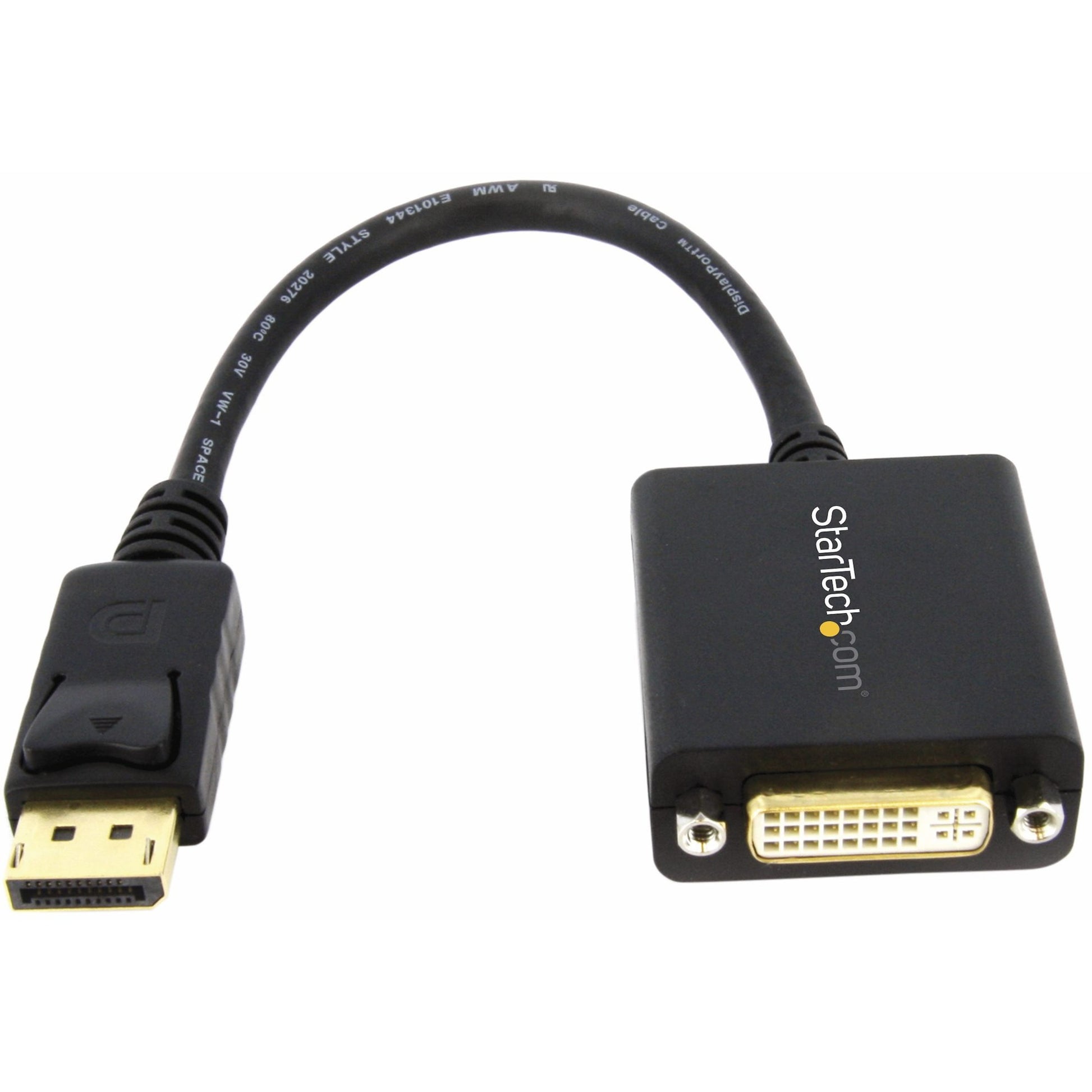

Product Overview
The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: DP2DVI2
- Brand Name: StarTech.com
- Product Name: DisplayPort to DVI Video Adapter Converter
- Packaged Quantity: 1 Each
- Product Type: Video Adapter
Technical Information
- Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End: DVI Digital Video - Female
- Connector on Second End Details: 1 x 29-pin DVI Digital Video - Female
- Features:
- Passive
- HDCP 1.4
- Extended Display Identification Data (EDID)
- Screw Lock
- Latching Connector
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Weight (Approximate): 1.50 oz
Miscellaneous
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
