StarTech USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps) - DK31C2DHSPD
Key Features
- 6 USB ports offers a more refined structure and safer to use connectivity
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- Lets you conveniently connect to the gigabit ethernet Ethernet technology to offer maximum productivity
- Tablet device supported according to your requirements with maximum productivity
- USB 3.1 Type C host interface allows powerful and efficient transfer of data with maximum productivity
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
Product Overview
This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Multiple Monitor Outputs

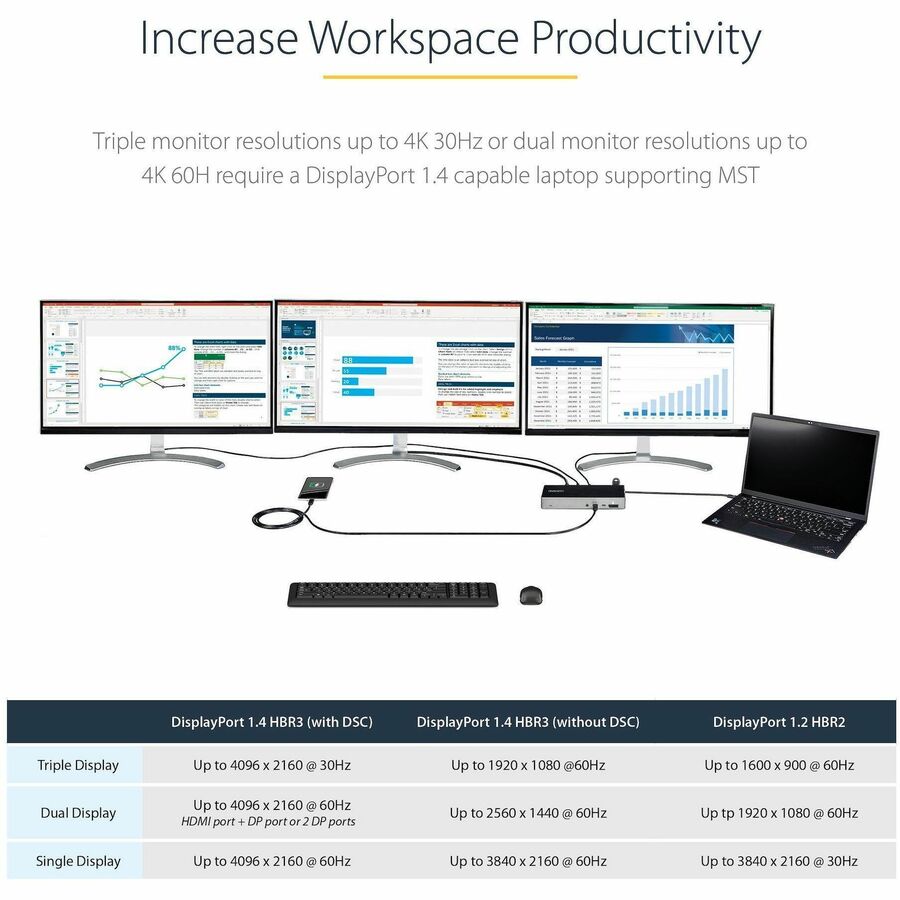

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
DP 1.4 HBR3 with DSC Enabled DP 1.4 HBR3 (without DSC) DP 1.2 HBR2Triple Display
Up to 4096 x 2160 @ 30Hz Up to 1920 x 1080 @ 60Hz Up to 1600 x 900 @ 60Hz Dual DisplayUp to 4096 x 2160 @ 60Hz*
*HDMI port + DP port or 2 DP ports Up to 2560 x 1440 @ 60Hz Up to 1920 x 1080 @ 60Hz Single Display Up to 4096 x 2160 @ 60Hz Up to 3840 x 2160 @ 60Hz Up to 3840 x 2160 @ 30HzPower & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.
- 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
- 2x USB-A 3.2 Gen 1 - 5 Gbps
- 2x USB-A 2.0 - 480 Mbps
- SD 4.0 Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features

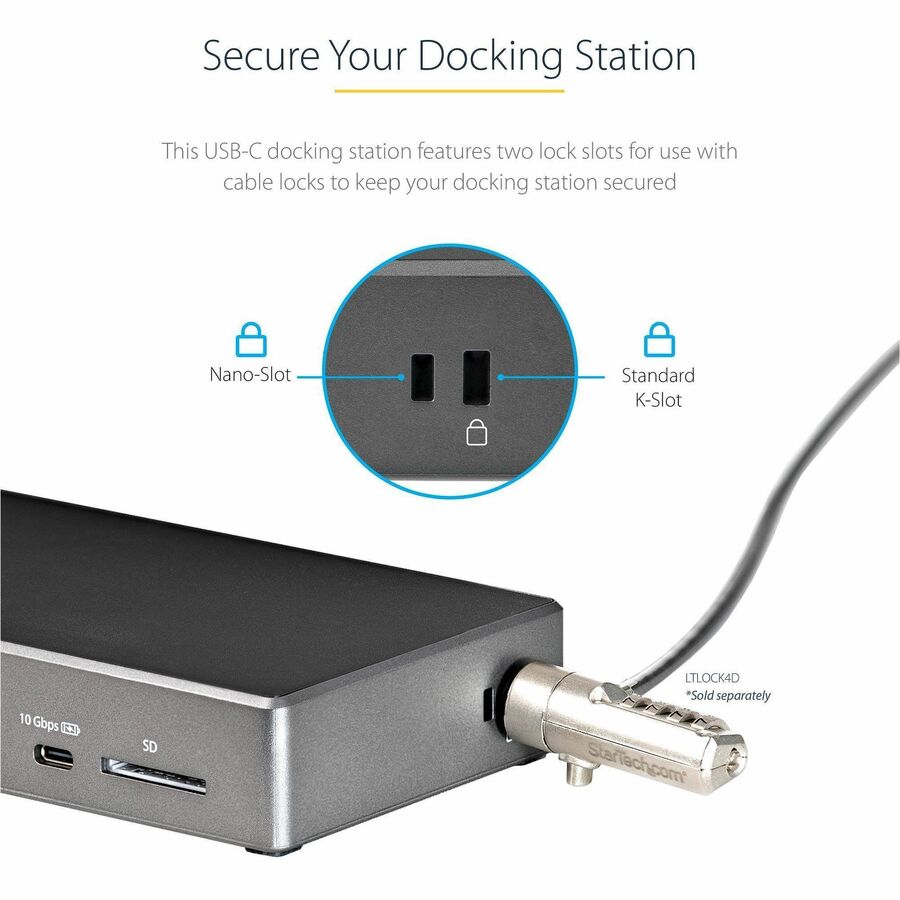

This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech Connectivity Tools Application
Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-
Advanced Windows Layout Utility: To setup and save custom windows layouts.
-
Mac Address Pass-Through Utility: To improve network security.
-
USB Event Monitoring Utility: To track and log connected USB devices
-
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech Connectivity Tools application, please visit: www.StarTech/Connectivity-Tools
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: DK31C2DHSPD
- Brand Name: StarTech
- Product Name: Docking Station
- Packaged Quantity: 1 Each
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 3
- Supported Resolutions:
- 4096 x 2160
- 3840 x 2160
- 2560 x 1440
- 1920 x 1080
- 1600 x 900
- Screen Mode Supported: 4K
- Memory Card Reader: Yes
- Memory Card Supported: SD
- Device Supported:
- Tablet
- Workstation
- Monitor
- Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB 3.1 Type C
- Total Number of USB Ports: 6
- Number of USB 3.1 Type-C Ports: 1
- Number of USB 3.1 Gen 1 Type-A Ports: 2
- Number of USB Type-C Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 2 x USB Type-C (Fast-Charge, 24 pin) USB 3.0, 1 x USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 2
- DisplayPort: Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 1
- HDMI: Yes
Software
- Operating System Supported:
- Windows 10
- Windows 11
- Windows 8.1
- ChromeOS 78.x
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color:
- Black
- Space Gray
- Height: 1.20"
- Width: 3.50"
- Weight (Approximate): 10.60 oz
Miscellaneous

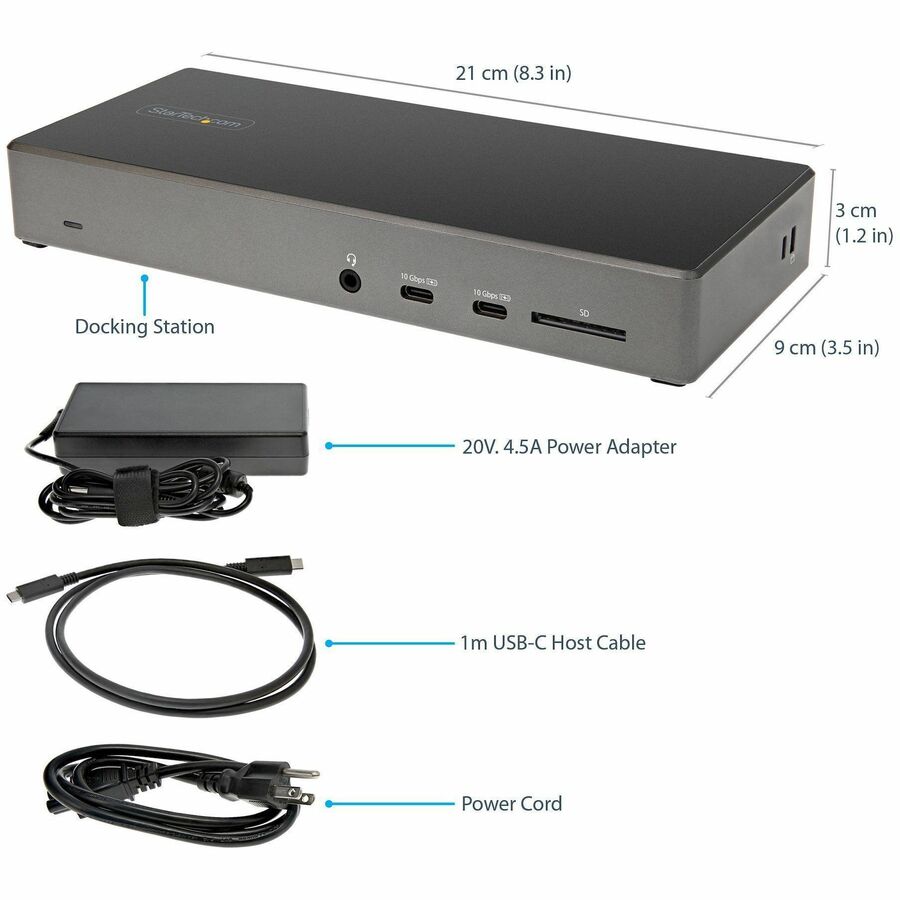

- Package Contents:
- Docking Station
- AC Adapter
- 2 x Power Cable NA/JP & ANZ
- 1 x USB-C Cable (1 m)
- Quick-Start Guide
- Kensington Security Slot: Yes
- Compatibility: Compatible Notebook/Tablet PC:
- Lenovo X1 Carbon
- Lenovo ThinkPad P Series
- Dell Latitudes Series
- Dell Precision Series
- Dell XPS 15
- HP Spectre
- HP ZBook
- Google Chromebook
- Environmentally Friendly: Yes
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: Thailand
Warranty
- Limited Warranty: 3 Year
