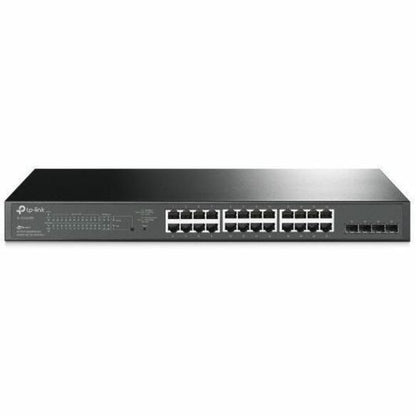

TP-Link JetStream TL-SG2428P 24-Ports Ethernet Switch - SG2428P
Key Features
- Effectively increases available bandwidth on your network
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Product Overview
250 W PoE Budget : 24 × 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
Full Gigabit Ports : 24 × gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN : Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
Static Routing : Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications : L2/L3/L4 QoS and IGMP snooping.
IPv6 : IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG2428P
- Brand Name: TP-Link
- Product Line: JetStream
- Product Model: TL-SG2428P
- Product Name: JetStream TL-SG2428P 24-Ports Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Port/Expansion Slot Details:
- 24 × 10/100/1000BASE-T Mbps RJ45 Network Ports
- 4 × Gigabit SFP Expansion Slots
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP
- Number of SFP Slots: 4
Network & Communication
- Networking Standards:
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.3az
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 250 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Power Consumption: 308.60 W
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Width: 17.3"
- Depth: 8.7"
