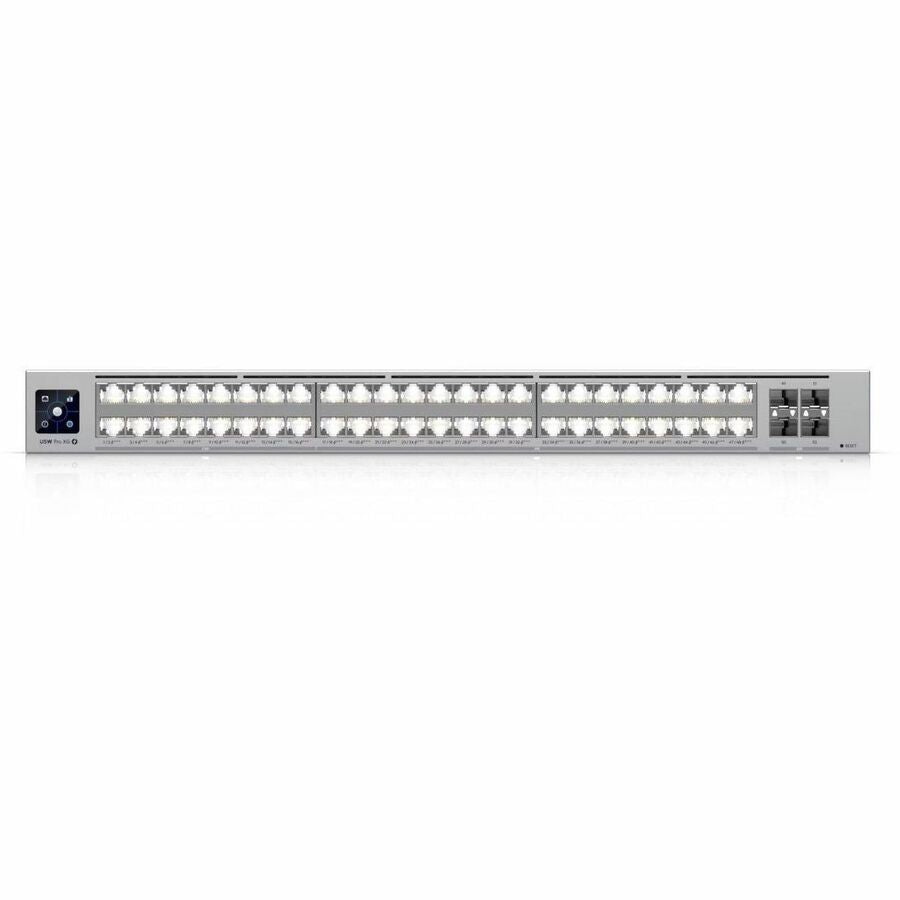

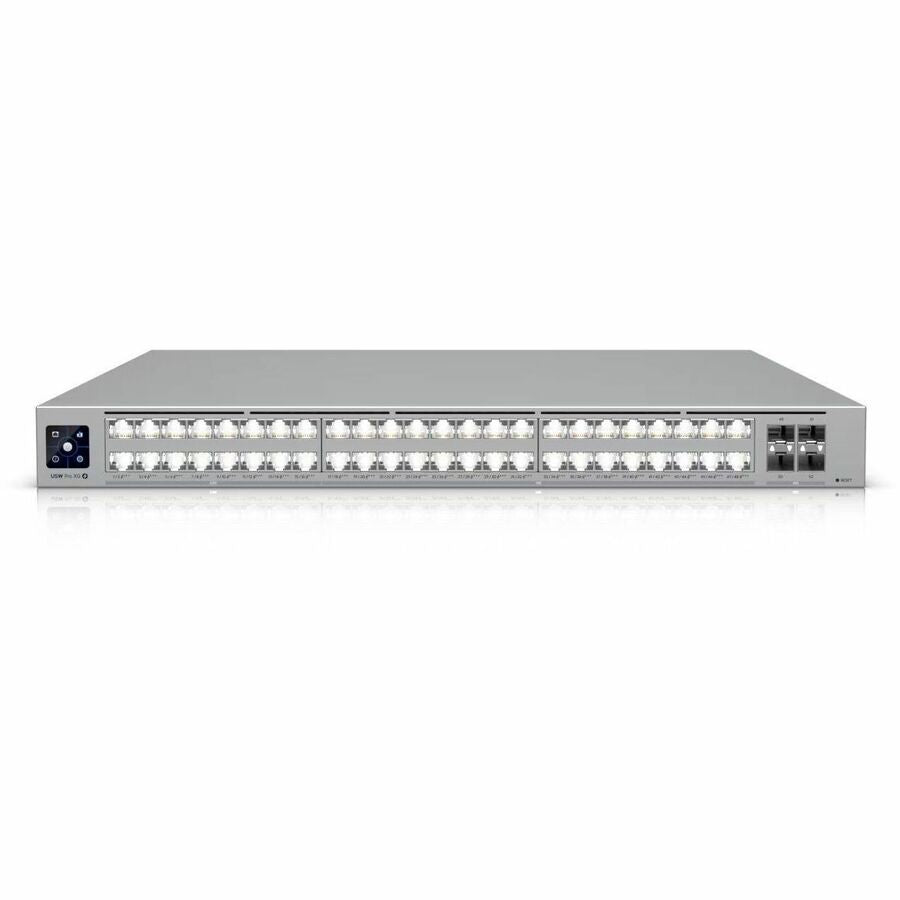

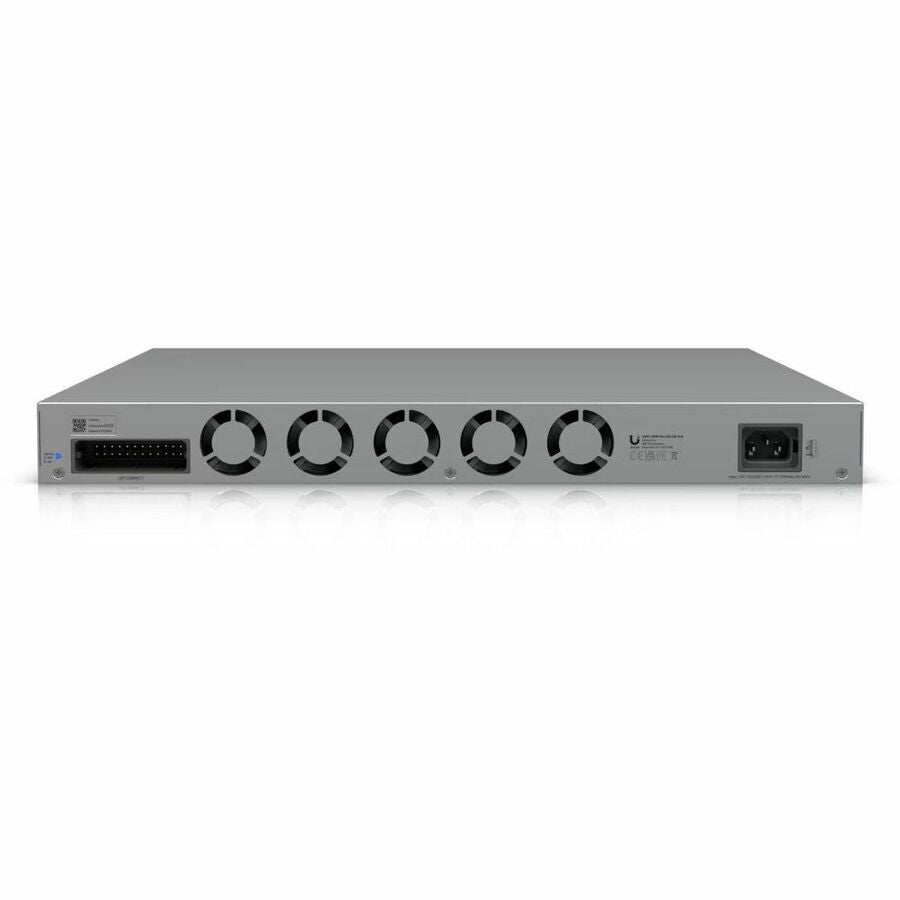

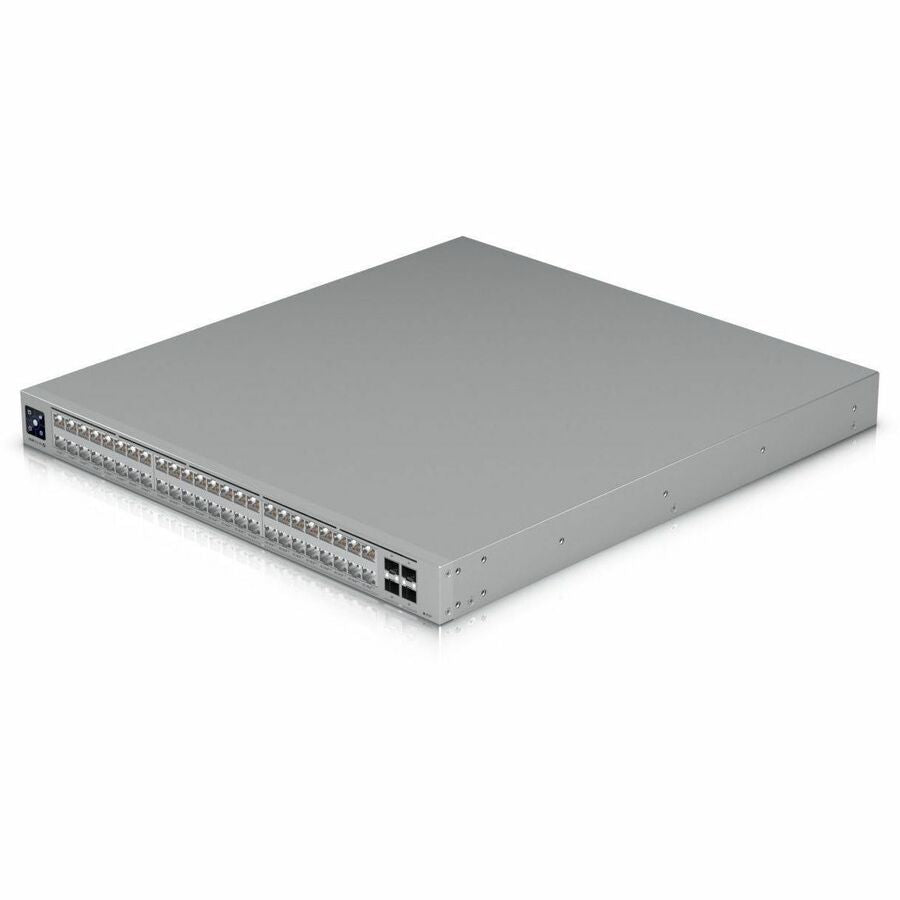

Ubiquiti Pro XG 48 - USW-Pro-XG-48
Key Features
- Can work as layer 3 routing for scalable network design
- Comes in gray color for a sophisticated and dazzling look
- Effectively increases available bandwidth on your network
- Features 48 networking ports to meet the requirements of the most demanding workgroups
- Management capability provides control over setup and configuration of your network
- Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity

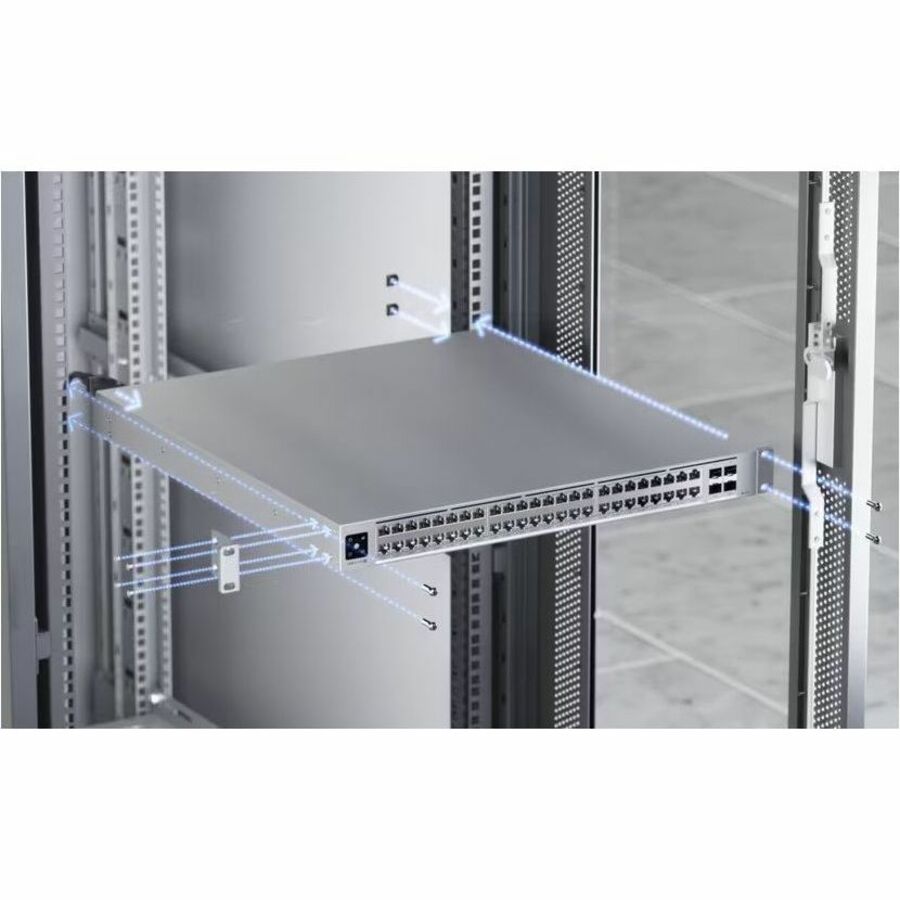

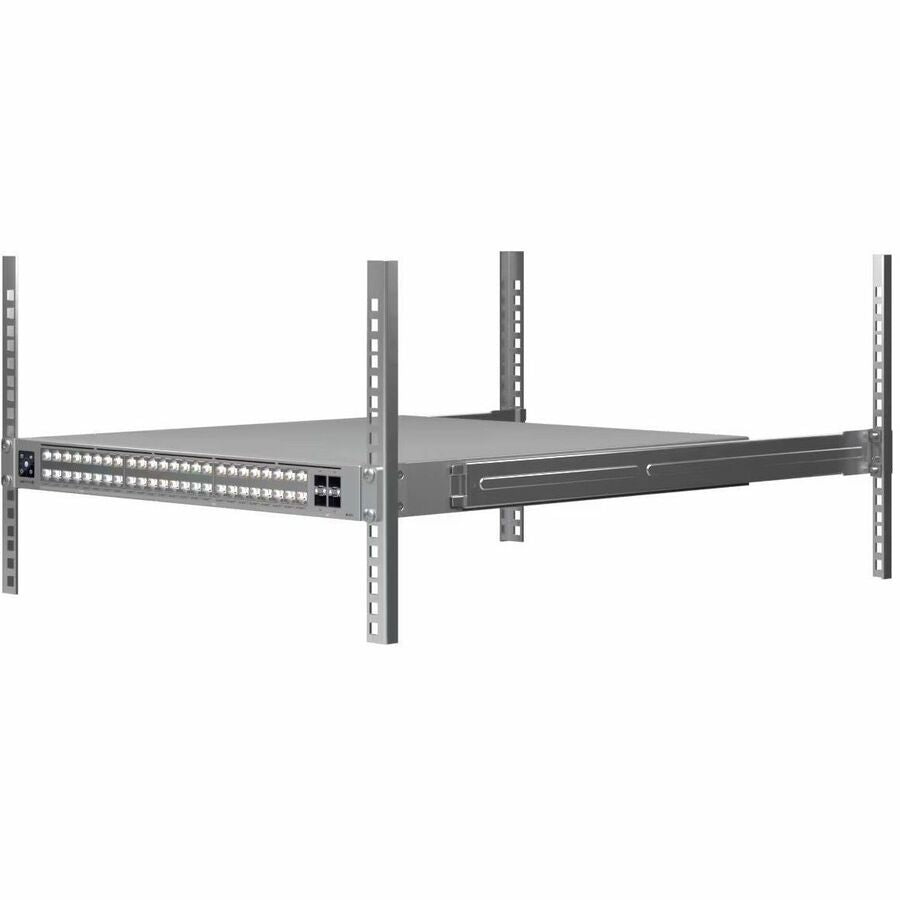

- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Product Overview
Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: USW-Pro-XG-48
- Brand Name: Ubiquiti
- Product Line: Pro XG
- Product Name: Pro XG 48
- Product Type: Ethernet Switch
Technical Information
- Features:
- Reset Button
- DHCP Relay
- DHCP Snooping
- Broadcast Storm Control
- Access Control List
Interfaces/Ports
- Total Number of Network Ports: 48
- Network (RJ-45): Yes
- Stack Port: Yes
- Port/Expansion Slot Details:
- 16 x 1/2.5 BASE-T Gigabit Ethernet RJ-45 Network Port
- 32 x 1/2.5/5/10 BASE-T Gigabit Ethernet RJ-45 Network Port
- 4 x 1/10/25 Gigabit Ethernet SFP28 Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- 1000Base-X
- 10GBase-X
- 25GBase-X
- Maximum Data Transfer Rate: 3.13 GB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP28
Network & Communication
- Layer Supported: 3
- Networking Standards: IEEE 802.1x
Management & Protocols
- Manageable: Yes
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source:
- Power Supply
- AC/DC
- Redundant Power Supply Supported: Yes
- Power Consumption: 250 W
Physical Characteristics
- Product Color: Gray
- Product Material: SGCC Steel
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.4"
- Depth: 18.9"
- Weight (Approximate): 16.53 lb
