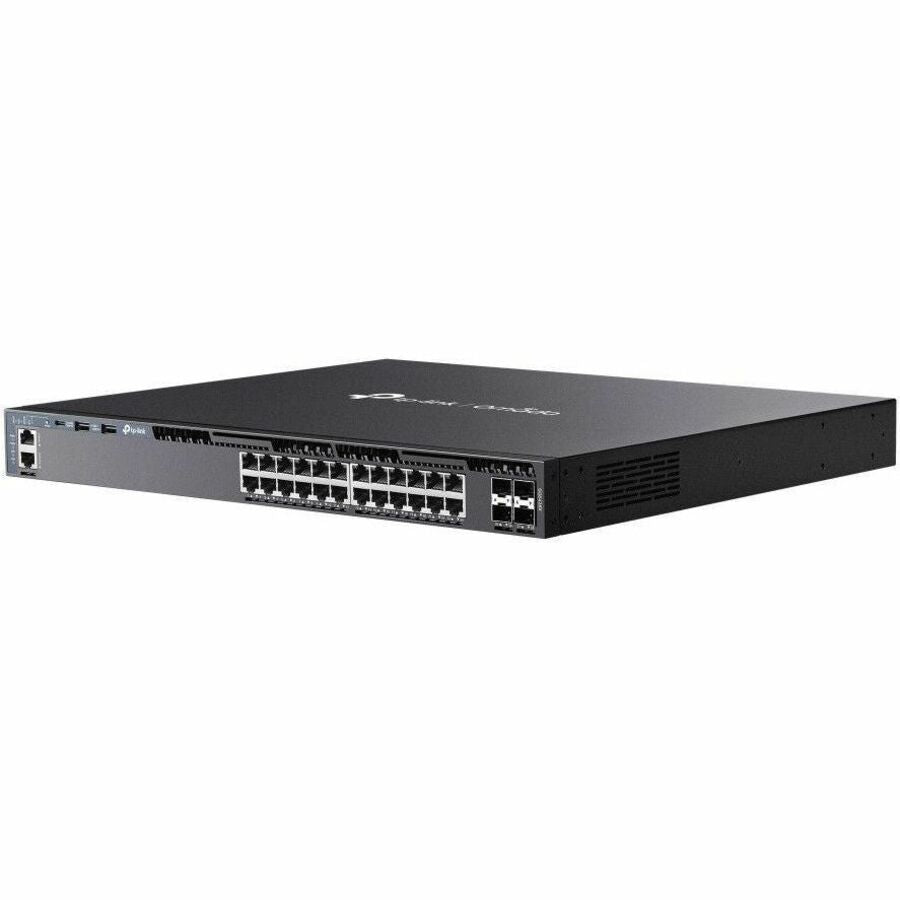

TP-Link Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots - SG6428X
Key Features
- Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Management capability allows maximum efficiency and with unrestricted control
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Quickly and easily set up a wired network with 24 networking ports
- Rack-mountable form factor for added reliability and dependability
- Stack port provides an easy and hassle-free way to extend your office network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Product Overview
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG6428X
- Brand Name: TP-Link
- Product Line: Omada
- Product Model: SG6428X
- Product Name: Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots
- Product Type: Layer 3 Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Stack Port: Yes
- Port/Expansion Slot Details:
- 24 × 10/100/1000BASE-T RJ45 Network Ports
- 4 × 10G SFP+ Expansion Port
- 1 × RJ45 Management Port
- 1 × RJ45 Console Port
- 2 × USB 2.0 Ports
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 10GBase-X
- Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
- Total Number of Expansion Slots: 4.0
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Networking Standards: IEEE 802.1p
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Number of Power Supplies Installed: 2
- Power Consumption: 28.40 W
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 15"
