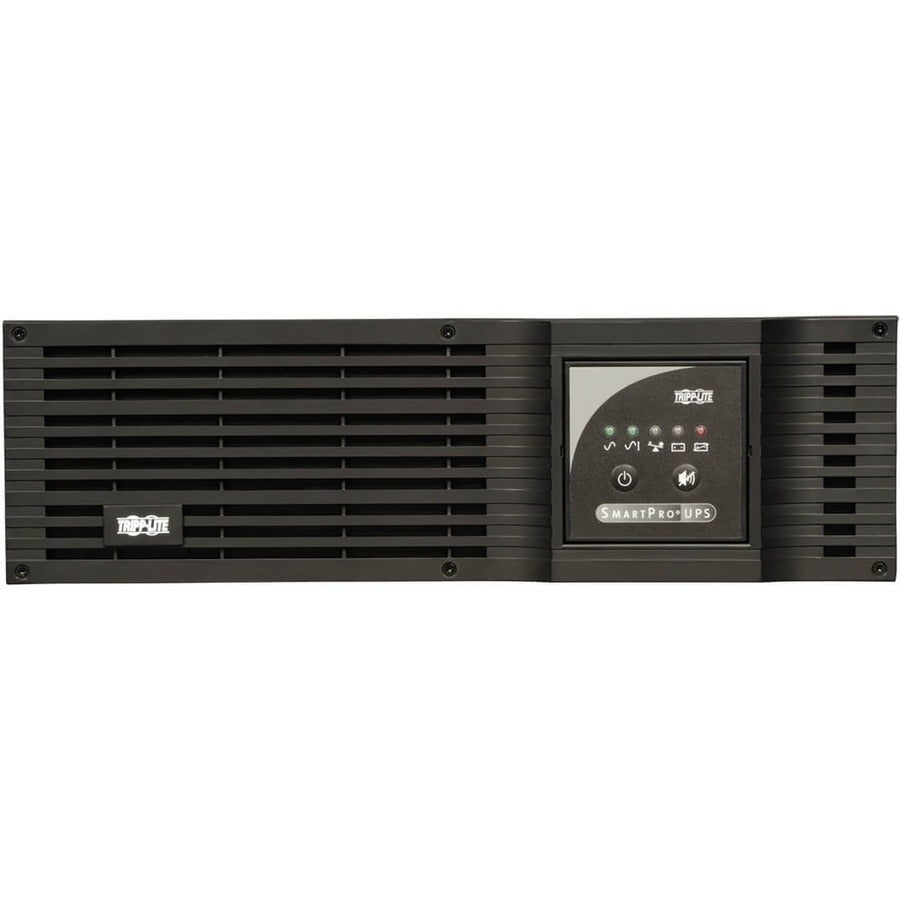

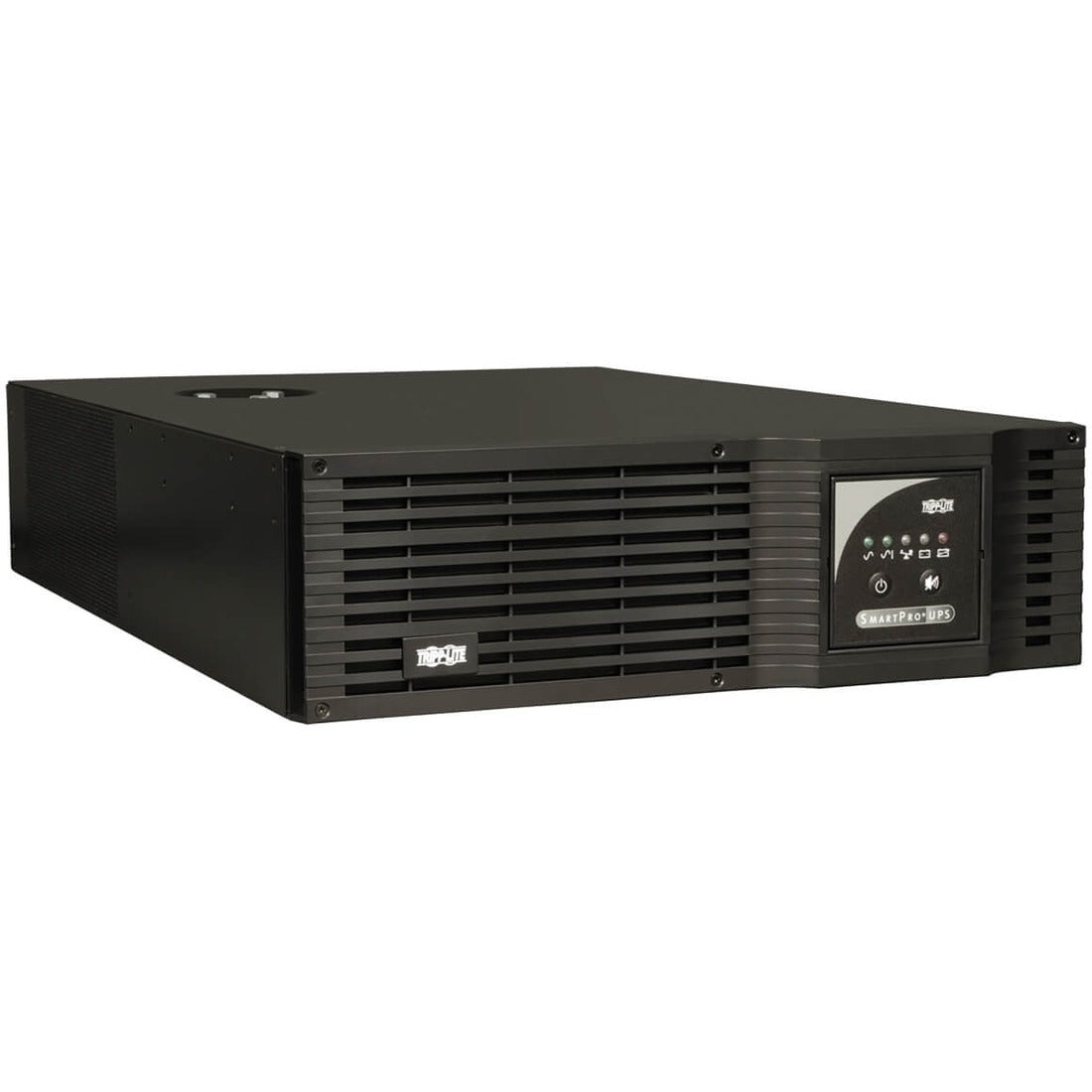

Tripp Lite by Eaton UPS SmartPro 208 & 120V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Extended Run Network Card Options USB DB9 - SMART5000XFMRXL
Key Features
- 208 & 120V output during brownouts to 167 and overvoltages to 260V
- 3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency
- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output

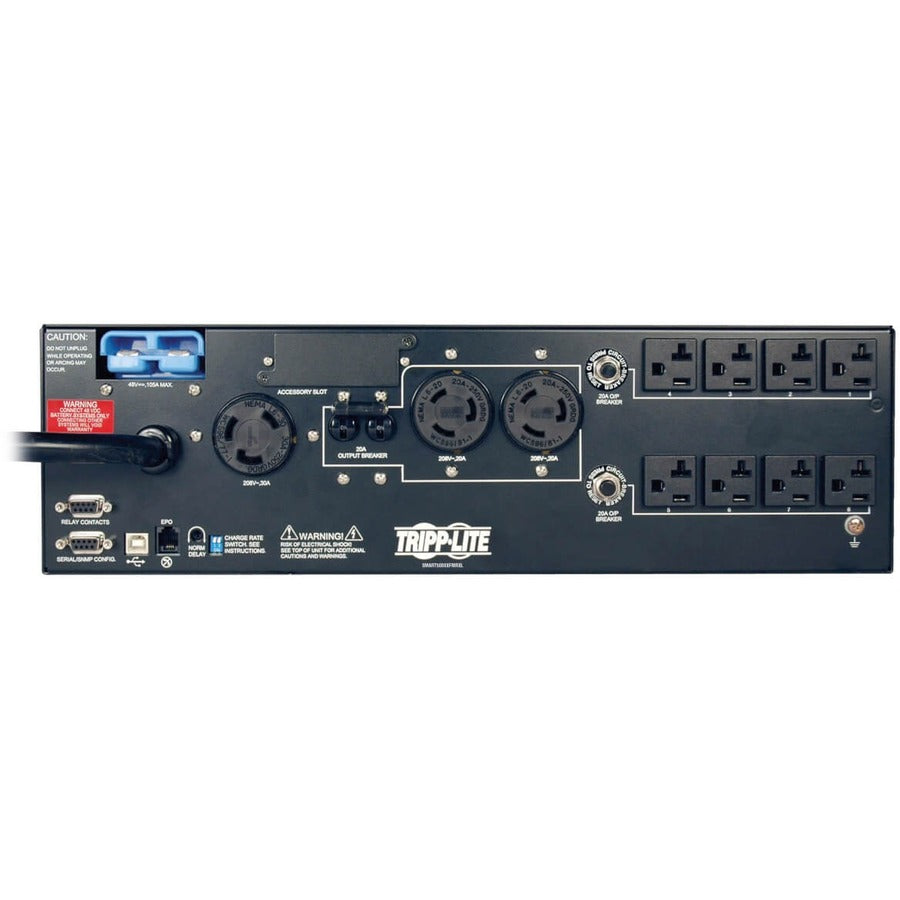

- NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets
- USB, Serial, EPO & optional SNMP/Web card monitoring options
Product Overview
Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART5000XFMRXL
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Model: SMART5000XFMRXL
- Product Name: SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
- Product Type: Line-interactive UPS
Technical Information

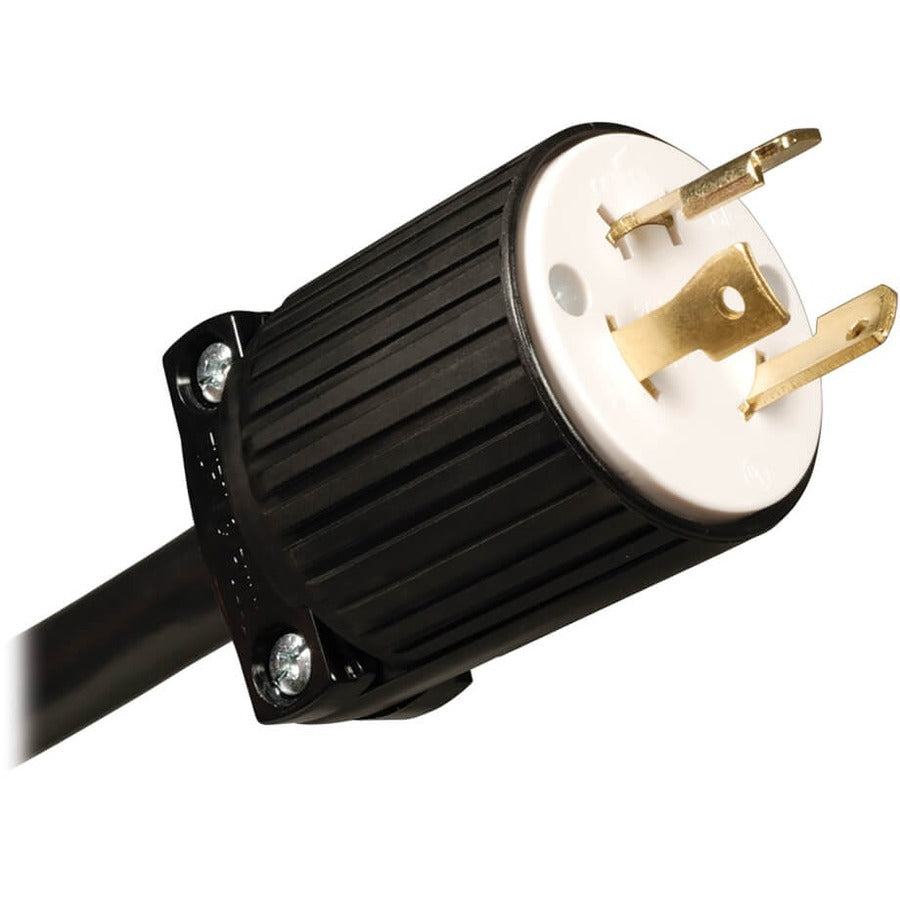

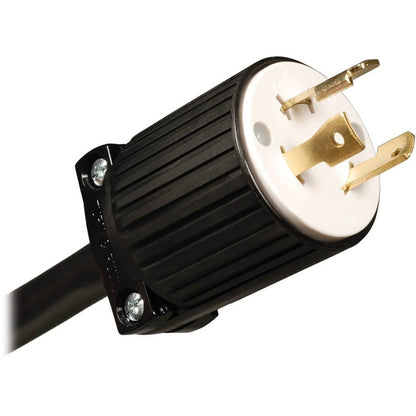

- Plug/Connector Type: NEMA L6-30P
- Receptacle Type:
- NEMA L6-30R
- NEMA L6-20R
- NEMA 5-15/20R
- Receptacle Detail:
- 1 x NEMA L6-30R
- 2 x NEMA L6-20R
- 8 x NEMA 5-15/20R
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 5000 VA
- Load Capacity (Watt): 3750 W
- Input Voltage: 208 V AC
- Input Current: 27 A
- Output Voltage: 208 V AC
Management
- Network Management: SNMP Manageable
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 8.50 Minute
- Backup/Run Time (Half Load): 20 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4 Hour
Physical Characteristics
- Height: 5.25"
- Width: 17.50"
- Depth: 25"
- Rack Height: 3U
- Form Factor: Tower
- Weight (Approximate): 143.30 lb
Miscellaneous

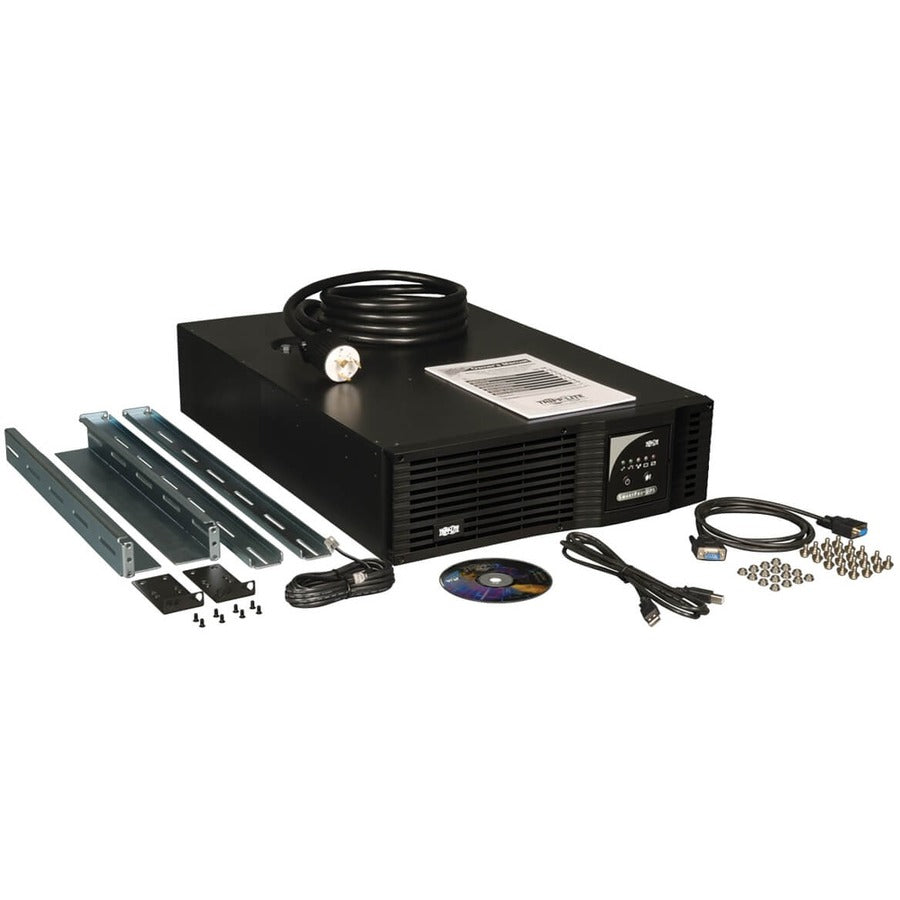

- Package Contents:
- SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
- SMART 5000XFMRXL UPS System
- PowerAlert Software and Cabling
- Mounting hardware for 4-post rackmount installation
- Warranty information
- Instruction manual
- Software Included: PowerAlert UPS Monitoring Software
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
