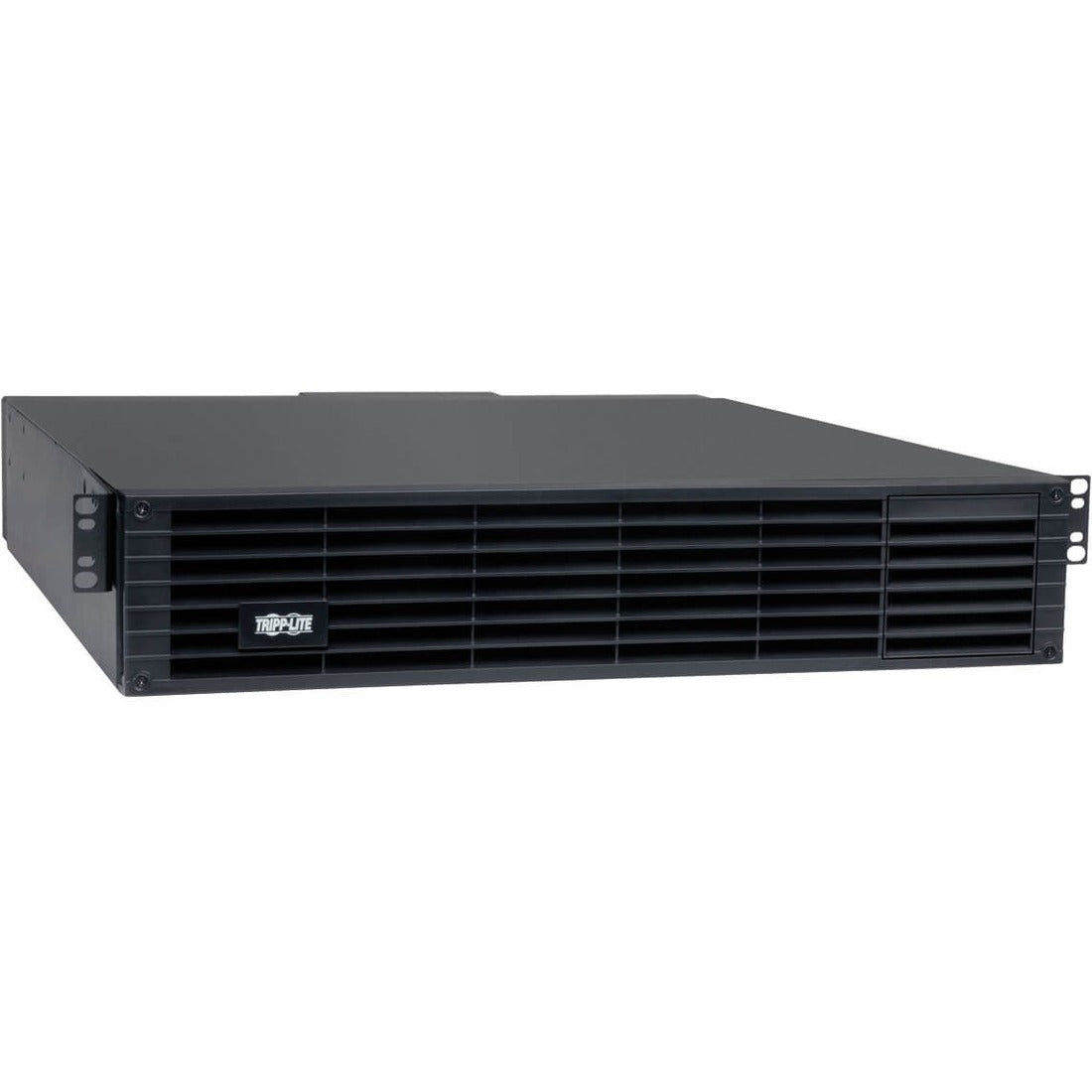

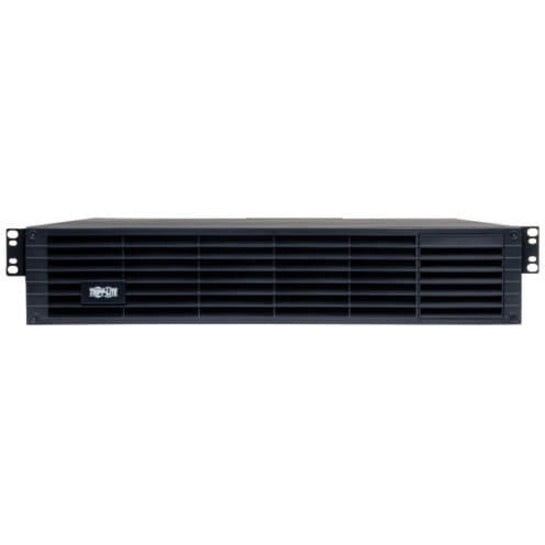

Tripp Lite by Eaton External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US) - BP48V27-2US
Key Features
- Extends the runtime of compatible 48V Tripp Lite UPS Systems
- Included daisychain connector supports the addition of multiple compatible external battery packs
- Options for 2 post rackmount and wallmount installation available
- Supports 2U rackmount installation; 4 post installation accessories included
Product Overview

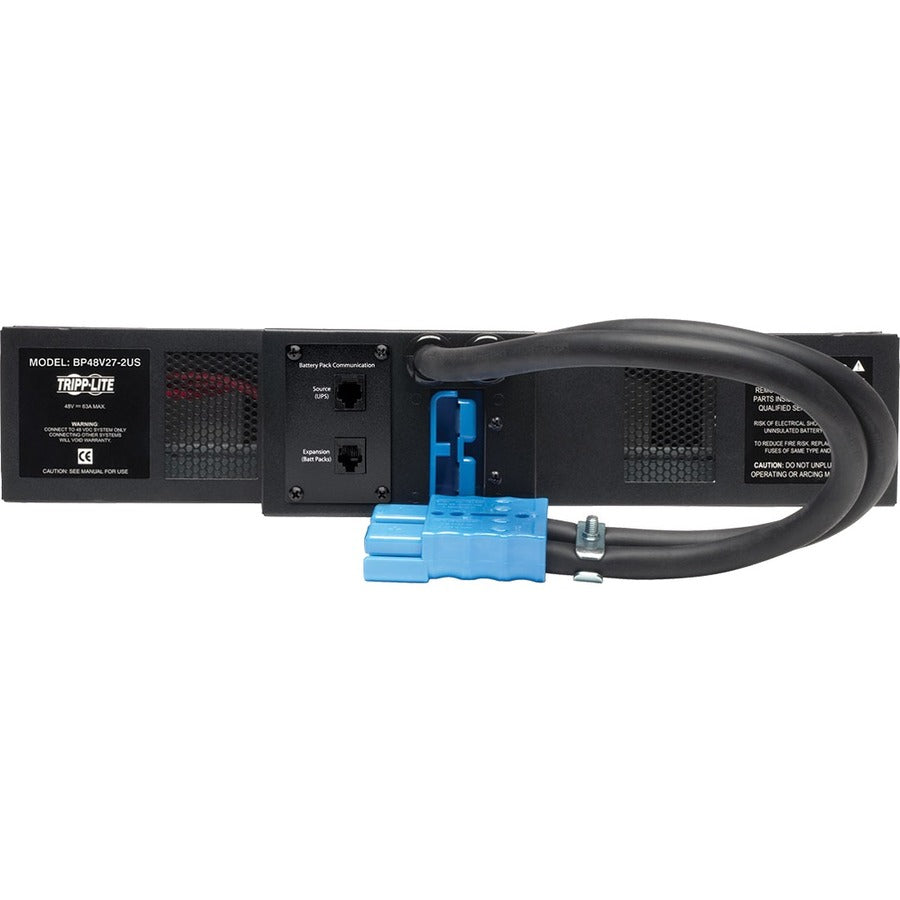

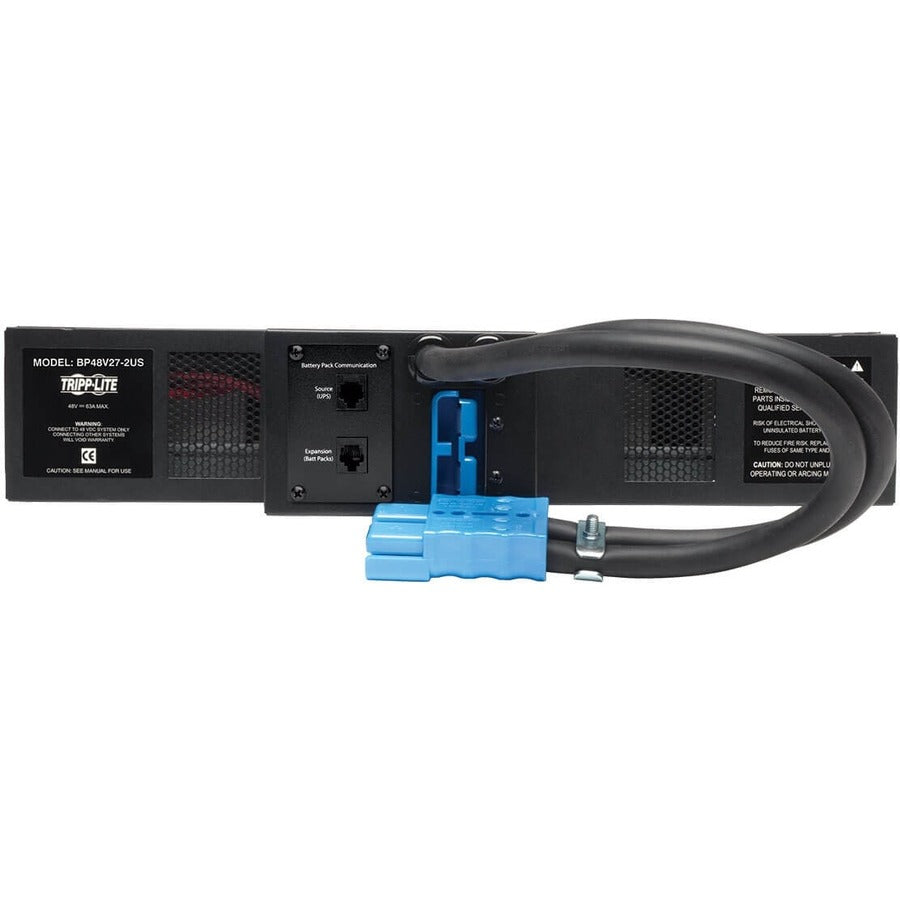

BP48V27-2US rackmount external battery pack offers extended battery runtime when used in conjunction with expandable 48V Tripp Lite rackmount UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting and wallmount installation available.Compatible with these UPS Systems - SM2200RMDVTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU1500RTXLCD2U, SU2200RTXL2UA, SU2200RTXLCD2U and other Tripp Lite UPS systems that specify the use of this battery pack.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: BP48V27-2US
- Brand Name: Tripp Lite series
- Product Model: BP48V27-2US
- Product Name: 2U External 48V Rack/Tower Battery Pack for Select Tripp Lite UPS Systems
- Product Type: External Battery Pack
Technical Information
- Battery Chemistry: Lead Acid
- Minimum Battery Life: 4 Year
- Maximum Battery Life: 6 Year
- Output Voltage: 48 V DC
Physical Characteristics
- Product Color: Black
- Height: 3.4"
- Width: 17.3"
- Depth: 22.6"
- Weight (Approximate): 88.07 lb
Miscellaneous
- Package Contents:
- 2U External 48V Rack/Tower Battery Pack

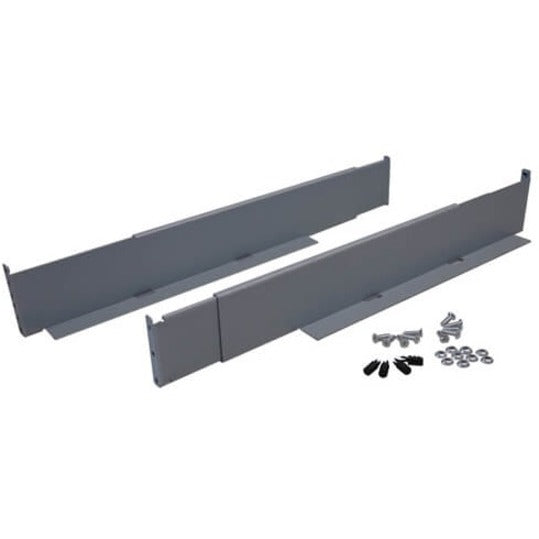

- Mounting Hardware
- Owner's manual
- Compatibility: Tripp Lite UPS Systems:
- SM2200RMDVTAA
- SMART1500CRMXL
- SMART2200CRMXL
- SMART2200RMXL2U
- SMART2200RMXL2UP
- SMART2200RMXLN
- SMART2600RM2U
- SMART3000CRMXL
- SMART3000RM2U
- SMART3000RM2UN
- SMART3000RMXL2U
- SMART3000RMXLN
- SMART3000VS
- SMART5000RT3U
- SMART5000XFMRXL
- SMARTINT3000VS
- SMX2200XLRT2U
- SMX3000XLRT2UA
- SMX5000XLRT3U
- SU1500RTXL2UA
- SU1500RTXLCD2U
- SU2200RTXL2UA
- SU2200RTXLCD2U
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
