Protect Switches, Cameras, and Access Points from Power Surges with 10 GbE PoE++ Passthrough

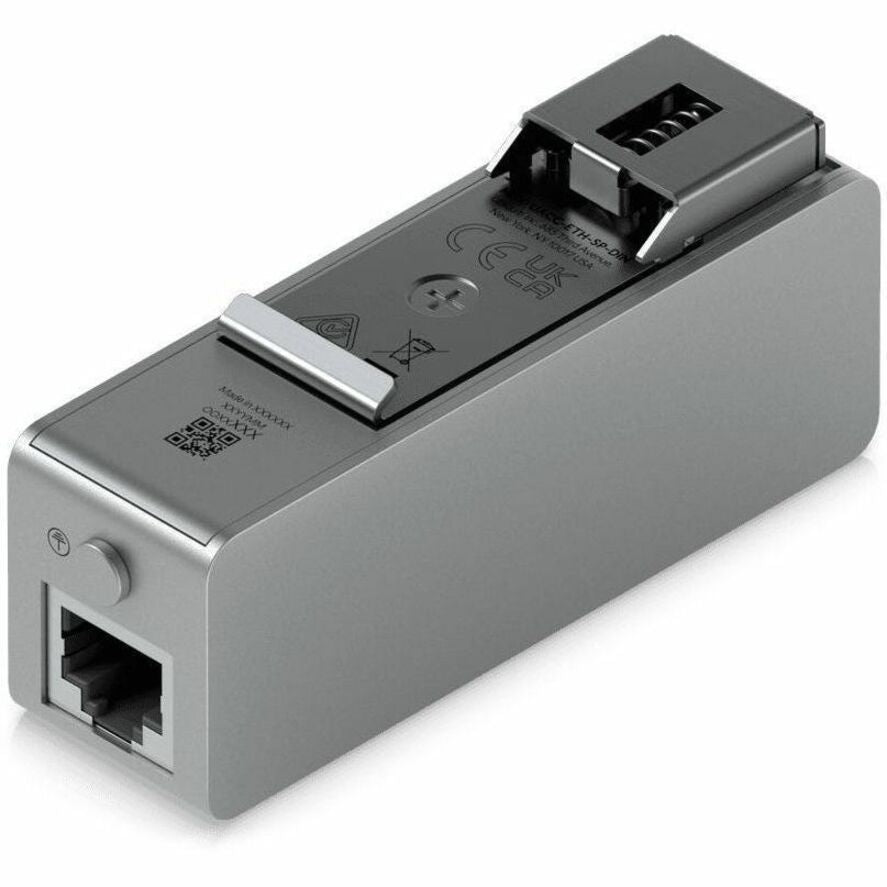

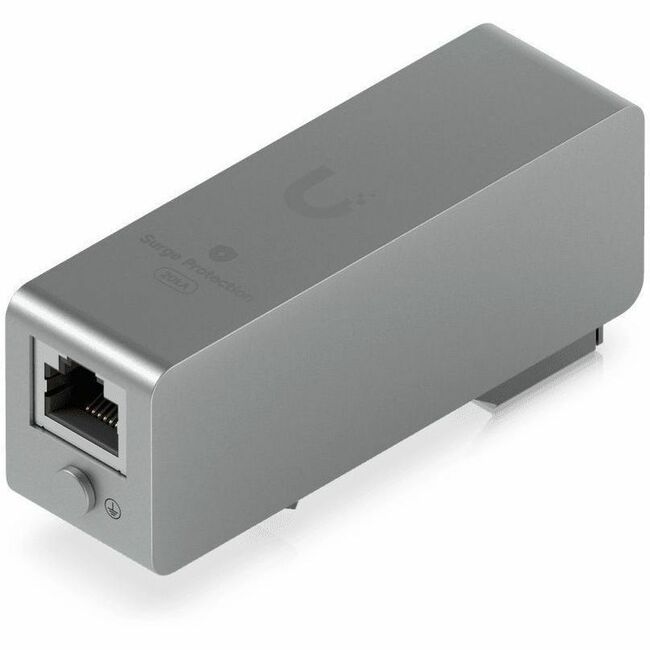

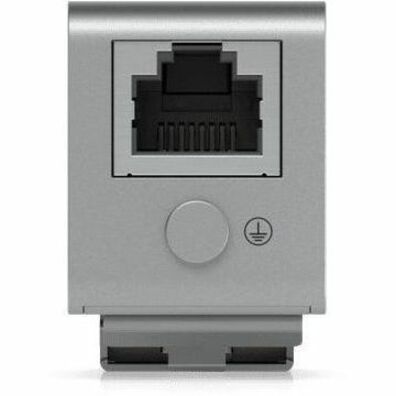

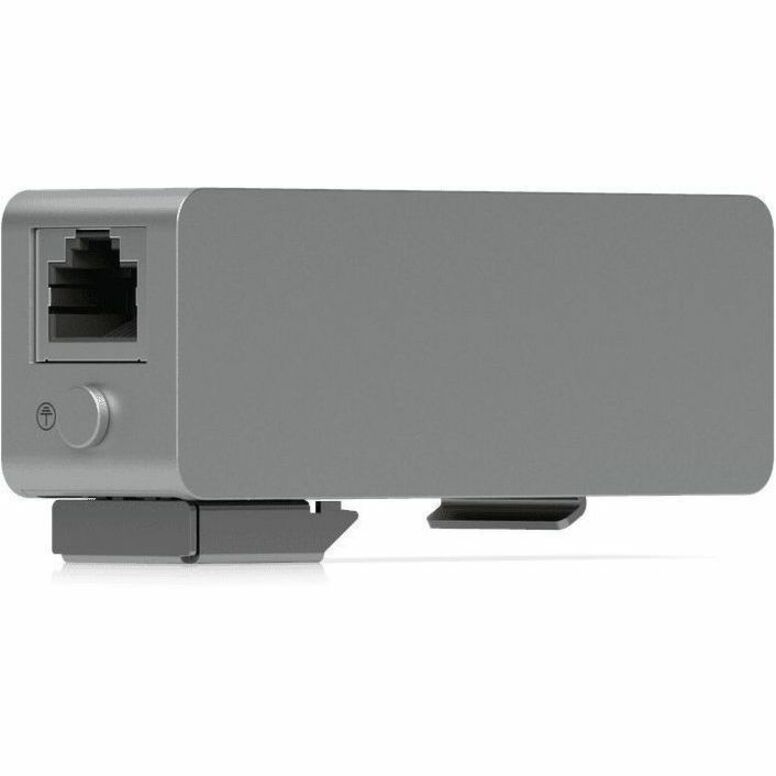

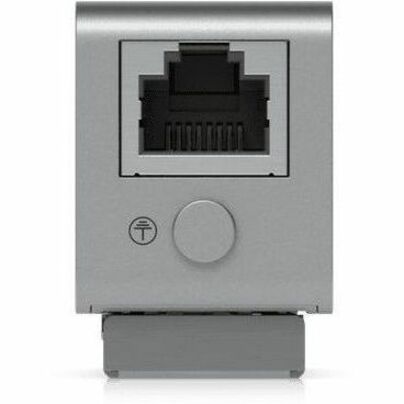

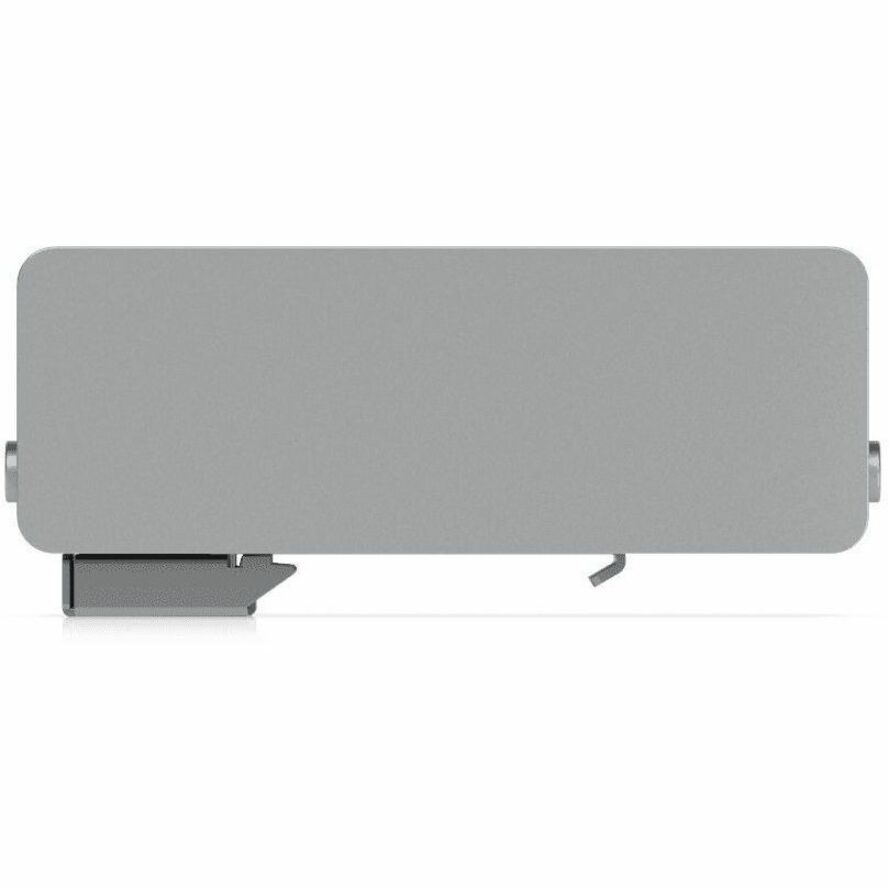

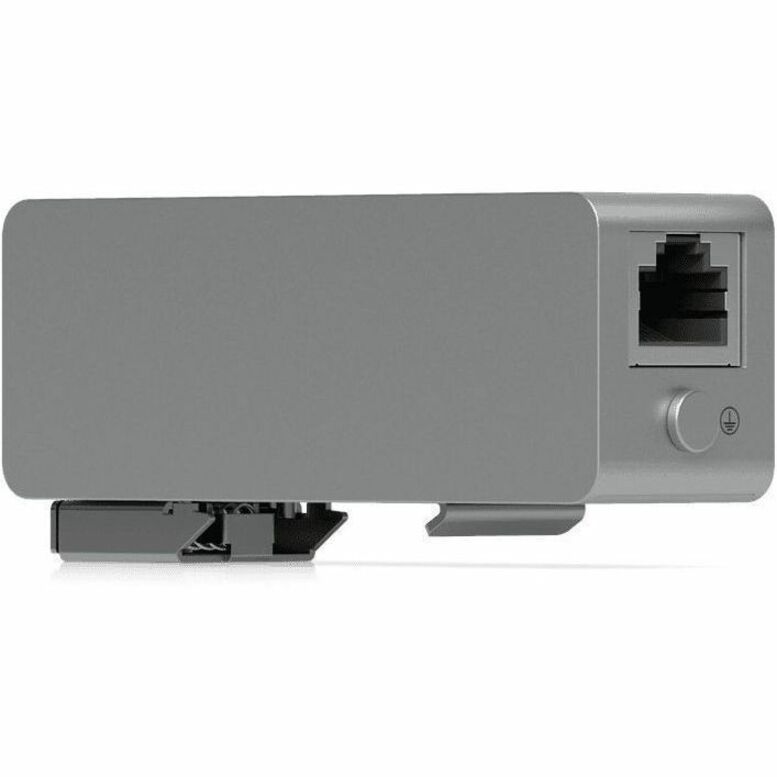

The Ubiquiti UACC-ETH-SP-DIN is a DIN-rail-mount Ethernet surge protector that sits inline on any Ethernet cable and absorbs transient voltage spikes up to 20kA before they reach your equipment. It passes data at up to 10 Gbps and PoE++ power simultaneously, so it protects the device and the power delivery in a single unit.
Install it between the cable entry point and the protected device -- typically at a patch panel, network closet, or DIN rail enclosure. Lightning strikes, ground loops, and power spikes on outdoor cable runs are the most common threats. The surge protector absorbs the spike and lets clean data and PoE through to the switch, camera, or access point on the other side.
Where the UACC-ETH-SP-DIN Fits
- Outdoor camera and access point cable runs where Ethernet cables exposed to weather, lightning, or ground potential differences need surge protection before entering the building
- DIN rail enclosures and electrical panels where the surge protector mounts alongside breakers and other protection equipment in a standard DIN rail layout
- Network closets protecting switch uplinks from voltage spikes that travel along inter-building cable runs or cables routed near high-voltage electrical infrastructure
What the Surge Protector Delivers
- 20kA surge discharge: Handles transient surges up to 20,000 amps. Protects against lightning-induced surges, ground loops, and power line cross-events on Ethernet runs.
- 10 GbE passthrough: Full 10 Gigabit Ethernet throughput through the protector. No performance degradation on protected links.
- PoE++ passthrough: Passes PoE, PoE+, and PoE++ power through the device. No need for separate power protection on PoE-powered equipment.
- DIN rail mount: Snaps onto standard 35mm DIN rail for clean installation in electrical panels, network enclosures, or equipment cabinets.
Build and Specs
Ethernet surge protector. Bidirectional protection. 2x RJ-45 (input/output). Supports up to 10 GbE. PoE++ passthrough. Maximum surge discharge: 20kA. DIN rail mount (35mm). Indoor installation. Part Number: UACC-ETH-SP-DIN.
