WiFi 7 Outdoor Access Point with 6 GHz Directional Antenna, 5.8 Gbps Max Rate, IP67 Weatherproofing, and 300+ Client Capacity
The Ubiquiti U7 Pro Outdoor is a WiFi 7 outdoor access point that combines high-gain directional antennas with tri-band radios to deliver up to 5,000 sq ft of coverage in exposed outdoor environments. Its integrated directional super antenna focuses 6 GHz and 5 GHz signals into a 90-degree beam at up to 11 dBi, extending range and rejecting interference from adjacent sectors. A separate external omnidirectional antenna provides 360-degree 2.4 GHz and 5 GHz coverage for devices that need broad connectivity. With 6 spatial streams across three bands and a maximum data rate of 5.8 Gbps on 6 GHz (BW320), it delivers the throughput density that WiFi 7 promises to outdoor deployments where previous-generation access points could not keep up with client demand.

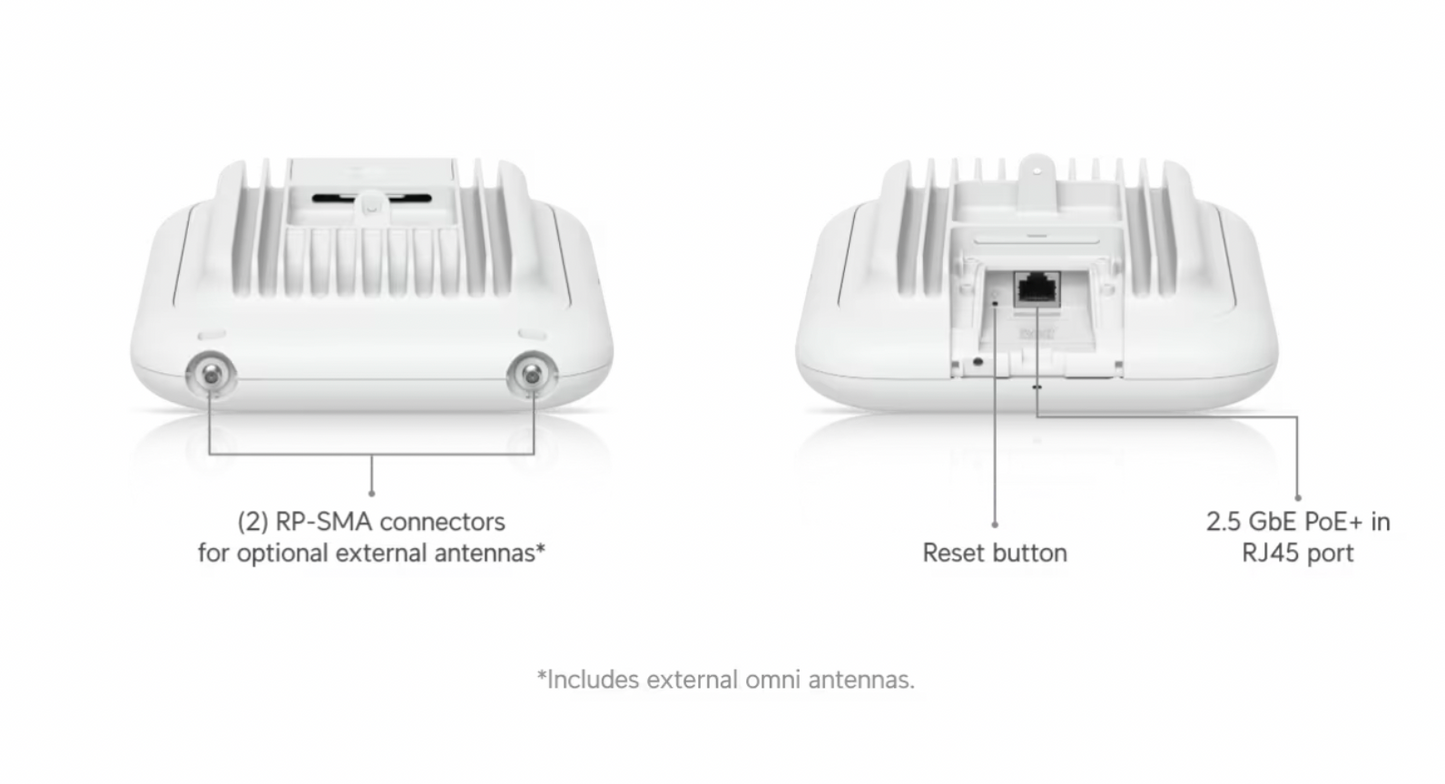

Powered by PoE+ through a single 2.5 GbE uplink, the U7 Pro Outdoor draws just 21W and mounts to walls or poles (1-2.5 inch diameter) with included hardware. Its IPX6-rated enclosure handles direct water jets, upgradeable to full IP67 with the included cable-gland door kit. Operating from -30 to 60 degrees Celsius, it survives temperature extremes that would disable consumer outdoor APs. AFC-enabled 6 GHz operation provides access to the full spectrum in supported regions without manual coordination.
Where the U7 Pro Outdoor Fits
- Stadium and event venue WiFi where hundreds of simultaneous clients in a defined sector need high-throughput 6 GHz connectivity, and the directional antenna concentrates signal into the seating area without wasting coverage behind the AP
- Campus courtyards and outdoor workspaces where students or employees connect laptops and tablets at multi-gigabit speeds for video conferencing, cloud applications, and large file transfers that require WiFi 7 bandwidth
- Hospitality pool decks and resort grounds where guests expect seamless streaming and social media performance across large outdoor areas, and the weatherproof enclosure handles salt air, rain, and direct sunlight without degradation
What the U7 Pro Outdoor Delivers
- WiFi 7 tri-band with 5.8 Gbps peak: 6 GHz at 5.8 Gbps (BW320), 5 GHz at 4.3 Gbps (BW240), and 2.4 GHz at 688 Mbps across 6 spatial streams. Supports 300+ concurrent clients without per-device throughput degradation.
- Directional super antenna: Integrated high-gain antenna delivers 10-11 dBi in a focused 90x45 degree beam pattern on 5 GHz and 6 GHz. Extends range beyond what omnidirectional outdoor APs achieve while reducing co-channel interference.
- IP67 weatherproofing with -30 to 60C range: IPX6 base rating upgrades to full IP67 with included cable-gland kit. Survives rain, snow, dust storms, and direct sun exposure across extreme temperature swings year-round.
- AFC-enabled 6 GHz operation: Automated Frequency Coordination unlocks the full 6 GHz band at higher power levels in supported regions. No manual spectrum coordination required for outdoor deployment.
- 2.5 GbE PoE+ uplink: Single cable carries data and power. 2.5G uplink prevents the wired connection from bottlenecking the combined wireless throughput of all three radios.
