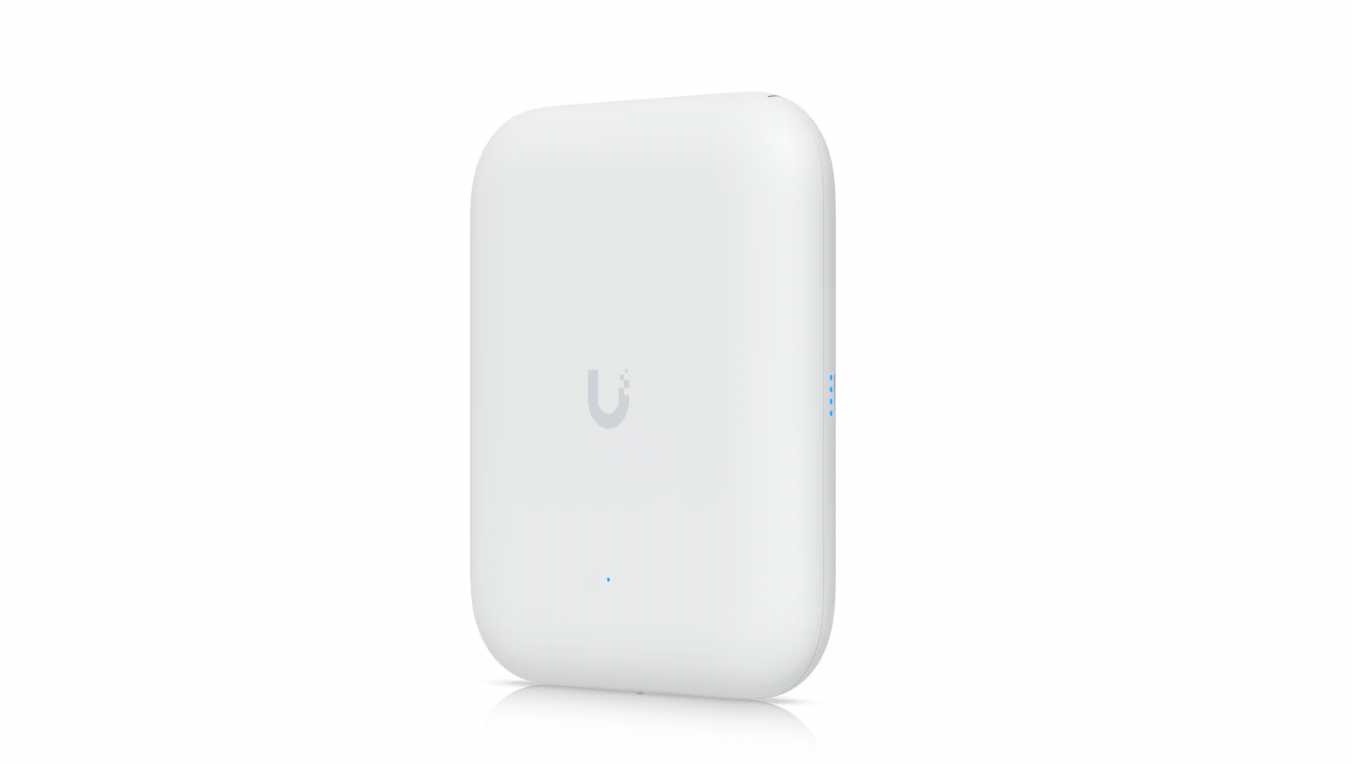

Ubiquiti U7 Pro Outdoor
Product Overview
The Ubiquiti U7 Pro Outdoor is a high-performance, all-weather WiFi 7 access point engineered for large-scale, outdoor wireless deployments. Designed with six spatial streams and integrated directional super antennas, it delivers extended 6 GHz coverage, optimized client capacity, and high-speed connectivity up to 5,000 ft². Its IP67-rated enclosure and articulating mount make it a powerful solution for enterprise-grade networks exposed to the elements.
Ideal For
Outdoor venues, business campuses, hospitality zones, and any high-traffic areas that demand wide, stable coverage and multi-client performance in all weather conditions.
Why You Should Use This
With advanced WiFi 7 capabilities, built-in mesh support, and directional beam coverage, the U7 Pro Outdoor combines durability and cutting-edge wireless performance in a compact form—perfect for next-gen outdoor networking.
Key Highlights
✓ Weatherproof IP67-rated housing
✓ Integrated directional and omni antennas
✓ WiFi 7 with AFC-enabled 6 GHz support
✓ Mesh-ready with UniFi Network 9.0.114+
✓ Mounting hardware for wall or pole included
Frequently Asked Questions
Q: Is this access point compatible with older UniFi controllers?
A: The U7 Pro Outdoor requires UniFi Network version 9.0.114 or later.
Q: What kind of mounting options are supported?
A: It includes hardware for both wall and pole installation.
Q: Can this be used in rainy or humid climates?
A: Yes, it features an IP67 weatherproof rating with optional cable gland protection for full environmental sealing.

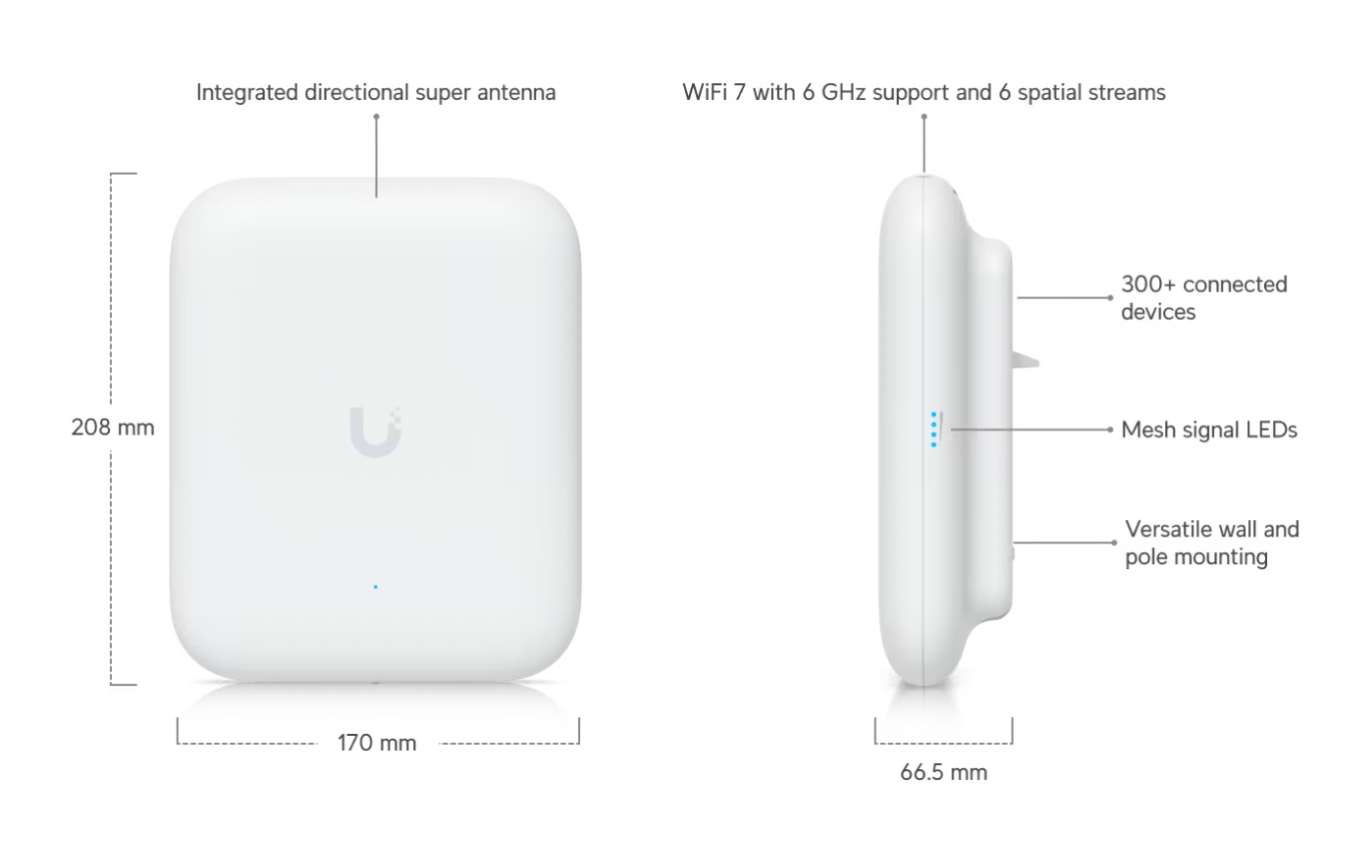

Dimensions:
Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
Weight:
Device: 1.2 kg (2.6 lb)
With mount: 1.33 kg (2.9 lb)
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 465 m² (5,000 ft²)
Max Client Count: 300+
Uplink: 2.5 GbE

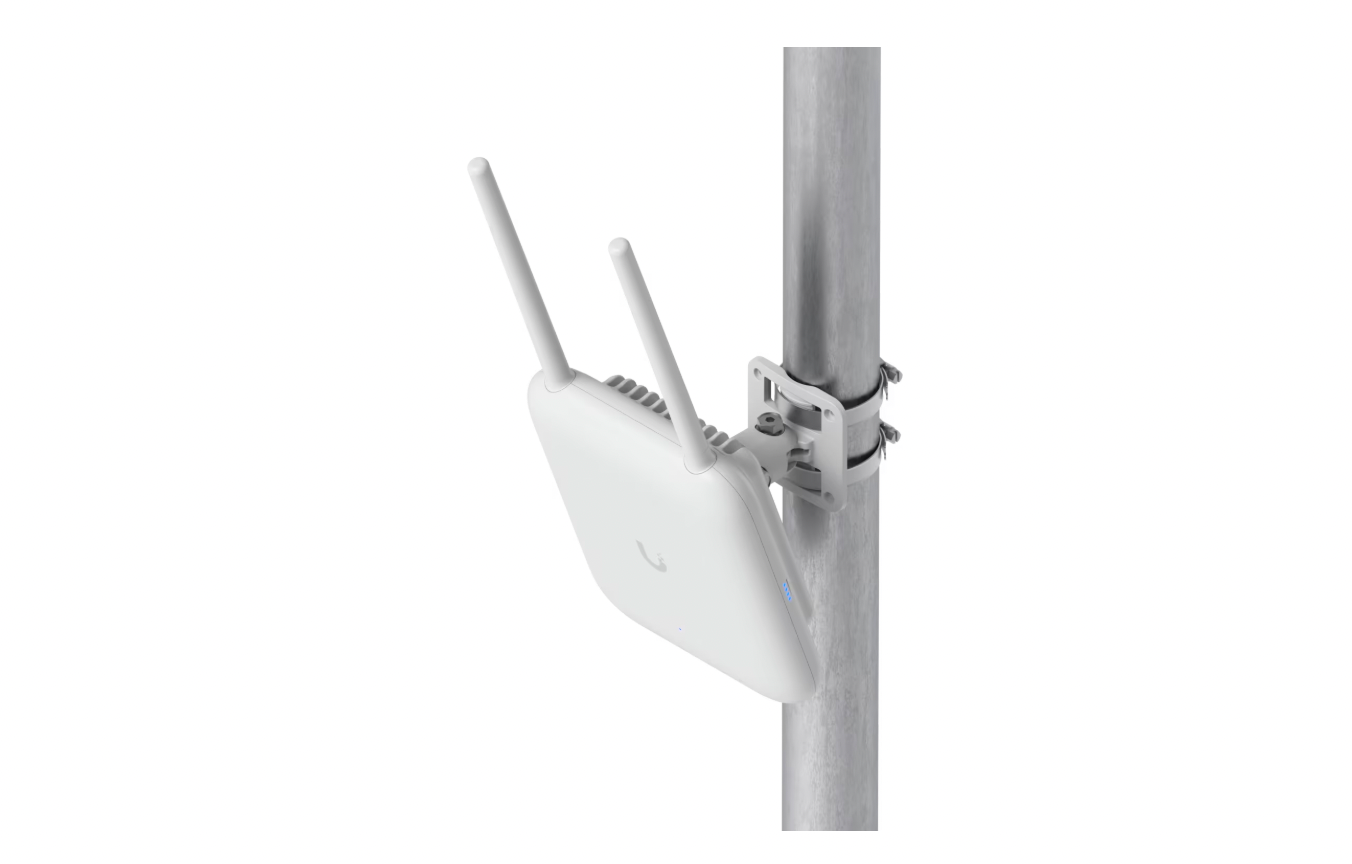

Mounting: Wall, Pole (Mounts Included)
Weatherproofing:
IPX6

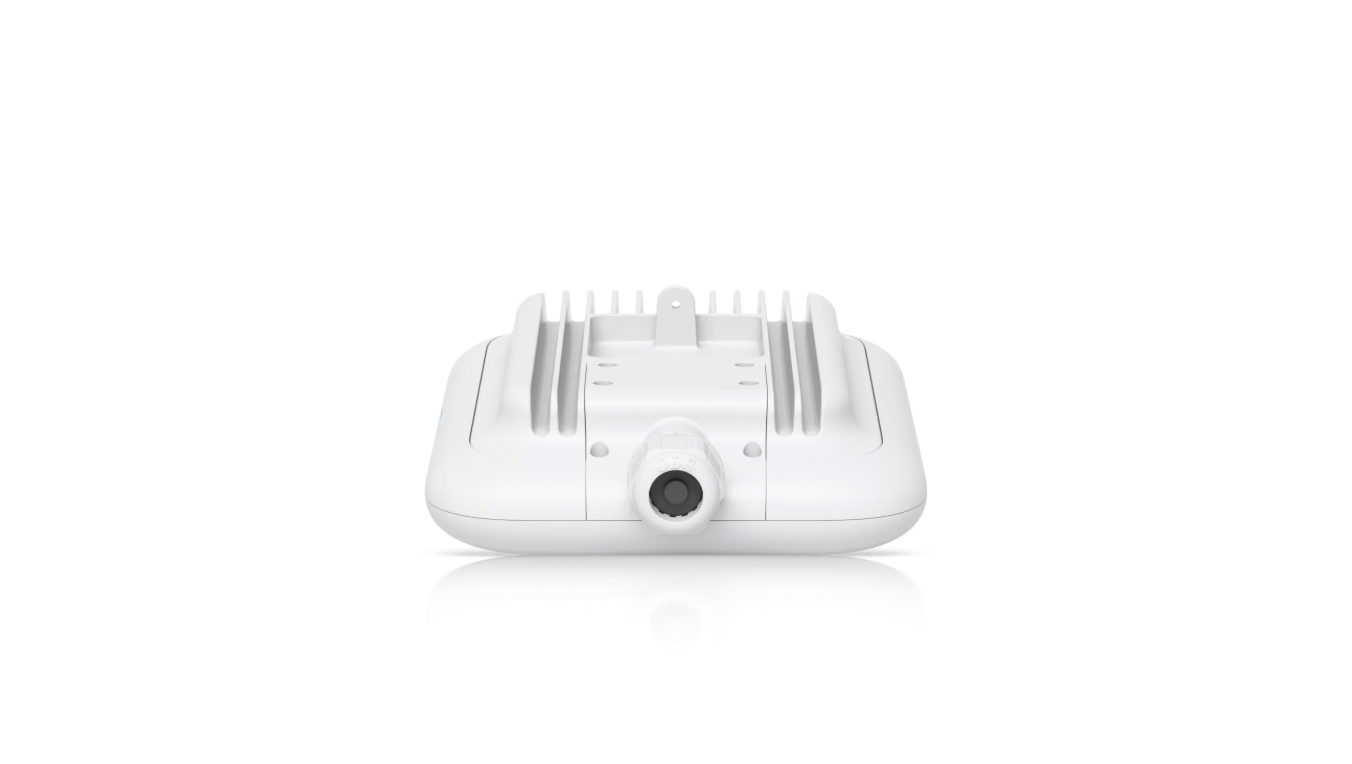

IP67 (with cable-gland door kit)
Power Method: PoE+
Max. Power Consumption: 21W
Supported Voltage Range: 42.5–57V DC

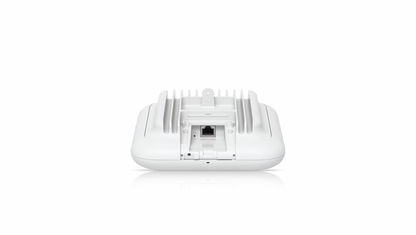

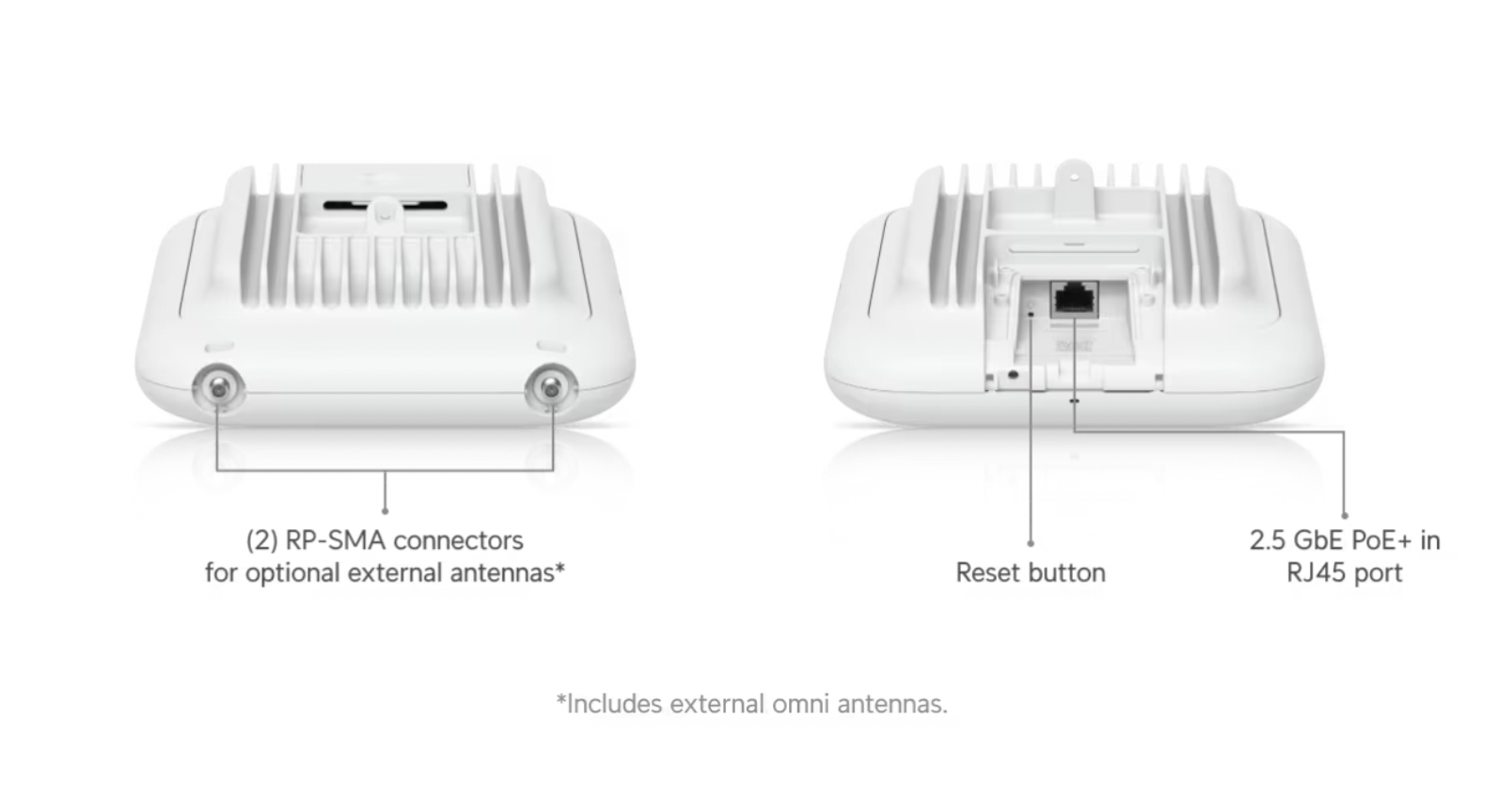

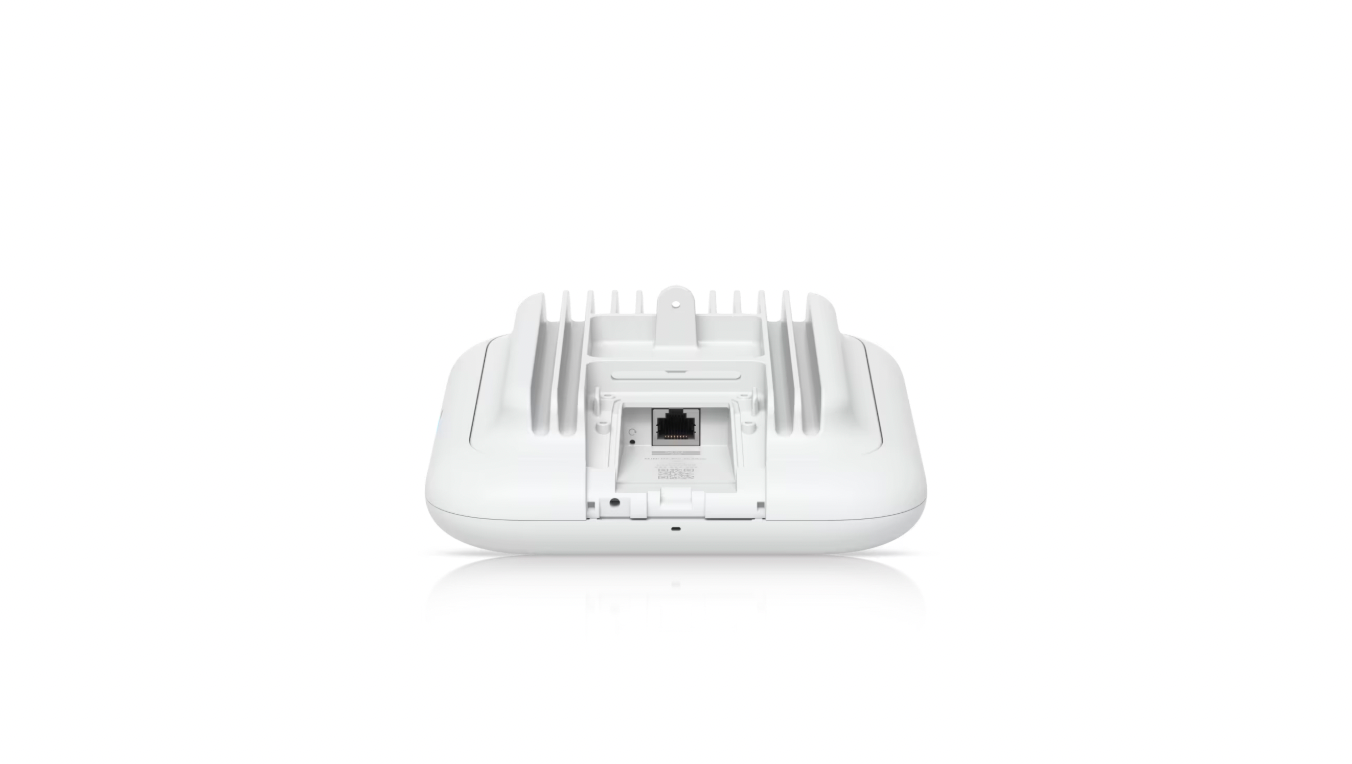

Networking Interface: (1) 1/2.5 GbE RJ45 port
MIMO:
6 GHz: 2 x 2 DL/UL MU-MIMO
5 GHz: 2 x 2 DL/UL MU-MIMO
2.4 GHz: 2 x 2 DL/UL MU-MIMO
Max. Data Rates:
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
6 GHz: Directional internal: 10 dBi, 90° x 45°

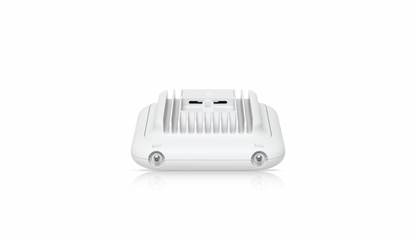

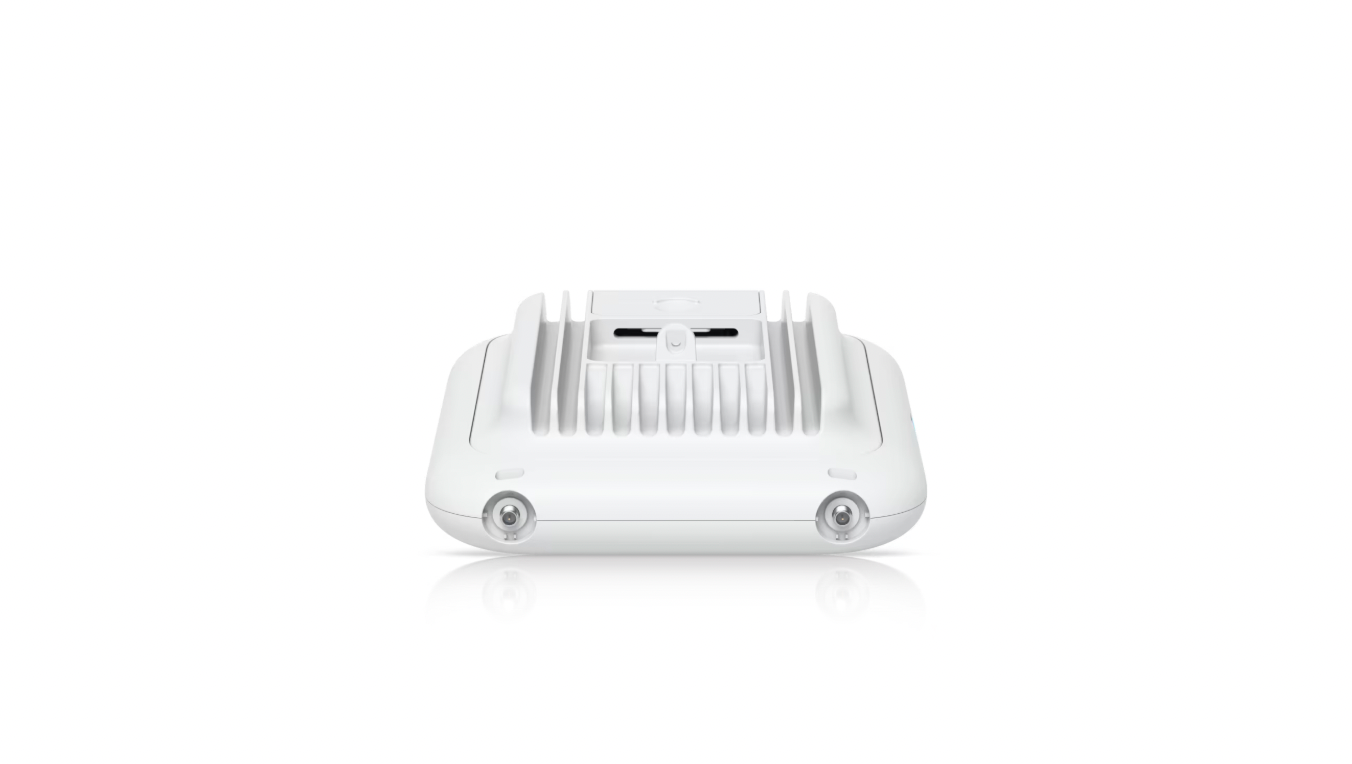

5 GHz: Directional internal: 11 dBi, 90° x 45°; External omni: 8 dBi, 360° x 15°
2.4 GHz: Directional internal: 8 dBi, 90° x 90°; External omni: 6 dBi, 360° x 15°
Max. TX Power:
6 GHz: 26 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
802.11be (WiFi 7): 7.3 Mbps – 5.8 Gbps
802.11ax (WiFi 6/6E): 7.3 Mbps – 2.4 Gbps
802.11ac (WiFi 5): 6.5 Mbps – 1.7 Gbps
802.11n: 6.5 Mbps – 300 Mbps
Wireless Features:
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Hotspot Portal with Branding
Voucher & Payment Authentication
External Portal Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic VLAN Assignment
Management: Ethernet

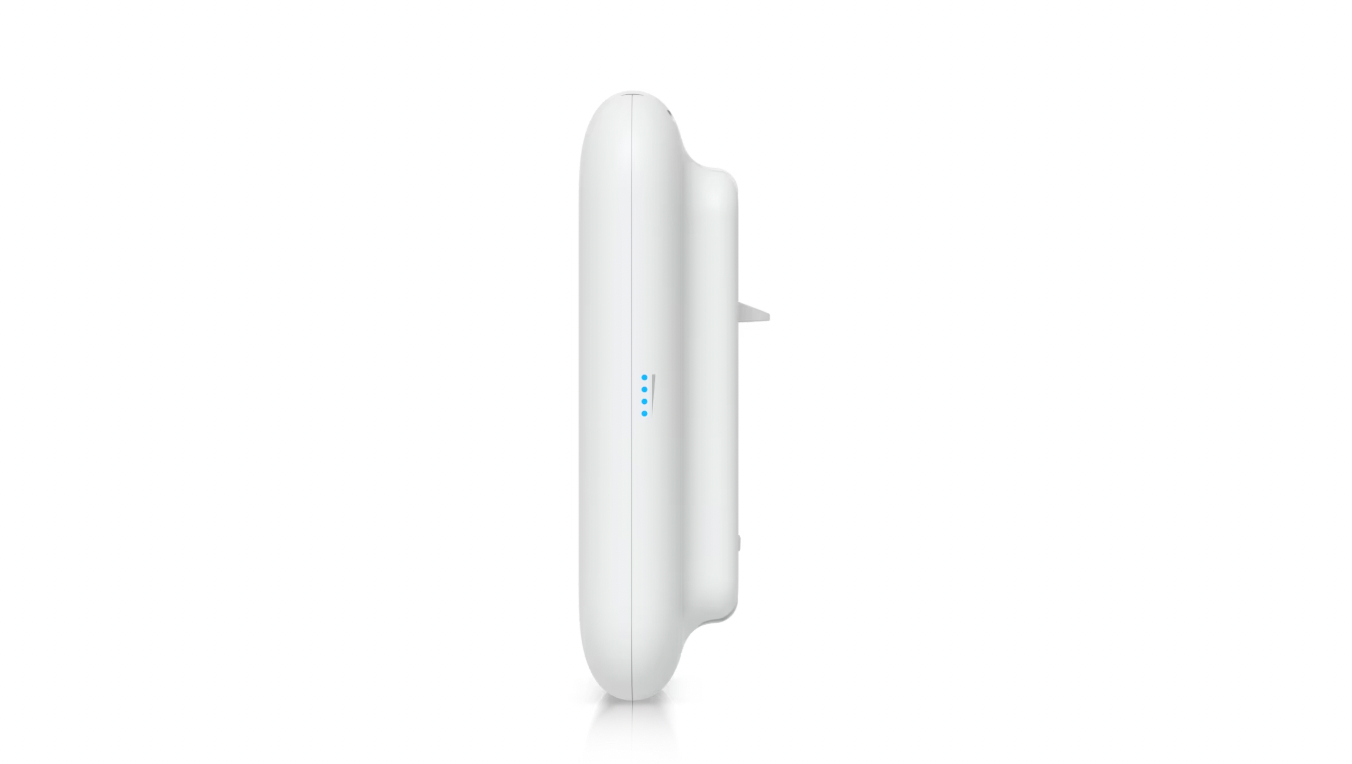

LEDs: (1) Power (White/Blue), (4) Mesh Signal (Blue)
Materials:
Enclosure: UV-stabilized polycarbonate, aluminum alloy
Mount: UV-stabilized polycarbonate
Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter: 1–2.5" (25–63.5 mm)
Environmental:
Operating Temperature: -30 to 60° C (-22 to 140° F)
Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: Yes
Certifications: FCC, IC
Software Requirements:
UniFi Network Version 9.0.114 or later
iOS App Version: 10.20.2+
Android App Version: 10.21.7+
