Ubiquiti UXG-Fiber UniFi Gateway Fiber 10G Multi-WAN Security Router

Ubiquiti UXG-Fiber UniFi Gateway Fiber 10G Multi-WAN Security Router

SKU: UXG-Fiber

Regular price $299.99 USD
Regular price $349.99 USD Sale price $299.99 USD
Sale Sold out

 61 in stock

View full details

Ubiquiti UXG-Fiber

Product Overview

The Ubiquiti UXG-Fiber is a high-performance UniFi Gateway designed for advanced fiber and Ethernet routing. Engineered with 10G WAN/LAN interfaces and an integrated 2.5G switch, it delivers up to 5 Gbps of IDS/IPS-enabled routing performance. This compact device is ideal for securing and managing modern networks with multi-WAN redundancy, VPN support, and deep packet inspection capabilities.

Ideal For

Offices, ISPs, and enterprise networks that require fiber-grade speeds, robust firewall controls, and centralized management using a CloudKey or UniFi Network Server.

Why You Should Use This

The UXG-Fiber offers enterprise-grade security, seamless VPN setup, and failover protection in a compact, plug-and-play design—making it a powerful and scalable core for UniFi deployments that don't require application hosting.

Key Highlights

✓ 5 Gbps IDS/IPS routing performance
✓ 10G RJ45 and SFP+ WAN ports
✓ 10G SFP+ LAN fiber port
✓ Integrated 4-port 2.5G switch with 1x PoE+ output
✓ Requires external UniFi controller (CloudKey, Hosting, or Server)

Frequently Asked Questions

Q: Can this device run UniFi applications?
A: No. The UXG-Fiber cannot host UniFi applications. It must be managed by an external UniFi controller.

Q: Does it include VPN and SD-WAN features?
A: Yes. It supports license-free SD-WAN, Site Magic, Teleport VPN, WireGuard, and more.

Q: How many PoE ports does it include?
A: One 30W PoE+ port is built into the 4-port 2.5G RJ45 switch.

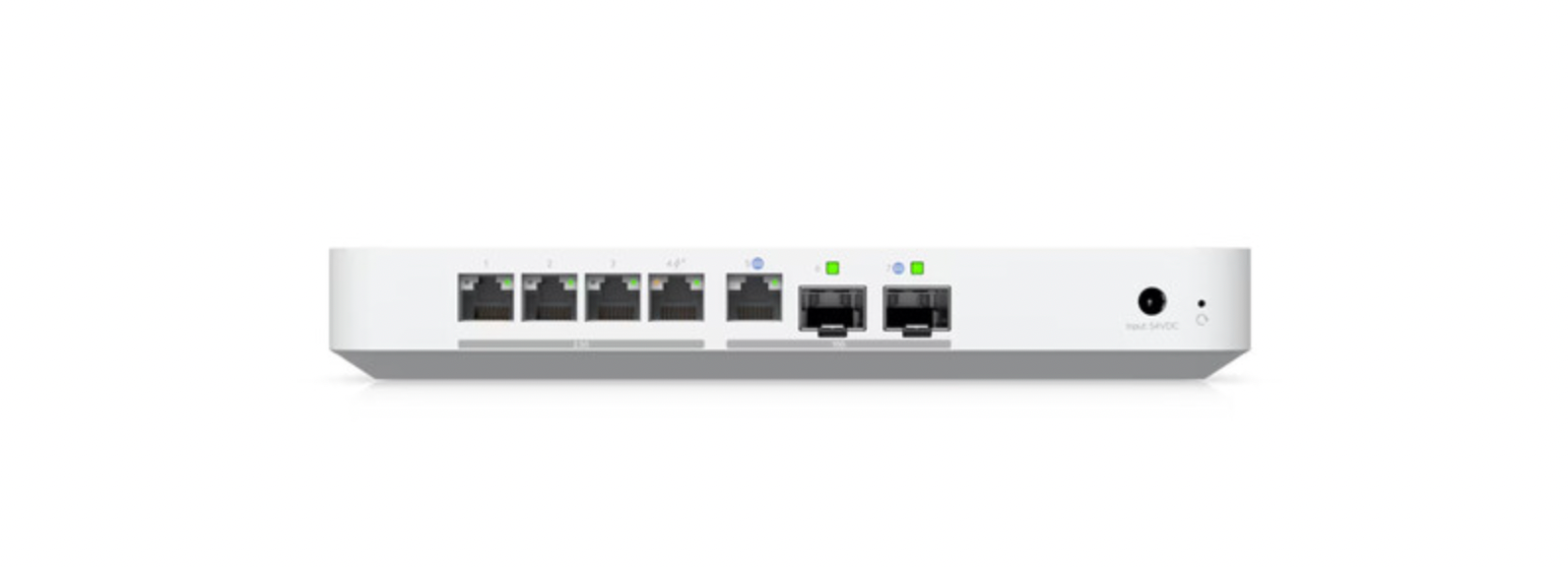

Network I/O:

(1) RJ45 10 GbE WAN

(1) SFP+ 10 GbE WAN

(1) SFP+ 10 GbE LAN

(1) RJ45 2.5 GbE LAN (PoE+)

(3) RJ45 2.5 GbE LAN

Data Rate: IDS/IPS: 5 Gb/s

PoE Support: 30W Budget (1x PoE+ Port)

CPU: 2.2 GHz ARM Cortex A73 Quad-Core

RAM: 2 GB

Mobile App Compatibility:

Yes – UniFi App (Available for Android and iOS)

Power:

Power Source: AC Adapter with Power Brick

AC Input: 100 to 240 VAC, 50 / 60 Hz

DC Input: 54 VDC at 1.1 A

Power Consumption: 25 W

Physical:

Mounting: Desktop

Color: White

Material: Polycarbonate

Certifications: CE, FCC, IC

Operating Conditions:

Temperature: 14 to 104°F / -10 to 40°C

Humidity: 5 to 95% Non-Condensing

Product Dimensions: 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")

Product Weight: 1.3 lb / 605 g

Packaging Info:

Package Weight: 2.75 lb

Box Dimensions (L x W x H): 10.1 x 8.5 x 3.1"
