- Description
- Specifications
Vertiv Liebert GXT5 500VA 120V UPS with SNMP/Webcard - GXT5-500LVRT2UXLN
Key Features
- 12V battery size for better reliance and optimal performance
- 3 batteries for optimal performance with maximum usability
- 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- 500 VA load capacity - work without any interruption during power outages
- Lead Acid battery chemistry delivers energy to the mission critical equipment through an easily controlled reaction
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Prevent critical data loss by staying powered during a blackout with up to 500 W load capacity
- Up to 15 minute runtime on full load to preserve critical data from power shortage interruptions
Product Overview

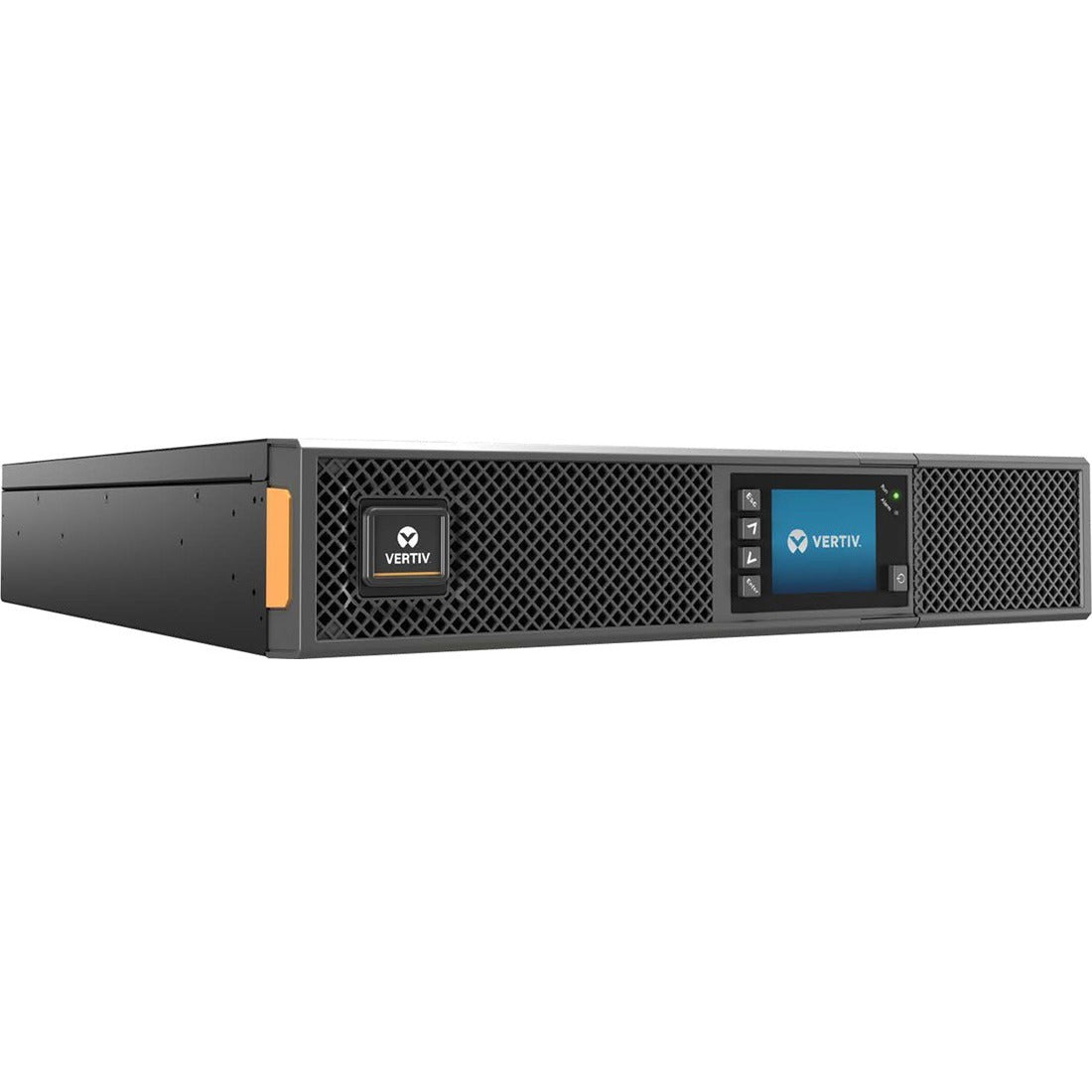

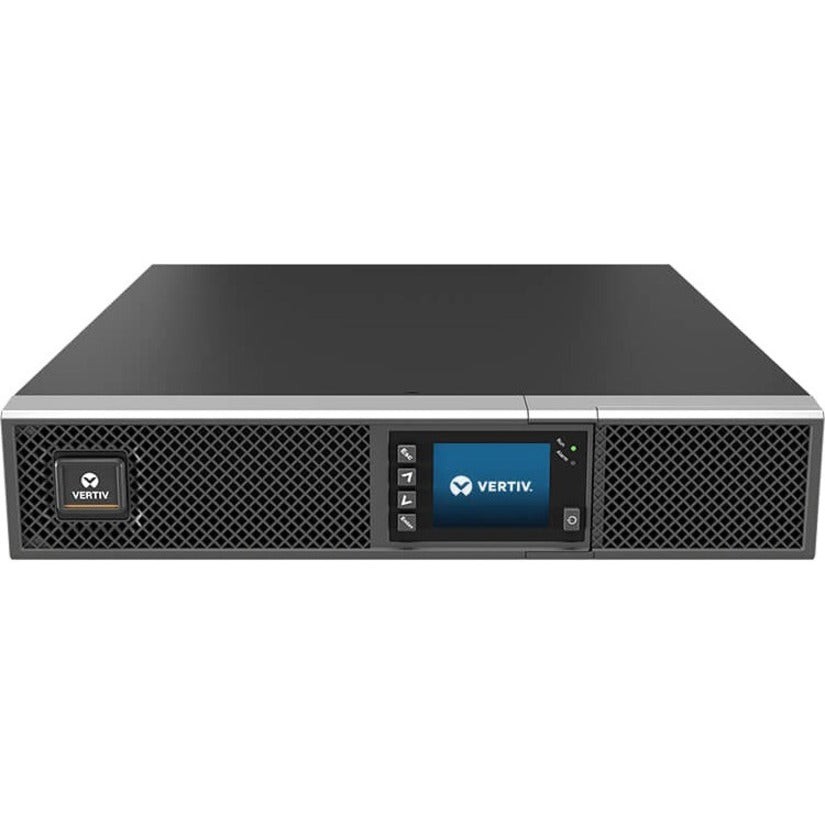

Intelligent and Efficient UPS for Protection of Your Mission-Critical ApplicationsThe Vertiv™ Liebert® GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower form factor.
The Liebert GXT5 single-phase UPS operates with high power efficiency, making it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. Plus, the Liebert GXT5 provides battery health status and replacement date prediction for intelligent battery health management.

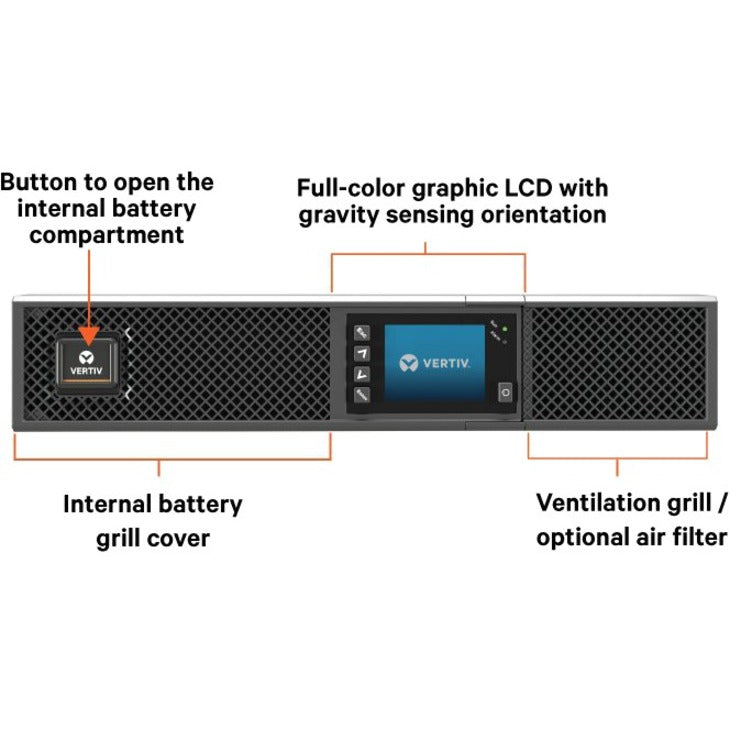

The UPS system is easy to deploy and maintain due to its user-friendly LCD interface and remote management capabilities supported by the Vertiv RDU101 communications card which makes the Liebert GXT5 compatible with Vertiv infrastructure management solutions such as LIFE™ Services, environmental sensors, Trellis™ Power Insight, and more.
With market leading efficiency and unity power factor operation, the Liebert GXT5 will meet your critical application needs. And you can rest assured that your business is protected with this Vertiv solution that includes a standard, three-year advanced exchange product warranty.
General Information
- Manufacturer: Vertiv
- Manufacturer Part Number: GXT5-500LVRT2UXLN
- Brand Name: Vertiv Liebert
- Product Series: GXT
- Product Name: GXT5 500VA 120V UPS with SNMP/Webcard
- Product Type: Double Conversion Online UPS
Technical Information

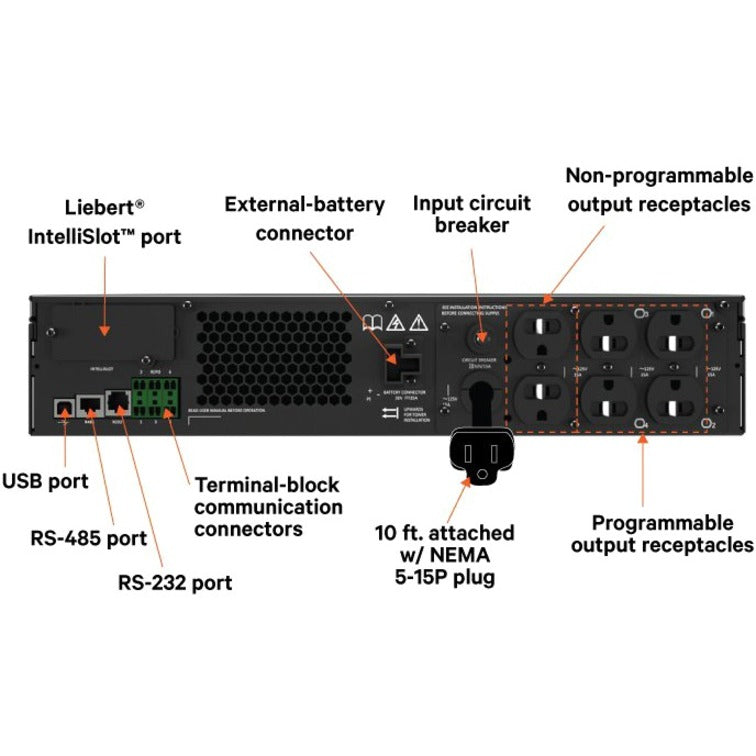

- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Cord Length: 10 ft
- Transfer Time: 0 ns
- Phase: Single Phase
- Application/Usage: Mission Critical Equipment
Power Description
- Load Capacity (VA): 500 VA
- Load Capacity (Watt): 500 W
- Input Voltage: 120 V AC
- Input Voltage Range: 110 V AC - 125 V AC
- Input Current: 6 A
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Waveform Type: Pure Sine Wave
- Circuit Breaker: Yes
Management
- Network Management: SNMP/HTTP Remote Monitoring
Controls/Indicators
- Status Indicators: Color LCD
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- Network (RJ-45): Yes
Battery Information
- DC System Voltage: 12 V DC
- Number of Batteries: 3
- Battery Characteristics: Valve-regulated, Non-spillable
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Backup/Run Time (Full Load): 15 Minute
- Backup/Run Time (Half Load): 36.50 Minute
- Battery Life: 5 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black
- Height: 3.3"
- Width: 16.9"
- Depth: 15.8"
- Rack Height: 2U

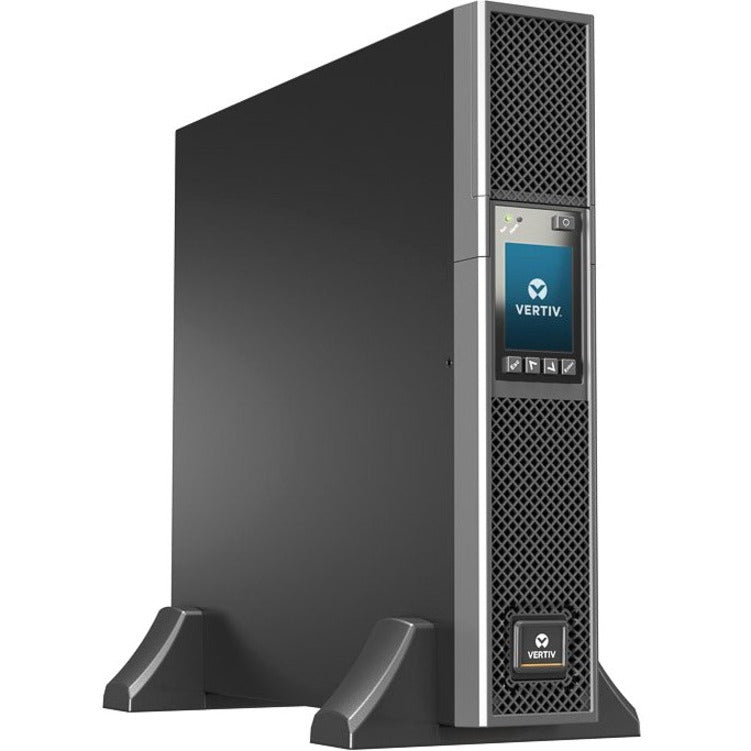

- Form Factor: Rack/Tower
- Weight (Approximate): 50 lb
Miscellaneous
- Package Contents:
- GXT5 500VA 120V UPS with SNMP/Webcard
- RDU101 SNMP/Webcard
- 4 post rack mounting
- Tower stand
- USB Cable
- User Guide
- Safety instruction manual
- Software Included: Free Download - Power Insight 2.2
- Energy Star: Yes
- Country of Origin: China
- TAA Compliant: No
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 3 Year
