CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems - CP1500PFCRM2U
Key Features
- $500,000
- 10.2 minutes / 3.1 minutes
- 120Vac ± 5%
- 1500VA / 1000W
- 3 year
- 8 surge + battery backup
- 8 × NEMA 5-15R
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® certified:
- Line Interactive
- Management software:
- NEMA 5-15P, 6 ft. cord
- Network
- Outlet types:
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Business
- Remote management:
- Runtime (half/full):
- Sine Wave
- Topology:
- USB, SNMP
- Warranty:
- Waveform:
- Yes
- Yes, with optional RMCARD205
Product Overview

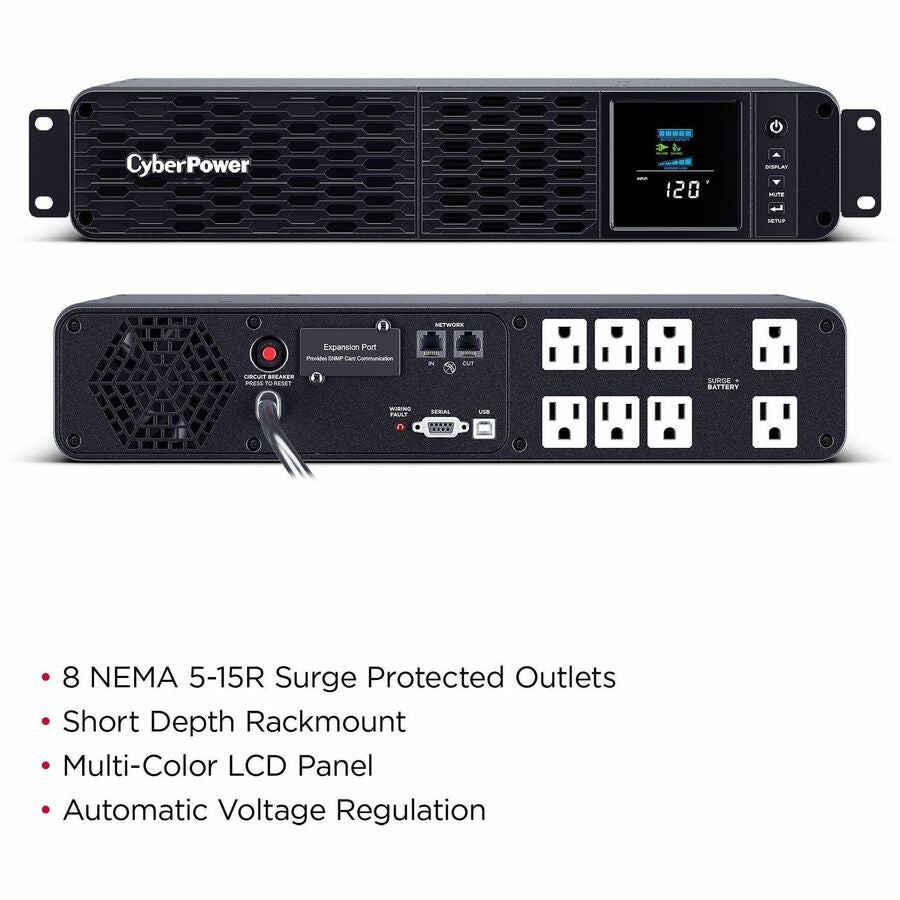

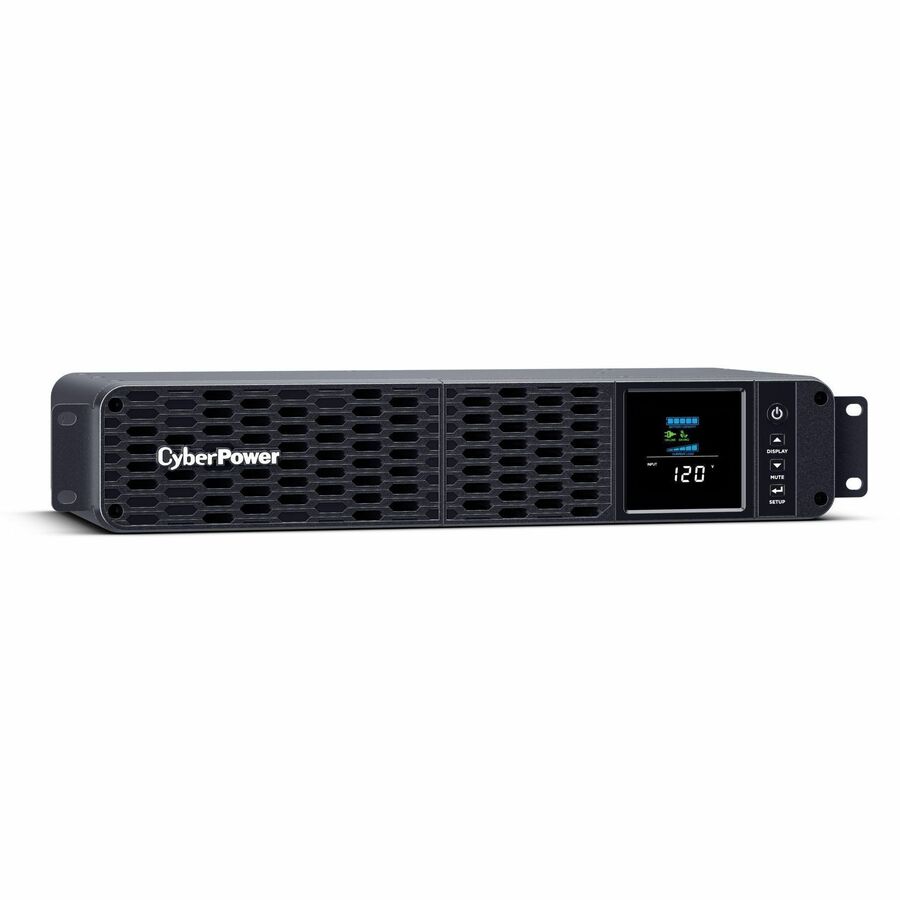

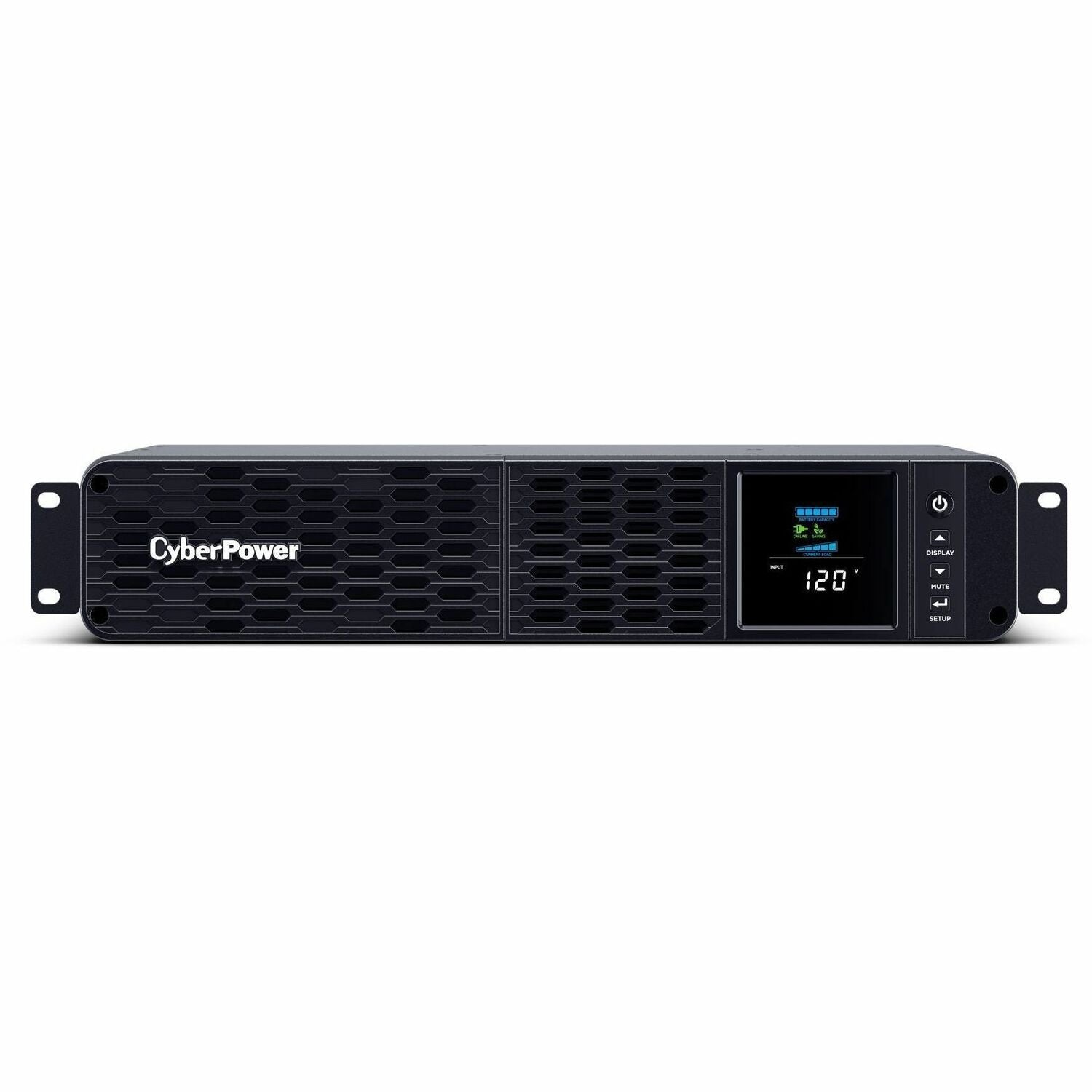

The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

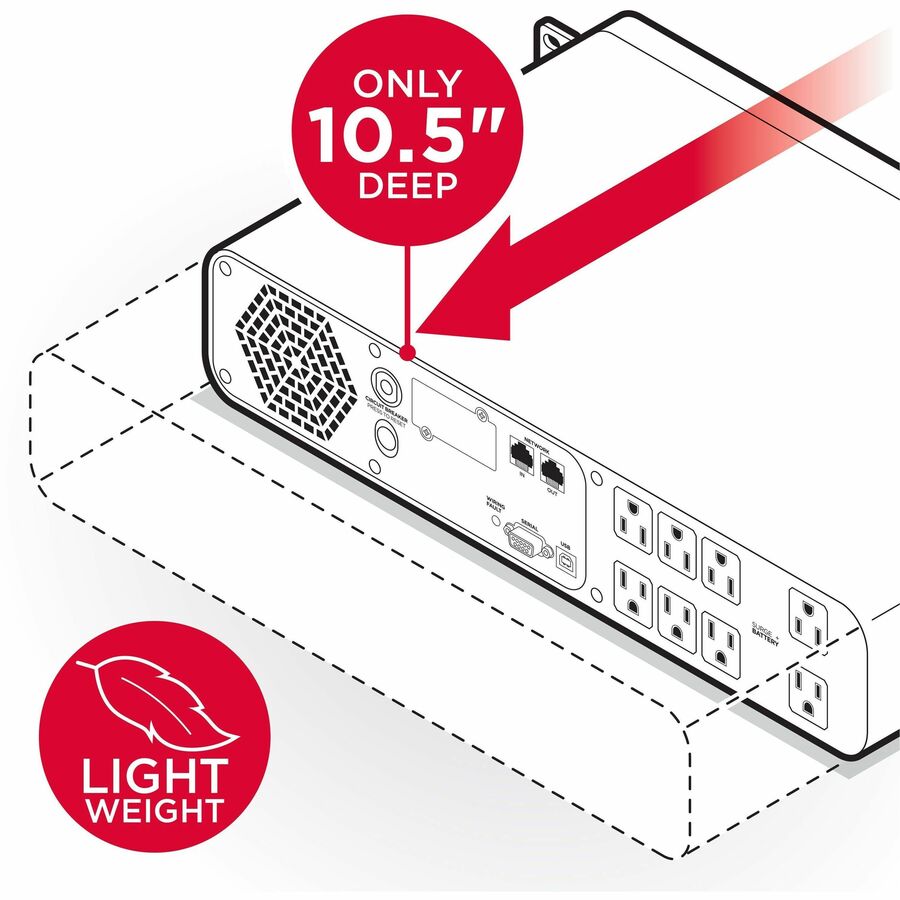

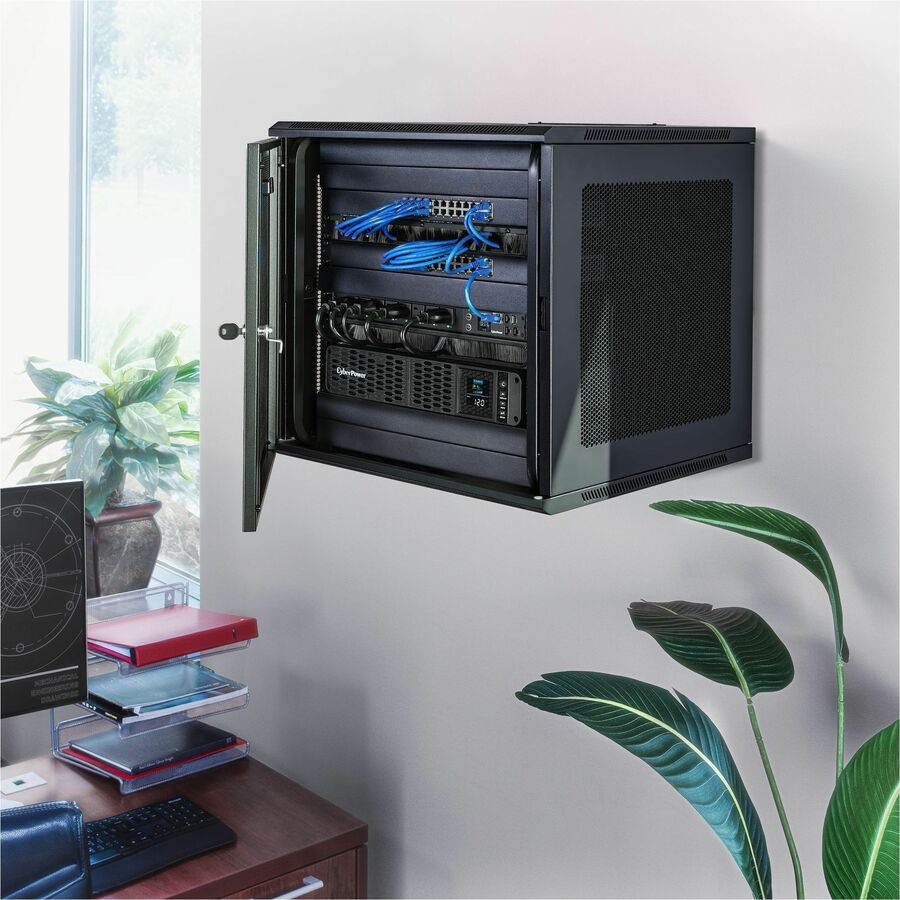

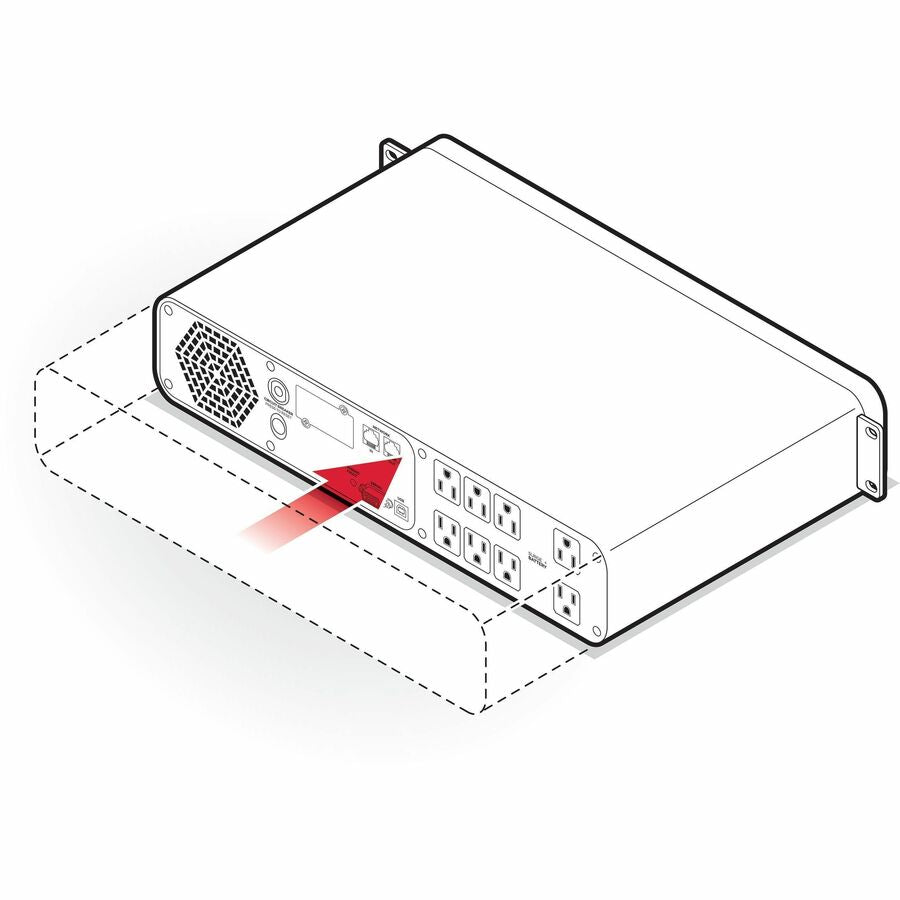

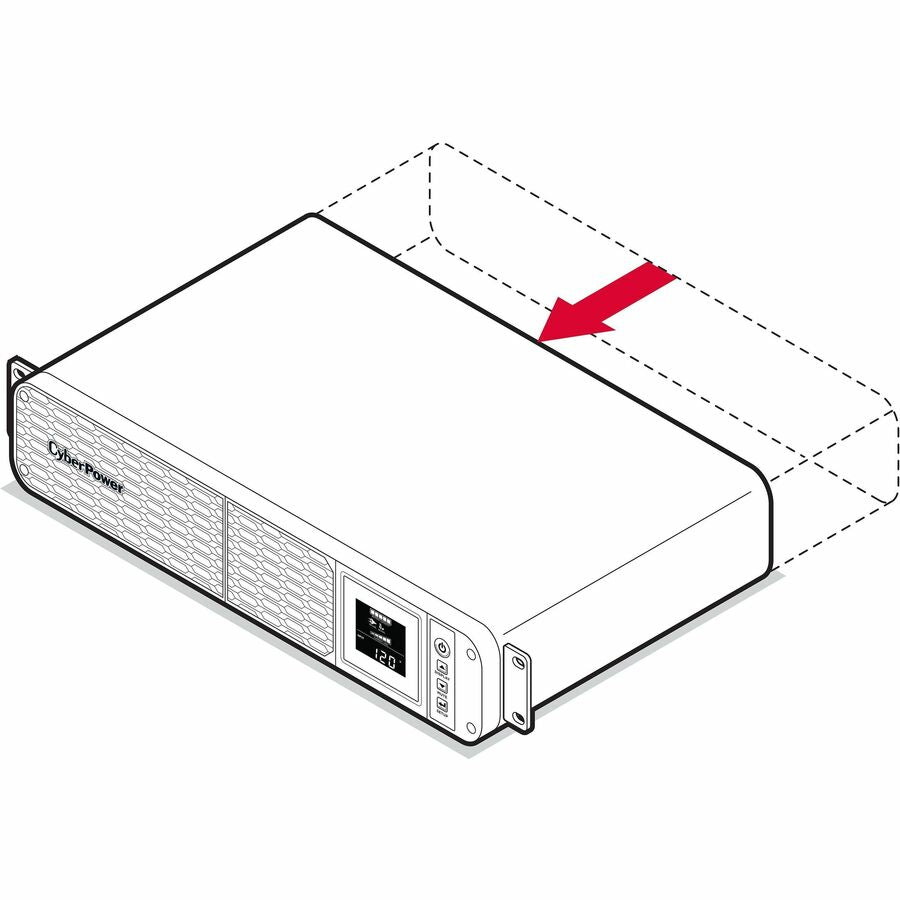

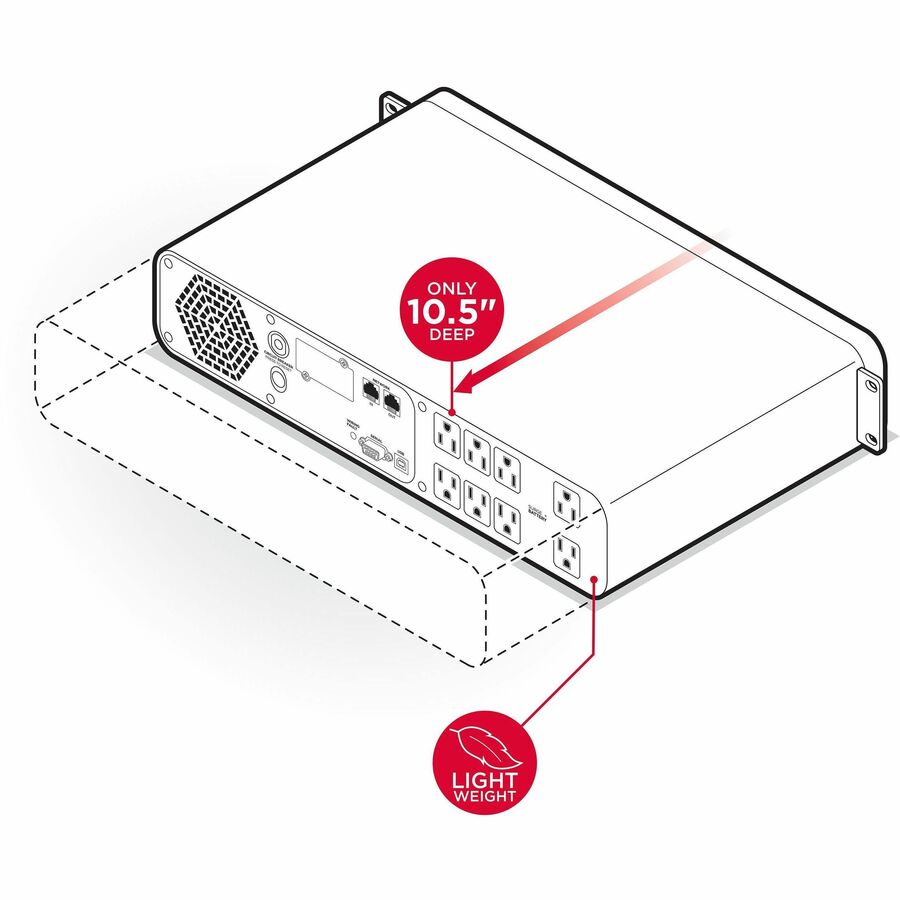

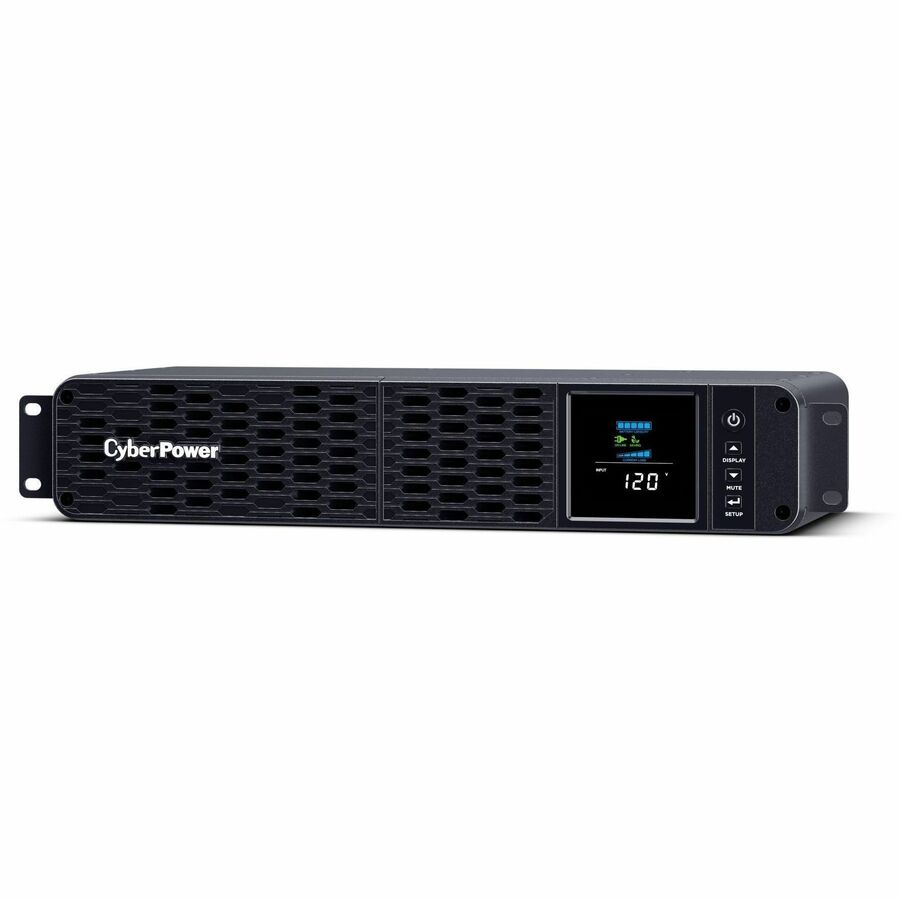

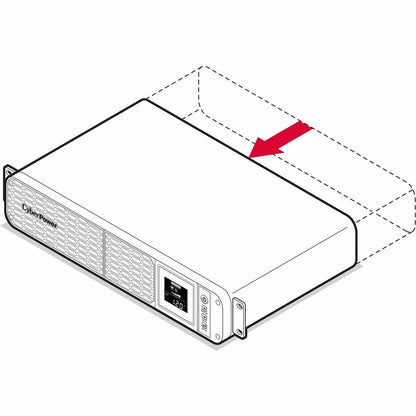

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.
The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a ,500,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP1500PFCRM2U
- Brand Name: CyberPower
- Product Line: PFC Sinewave
- Product Series: PFC Sinewave UPS
- Product Model: CP1500PFCRM2U
- Product Name: CP1500PFCRM2U PFC Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

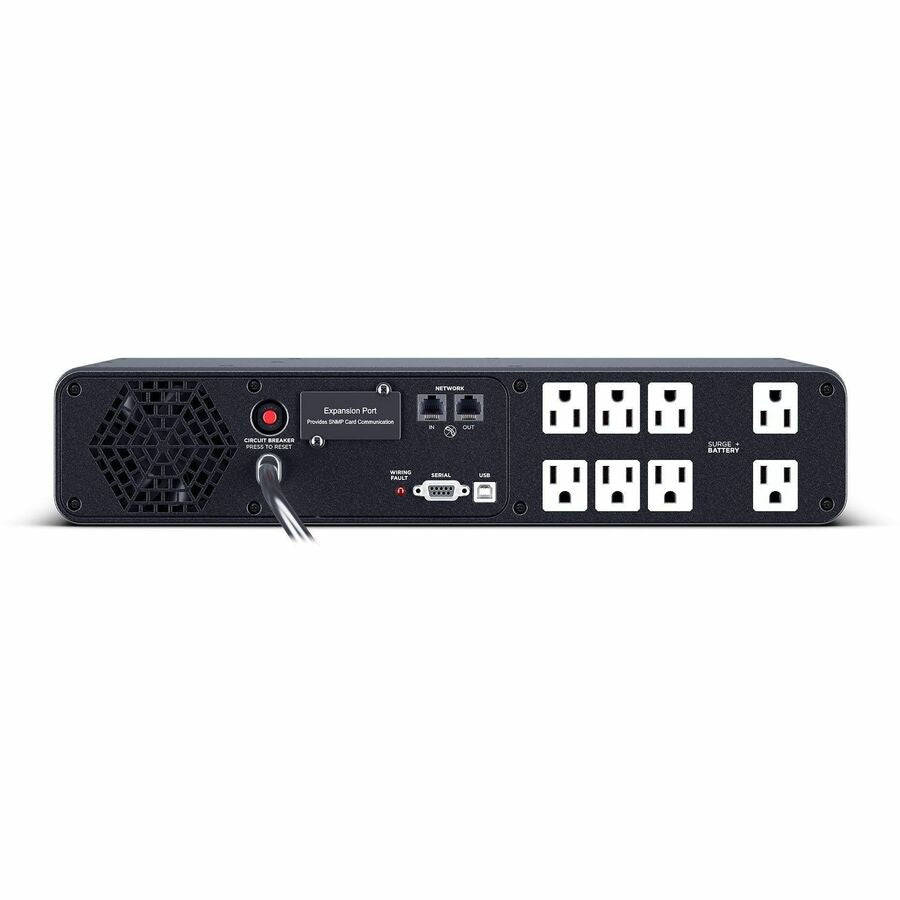

- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Dataline Protection: RJ-45
- Overload Protection: Yes
- Cord Length: 6 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Surveillance System
- Security System
- POS
- Network Device
- Storage Device
- Audio System
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V AC
- Input Voltage Range: 88 VAC - 144 VAC
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 1500 J
- Circuit Breaker: Yes
- Output Power Factor: 0.7
Management
- Network Management:
- SNMP/HTTP Remote Monitoring
- SNMP/Webcard
- Alarm:
- Battery Mode
- Low Battery
- Overload
- Fault
Controls/Indicators
- Status Indicators:
Multifunction LCD
Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Number of Batteries: 2
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 3.10 Minute
- Backup/Run Time (Half Load): 10.20 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 7.71 W

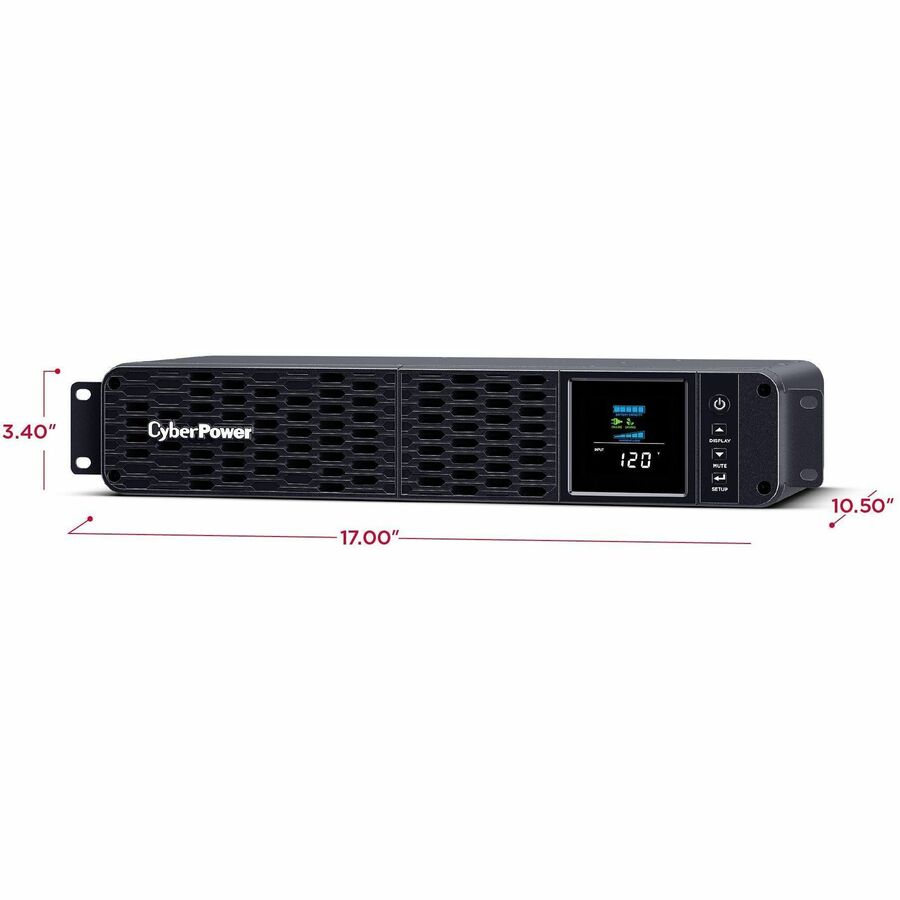

Physical Characteristics
- Product Color: Black
- Height: 3.4"
- Width: 17"
- Depth: 10.5"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 26.81 lb
Miscellaneous
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
