CyberPower OR1000LCDRM1U Smart App LCD UPS Systems - OR1000LCDRM1U
Key Features
- 1000 VA / 600 W
- 120 VAC ± 10%
- 3 year

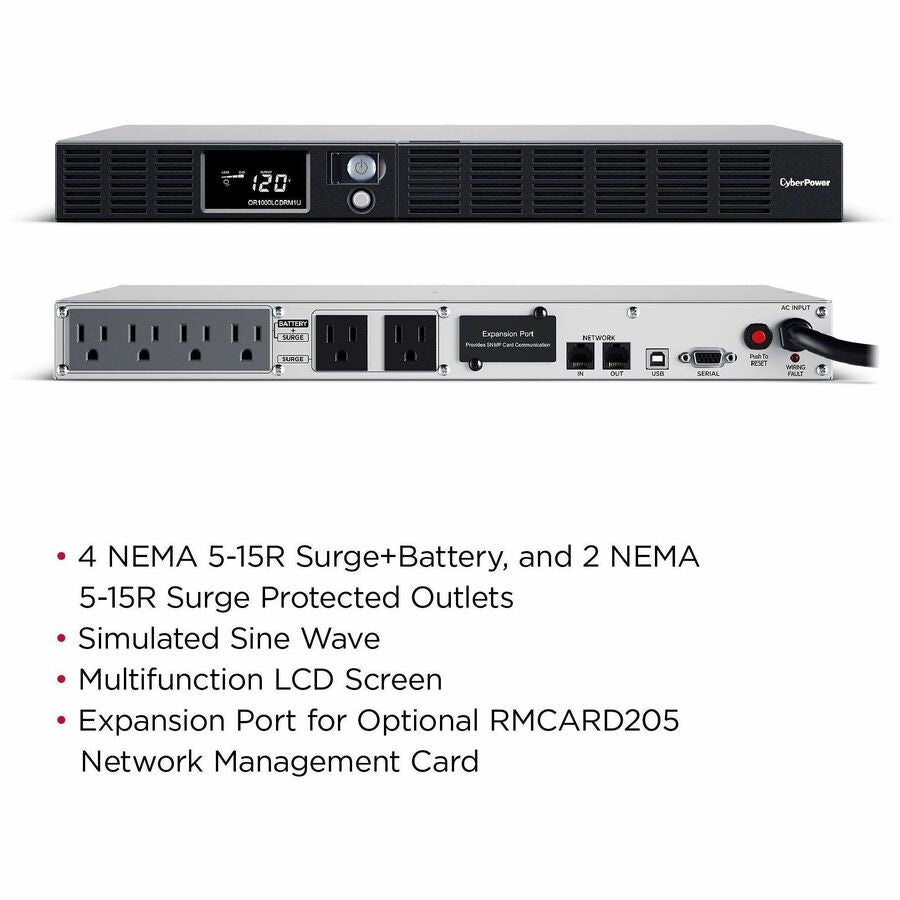

- 6 × NEMA 5-15R
- Capacity:
- Communication:
- Line Interactive
- Management software:
- NEMA 5-15P, 10 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Business
- Remote management:
- Simulated Sine Wave
- Topology:
- USB, Relay, SNMP
- Warranty:
- Waveform:
- Yes, with optional RMCARD205
Product Overview

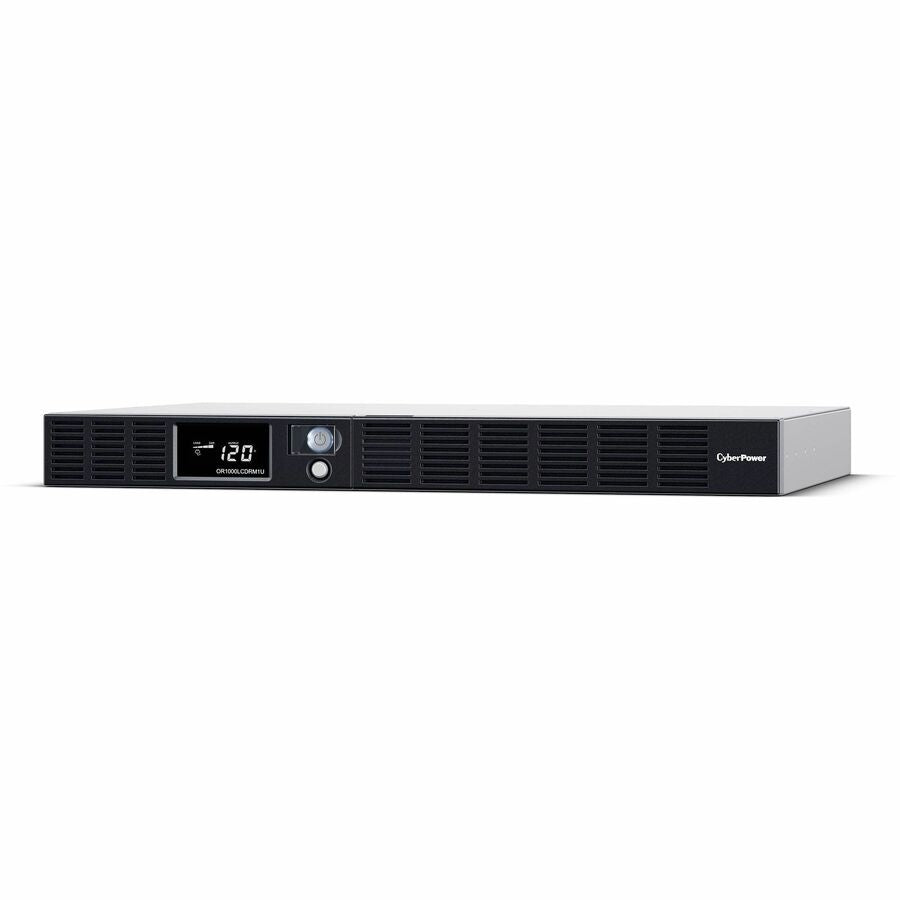

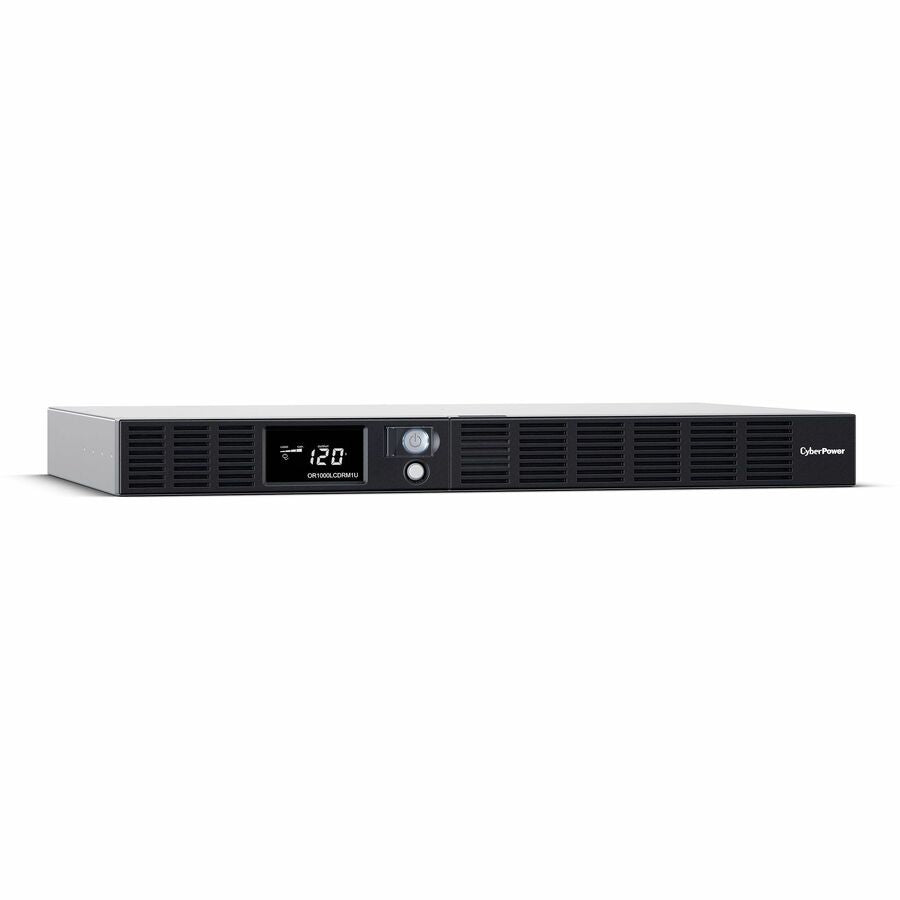

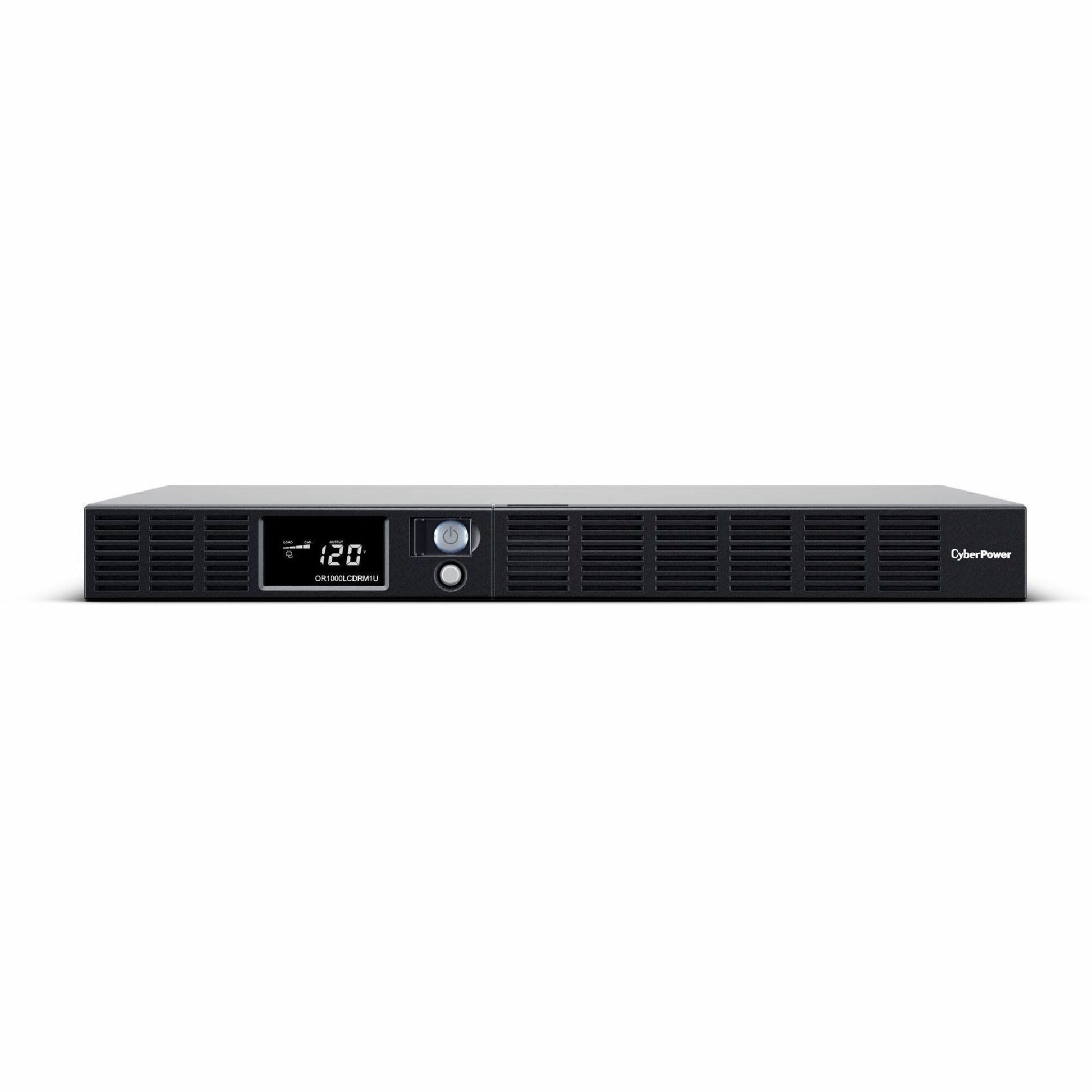

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OR1000LCDRM1U
- Brand Name: CyberPower
- Product Series: Smart App LCD UPS
- Product Model: OR1000LCDRM1U
- Product Name: OR1000LCDRM1U Smart App LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

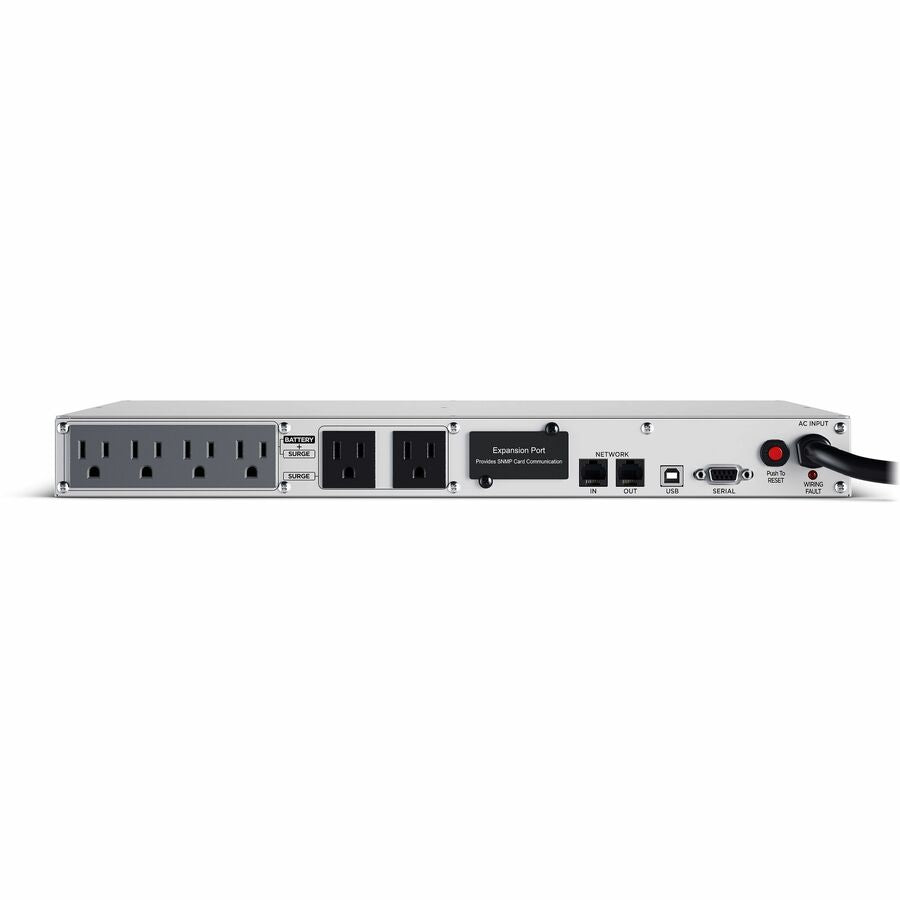

- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Number of Surge-only Outlets: 2
- Dataline Protection: RJ-45
- Overload Protection: Yes
- Transfer Time: 8 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Workstation
- Server
- Network Device
- Telecommunication
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 140 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1150 J
Management
- Network Management: SNMP Manageable
- Alarm:
- Low Battery
- Fault
- Overload
- Battery Mode
Controls/Indicators
- Status Indicators:
On Unit:
- Power On
- Wiring Fault
LCD Panel:
- Input Voltage
- Output Voltage
- Battery Capacity
- Load Level
- Runtime
- On Battery
- Overload
- Silent Mode
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Battery Size: 6V
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 13 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Maximum Operating Temperature: 95°F (35°C)

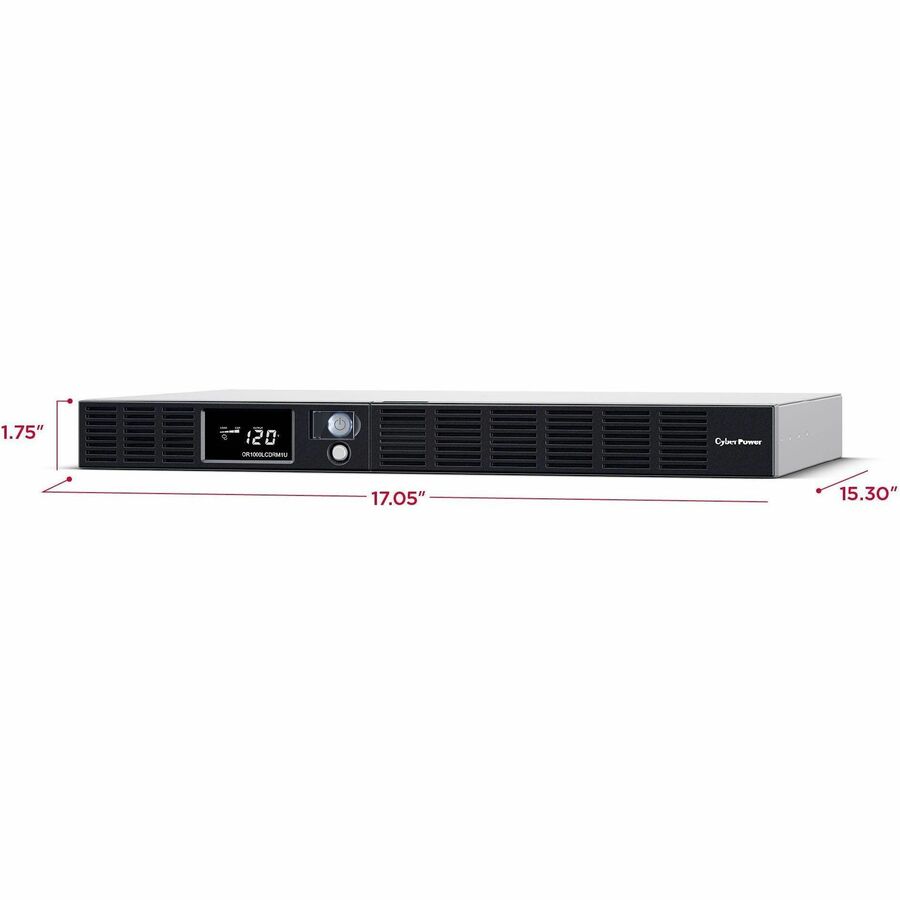

Physical Characteristics
- Product Color: Black
- Height: 1.8"
- Width: 17.1"
- Depth: 15.3"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 30.20 lb
Miscellaneous
- Package Contents:
- Smart App Intelligent LCD OR1000LCDRM1U 1000VA UPS
- User's Manual
- Rackmount Brackets
- USB A+B Type Cable
- Software Included: PowerPanel Business Edition Software
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.
