- Description
- Specifications
CyberPower PDU15B2F8R 100 - 125 VAC 15A Basic PDU - PDU15B2F8R
Key Features
- 10 NEMA 5-15R
- 100 - 125 V
- 15
- 15A (Derated to 12A)
- 17.5W x 1.75H x 2.25D
- 1U Rackmount
- 50Hz/60Hz
- Amps:
- Cord length (ft.):
- Dimensions (in.):
- Frequency:
- Limited lifetime
- NEMA 5-15P
- Outlets:
- Phase:
- Plug type:
- Single
- Size:
- Volts:
- Warranty:
Product Overview

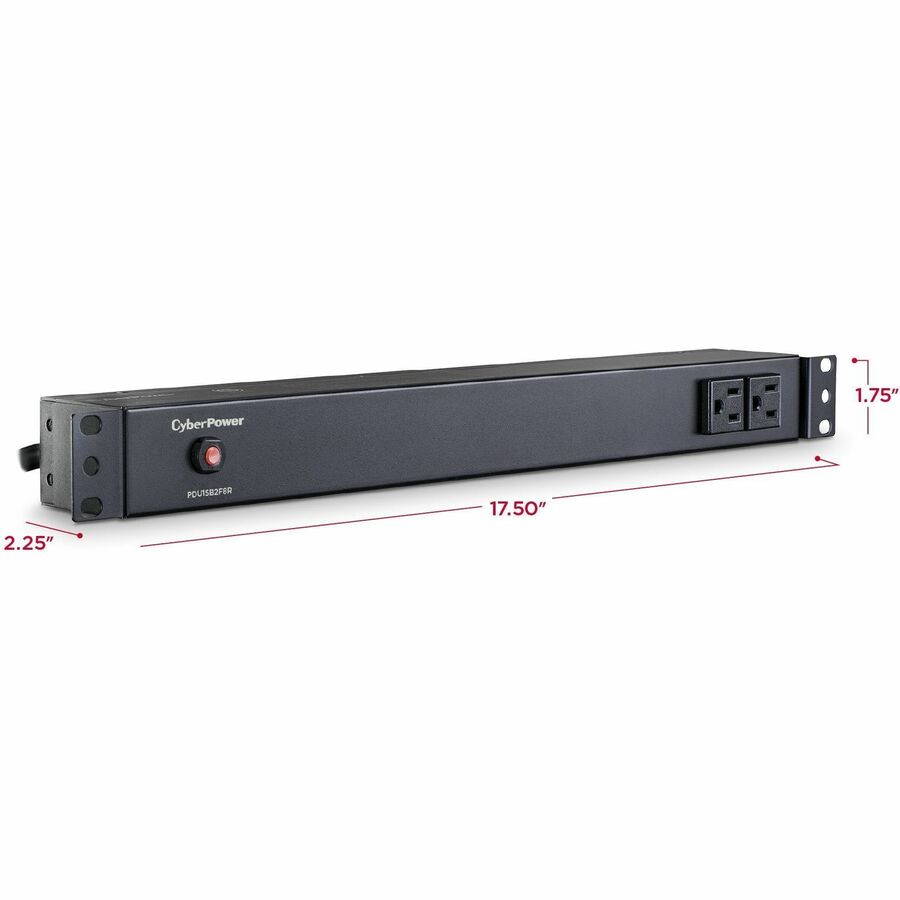

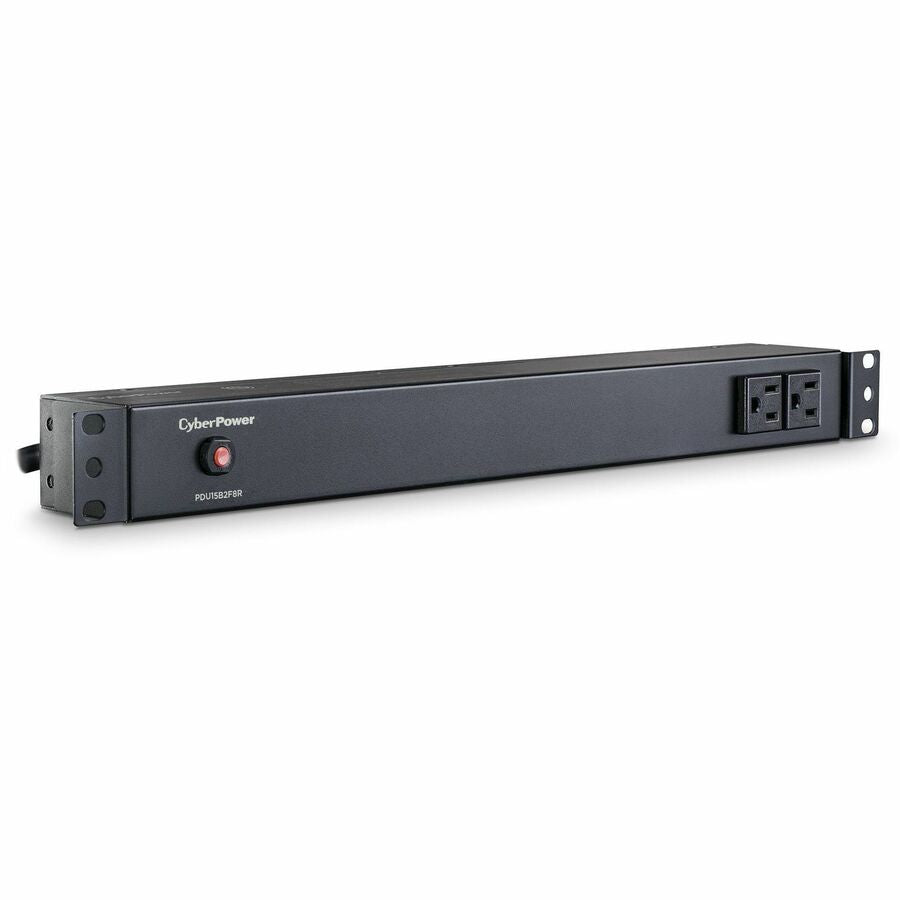

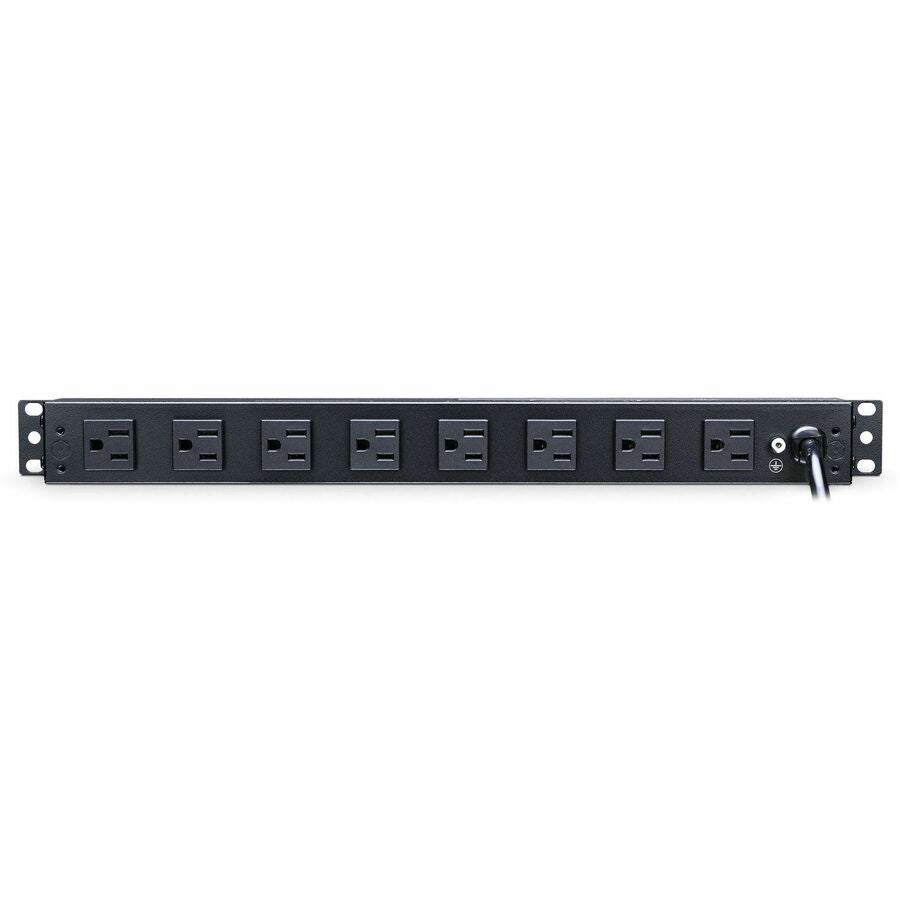

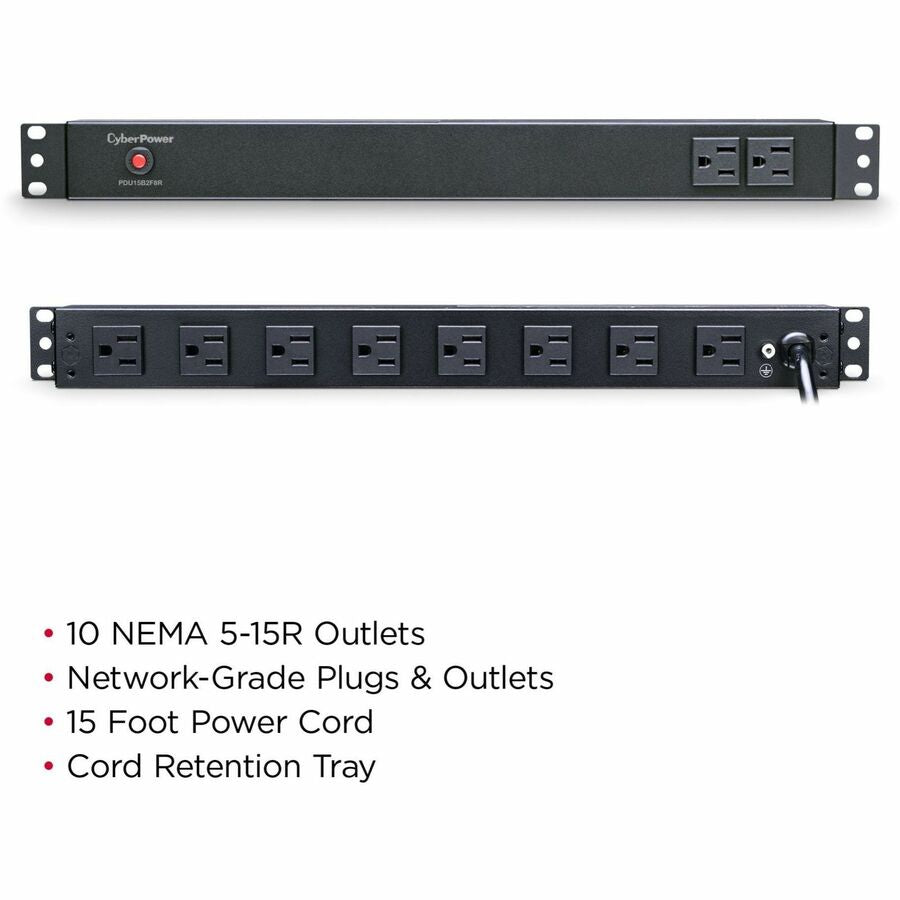

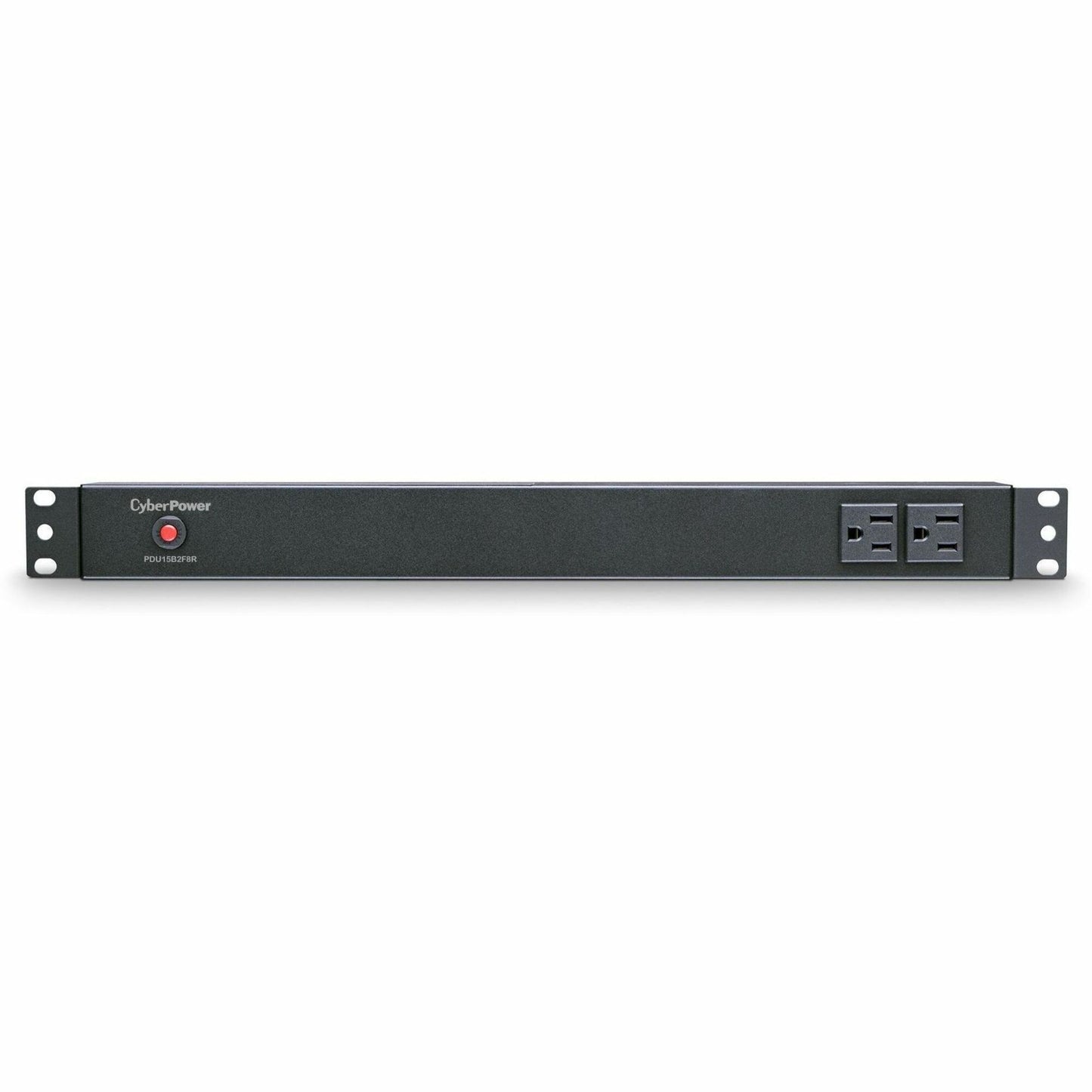

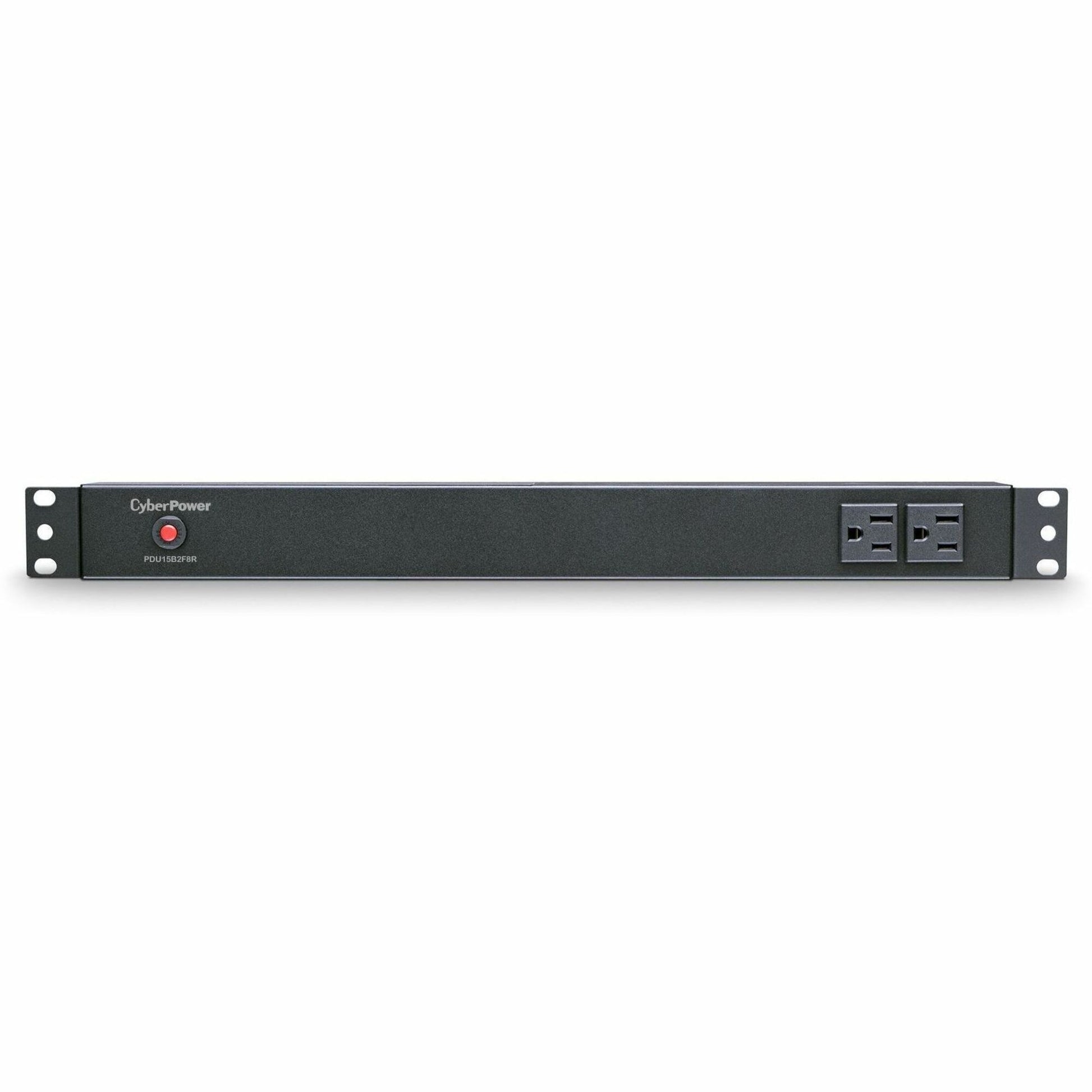

The CyberPower PDU15B2F8R, a 10-outlet (2 front, 8 rear) rackmount basic power distribution unit (PDU), provides 120V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B2F8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU15B2F8R
- Brand Name: CyberPower
- Product Series: Basic PDU
- Product Model: PDU15B2F8R
- Product Name: PDU15B2F8R 100 - 125 VAC 15A Basic
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 10 x NEMA 5-15R
- Protection Type: Overload Protection
Power Description
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.8"
- Width: 17.5"
- Length: 2.3"
- Weight (Approximate): 4 lb
Miscellaneous
- Package Contents:
- Basic PDU15B2F8R 10-Outlets PDU
- Cord Retention Tray
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
