CyberPower PDU15B8R 100 - 125 VAC 15A Basic PDU - PDU15B8R
Key Features
- 100 - 125 V
- 15
- 15A (Derated to 12A)

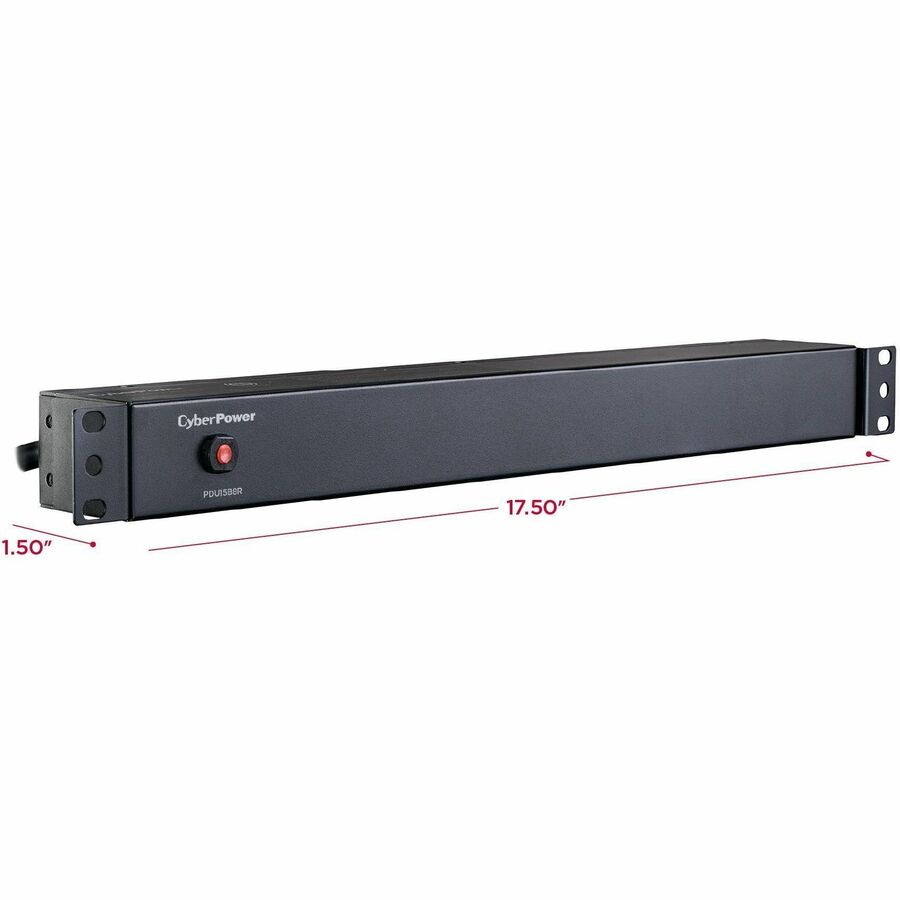

- 17.5W x 1.75H x 1.5D
- 1U Rackmount
- 50Hz/60Hz

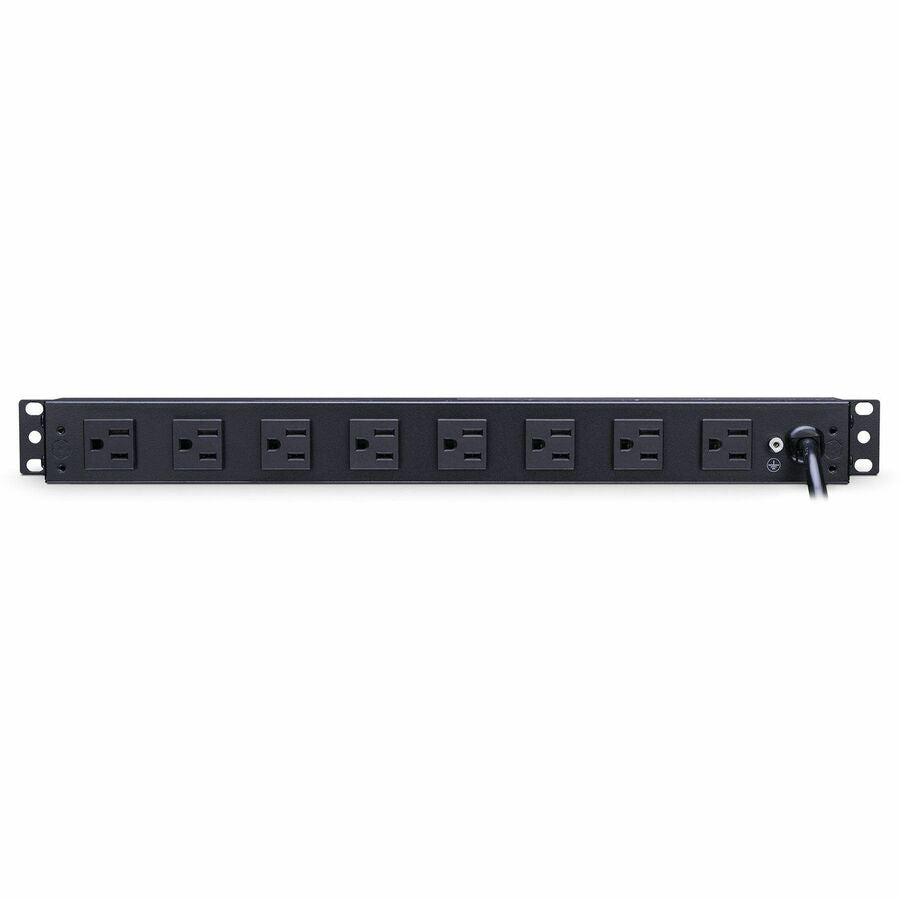

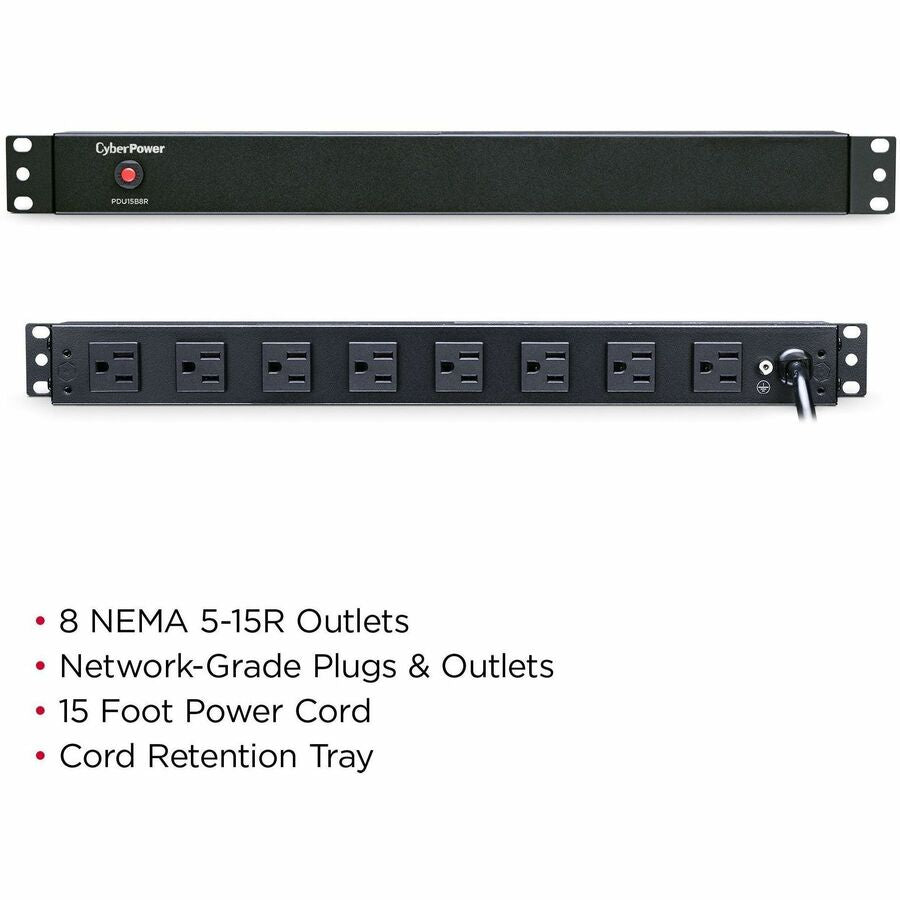

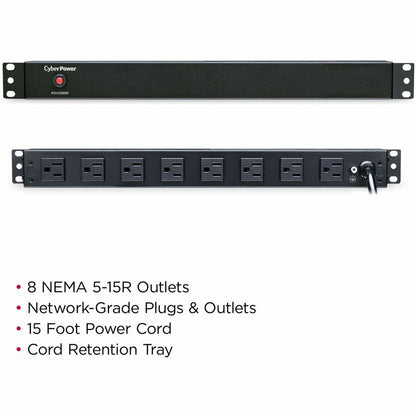

- 8 NEMA 5-15R
- Amps:
- Cord length (ft.):
- Dimensions (in.):
- Frequency:
- Limited lifetime
- NEMA 5-15P
- Outlets:
- Phase:
- Plug type:
- Single
- Size:
- Volts:
- Warranty:
Product Overview

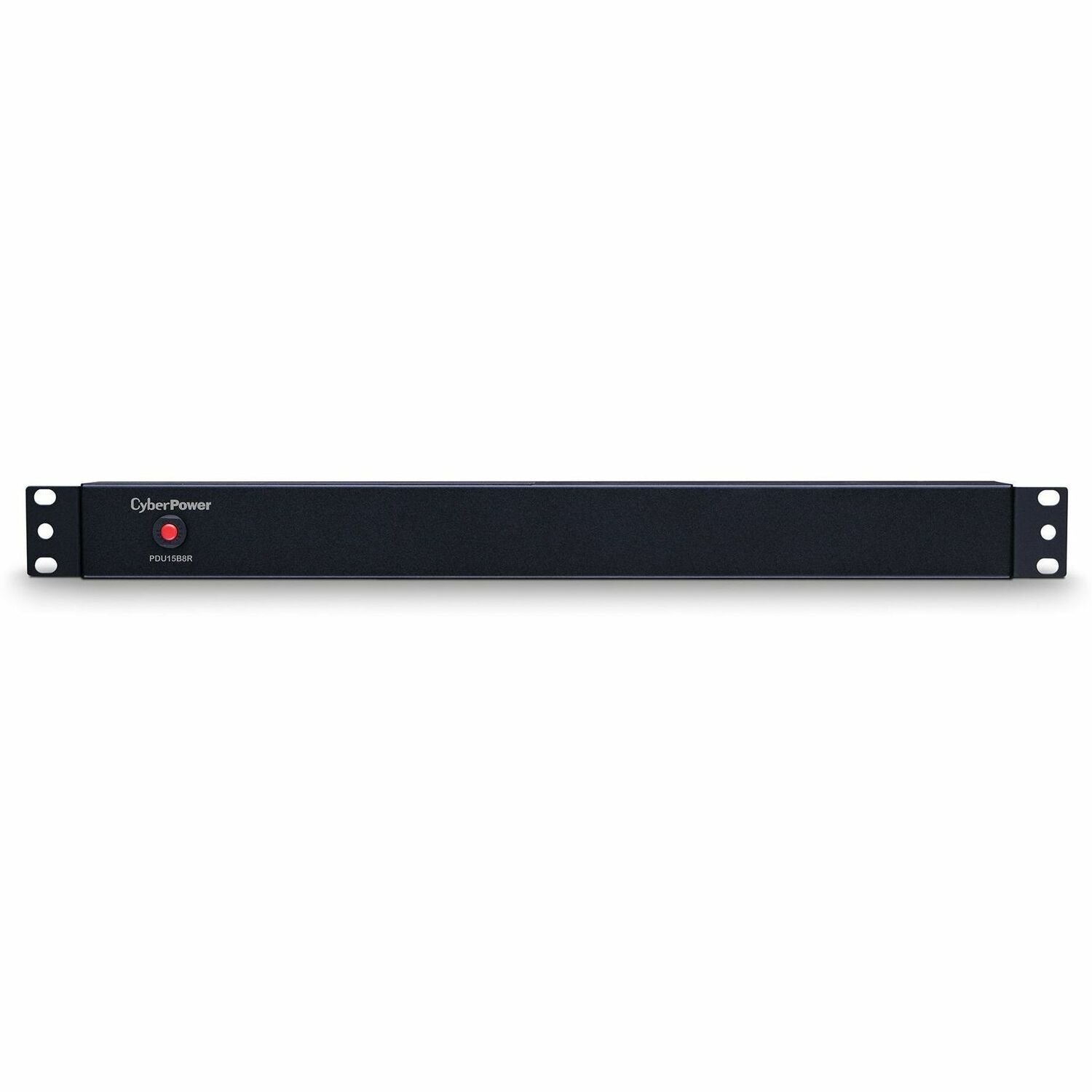

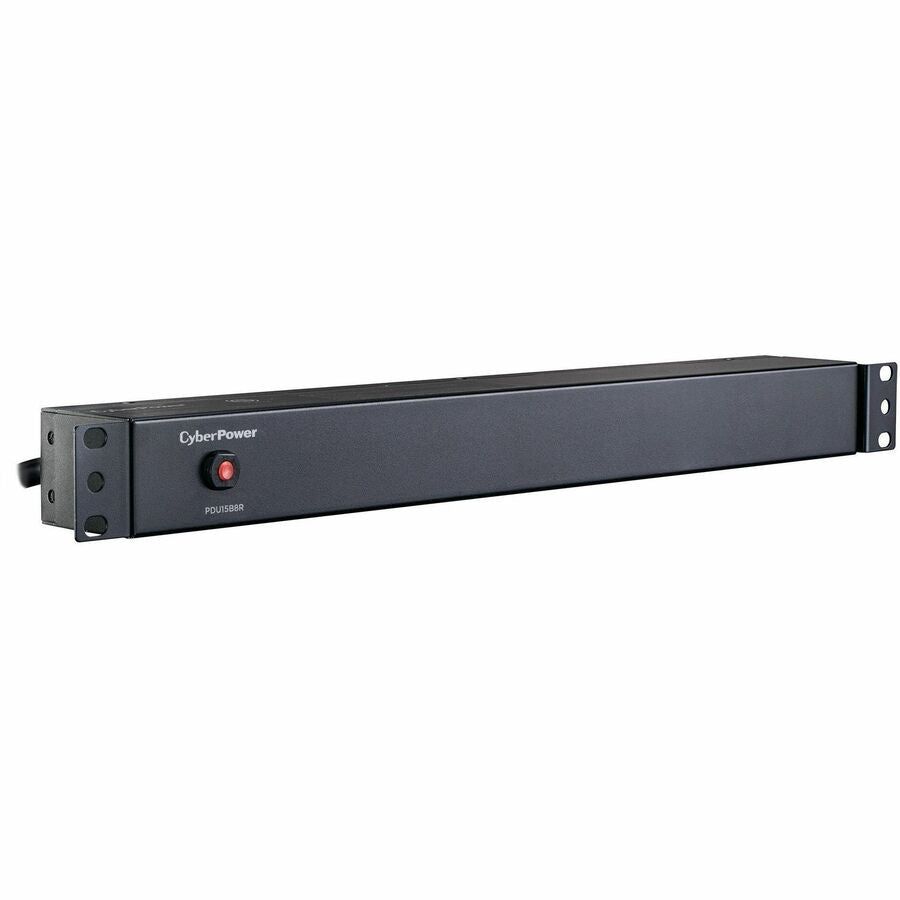

The CyberPower PDU15B8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU15B8R
- Brand Name: CyberPower
- Product Series: Basic PDU
- Product Model: PDU15B8R
- Product Name: PDU15B8R 100 - 125 VAC 15A Basic
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Phase: Single Phase
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Protection Type: Overload Protection
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 125 V AC
- Output Voltage Range: 100 V AC - 125 V AC
- Input Current: 15 A
Physical Characteristics
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.8"
- Width: 17.5"
- Depth: 1.5"
- Weight (Approximate): 3.40 lb
Miscellaneous
- Package Contents:
- PDU15B8R 8-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
